JDM Subaru WRX GDB 6 Speed TY856WB1CA Transmission with Front A.P Suretrac LSD, R180 Diff, Brembo Calipers and More.

Sale!

Item ID: 47949

JDM Subaru WRX GDB 6 Speed TY856WB1CA Transmission with Front A.P Suretrac LSD, R180 Diff, Brembo Calipers and More.

Original price was: $7,995.00.Current price is: $7,495.00.

You will receive the complete transmission swap package. It will come with the matching 6mt drive shaft, transmission cradle. You will receive everything pictured.

1 in stock

Details

Item ID: 47949
Product Code: 6MT Non DCCD
Serial Number: TY856WB1CA 017336
Years: 2002-2007
Type: Manual
Gears: 6
Final Drive: 3.9
Applications:

2002-2007 WRX
2003-2008 Forester (Modification Needed)



Main Transmission
First Gear Ratio 3. 636 :1
Second Gear Ratio 2. 375 :1
Third Gear Ratio 1. 761 :1
Forth Gear Ratio 1. 346 :1
Fifth Gear Ratio 1. 062 :1
Sixth Gear Ratio 0. 842 :1
Seventh Gear Ratio
Reverse Gear Ratio 3. 545 :1
High Range Ratio
Low Range Ratio
Drive System
Full-time four wheel drive with Driver Control Centre Differential (DCCD)

Rear Drive Transfer Ratio 1.000:1
Front Differential
Type Suretrac Limited Slip
Ring Gear Teeth 39
Pinion Gear Teeth 10
Final Drive Ratio 3.900:1
Rear Differential
Final Drive Ratio 3.900:1

Vehicle Speed at 1,000 rpm


Description

Ty856wb1ca transmission with A.P Suretrac LSD.

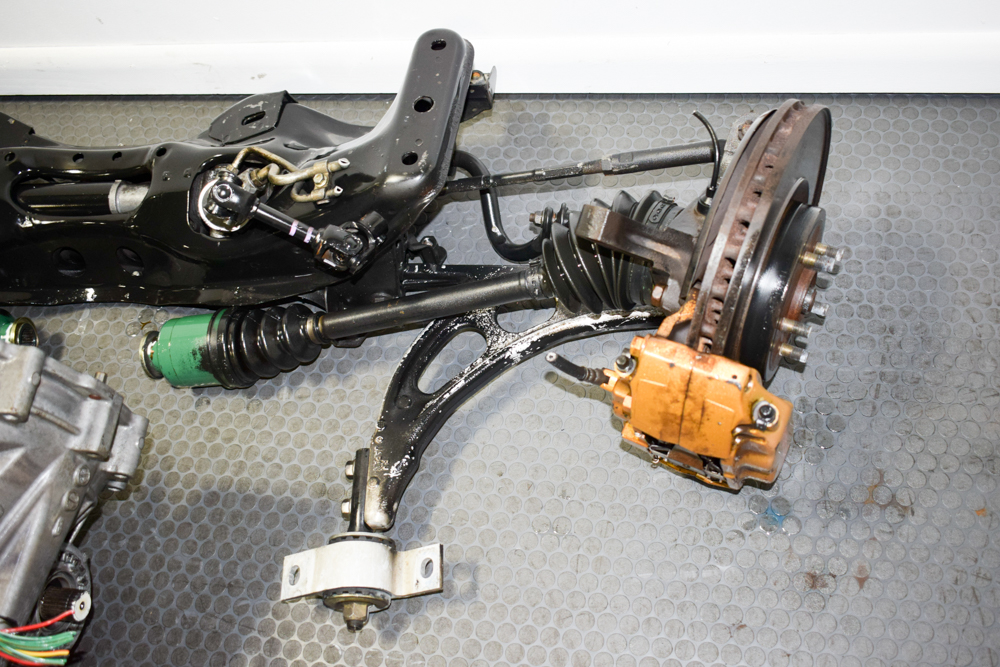

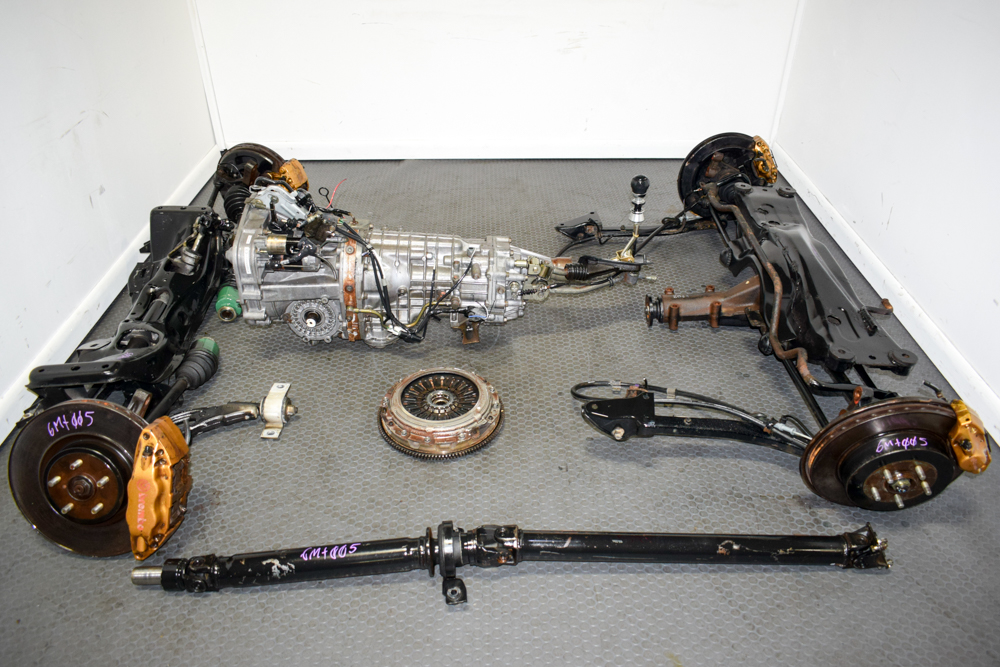

Up for sale is a complete 6 speed STi Ty856wb1ca transmission swap package pulled from a good running and driving Version 7 Subaru STi in Japan. The version 7 Impreza WRX STi came with the Non DCCD option in Japan. This complete Ty856wb1ca transmission with A.P suretrac lsd package includes four corner Brembo brakes with 5×100 hubs and rotors, aluminum control arms, front and rear subframes, axles, R180 rear diff, driveshaft, and everything else shown in the pictures. Driveshaft not shown in pictures, but is included. This is an excellent swap for the 2002-2007 Subaru WRX and can hold a considerable amount of power over the stock 5 speed or automatic. The shorter gearing makes it an excellent option for performance driving as well. Actual item photos. You will get the same swap shown.

The Ty856wb1ca transmission is a highly regarded component in Subaru’s lineup, prized for its reliability and performance capabilities. This manual gearbox features a six-speed configuration with a close-ratio design, allowing for precise control over gear changes and enhancing the vehicle’s acceleration and responsiveness. Known for its durability, the TY856WB1CA transmission can withstand the rigors of spirited driving and demanding conditions without compromising its functionality. With advanced synchronizer technology and a robust construction, this transmission delivers smooth and seamless shifts, ensuring a satisfying driving experience for enthusiasts. Whether navigating twisty mountain roads or cruising on the highway, the TY856WB1CA transmission provides drivers with confidence and control, making it a preferred choice among Subaru enthusiasts and drivers who value performance and reliability.



See more 6mt Sti Transmissions:  https://jspecauto.com/product-category/transmissions/?_product_brand=subaru&_transmission_sub_category=wrx-sti-6mt-transmissions-for-2002-2014-subaru-imp&_available=1

Warranty

Warranty: 30 day warranty

LEARN MORE

Warranty

Warranty: 30 day warranty

LEARN MORE

Policies

While every reasonable effort is made to ensure the accuracy of this information, we are not responsible for any errors or omissions contained on these pages. Please verify any information in question with J-Spec Auto Sports.
