JDM Toyota U241E 4-Speed Automatic Transmission – 2006–2008 RAV4, Camry, Scion tC, Highlander 2.4L 2AZ-FE FWD – Item 255876
Item ID: 255876
JDM Toyota U241E 4-Speed Automatic Transmission – 2006–2008 RAV4, Camry, Scion tC, Highlander 2.4L 2AZ-FE FWD – Item 255876
$895.00
Low-mileage JDM Toyota U241E 4-speed automatic transmission for the 2.4L 2AZ-FE, front-wheel drive. Fits the 2006–2008 Toyota RAV4 FWD, 2002–2004 Toyota Camry 2.4L, 2005–2010 Scion tC and 2001–2007 Toyota Highlander 2.4L FWD. Imported from Japan with a 90-day warranty. $895 — ships nationwide, or have it installed at our Henrico, VA shop.
FWD only: AWD/4WD RAV4s use the U140F. Send us your VIN and we’ll confirm fitment before you buy.
Affordable Installation Available
Contact Us
Item ID: 255876
Product Code: U241E
Serial Number: U250 2AZ-FE
Years: 2006-2008
Type: 4-Speed Automatic
Gears: 4-Speed FWD / 2WD
Final Drive: 2.4L FWD
Applications:
2002-2004 Toyota Camry 2.4L FWD
2006-2008 Toyota RAV4 2.4L FWD
2005-2010 Scion TC 2.4L FWD
2001-2007 Toyota Highlander 2.4L FWD
Because Japanese Domestic Market (JDM) vehicles differ slightly from North American (USDM) models, a few components should be transferred from your original transmission to ensure proper fitment and reliable operation.
- Speed Sensors: Many JDM transmissions do not use the same speed sensor configuration as USDM models. In most cases, you will need to transfer the input and output speed sensors, along with the differential assembly, from your original transmission.
- Wiring & Electrical Components: Connector styles and pin configurations may vary between JDM and USDM transmissions. For proper communication with your vehicle’s ECU, transfer your original wiring harness, shift solenoids, and neutral safety switch to the JDM transmission.
- Mounting Brackets: Depending on the vehicle application (for example, installing a Camry transmission into a RAV4), you may need to reuse the mounting brackets from your original transmission to ensure correct fitment.
- Transmission Fluid: The Toyota U241E transmission is designed to use Toyota ATF Type T-IV fluid. For best performance and transmission longevity, use only the recommended T-IV fluid. Do not substitute with Toyota WS or universal automatic transmission fluids, as they do not provide the same friction characteristics required by this transmission.
JDM Toyota U241E 4-Speed Automatic Transmission – 2.4L 2AZ-FE FWD
In short: This is a used, low-mileage JDM Toyota U241E 4-speed automatic transmission for the 2.4L 2AZ-FE front-wheel-drive Toyota RAV4, Camry, Scion tC and Highlander. It’s $895 at J-Spec Auto Sports in Henrico, Virginia, with a 90-day warranty, nationwide freight shipping and optional installation.

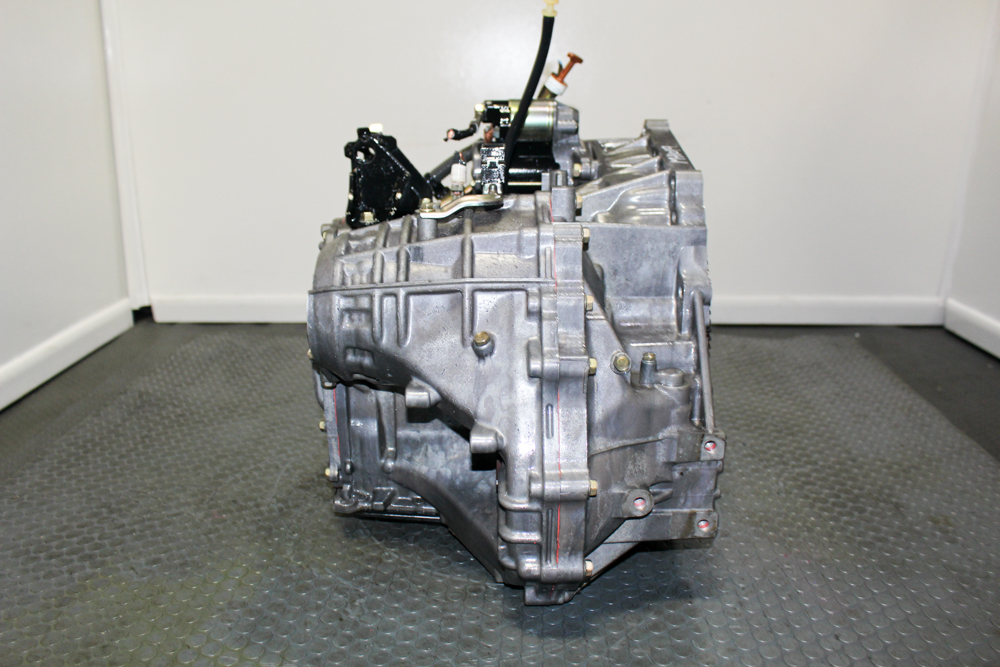

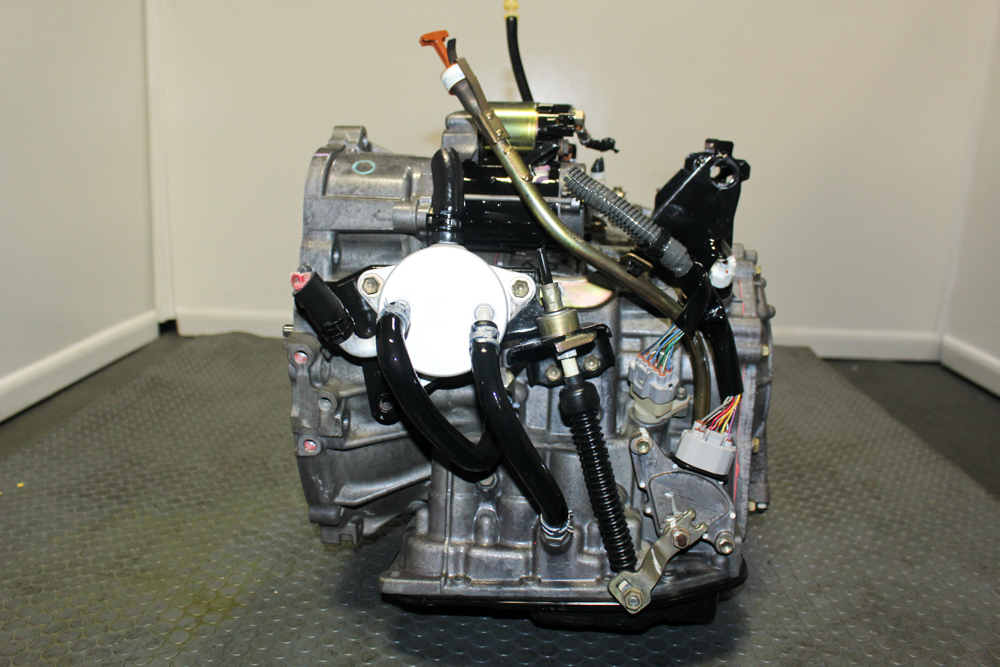

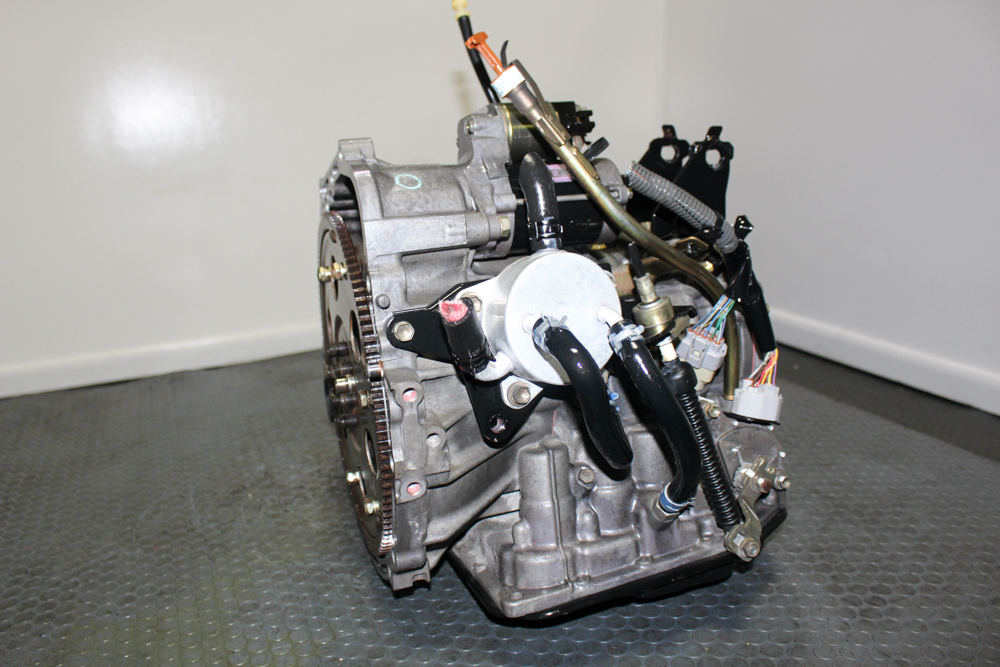

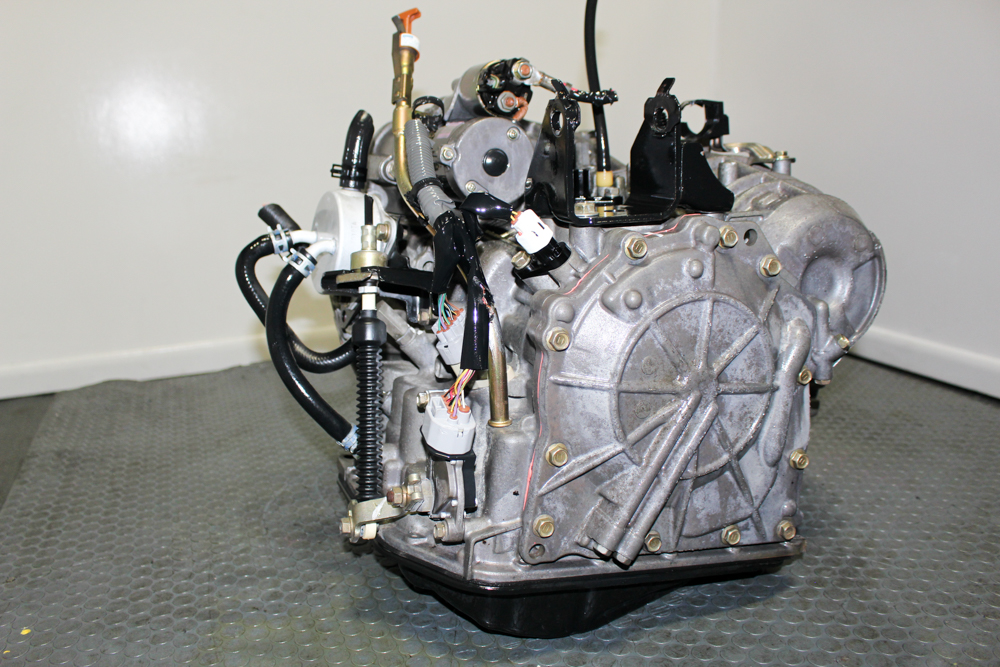

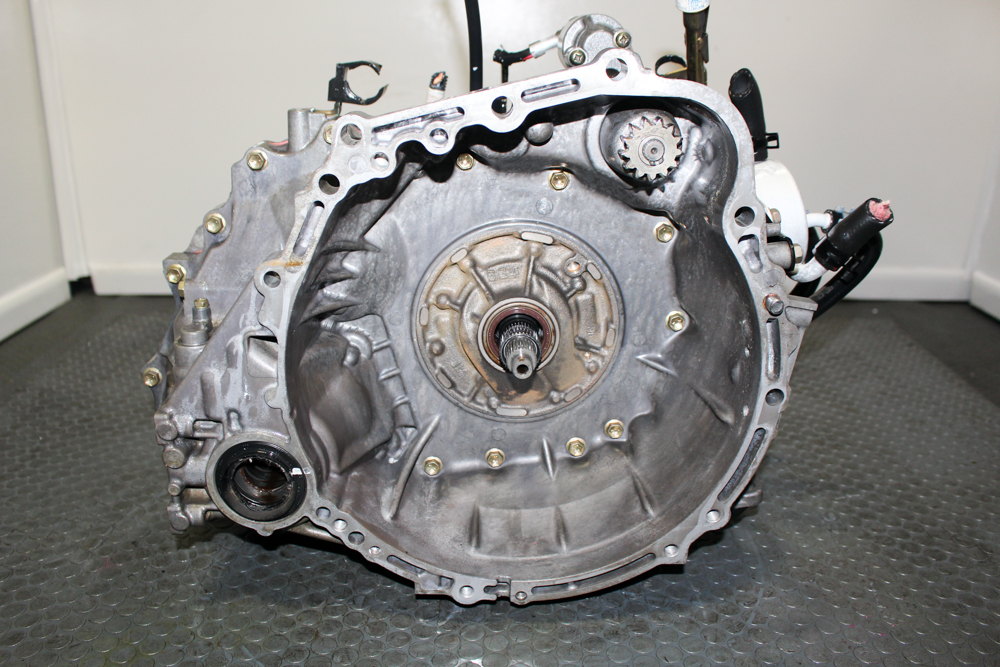

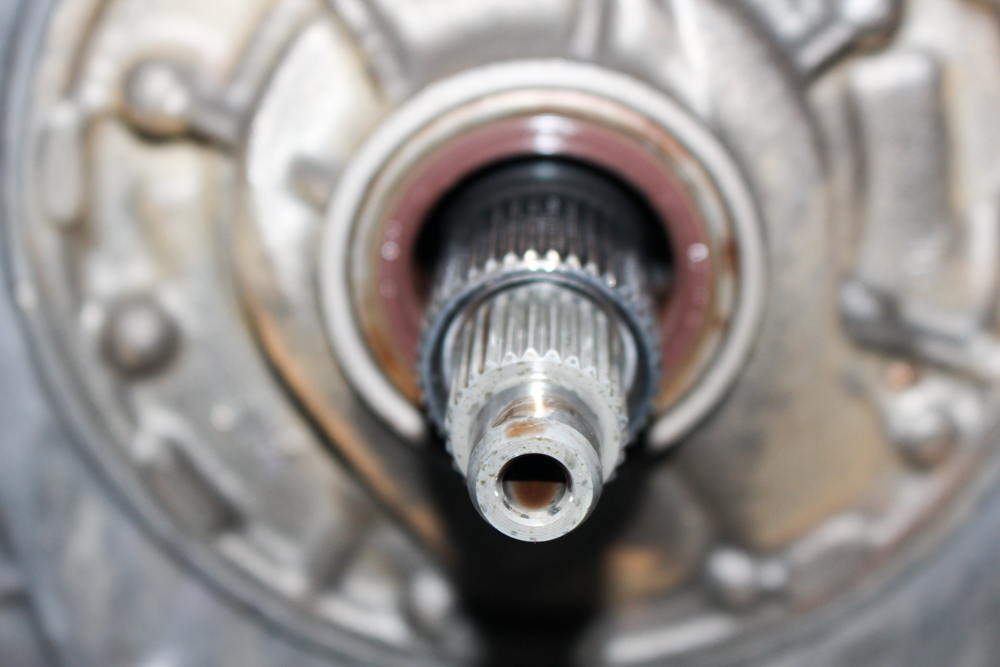

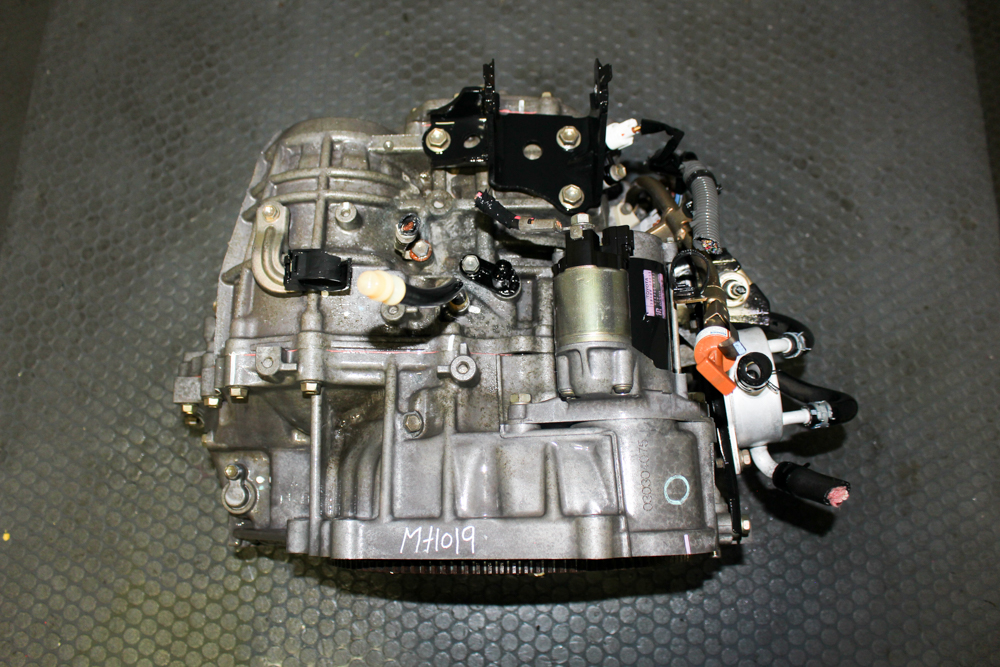

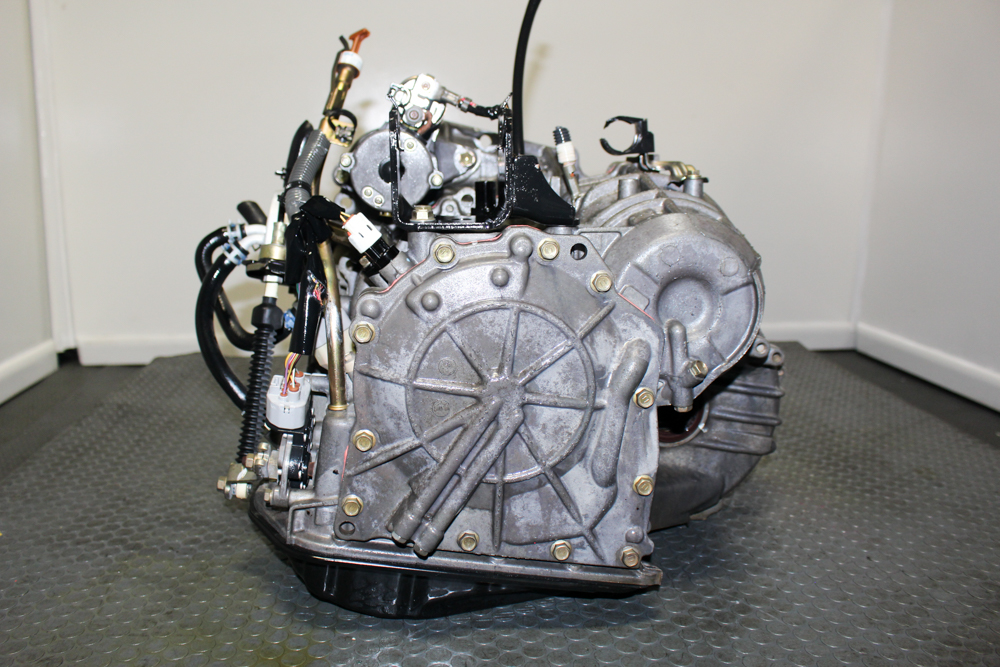

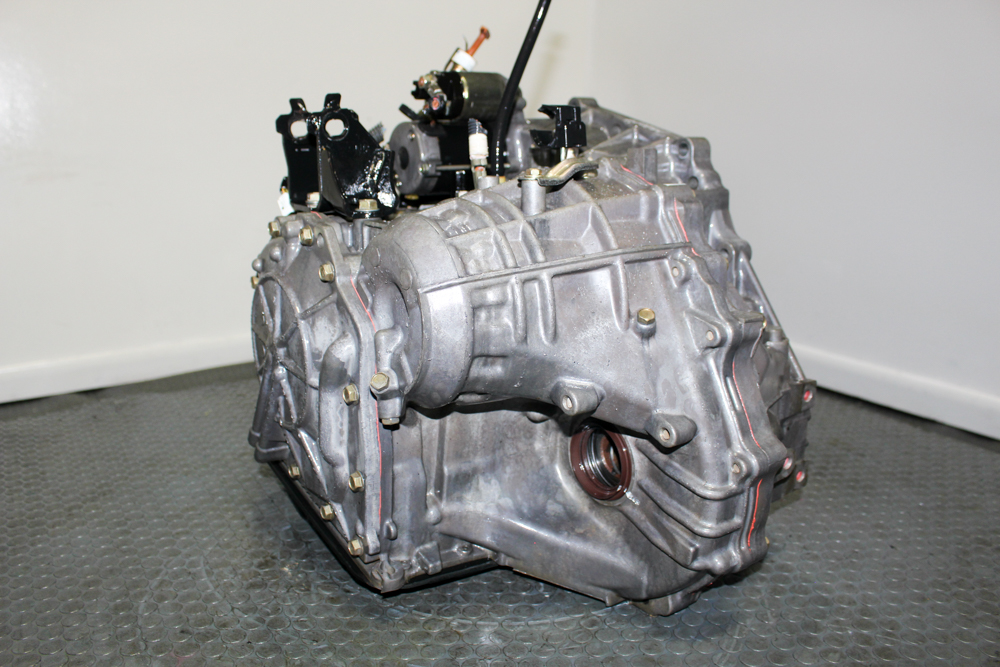

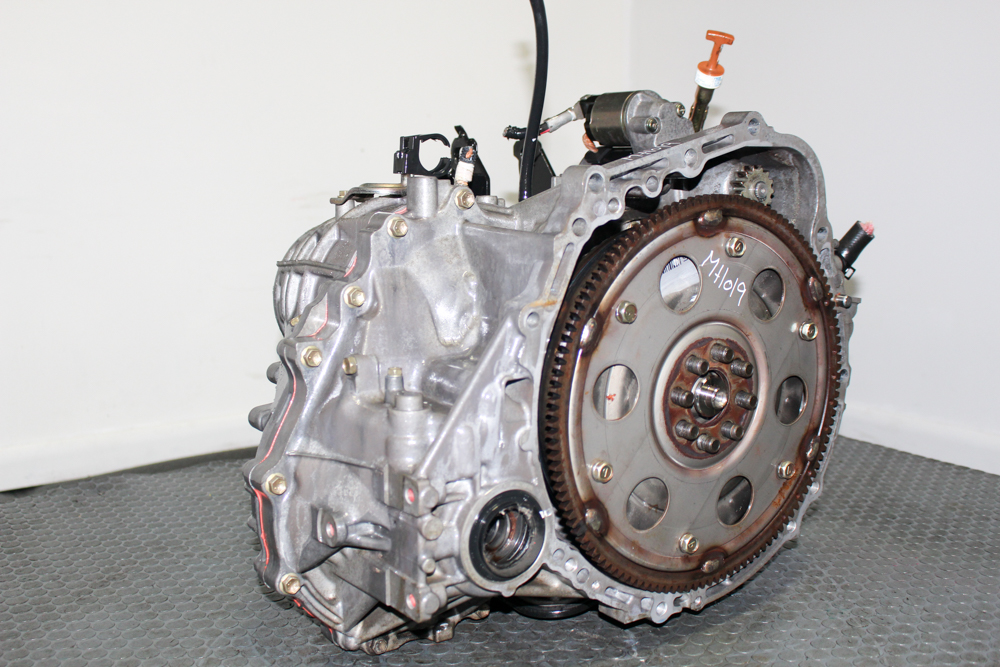

If your RAV4 or Camry is slipping, flaring between gears, engaging late into Drive or Reverse, or showing a transmission warning light, a low-mileage JDM U241E is one of the most affordable ways to get it back on the road. It’s a genuine Toyota OEM unit imported from Japan, and every photo on this page shows the exact transmission you’ll receive.
Vehicle Fitment (FWD / 2WD only)
- 2006–2008 Toyota RAV4 2.4L FWD
- 2002–2004 Toyota Camry 2.4L
- 2005–2010 Scion tC 2.4L automatic
- 2001–2007 Toyota Highlander 2.4L FWD
Not compatible with: AWD/4WD RAV4 or Highlander models (these use the U140F), V6 models, or 5-speed automatic models such as the 2007+ Camry 2.4L (U250E).

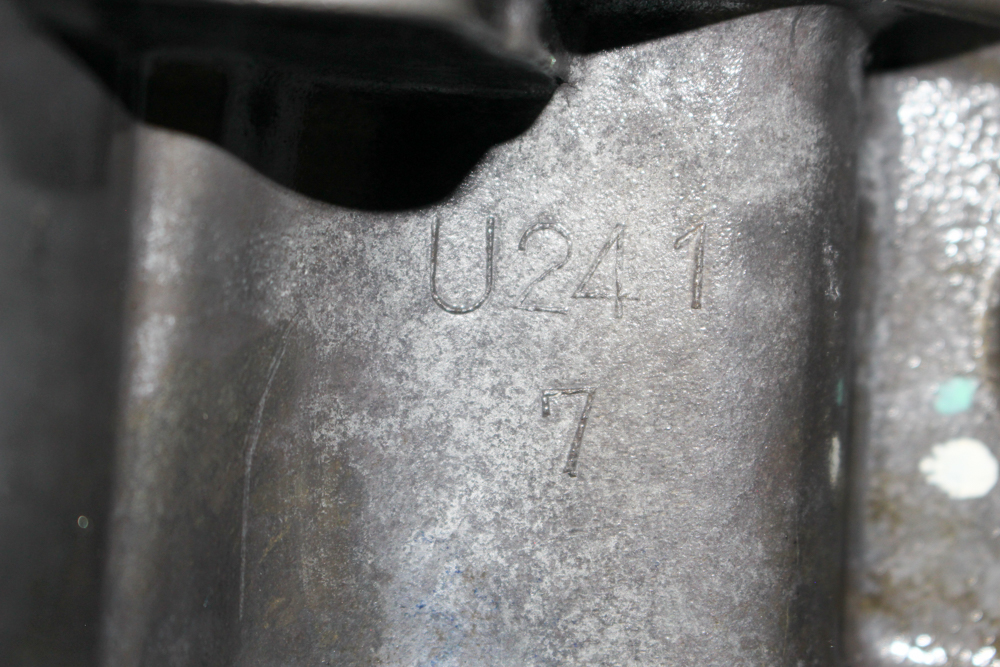

Confirm before ordering: Send us your VIN or a photo of your transmission’s ID tag and we’ll verify the match.
JDM to US Installation Notes
Japanese-market and US-market U241E transmissions share the same core, but some external parts can differ. Plan to transfer these from your original transmission:
- Speed sensors: input and output sensors, and in some cases the differential assembly
- Wiring and electrical parts: harness, shift solenoids and neutral safety switch, so the transmission talks to your car’s computer correctly
- Mounting brackets: especially when the donor and your car are different models (for example, Camry to RAV4)
Any experienced transmission shop handles this routinely. Our own installers in Henrico, VA do it every week.
Specifications
| Transmission code | U241E |
| Type | 4-speed automatic transaxle |
| Engine | Toyota 2AZ-FE 2.4L 4-cylinder |
| Drivetrain | Front-wheel drive (FWD / 2WD) |
| Fluid | Toyota Genuine ATF Type T-IV |
| Origin | JDM (imported from Japan) |
| Condition | Used, low mileage |
| Price | $895 |
| Item ID / SKU | 255876 / 2AZ-U241E MT1019 |
| Warranty | 90 days |
What’s Included
The U241E transmission assembly exactly as shown in the photos. Anything not pictured is not included unless stated.
Installation Tips
- Flush or replace the transmission cooler and lines. Debris from the failed unit can damage the replacement.
- Use Toyota ATF Type T-IV only. Don’t use Toyota WS or universal fluids, because the U241E needs T-IV’s friction properties.
- Fully seat the torque converter before bolting the transmission to the engine.
- Inspect the engine and transmission mounts while you have access.
- Clear codes and road test gently, then recheck the fluid level.
Prefer a professional install? Affordable installation is available at our Henrico, VA shop, serving Richmond and Central Virginia.
Why Buy From J-Spec Auto Sports
- 20+ years specializing in Japanese (JDM) engines and transmissions
- Real photos of the exact unit you’ll receive, never stock images
- 90-day warranty on this transmission
- Ships in 1–2 business days by freight anywhere in the continental US
- Local pickup and installation in Henrico/Richmond, VA
- Reserve it for $44.75 and pay the balance within 14 days
- Licensed Virginia dealer (MVBD 48223) and auto recycler (53292)
Frequently Asked Questions
What transmission does a 2006–2008 Toyota RAV4 2.4L use?
The front-wheel-drive 2006–2008 RAV4 with the 2.4L 2AZ-FE uses the U241E 4-speed automatic. AWD/4WD versions use the U140F.
Will this fit my AWD RAV4?
No. AWD and 4WD RAV4s use the U140F. This U241E is for front-wheel-drive models only.
Will it fit a 2007 or newer Camry 2.4L?
No. The 2007+ Camry 2.4L uses the 5-speed U250E. This U241E fits the 2002–2004 Camry 2.4L.
Does it fit a Scion tC?
Yes. It fits the 2005–2010 Scion tC 2.4L automatic.
What fluid does the U241E use?
Toyota Genuine ATF Type T-IV. Don’t substitute Toyota WS fluid.
Do I need to swap parts from my old transmission?
Usually yes. Plan to transfer the speed sensors, wiring/solenoids and possibly the brackets, as with most JDM-to-US transmission swaps.
How much is it?
$895 with a 90-day warranty. A $44.75 deposit reserves it.
Questions or fitment check? Call J-Spec Auto Sports at 866-683-3747 (toll free) or 804-525-6287, or visit us at 8409 Sanford Dr., Henrico, VA 23228. Open Mon–Fri 9am–5pm, Sat 9am–1pm.
