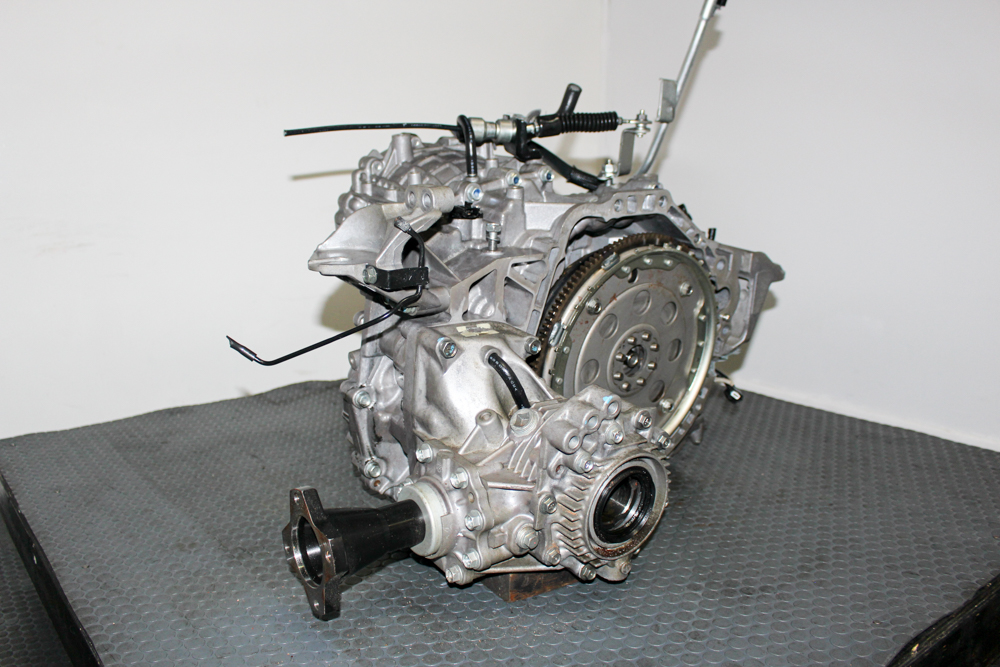

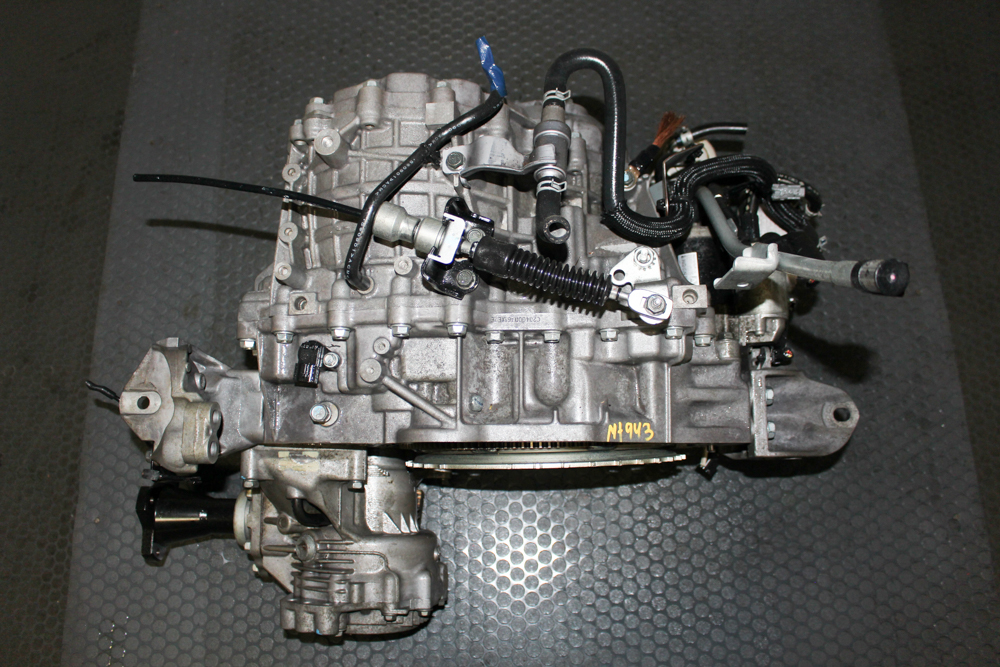

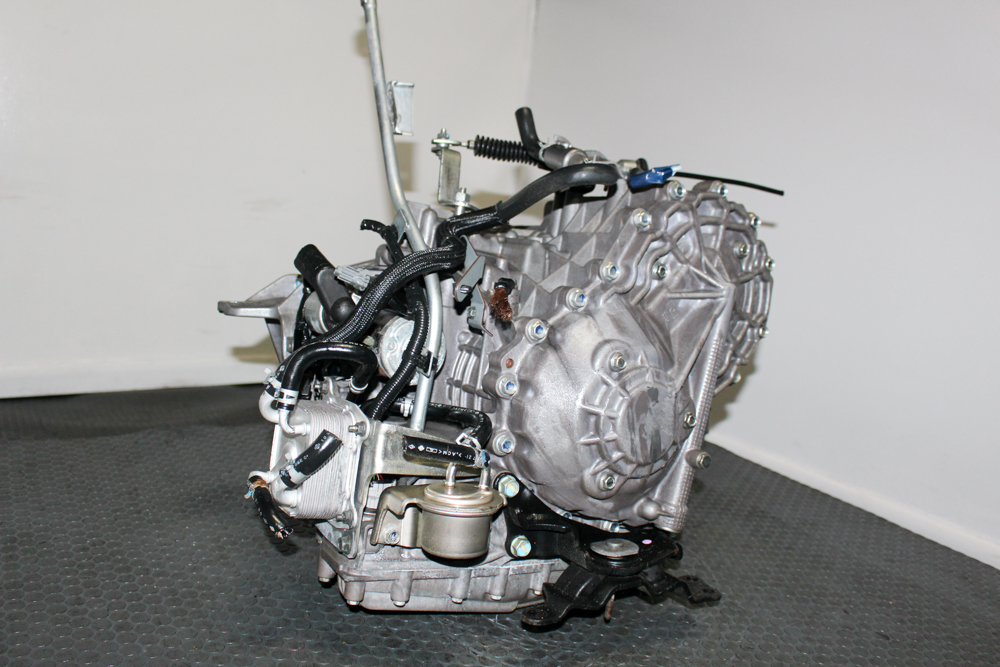

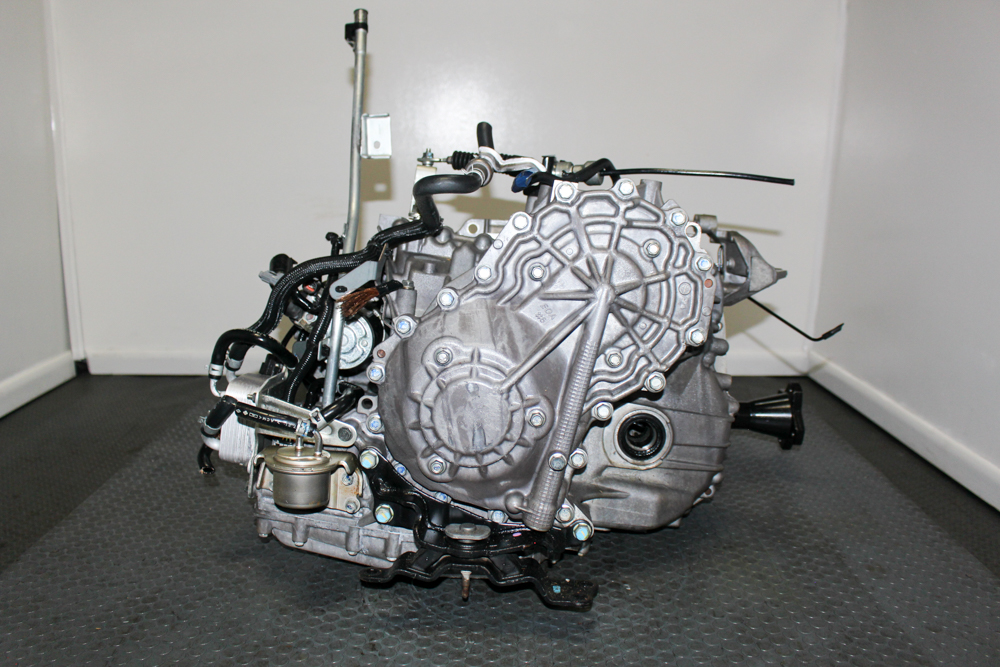

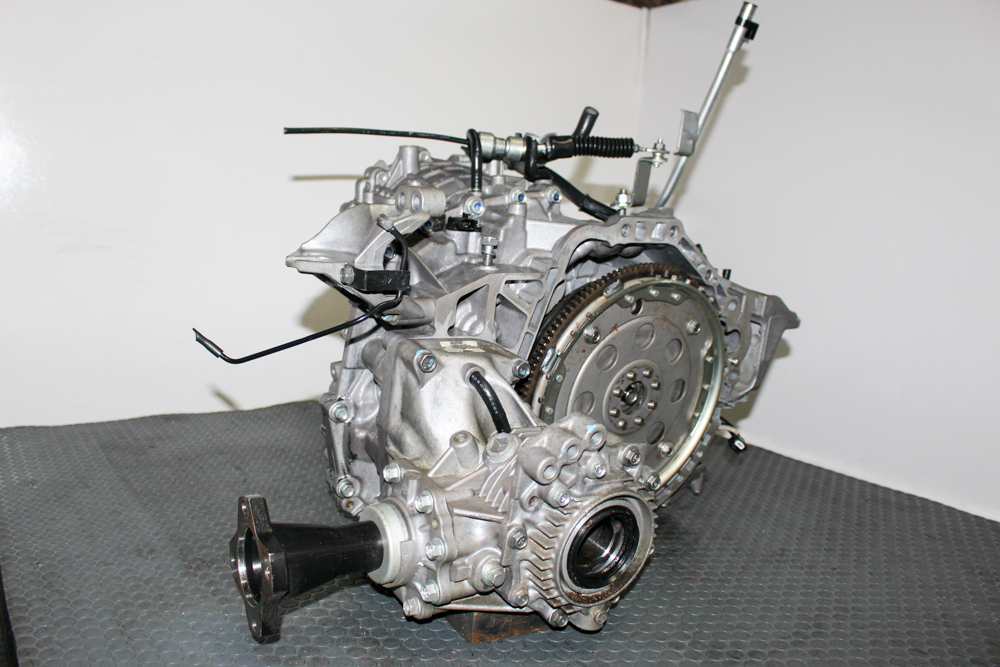

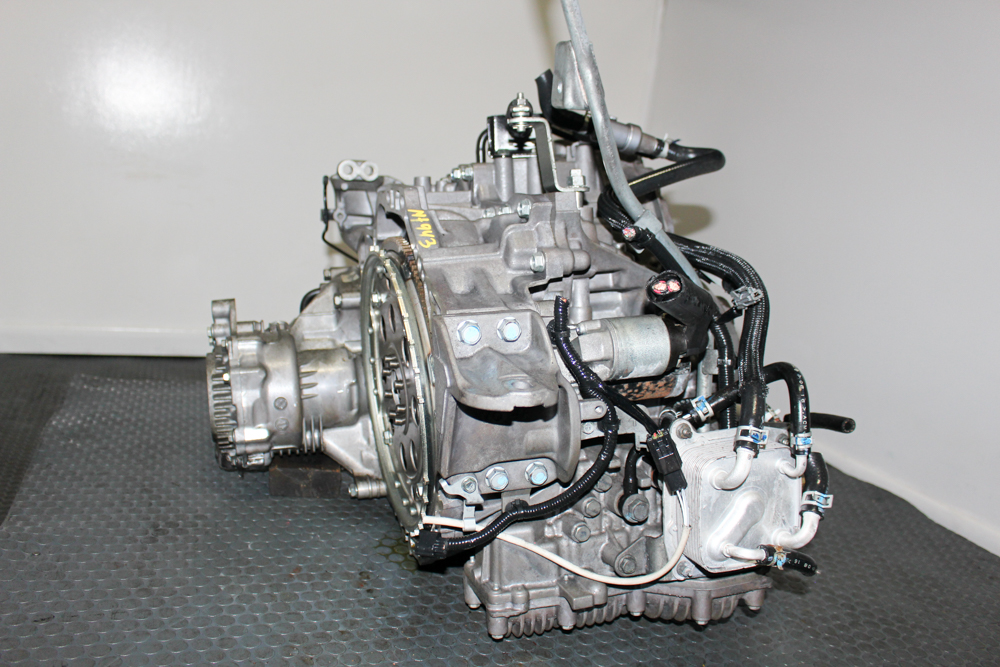

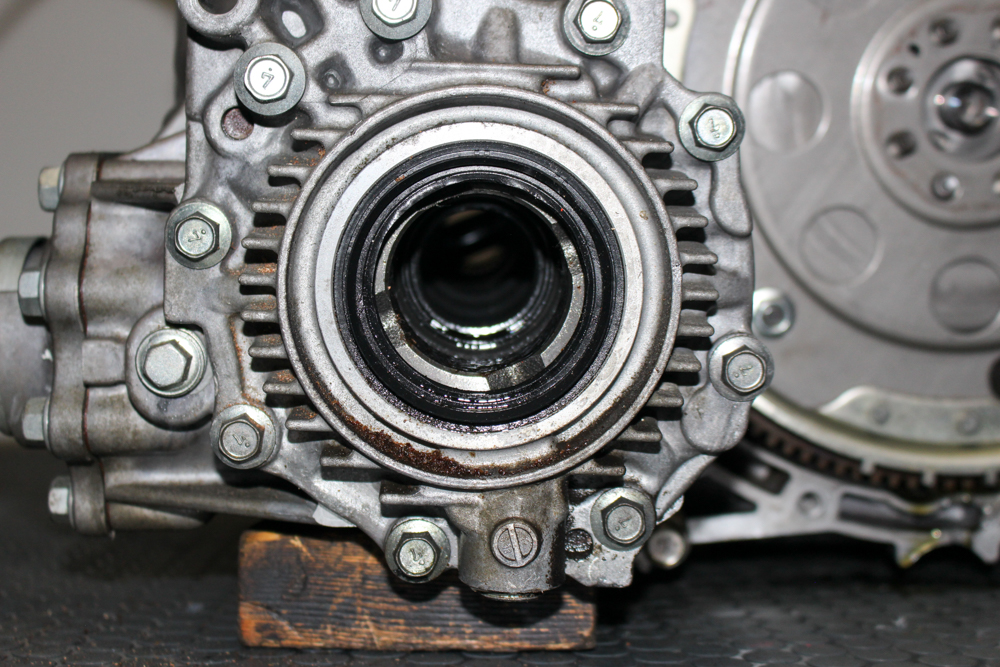

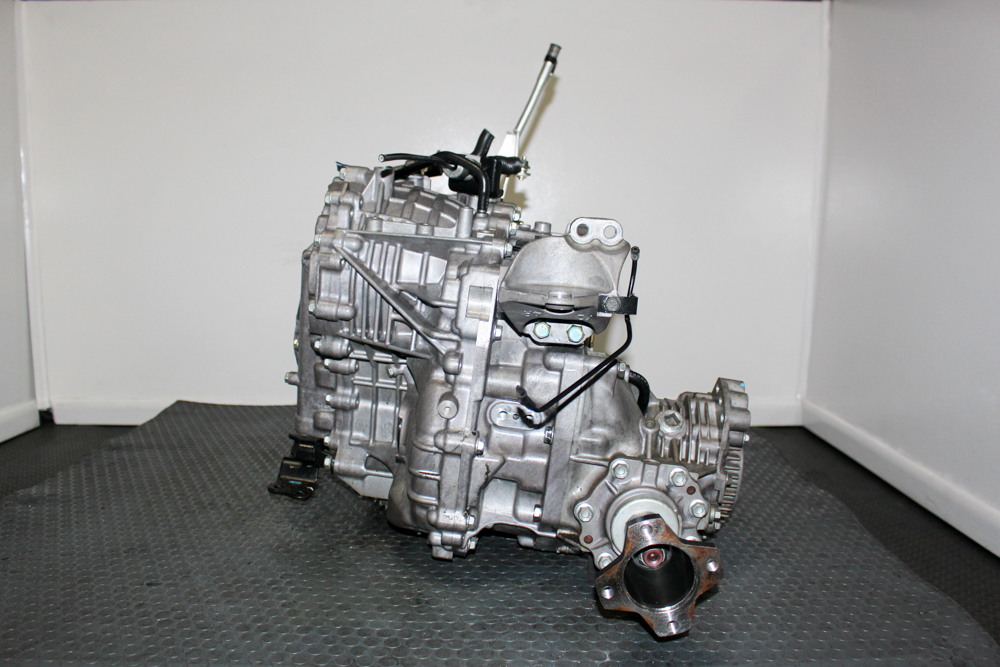

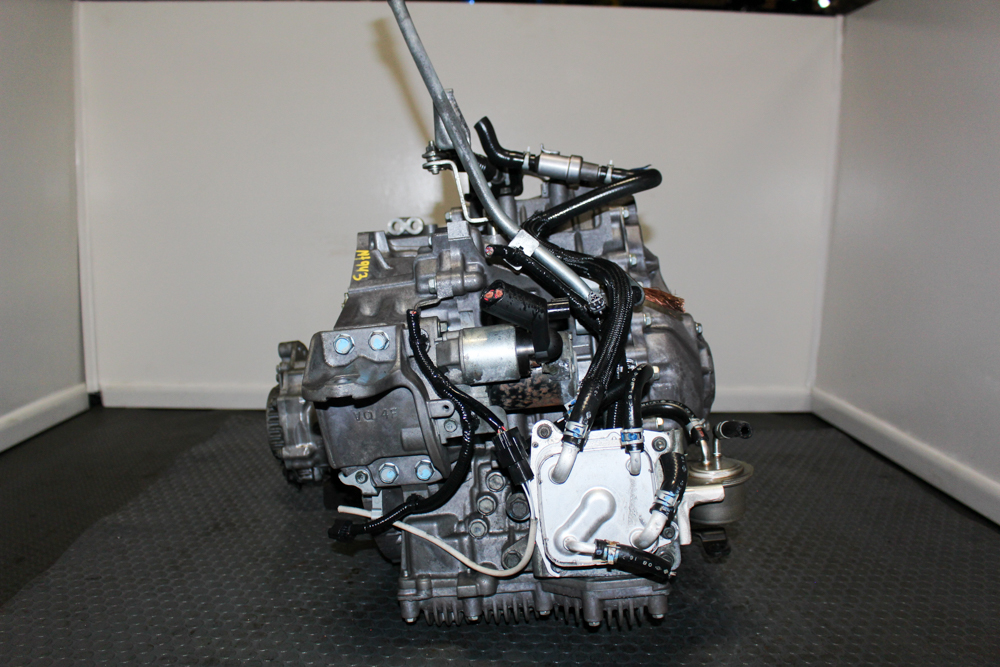

JDM 2009–2014 NISSAN MURANO RE0F09B / JF010E AWD CVT TRANSMISSION

Replace a worn or failed Murano CVT with this JDM Nissan RE0F09B / JF010E continuously variable transmission for compatible 2009–2014 Nissan Murano AWD applications.

This transmission is designed for the second-generation Nissan Murano equipped with the:

VQ35DE 3.5L V6

and:

AWD drivetrain

Nissan identifies the CVT as:

RE0F09B

while Jatco identifies the corresponding transmission family as:

JF010E

Using both transmission codes improves fitment clarity because customers, repair shops, transmission specialists, Google, and AI search systems may search by either designation.

The primary product relationship is:

Nissan Murano → Z51 → 2009–2014 → VQ35DE 3.5L V6 → RE0F09B / JF010E → CVT → AWD → Transfer Case Not Included

QUICK DETAILS

• Manufacturer: Nissan / Jatco
• Vehicle: Nissan Murano
• Generation: Z51
• Years: 2009–2014
• Engine Code: VQ35DE
• Engine Size: 3.5L
• Engine Configuration: V6
• Nissan Transmission Code: RE0F09B
• Jatco Transmission Code: JF010E
• Transmission Type: CVT
• Drivetrain: AWD
• Transfer Case: Not Included
• CVT Fluid: Genuine Nissan NS-2
• Condition: Used OEM JDM / Low Mileage
• Origin: Japan
• Item ID: 253441
• SKU: MT943
• Shipping: Nationwide Freight
• Installation: Available

RE0F09B / JF010E TRANSMISSION IDENTIFICATION

The key Nissan transmission identifier for this product is:

RE0F09B

The corresponding Jatco family designation is:

JF010E

These identifiers are much stronger than the current generic Product Code:

VQ35 AWD MURANO AUTO

For SEO and fitment accuracy, the Product Code should be changed to:

RE0F09B / JF010E

Move:

VQ35DE

into the Engine Code field.

SECOND-GENERATION Z51 NISSAN MURANO

This transmission targets the:

2009–2014 Nissan Murano Z51

generation.

Compatible target applications include:

• 2009 Nissan Murano AWD 3.5L
• 2010 Nissan Murano AWD 3.5L
• 2011 Nissan Murano AWD 3.5L
• 2012 Nissan Murano AWD 3.5L
• 2013 Nissan Murano AWD 3.5L
• 2014 Nissan Murano AWD 3.5L

Fitment must still be verified by transmission identification and complete drivetrain configuration.

VQ35DE 3.5L V6 APPLICATION

This CVT pairs with Nissan’s:

VQ35DE 3.5L V6

engine.

Recommended structured fields:

Engine Code: VQ35DE

Engine Size: 3.5L

Engine Configuration: V6

Do not use only:

VQ35

because the full engine code provides stronger technical and SEO value.

AWD APPLICATION

This listing is specifically for:

AWD / All-Wheel Drive

Keep AWD clearly visible in:

• Product title
• Short description
• Product data
• Image ALT text
• FAQ
• Schema
• Fitment notices

Do not confuse this item with a FWD Murano CVT.

TRANSFER CASE IS NOT INCLUDED

This is one of the most important details on Item 253441.

The product title and short description identify this transmission as:

WITHOUT TRANSFER CASE

Therefore, the sale should be described as:

CVT Transmission Assembly – Transfer Case Not Included

Do not state that the transfer case is included unless the actual inventory package is physically changed.

WHY THE TRANSFER CASE MATTERS

The AWD Murano uses a separate transfer unit to send power toward the rear drivetrain.

Because Item 253441 is sold without that component, the installer will need to:

• Reuse the compatible original transfer case
• Source a compatible replacement transfer case
• Inspect transfer-case splines and seals
• Confirm mounting compatibility
• Verify transfer fluid condition

Do not discard the customer’s original transfer case until compatibility is confirmed.

DO NOT CONFUSE THIS WITH FWD RE0F09B INVENTORY

The second-generation Murano was sold in both FWD and AWD configurations.

Although the broader CVT family is related, drivetrain configuration matters.

For Item 253441:

Drivetrain: AWD

Therefore, do not market it as a generic FWD/AWD Murano CVT.

Keep the product page centered on AWD search intent.

CVT – NOT A CONVENTIONAL AUTOMATIC

The RE0F09B is a:

Continuously Variable Transmission / CVT

Do not describe it as:

• 5-Speed Automatic
• 6-Speed Automatic
• Conventional automatic gearbox

Recommended WooCommerce field:

Gears: CVT

GENUINE NISSAN NS-2 CVT FLUID

This transmission requires:

Genuine Nissan CVT Fluid NS-2

or an approved equivalent that specifically meets the Nissan NS-2 specification.

Do not use:

• Regular automatic transmission fluid
• Dexron ATF
• Manual transmission fluid
• Differential oil
• Nissan NS-3 unless specifically approved
• Generic universal fluid without confirmed NS-2 compatibility

The correct CVT fluid is critical to hydraulic pressure, pulley operation, lubrication, temperature control, and overall CVT function.

DO NOT MIX INCORRECT FLUIDS

Before installation, drain the donor transmission as appropriate and refill using the correct NS-2 specification.

Additionally, remove contamination from the vehicle’s cooler system before connecting the replacement transmission.

Never assume the used fluid inside an imported CVT is ready for continued service.

CVT COOLER AND LINE SERVICE

Proper cooler service is extremely important when replacing a failed Murano CVT.

The original transmission may have left:

• Metal particles
• Friction debris
• Degraded CVT fluid
• Internal contamination

inside the cooling system.

Therefore:

• Flush the CVT cooler lines.
• Inspect the cooler.
• Verify unrestricted fluid flow.
• Remove contaminated fluid.
• Replace a cooler that cannot be properly cleaned.

Connecting a replacement CVT to a contaminated cooler circuit can introduce debris directly into the replacement transmission.

INSPECT THE CVT PAN

Before installation, inspect the transmission pan where appropriate.

Check for:

• Excessive metal
• Friction material
• Sludge
• Contaminated fluid
• Magnet condition

Then:

• Clean the pan.
• Inspect the filter/strainer.
• Replace serviceable components when required.
• Reinstall using the correct sealing procedure.

INSPECT ACCESSIBLE SEALS

While the transmission is removed, inspect:

• Torque-converter/front seal
• Axle seals
• Transfer-case interface seal
• Selector-shaft seal
• Cooler-line seals
• Pan sealing area

Replacing questionable accessible seals before installation can prevent unnecessary labor later.

TORQUE CONVERTER INSTALLATION

If the torque converter is included or reused, inspect:

• Converter hub
• Splines
• Pilot
• Seal surface
• Mounting pads
• Overall condition

Most importantly, ensure the torque converter is fully seated into the transmission before installing the CVT against the engine.

Never use bellhousing bolts to pull the transmission toward the engine.

Improper converter installation can damage the transmission pump.

COMPARE THE JDM AND ORIGINAL TRANSMISSIONS

Before installation, place the original and replacement CVTs side by side.

Compare:

• RE0F09B identification
• Nissan part number
• Transmission case
• Transfer-case mounting area
• Electrical connectors
• Sensors
• Valve-body electronics
• Mounting points
• Axle openings
• Cooler fittings
• Torque converter

This helps identify external components that may need to transfer.

KEEP THE ORIGINAL TRANSMISSION

Do not discard the original transmission until installation and road testing are complete.

The original unit may still be needed for:

• Sensors
• Wiring
• Brackets
• Mounts
• Cooler fittings
• Electrical components
• Hardware
• Transfer-case-related components

Keeping the original unit nearby can simplify JDM-to-USDM installation.

VERIFY ELECTRICAL CONNECTORS

Compare:

• Main CVT connector
• Connector shape
• Pin configuration
• Sensors
• Range switch
• Speed sensors
• Valve-body connections
• Harness routing

Even when the transmission family is correct, production-date and electronic differences can affect compatibility.

TCM / CVT INITIALIZATION

After installation, perform the Nissan-required CVT control procedures applicable to the vehicle.

Depending on the repair, this may include:

• TCM diagnosis
• Clearing stored transmission data
• CVT calibration
• Learning procedures
• EEPROM data procedures
• CVT fluid deterioration-data reset
• Road-test adaptation

Use a scan tool capable of communicating properly with Nissan transmission control systems.

SCAN THE VEHICLE BEFORE REMOVAL

Before removing the failed CVT:

• Scan the ECM.
• Scan the TCM.
• Record all diagnostic trouble codes.
• Record freeze-frame data when available.
• Document communication faults.
• Check related engine codes.

This information may help distinguish a mechanical CVT failure from an electrical or control problem.

INITIAL INSTALLATION CHECKLIST

Before installation:

• Confirm 2009–2014 Nissan Murano.
• Confirm Z51 generation.
• Confirm VQ35DE 3.5L V6.
• Confirm AWD drivetrain.
• Confirm RE0F09B transmission.
• Confirm JF010E family.
• Confirm transfer case is not included.
• Inspect original transfer case.
• Compare transmission part numbers.
• Compare connectors.
• Compare sensors.
• Compare mounts.
• Compare axle openings.
• Inspect torque converter.
• Inspect transmission seals.
• Inspect pan and magnets.
• Service filter/strainer where applicable.
• Flush cooler lines.
• Inspect cooler.
• Fill with genuine Nissan NS-2 CVT fluid.
• Perform required Nissan CVT/TCM procedures.
• Check for leaks.

INITIAL STARTUP

After installation:

• Start the engine.
• Allow CVT fluid to circulate.
• Slowly move through each selector position.
• Confirm Reverse.
• Confirm Drive.
• Monitor transmission temperature.
• Inspect for leaks.
• Recheck fluid level using the proper Nissan procedure.
• Scan the TCM.

Avoid aggressive acceleration during the initial test.

HEAT CYCLES

Run the replacement CVT through multiple controlled heat cycles.

As the torque converter and cooling circuit fill, fluid level can change.

Therefore:

• Monitor CVT temperature.
• Recheck NS-2 fluid level.
• Inspect cooler fittings.
• Inspect axle seals.
• Inspect the transfer interface.
• Check engagement quality.

INITIAL ROAD TEST

Begin with a conservative road test.

Monitor:

• Park
• Reverse
• Neutral
• Drive
• Initial engagement
• Low-speed acceleration
• Moderate acceleration
• CVT ratio response
• Engine RPM
• Shudder
• Slipping
• RPM flare
• Hesitation
• Vibration
• Whining
• Transmission temperature
• AWD warning lights
• CVT warning lights
• Fluid leaks

Afterward, scan the TCM again for stored or pending faults.

COMMON MURANO CVT FAILURE SYMPTOMS

Possible symptoms include:

• Shuddering
• Slipping
• Delayed engagement
• RPM flare
• Hesitation
• Loss of acceleration
• Whining noise
• Overheating
• Limp mode
• CVT warning lights
• Diagnostic trouble codes
• No movement

However, similar symptoms can also be caused by:

• Incorrect CVT fluid
• Low fluid
• Valve-body problems
• Step motor faults
• Sensors
• Wiring
• TCM issues
• Cooler restrictions
• Torque converter
• Transfer-case problems

Therefore, diagnose the complete vehicle before replacing the transmission.

WHY CHOOSE ITEM 253441?

Item 253441 provides a low-mileage JDM replacement option for compatible second-generation Murano AWD applications.

Key features include:

• Genuine Nissan/Jatco JDM CVT
• RE0F09B Nissan transmission code
• JF010E Jatco designation
• VQ35DE 3.5L V6 application
• 2009–2014 Z51 Murano application
• AWD drivetrain
• Transmission sold without transfer case
• Low-mileage Japanese import
• Individual Item ID
• Actual inventory photographs
• Nationwide freight shipping
• Affordable installation available

WHY BUY FROM J-SPEC AUTO SPORTS?

J-Spec Auto Sports specializes in Japanese engines, transmissions, and drivetrain components.

Customers benefit from:

• Actual inventory photographs
• Transmission-code identification
• Individual inventory tracking
• Nissan drivetrain experience
• Nationwide freight shipping
• Local Richmond / Henrico pickup
• Installation availability
• Limited warranty coverage where stated

INDIVIDUAL INVENTORY INFORMATION

Vehicle: Nissan Murano

Generation: Z51

Years: 2009–2014

Engine: VQ35DE 3.5L V6

Nissan Transmission Code: RE0F09B

Jatco Transmission Code: JF010E

Transmission: CVT

Drivetrain: AWD

Transfer Case: NOT INCLUDED

CVT Fluid: Genuine Nissan NS-2

Item ID: 253441

SKU: MT943

Condition: Used OEM JDM / Low Mileage

FREQUENTLY ASKED QUESTIONS

What transmission is this?

This is a Nissan/Jatco RE0F09B / JF010E CVT.

What years does it fit?

It targets compatible 2009–2014 Nissan Murano AWD models.

What engine does it work with?

VQ35DE 3.5L V6

Is this AWD?

Yes.

This listing is for an AWD transmission application.

Is it FWD?

No.

Do not order this item as a FWD replacement without verified interchange.

Is the transfer case included?

No.

Item 253441 is sold without the transfer case.

What does RE0F09B mean?

RE0F09B is Nissan’s transmission designation for this CVT application.

What does JF010E mean?

JF010E is Jatco’s designation for the corresponding CVT family.

Is this a normal automatic transmission?

No.

It is a continuously variable transmission / CVT.

How many gears does it have?

A CVT does not have a conventional fixed number of forward gears.

Recommended field:

Gears: CVT

What CVT fluid does it require?

Use Genuine Nissan CVT Fluid NS-2 or the exact approved equivalent meeting Nissan NS-2 specifications.

Can I use regular ATF?

No.

Do not use conventional automatic transmission fluid.

Should the cooler lines be flushed?

Yes.

Service the cooler and cooler lines before operating the replacement CVT.

Does the transmission need programming or relearning?

Perform all Nissan-required TCM/CVT initialization, data, calibration, and learning procedures applicable to the vehicle.

Should I keep my original transmission?

Yes.

Keep it until installation and road testing are complete because sensors, brackets, wiring, or other components may need to transfer.

Should I keep my original transfer case?

Yes.

Because Item 253441 is sold without a transfer case, retain and inspect the original transfer case if it is going to be reused.

Is this transmission rebuilt?

No.

Unless specifically stated otherwise, this is a used OEM JDM Nissan/Jatco CVT imported from Japan.

ORDER ITEM 253441 – 2009–2014 NISSAN MURANO AWD CVT

Replace your worn or failed transmission with this low-mileage JDM Nissan Murano RE0F09B / JF010E AWD CVT transmission.

Vehicle: Nissan Murano

Generation: Z51

Years: 2009–2014

Engine: VQ35DE 3.5L V6

Transmission Code: RE0F09B

Jatco Code: JF010E

Transmission: CVT

Drivetrain: AWD

Transfer Case: NOT INCLUDED

CVT Fluid: Nissan NS-2

Item ID: 253441

SKU: MT943

Before ordering, verify VIN, model year, production date, AWD drivetrain, original RE0F09B transmission identification, transfer-case interface, torque converter, Nissan part number, electrical connectors, sensors, valve-body configuration, mounts, axle openings, and cooler fittings.
