JDM Legacy Twin Turbo Transmission – 5-Speed with 4.11 Rear Diff and Axles

This JDM Legacy twin-turbo transmission comes from one of Subaru’s most respected 5-speed drivetrains. In Japan, Subaru paired it with the EJ208 twin-turbo engine in the Legacy B4 and GT-B, which were factory-rated at 280 PS, the Japanese maximum at the time, as Wikipedia’s third-generation Legacy history explains. As a result, it’s a popular swap for WRX, Forester XT and Legacy owners who want a stout 5-speed. In addition, this package includes the matching 4.11 R160 rear differential and all four axles.

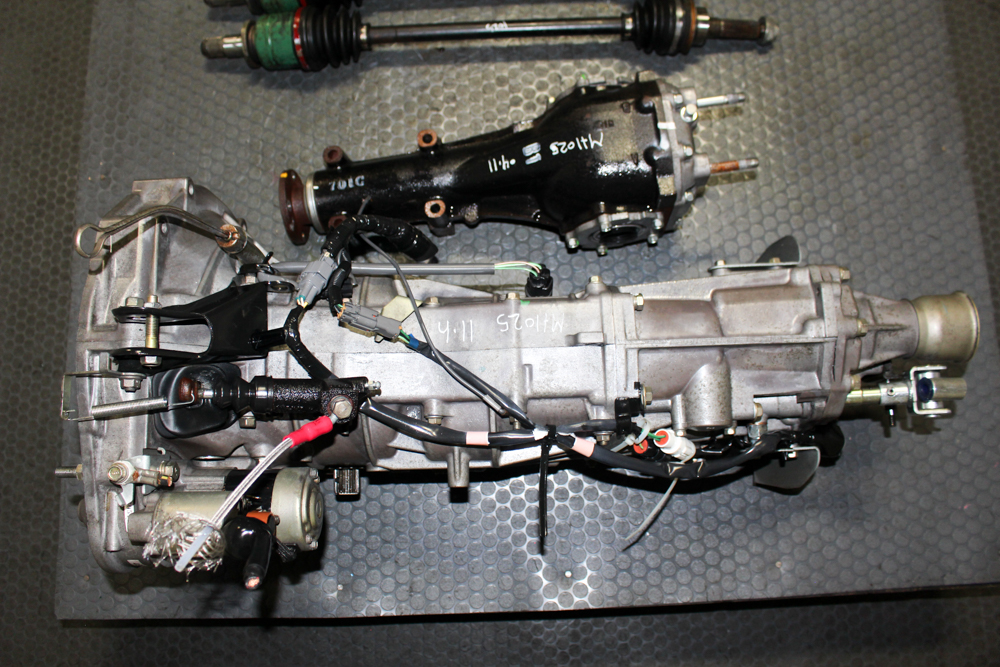

What’s Included With This Legacy Twin Turbo Transmission

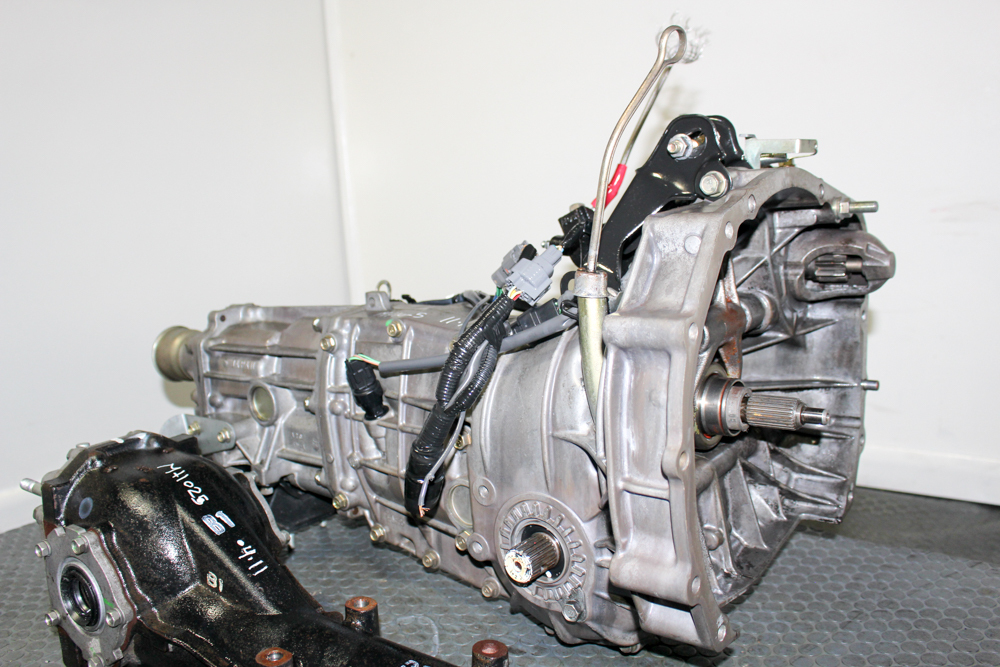

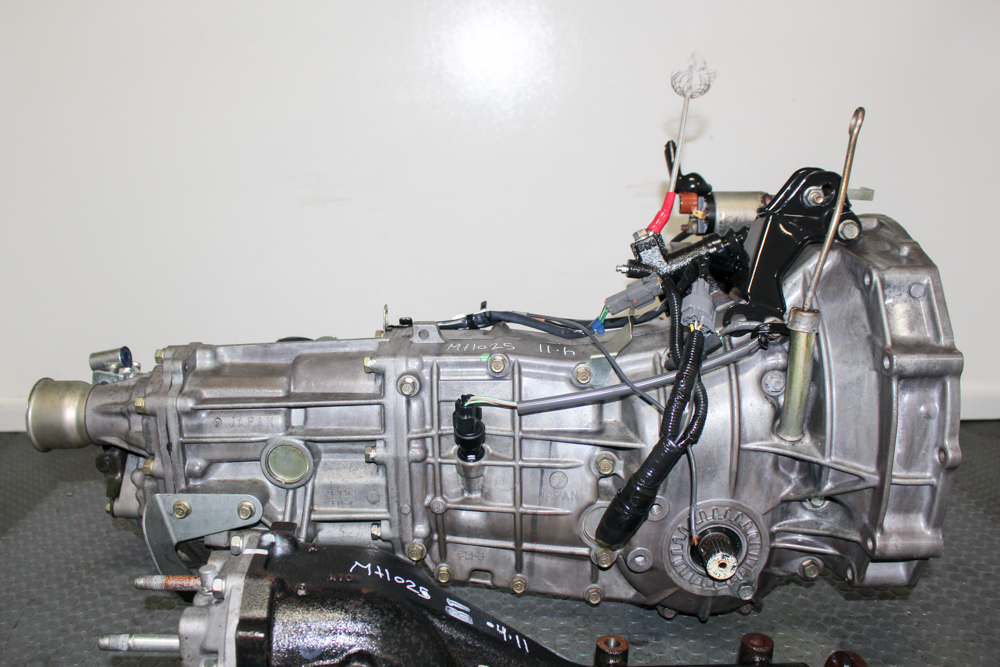

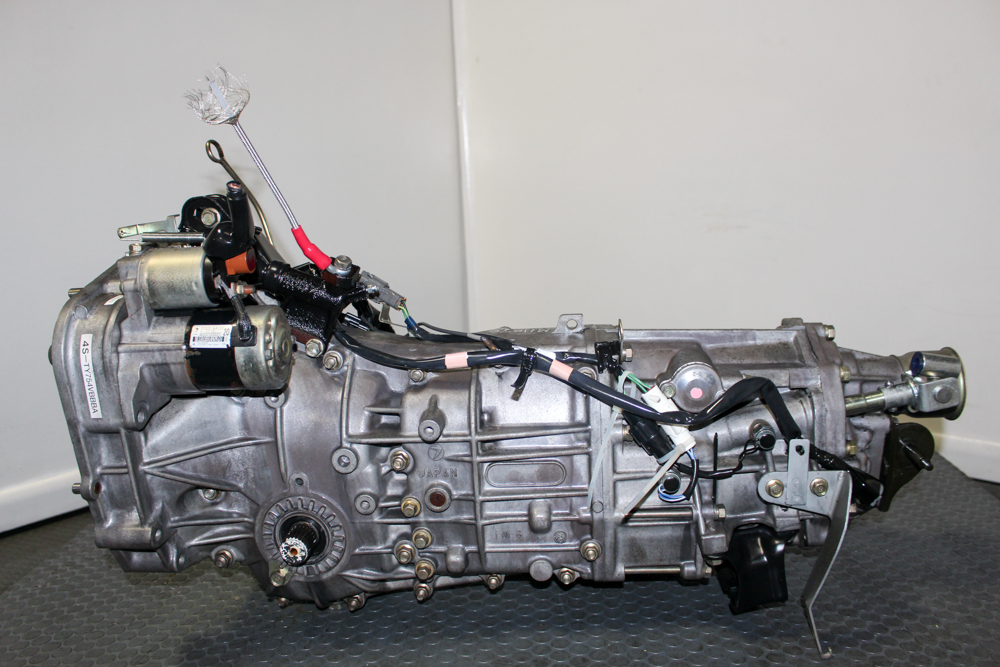

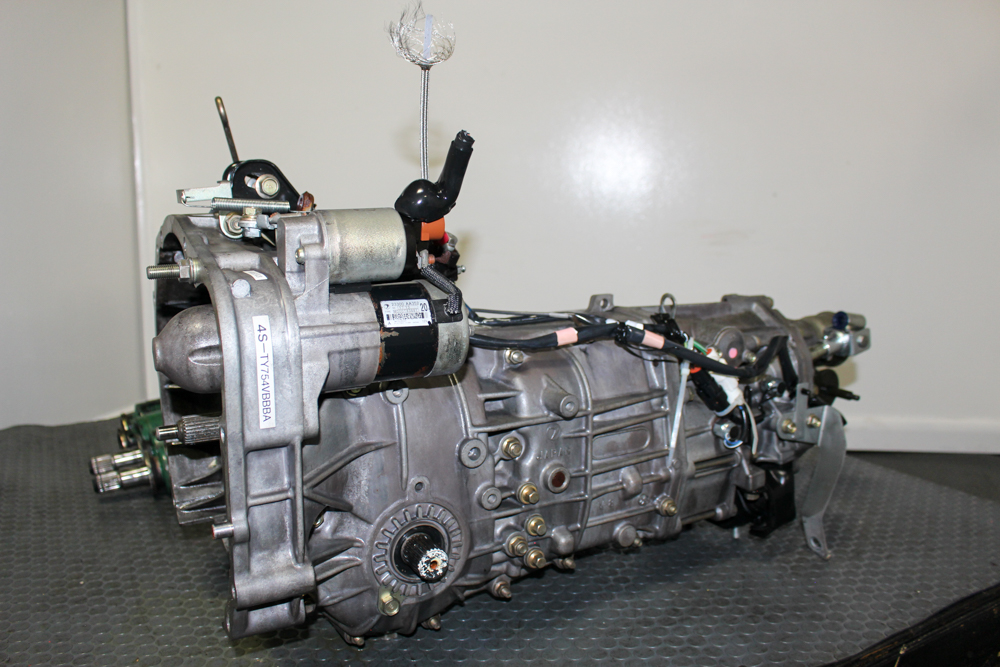

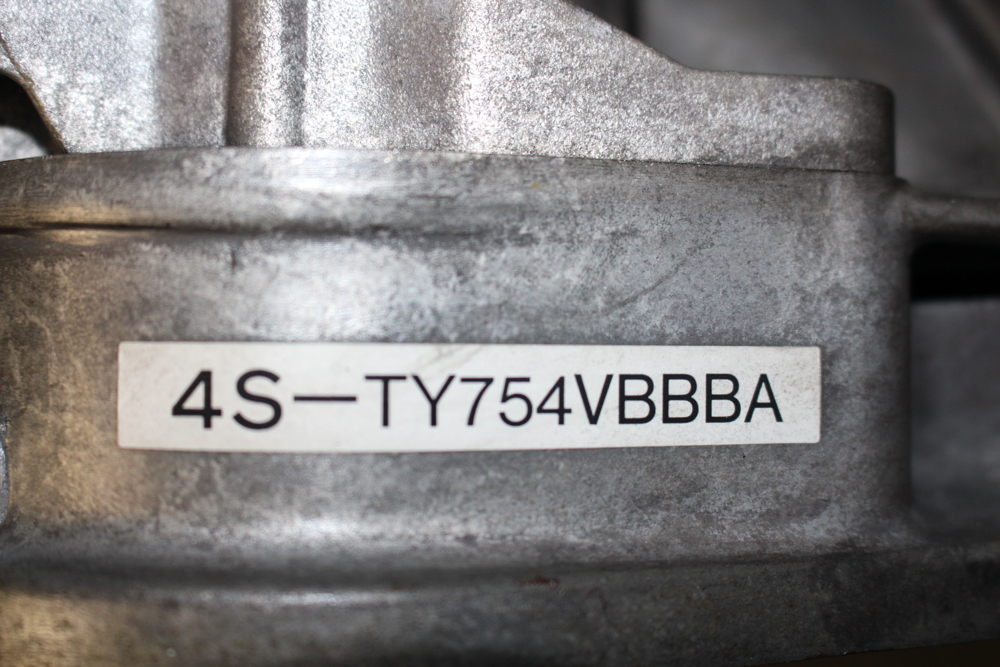

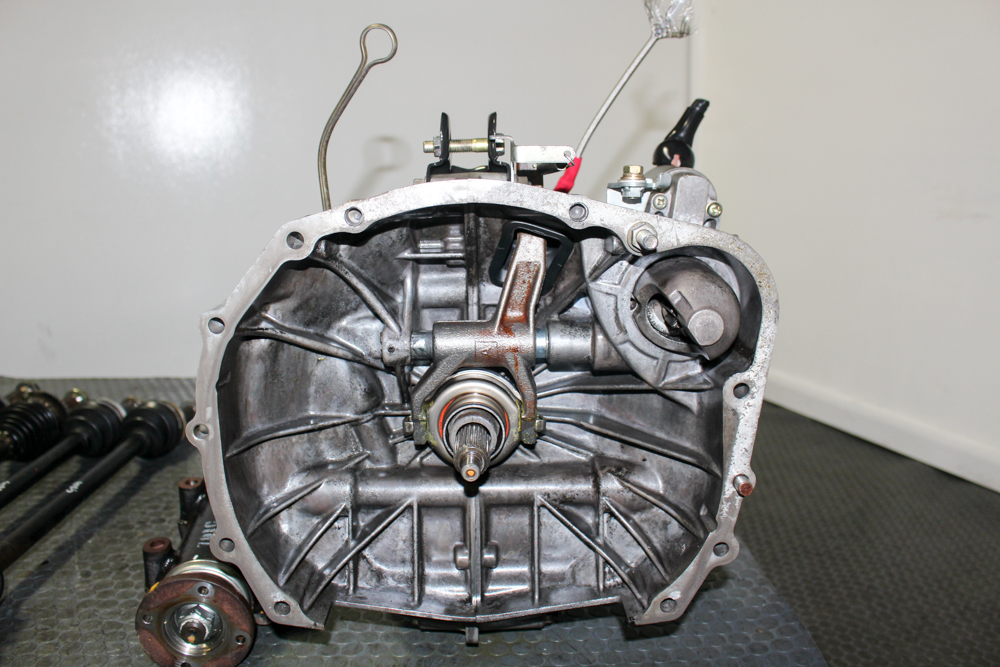

• TY754VBBBA 5-speed manual transmission (pull-type clutch)
• Vehicle speed sensor

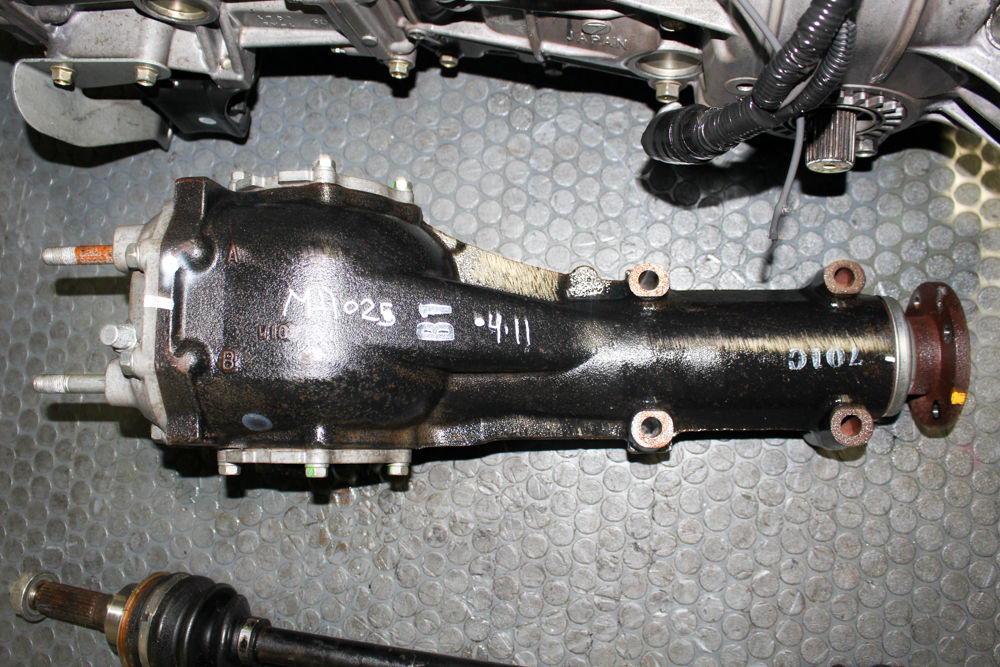

• Matching R160 rear differential, 4.11 ratio

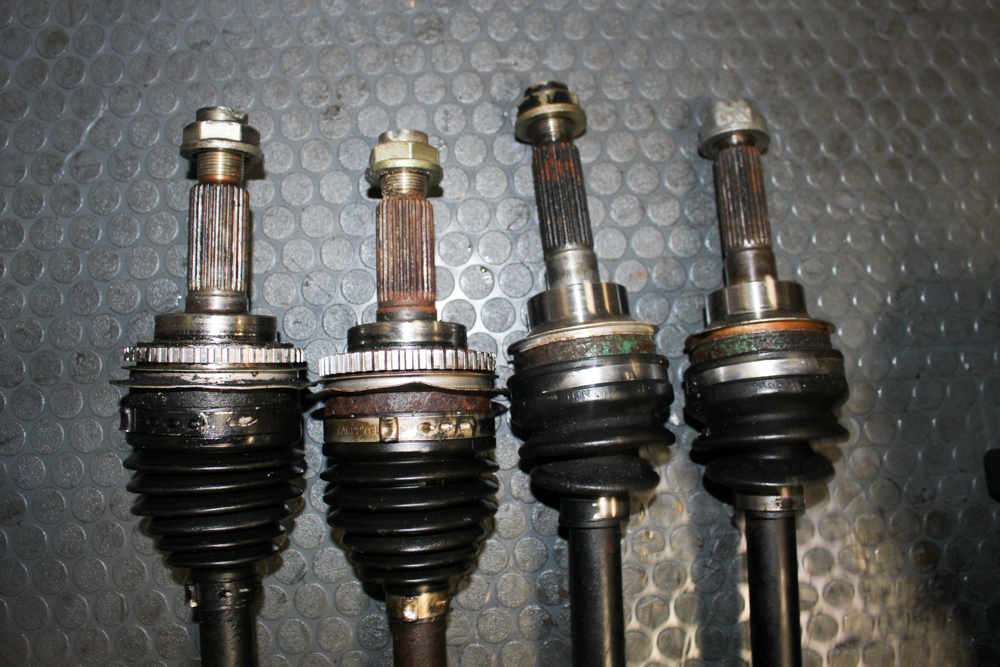

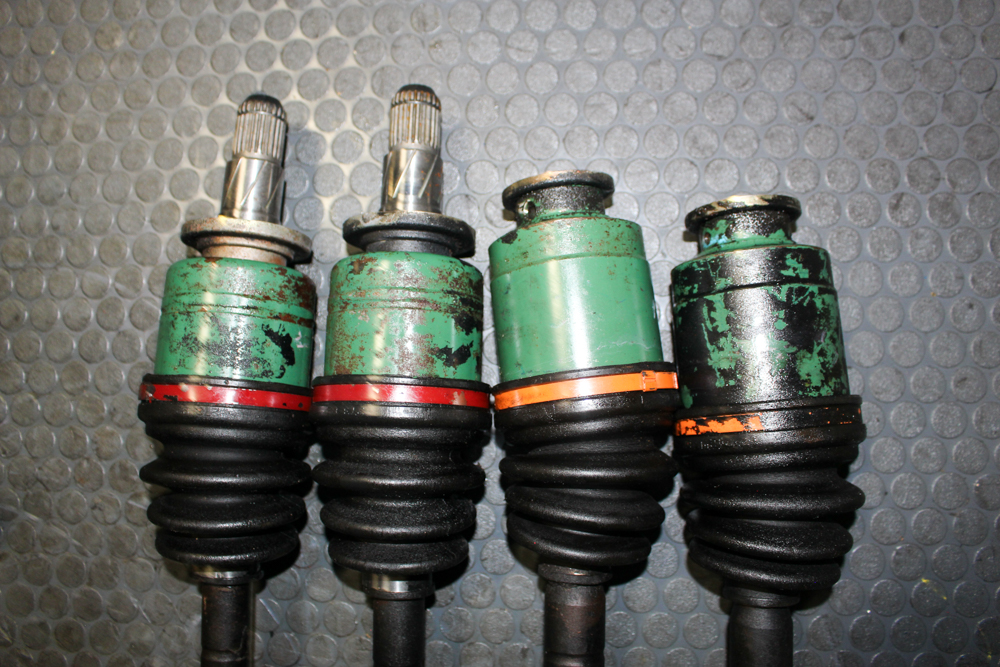

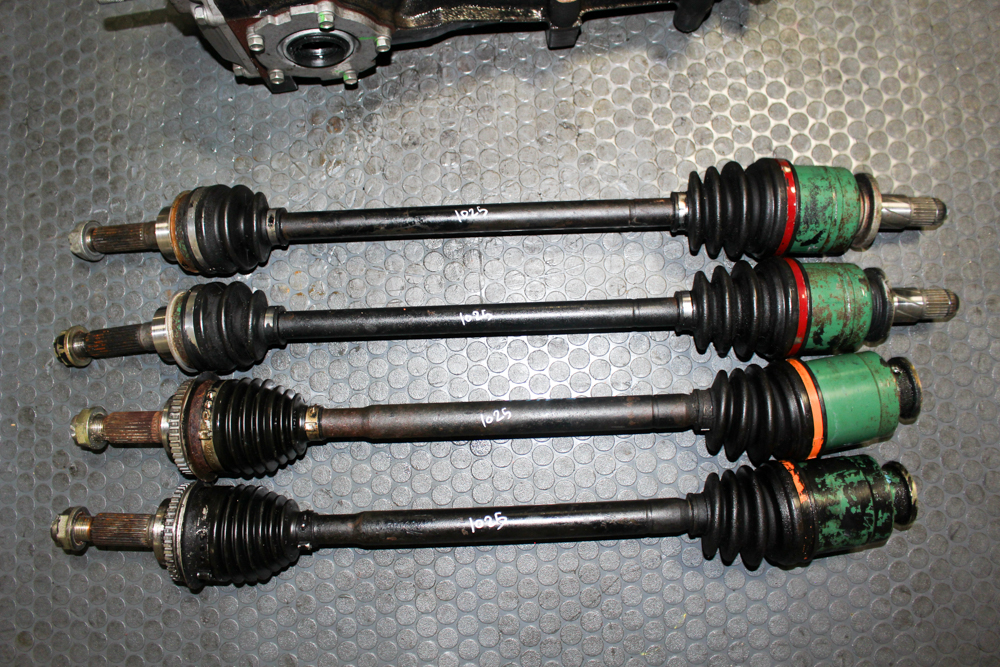

• All four axles, including the female-type front axles this transmission needs

We include only the parts listed above or shown in the photos. So, if you need a specific part, call us before you order.

Why the Included Axles Matter

This transmission uses female-type front axle outputs, while many U.S. Subaru 5-speeds use male-type axles. In other words, your original front axles may not fit. Fortunately, the matching front axles come in the package, so you can install the transmission without hunting for the right axles.

Why You Must Install the Included Rear Diff

On an all-wheel-drive Subaru, the front and rear final drive ratios must match. Otherwise, the center differential works constantly and wears out fast. Because this transmission uses 4.11 gearing, install the included 4.11 rear diff. For example, a stock 2002–2005 WRX uses 3.90 and a 2004–2005 Forester XT uses 4.444, so neither original rear diff will match.

How the 4.11 Gearing Changes Your Car

Your car will feel different depending on its original ratio. In a WRX with stock 3.90 gearing, 4.11 accelerates a little harder. By contrast, a Forester XT with stock 4.444 gearing will feel slightly taller and cruise at lower highway RPM. Either way, your speedometer may read slightly off, so ask your installer whether a correction is needed.

Legacy Twin Turbo Transmission Fitment

• 2002–2005 Subaru Impreza WRX with a 5-speed manual
• 2004–2005 Subaru Forester XT with a 5-speed manual
• 2000–2004 Subaru Legacy with a 5-speed manual

This transmission uses a pull-type clutch, so match your clutch, fork and release bearing to it. For that reason, send us your VIN, and we’ll confirm the fit before you order.

How to Install This Legacy Twin Turbo Transmission

1. First, confirm your clutch, fork and release bearing are pull type.
2. Next, install the transmission with a fresh clutch if yours is worn.
3. Then, install the included female-type front axles.
4. After that, replace your rear differential with the included 4.11 R160 diff, and install the rear axles.
5. Finally, fill the transmission and rear diff with fresh gear oil before driving.

Professional Installation Available

Want it done right the first time? J-Spec Auto Sports installs the engines, transmissions and parts we sell at our shop in Henrico, Virginia, near Richmond. Because our technicians work on Subaru drivetrains every day, they already know the axle, diff and clutch details this swap needs. To get a quote or book a time, schedule an appointment or call 866-683-3747.

Shipping & Pickup

We ship transmissions by freight across the continental U.S., usually within 1–2 business days. After the package leaves our shop, delivery typically takes 2–7 business days, and the driver needs your signature. Alternatively, local customers can pick up at our Henrico, VA shop near Richmond.

Legacy Twin Turbo Transmission FAQ

Is this transmission really from a 280 hp car?

Yes. It came from the JDM Legacy twin turbo, which Subaru rated at 280 PS (about 276 hp). That’s why many owners choose it for swaps.

Will this Legacy twin turbo transmission fit my 2004 WRX?

Yes, with the included 4.11 rear diff and axles. Since your stock rear diff is 3.90, you must swap it.

Why do I need the included front axles?

This transmission uses female-type axle outputs, so your original front axles may not fit. Therefore, use the included axles.

Is this a push-type or pull-type transmission?

It’s pull type. Therefore, use a pull-type clutch, fork and release bearing.

Can J-Spec Auto install this for me?

Yes. We offer professional installation at our Henrico, VA shop near Richmond. Call 866-683-3747 or schedule an appointment for a quote.

What warranty is included?

This package comes with a 30-day warranty. For full terms, see our warranty page.
