JDM Subaru Forester XT 5-Speed Transmission with 4.44 Rear Diff and Axles

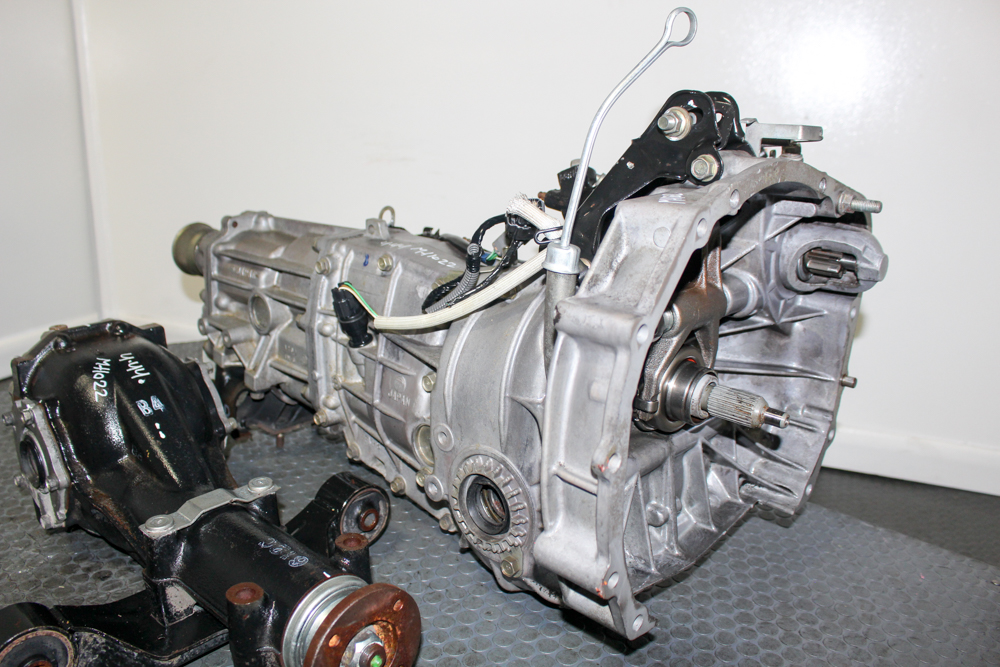

This JDM Forester XT 5-speed transmission package is a complete drivetrain replacement for the 2004–2005 Subaru Forester XT. Along with the TY755VW5AA transmission, you get the matching R160 rear differential and all four axles. Better yet, the 4.444 final drive matches the stock ratio Subaru used in the U.S. Forester XT 5-speed, so it drops right in. The second-generation Forester used Subaru’s symmetrical all-wheel drive, which is why matching front and rear ratios matters.

What’s Included in This Forester XT 5-Speed Transmission Package

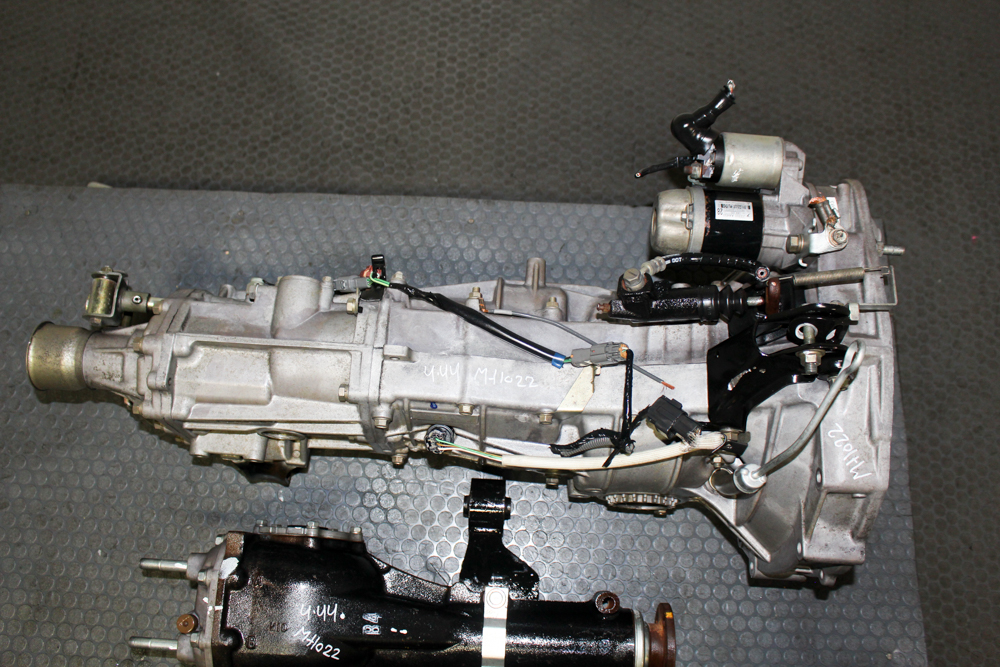

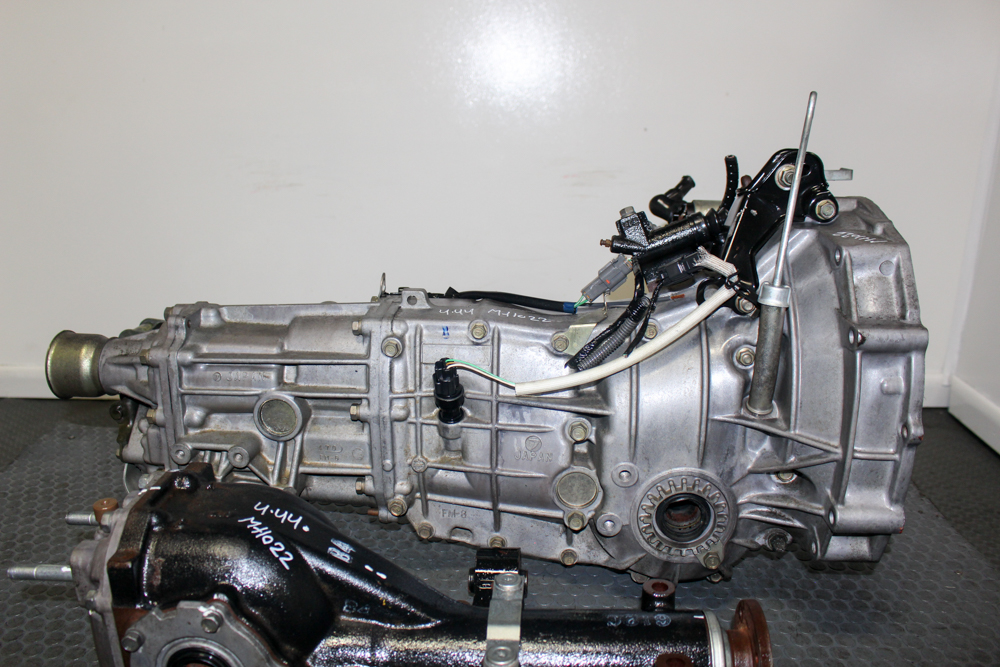

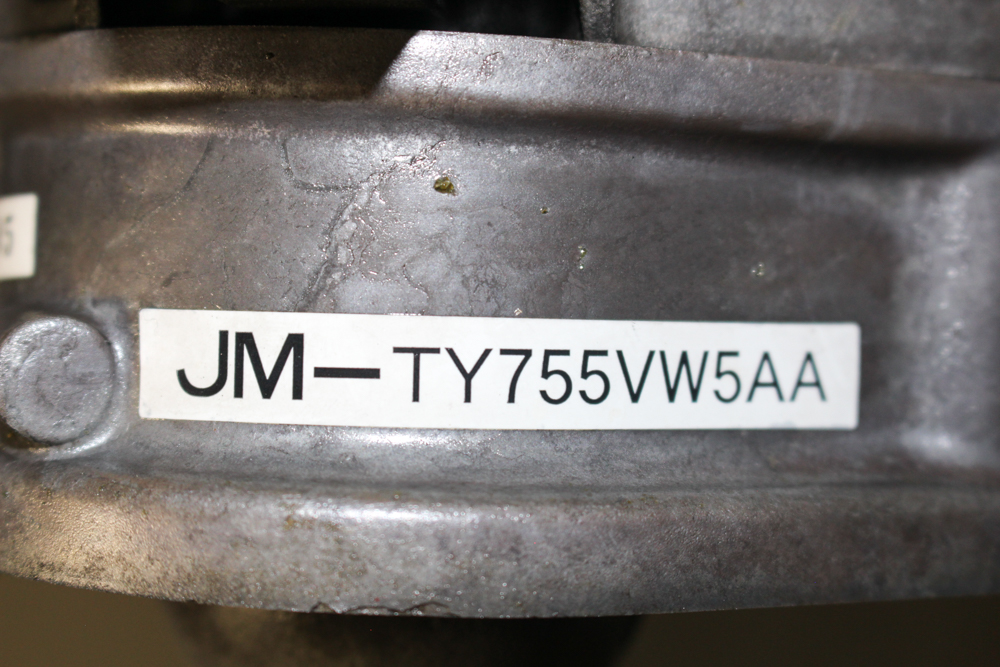

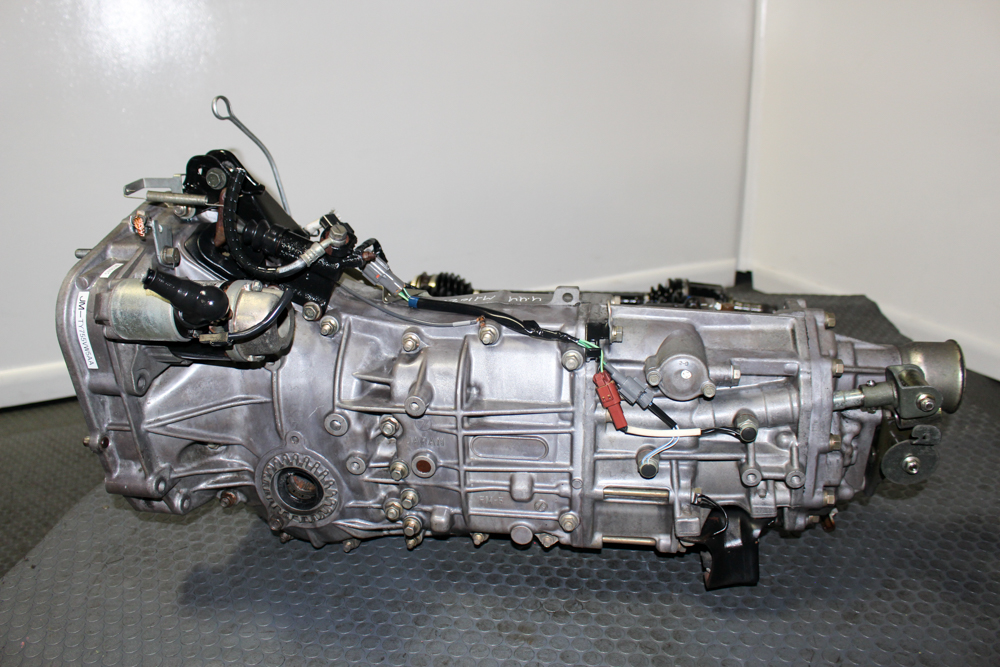

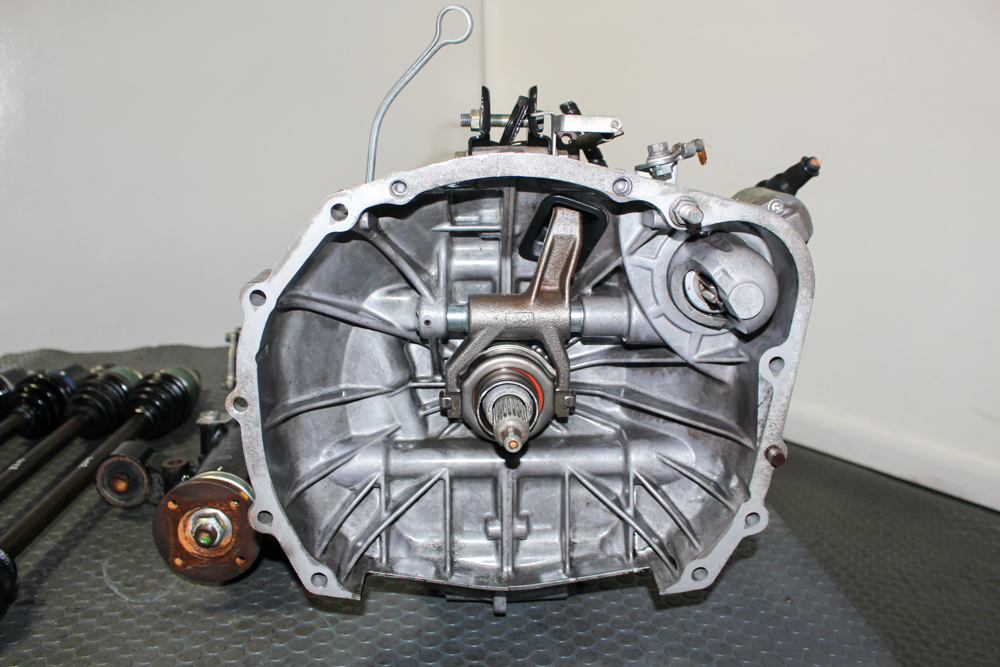

• TY755VW5AA 5-speed manual transmission (pull-type clutch)

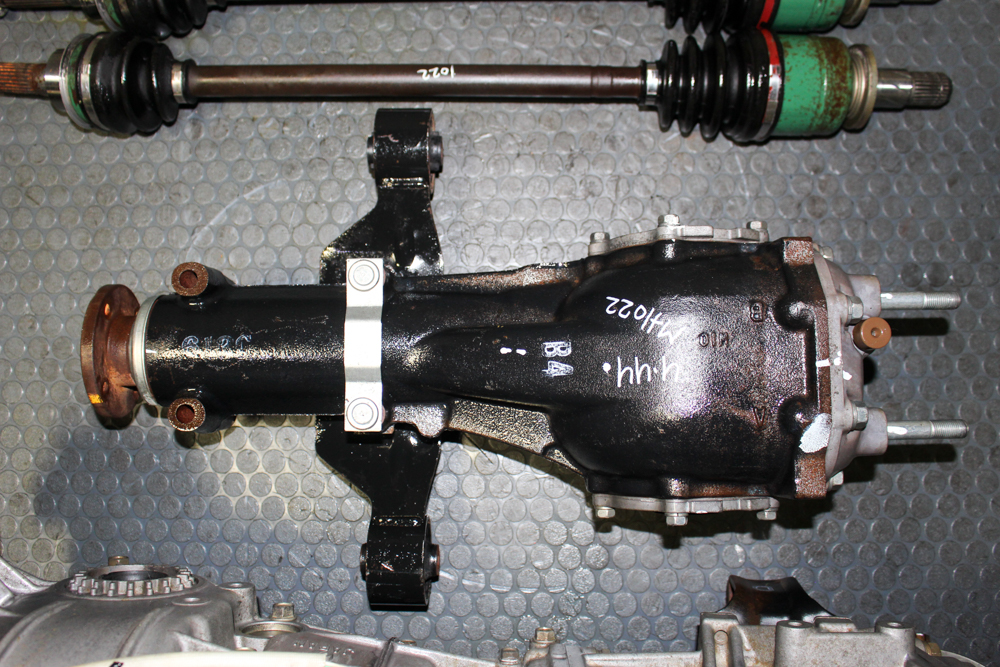

• Matching R160 rear differential, 4.444 ratio (open differential)

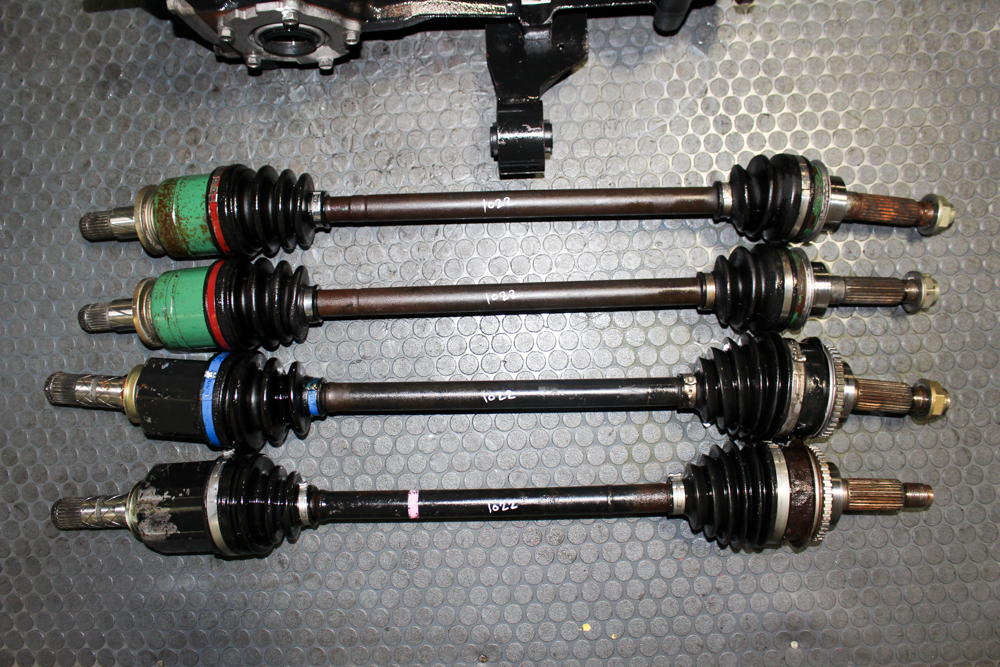

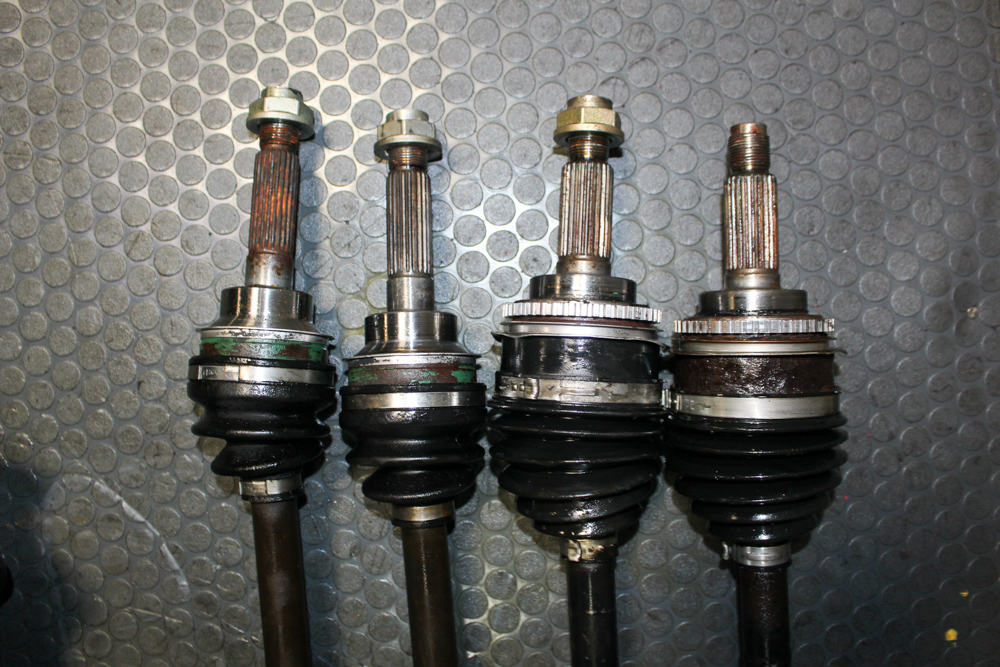

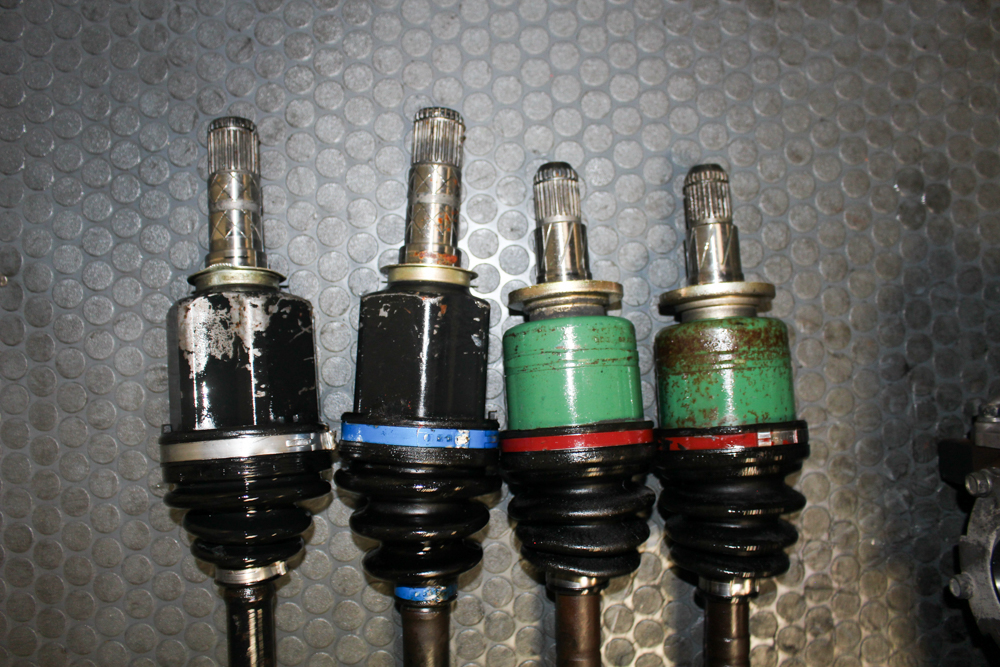

• All four axles

We include only the parts listed above or shown in the photos. So, if you need a specific part, call us before you order.

Why the Matching Rear Diff Matters

On an all-wheel-drive Subaru, the front and rear final drive ratios must match. Otherwise, the center differential works constantly and wears out fast. Since the stock 2004–2005 Forester XT 5-speed already uses 4.444, the ratio stays the same. Even so, the included rear diff gives you a fresh, matched unit. On the other hand, a 2002–2005 WRX uses 3.90 gearing, so WRX owners must install the included 4.444 rear diff.

Forester XT 5-Speed Transmission Fitment

• 2004–2005 Subaru Forester XT with a 5-speed manual (same 4.444 ratio)
• 2002–2005 Subaru WRX with a 5-speed manual (install the included rear diff)

This transmission uses a pull-type clutch, so match your clutch, fork and release bearing to it. For that reason, send us your VIN, and we’ll confirm the fit before you order.

Upgrading a WRX to 4.444 Gearing

In a 2002–2005 WRX, the 4.444 final drive makes the car accelerate harder in every gear. However, the engine runs at higher RPM on the highway. Also, your speedometer may read high, so ask your installer whether a correction is needed.

How to Install This Forester XT 5-Speed Transmission

1. First, confirm your clutch, fork and release bearing are pull type.
2. Next, install the transmission with a fresh clutch if yours is worn.
3. Then, install the included 4.444 R160 rear diff, which is required for WRX swaps.
4. After that, install the four included axles.
5. Finally, fill the transmission and rear diff with fresh gear oil before driving.

Professional Installation Available

Want it done right the first time? J-Spec Auto Sports installs the engines, transmissions and parts we sell at our shop in Henrico, Virginia, near Richmond. Because our technicians work on Subaru drivetrains every day, they already know the clutch, diff and axle details this swap needs. To get a quote or book a time, schedule an appointment or call 866-683-3747.

Shipping & Pickup

We ship transmissions by freight across the continental U.S., usually within 1–2 business days. After the package leaves our shop, delivery typically takes 2–7 business days, and the driver needs your signature. Alternatively, local customers can pick up at our Henrico, VA shop near Richmond.

Forester XT 5-Speed Transmission FAQ

Will this Forester XT 5-speed transmission fit my 2005 Forester XT?

Yes. It fits the 2004–2005 Forester XT 5-speed and uses the same 4.444 final drive as the original.

Can I use it in my 2004 WRX?

Yes, but you must install the included 4.444 rear diff, because the WRX came with 3.90 gearing.

Is the rear differential a limited-slip?

No. It’s an open R160 differential with a 4.444 ratio, matched to the transmission.

Is this a push-type or pull-type transmission?

It’s pull type. Therefore, use a pull-type clutch, fork and release bearing.

Can J-Spec Auto install this for me?

Yes. We offer professional installation at our Henrico, VA shop near Richmond. Call 866-683-3747 or schedule an appointment for a quote.

What warranty is included?

This package comes with a 30-day warranty. For full terms, see our warranty page.
