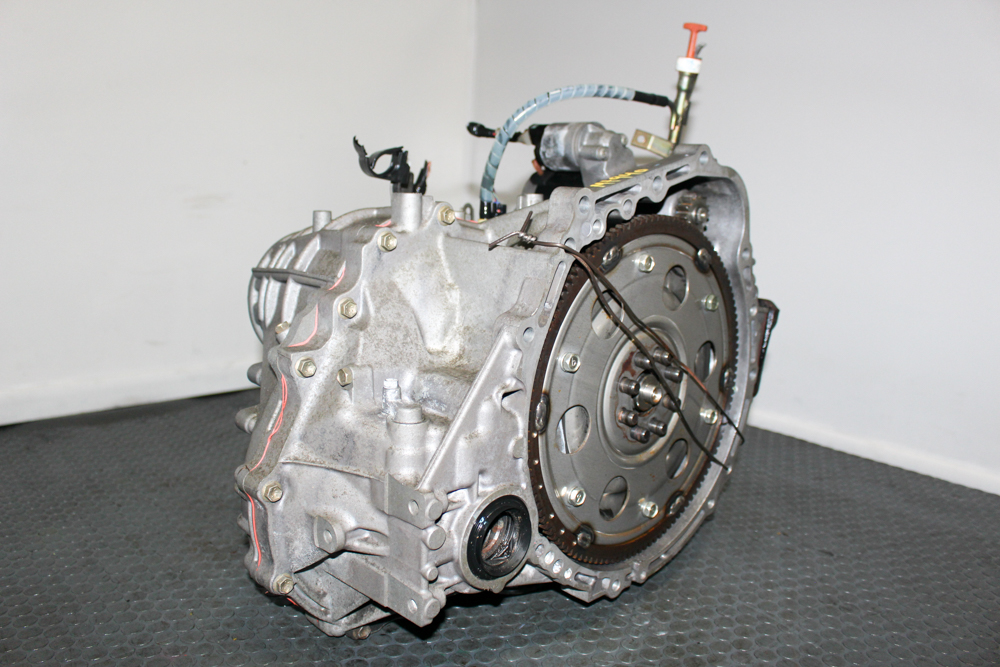

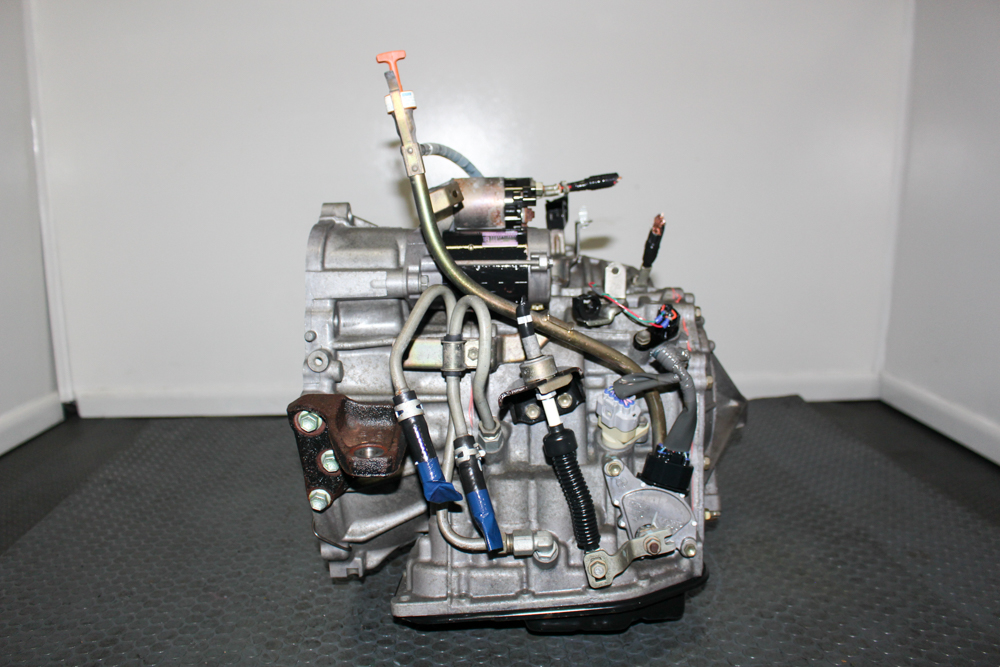

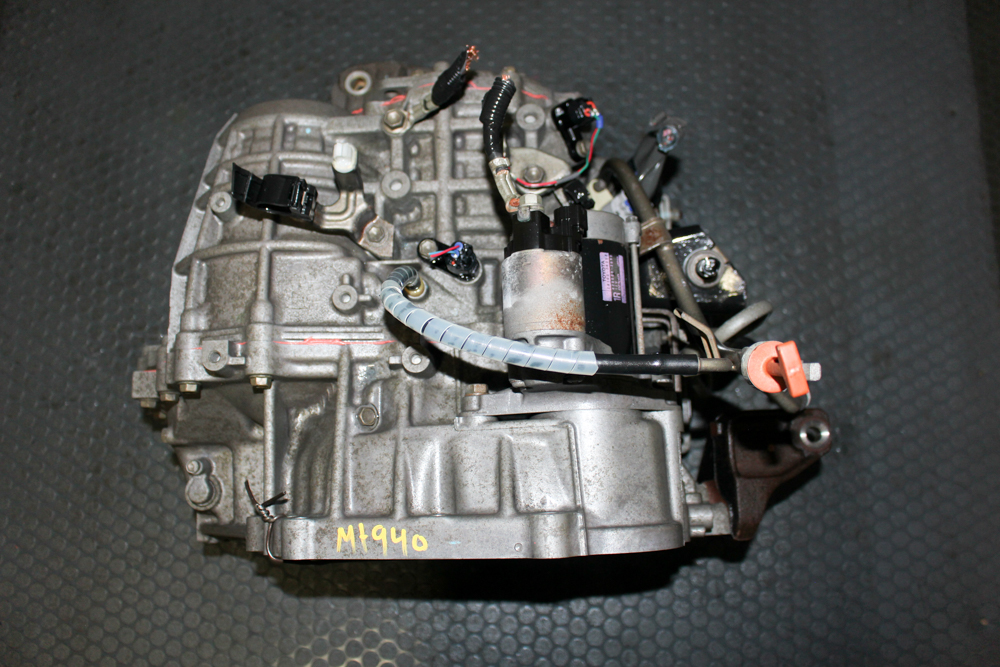

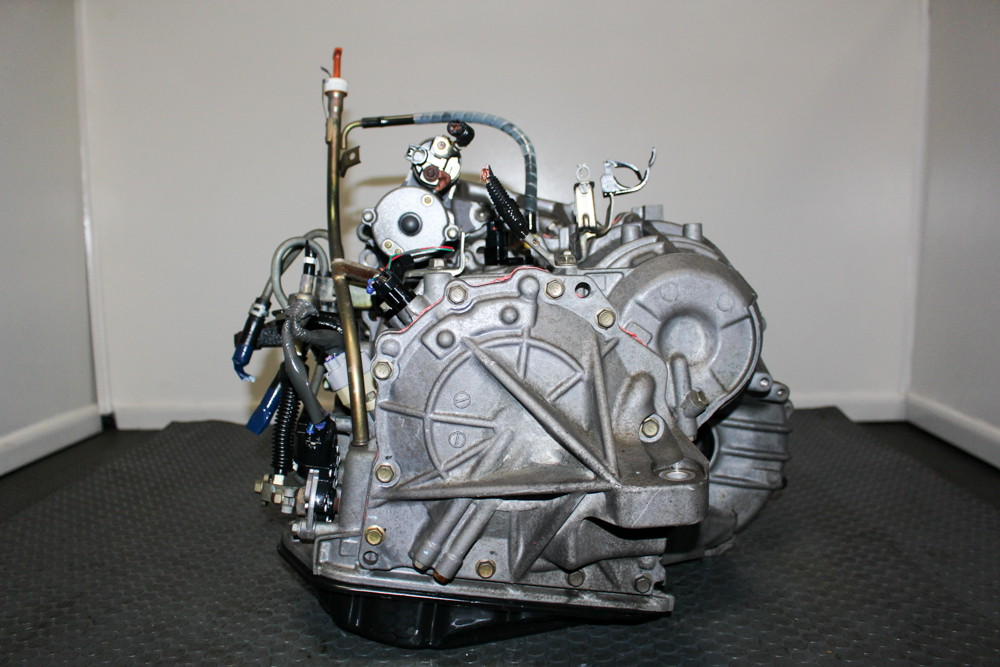

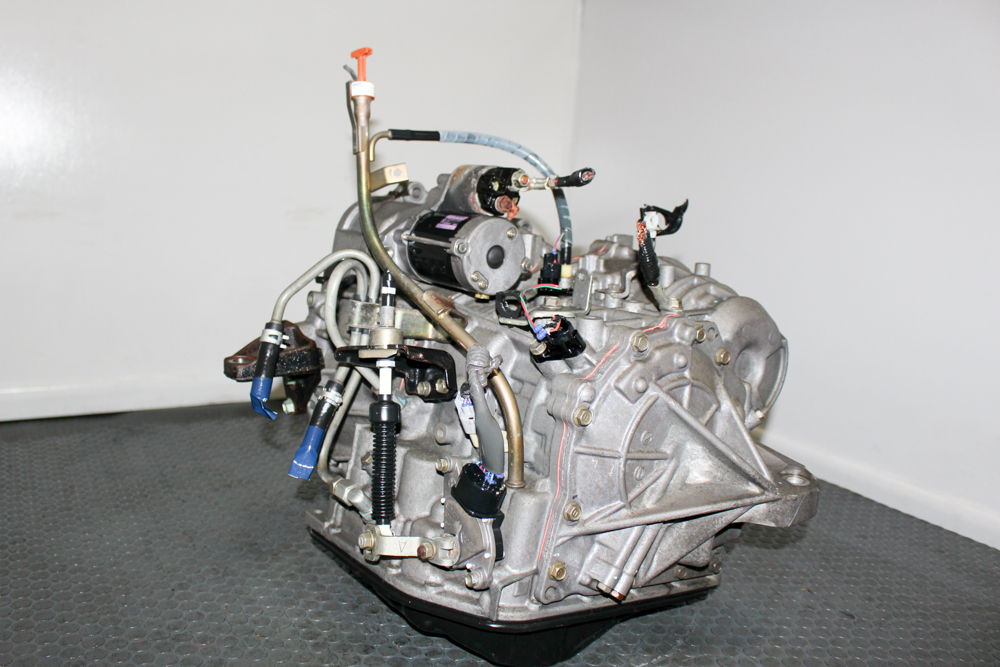

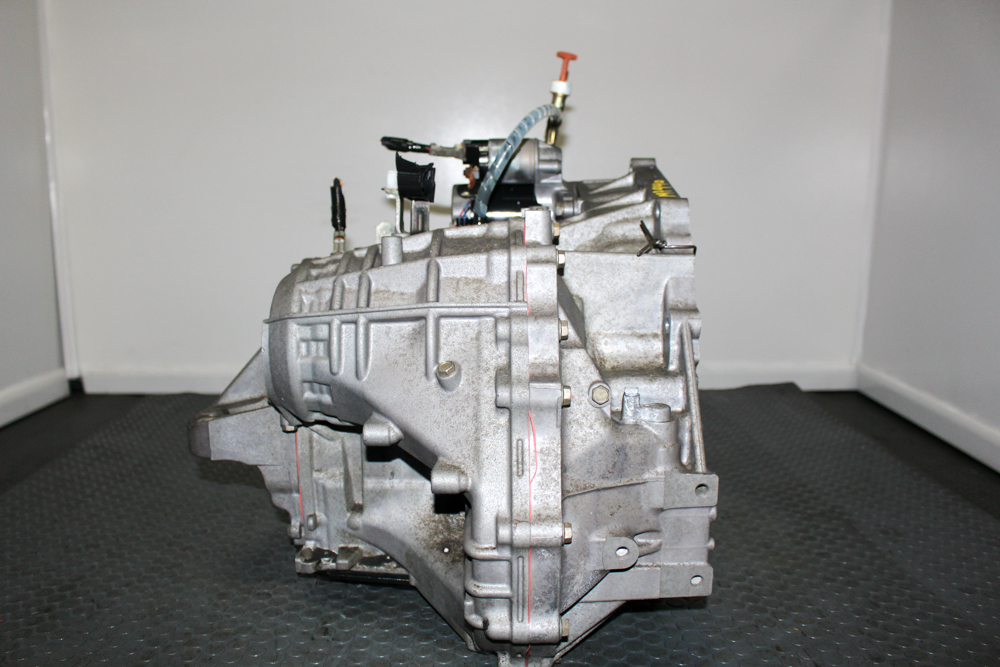

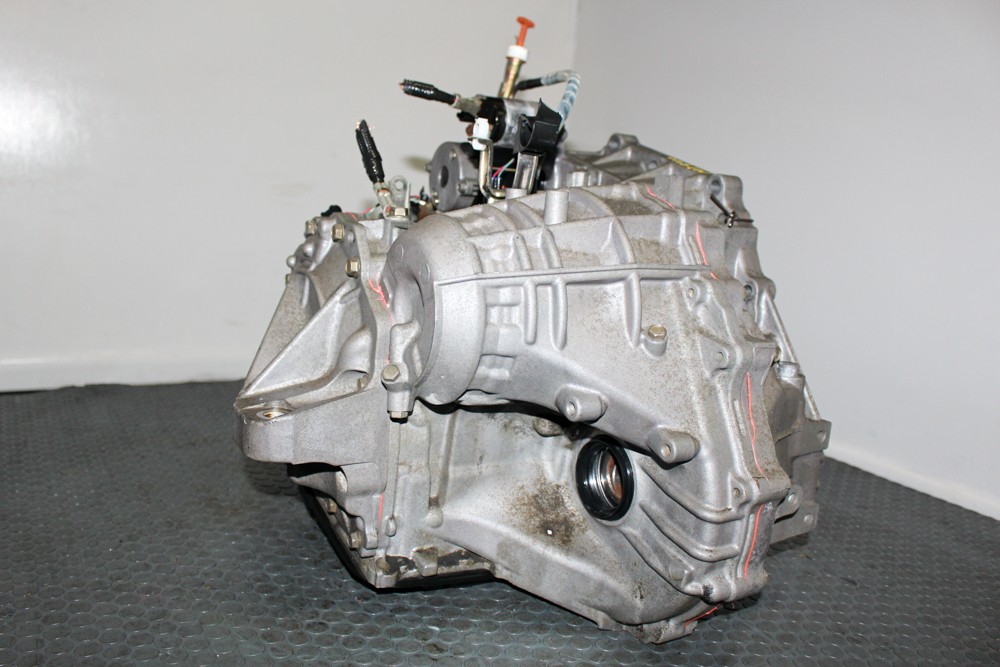

JDM TOYOTA U241E 2.4L 4-SPEED FWD AUTOMATIC TRANSMISSION

Restore your Toyota or Scion drivetrain with this low-mileage JDM U241E 4-speed automatic transmission from J-Spec Auto Sports.

Designed for compatible vehicles equipped with the 2AZ-FE 2.4L DOHC 4-cylinder engine, this transmission belongs to Toyota’s front-wheel-drive U24-series automatic transmission family.

For the strongest fitment and SEO identification, use:

Toyota / Scion → 2AZ-FE 2.4L → U241E → 4-Speed Automatic → FWD / 2WD

Because Toyota installed the 2AZ-FE in several different vehicles, engine code alone does not guarantee transmission interchange. Therefore, the complete transmission configuration should always be verified before installation.

QUICK DETAILS

• Manufacturer: Toyota
• Transmission Application: U241E
• Physical Unit Identification: U241
• Transmission Family: U24-Series
• Engine Code: 2AZ-FE
• Engine Size: 2.4L
• Engine Configuration: DOHC Inline 4-Cylinder
• Transmission Type: 4-Speed Automatic
• Gears: 4
• Drivetrain: FWD / 2WD
• Transmission Fluid: Toyota Genuine ATF Type T-IV
• Item ID: 253408
• SKU: 2.4L 2AZ U241
• Condition: Used OEM JDM / Low Mileage
• Warranty: 90 Days
• Shipping: Nationwide Freight
• Installation: Available

U241E TRANSMISSION IDENTIFICATION

The primary Toyota transmission designation for this application is:

U241E

The physical inventory field on Item 253408 currently identifies the transmission as:

U241

Because Toyota used several closely related U24-series transmissions, the physical transmission identification and Toyota part number should be compared with the original unit before installation.

Once confirmed, use the complete U241E designation throughout:

• Product title
• H1
• Short description
• Product data
• FAQ
• Image ALT text
• Structured data

Accurate transmission identification helps customers, repair shops, Google, Bing, and AI search systems understand exactly what is being offered.

4-SPEED AUTOMATIC – NOT A CVT

The U241E is a conventional electronically controlled:

4-Speed Automatic Transaxle

It is not a CVT.

It is also not a 5-speed automatic.

Therefore, the correct WooCommerce fields are:

Type: 4-Speed Automatic

Gears: 4

Drivetrain: FWD / 2WD

2AZ-FE 2.4L ENGINE APPLICATION

This transmission is associated with compatible Toyota and Scion vehicles equipped with the:

2AZ-FE 2.4L DOHC 4-Cylinder Engine

Use the full engine code:

2AZ-FE

rather than simply:

2AZ

However, the same engine appeared in several vehicles with different transmission configurations.

Consequently, always verify both the engine and transmission before purchasing.

2002–2004 TOYOTA CAMRY 2.4L FWD

Primary Toyota Camry applications include compatible:

• 2002 Toyota Camry 2.4L FWD
• 2003 Toyota Camry 2.4L FWD
• 2004 Toyota Camry 2.4L FWD

These applications should use the correct 2AZ-FE 2.4L + U241E + FWD configuration.

Before installation, compare the original transmission identification, external components, sensors, differential configuration, and mounting points.

2005–2010 SCION tC 2.4L FWD

Compatible applications also include:

• 2005 Scion tC 2.4L
• 2006 Scion tC 2.4L
• 2007 Scion tC 2.4L
• 2008 Scion tC 2.4L
• 2009 Scion tC 2.4L
• 2010 Scion tC 2.4L

The Scion tC uses the 2AZ-FE 2.4L engine with a front-wheel-drive automatic configuration.

Nevertheless, Toyota and Scion applications may use different external brackets, sensors, speed gears, or related components.

Therefore, compare the replacement transmission with the original unit before installation.

2006–2008 TOYOTA RAV4 2.4L FWD

Compatible related applications include:

• 2006 Toyota RAV4 2.4L FWD
• 2007 Toyota RAV4 2.4L FWD
• 2008 Toyota RAV4 2.4L FWD

This applies only to:

FWD / 2WD

RAV4 applications.

Do not use this transmission as a direct AWD / 4WD replacement.

The AWD RAV4 uses a different transmission configuration.

2001–2007 TOYOTA HIGHLANDER 2.4L FWD

Certain Toyota Highlander 2.4L FWD applications also use the U241E family.

However, model-year range alone does not establish interchange.

Before ordering for a Highlander, verify:

• Original transmission code
• VIN
• Production date
• 2AZ-FE engine
• FWD drivetrain
• Toyota transmission part number
• Differential configuration
• Electrical connectors
• Mounting brackets

FWD / 2WD ONLY

Item 253408 is intended for:

Front-Wheel Drive / FWD / 2WD

applications.

Do not advertise it as an AWD or 4WD transmission.

AWD and FWD Toyota transmissions can differ significantly in:

• Transmission case
• Output configuration
• Differential design
• Axle interfaces
• Mounting
• Electronics

For that reason, drivetrain verification is mandatory.

U241E VS. OTHER TOYOTA TRANSMISSIONS

Do not choose a transmission simply because the vehicle has a 2AZ-FE engine.

Toyota paired the 2AZ-FE with several different automatic transmission families depending on application.

The preferred identification is:

2AZ-FE 2.4L + U241E + FWD

rather than:

Toyota 2.4L Automatic Transmission

This distinction dramatically improves fitment accuracy.

JDM-TO-USDM FITMENT

Japanese-market and North American-market transmissions can differ even when they belong to the same transmission family.

Before installation, place the original and replacement transmissions side by side.

Compare:

• Transmission code
• Toyota part number
• Bellhousing
• Case configuration
• Torque converter
• Differential
• Speed gear
• Speed sensors
• Electrical connectors
• Wiring
• Neutral safety / range switch
• Solenoids
• Axle interfaces
• Transmission mounts
• Mounting brackets
• Backing plate
• Cooler fittings

If compatible original components are required, transfer them before installation.

DIFFERENTIAL AND SPEED GEAR REQUIREMENT

The live Item 253408 listing specifically states that the original differential and speed gear must be reused as required for this application.

Therefore, retain the original transmission until installation is completed successfully.

Compare:

• Differential assembly
• Final-drive configuration
• Speed gear
• Axle splines
• Sensor arrangement
• Related internal components

The correct differential and speed-sensing configuration must match the target vehicle.

SPEED SENSOR NOT INCLUDED

Item 253408 does not include the required speed sensor / speed gear configuration.

Accordingly, plan to reuse the compatible original components where required.

Before installation, compare:

• Input / turbine speed sensor
• Output speed sensor
• Speed gear
• Connector shape
• Connector pin count
• Sensor mounting location
• Wiring configuration

The correct speed signal is essential for proper transmission and vehicle operation.

ELECTRICAL COMPONENTS

Electrical differences can exist between JDM and USDM transmission versions.

Therefore, compare:

• Main transmission connector
• Wiring harness
• Speed sensors
• Shift solenoids
• Neutral safety / range switch
• Connector pin arrangement

Compatible original components may need to transfer.

However, do not automatically replace components that already match the target application.

MOUNTING BRACKETS

Camry, Scion tC, RAV4, and Highlander applications may use different external mounting brackets.

As a result, compare the JDM unit with the original transmission before installation.

Reuse compatible original:

• Transmission mounts
• Mounting brackets
• Cable brackets
• External supports
• Hardware

when required.

BACKING PLATE

Compare the backing plate on Item 253408 with the customer’s original transmission.

If the configuration differs, reuse the compatible original backing plate where appropriate.

This comparison should be completed before installation.

TORQUE CONVERTER

Verify whether the torque converter is included with this individual transmission before installation.

If supplied, inspect:

• Converter hub
• Splines
• Pilot
• Seal surface
• Mounting pads
• Overall condition

Most importantly, fully seat the torque converter inside the transmission before mating the transmission to the engine.

Never use bellhousing bolts to pull the transmission against the engine.

Improper torque-converter seating can damage the transmission pump.

TOYOTA GENUINE ATF TYPE T-IV

For verified U241E applications, use:

Toyota Genuine ATF Type T-IV

The correct fluid is important for:

• Hydraulic pressure
• Valve-body operation
• Clutch operation
• Torque-converter function
• Shift quality
• Internal lubrication

Do not use:

• CVT fluid
• Differential gear oil
• Unverified universal ATF

Additionally, do not automatically substitute Toyota WS fluid when the application requires Type T-IV.

FLUSH THE TRANSMISSION COOLER AND LINES

Before operating the replacement transmission, thoroughly flush and inspect the transmission cooler system.

A failed transmission can leave:

• Metal particles
• Friction debris
• Sludge
• Contaminated ATF
• Internal material

inside the cooler and lines.

Consequently, connecting the replacement transmission to a contaminated cooling circuit can introduce debris directly into the replacement unit.

Before startup:

• Flush cooler lines.
• Inspect the transmission cooler.
• Confirm unrestricted flow.
• Remove contaminated fluid.
• Replace a cooler that cannot be properly cleaned.

INSPECT THE TRANSMISSION PAN

Before installation, inspect the transmission pan where appropriate.

Check for:

• Excessive metal
• Friction material
• Sludge
• Contaminated fluid
• Magnet buildup

Additionally, inspect the transmission filter or strainer according to Toyota service procedures.

INSPECT ACCESSIBLE SEALS

While the transmission is removed, inspect:

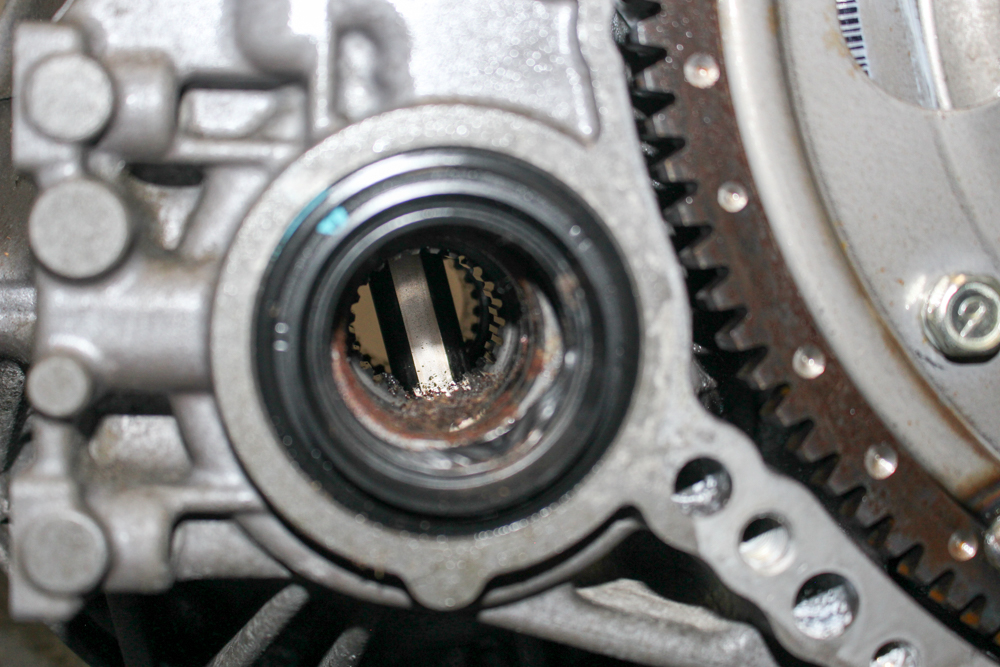

• Front / torque-converter seal
• Axle seals
• Selector-shaft seal
• Cooler-line seals
• Pan sealing surface

Replacing questionable seals before installation can prevent unnecessary labor later.

KEEP THE ORIGINAL TRANSMISSION

Do not discard the original transmission until the JDM replacement has been installed and road-tested successfully.

The original unit may still provide:

• Differential components
• Speed gear
• Speed sensors
• Wiring
• Switches
• Solenoids
• Mounting brackets
• Backing plate
• Cooler fittings
• Hardware

Keeping the original transmission nearby makes JDM-to-USDM fitment much easier.

INSTALLATION CHECKLIST

Before installation:

• Confirm Toyota or Scion application.
• Confirm 2AZ-FE 2.4L engine.
• Confirm FWD / 2WD drivetrain.
• Confirm U241E application.
• Verify physical transmission identification.
• Verify Toyota part number where available.
• Compare original and replacement transmissions.
• Compare bellhousing.
• Compare torque converter.
• Compare differential configuration.
• Reuse required original differential components.
• Reuse correct speed gear.
• Compare speed sensors.
• Compare electrical connectors.
• Compare wiring.
• Compare solenoids.
• Compare neutral safety / range switch.
• Compare axle interfaces.
• Compare mounting brackets.
• Compare backing plate.
• Compare cooler fittings.
• Inspect accessible seals.
• Inspect transmission pan.
• Inspect filter / strainer.
• Flush the transmission cooler.
• Flush cooler lines.
• Fill with Toyota Genuine ATF Type T-IV.
• Check for leaks.

INITIAL STARTUP PROCEDURE

After installation, fill the transmission according to the correct Toyota service procedure.

Next, start the engine and allow the ATF to circulate. Slowly move the selector through each position while monitoring engagement.

Then:

• Confirm Reverse engagement.
• Confirm Drive engagement.
• Monitor transmission temperature.
• Inspect cooler fittings.
• Check axle seals.
• Look for fluid leaks.
• Recheck ATF level.
• Scan for transmission-related diagnostic trouble codes.

Avoid aggressive acceleration during the initial test.

MULTIPLE HEAT CYCLES

Run several controlled heat cycles after the initial startup.

Because the torque converter and cooler system continue to fill during operation, the fluid level may change.

During each cycle:

• Monitor transmission temperature.
• Recheck ATF level.
• Inspect cooler connections.
• Check axle seals.
• Confirm Reverse and Drive.
• Inspect for leaks.

Once the ATF level remains stable, proceed with a conservative road test.

INITIAL ROAD TEST

Begin with gentle acceleration.

Monitor:

• Reverse engagement
• Drive engagement
• 1–2 shift
• 2–3 shift
• 3–4 shift
• Downshifts
• Torque-converter lockup
• RPM flare
• Slipping
• Delayed engagement
• Harsh shifting
• Abnormal noise
• Vibration
• Warning lights
• Fluid leaks

Afterward, scan the vehicle again for stored or pending transmission-related codes.

COMMON U241E FAILURE SYMPTOMS

Possible symptoms of a worn or damaged U241E transmission include:

• Slipping
• Delayed engagement
• Harsh shifting
• RPM flare
• Abnormal transmission noise
• No Reverse
• No Drive
• Fluid leaks
• Warning lights
• Transmission diagnostic codes

However, similar symptoms may also result from:

• Incorrect ATF level
• Incorrect ATF
• Speed-sensor problems
• Speed-gear problems
• Solenoid faults
• Wiring issues
• Torque-converter problems
• Restricted cooler flow
• Worn mounts
• Damaged CV axles
• Engine-related faults

Therefore, diagnose the complete vehicle before replacing the transmission whenever possible.

WHY THE COMPLETE TRANSMISSION CODE MATTERS

Toyota used the 2AZ-FE engine across several vehicle platforms.

Consequently, engine code alone is not enough to identify the correct transmission.

The strongest identification is:

Toyota / Scion → 2AZ-FE 2.4L → U241E → 4-Speed Automatic → FWD / 2WD

This gives customers, technicians, Google, Bing, and AI search systems a more accurate product relationship.

WHY CHOOSE ITEM 253408?

Item 253408 provides a low-mileage JDM replacement option for compatible Toyota and Scion 2AZ-FE FWD applications.

Key features include:

• Genuine used OEM Toyota JDM transmission
• U241E-family application
• 2AZ-FE 2.4L compatibility
• 4-speed automatic configuration
• FWD / 2WD drivetrain
• Individual Item ID
• Actual inventory photographs
• 90-day limited warranty
• Nationwide freight shipping
• Affordable installation available

WHY BUY FROM J-SPEC AUTO SPORTS?

J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.

Customers benefit from:

• Actual inventory photographs
• Individual inventory tracking
• Transmission-code verification
• Toyota drivetrain experience
• Fitment assistance
• Nationwide freight shipping
• Local pickup
• Affordable installation options
• Limited warranty coverage

Additionally, verifying the complete transmission configuration before purchase helps reduce expensive compatibility problems.

INDIVIDUAL INVENTORY INFORMATION

Primary Vehicles: Toyota Camry / Scion tC

Additional Applications: Toyota RAV4 / Toyota Highlander

Transmission Application: U241E

Physical Unit Identification: U241

Engine Code: 2AZ-FE

Engine Size: 2.4L

Transmission Type: 4-Speed Automatic

Gears: 4

Drivetrain: FWD / 2WD

Fluid: Toyota Genuine ATF Type T-IV

Speed Sensor / Speed Gear: Not Included – reuse compatible original components

Item ID: 253408

SKU: 2.4L 2AZ U241

Condition: Used OEM JDM / Low Mileage

Warranty: 90 Days

90-DAY LIMITED WARRANTY

Item 253408 includes a 90-day limited warranty, subject to J-Spec Auto Sports’ current warranty terms and installation requirements.

For warranty documentation, retain records showing:

• Correct Toyota ATF Type T-IV
• Transmission cooler flushing
• Cooler-line service
• Pan / filter inspection
• Seal inspection
• Torque-converter installation
• Required differential / speed-gear transfer
• Required sensor or electrical-component transfer
• Professional installation

FREQUENTLY ASKED QUESTIONS

What transmission is this?

This listing targets the:

Toyota U241E 4-speed automatic transmission

family.

What engine does it work with?

The target engine is:

2AZ-FE 2.4L DOHC 4-cylinder

Is the U241E a 4-speed or 5-speed?

The U241E is a:

4-speed automatic transmission

Is it a CVT?

No.

The U241E is a conventional automatic transmission.

Is this FWD?

Yes.

This transmission is intended for compatible:

FWD / 2WD

applications.

Will it fit a 2002–2004 Toyota Camry?

It targets compatible 2AZ-FE 2.4L FWD Camry applications using the correct U241E configuration.

Will it fit a 2005–2010 Scion tC?

It targets compatible Scion tC 2.4L FWD applications using the correct U241E configuration.

Will it fit a 2006–2008 RAV4?

It may fit compatible 2AZ-FE 2.4L FWD RAV4 applications after complete transmission verification.

Will it fit a Toyota Highlander?

Certain 2.4L FWD Highlander applications use the U241E family. Verify the original transmission identification and configuration before ordering.

Will it fit AWD / 4WD?

No direct AWD / 4WD interchange should be assumed.

This listing is for compatible FWD / 2WD applications.

Is the speed sensor included?

No.

The live Item 253408 listing states that the required speed sensor / speed gear must be reused or otherwise matched to the target application.

Do I need the original differential?

Keep the original transmission because the compatible original differential and speed-gear configuration may be required for installation.

What transmission fluid does it use?

For verified U241E applications, use:

Toyota Genuine ATF Type T-IV

Can I use CVT fluid?

No.

The U241E is not a CVT.

Should the transmission cooler be flushed?

Yes.

Flush and inspect the cooler and cooler lines before operating the replacement transmission.

Should I keep my original transmission?

Yes.

Keep the original transmission until the JDM replacement has been installed and road-tested successfully.

Is this transmission rebuilt?

No.

Unless specifically stated otherwise, this is a used OEM JDM Toyota transmission imported from Japan.

Does it have a warranty?

Yes.

Item 253408 includes a 90-day limited warranty.

ORDER ITEM 253408 – TOYOTA / SCION U241E 2.4L FWD TRANSMISSION

Replace your worn or failed transmission with this low-mileage JDM Toyota U241E 4-speed FWD automatic transmission for compatible 2AZ-FE 2.4L applications.

Primary Applications: Toyota Camry / Scion tC
Additional Applications: Toyota RAV4 / Toyota Highlander
Engine: 2AZ-FE 2.4L
Transmission: U241E
Transmission Type: 4-Speed Automatic
Drivetrain: FWD / 2WD
Fluid: Toyota Genuine ATF Type T-IV
Item ID: 253408
SKU: 2.4L 2AZ U241
Warranty: 90 Days

Before ordering, verify the VIN, original transmission identification, Toyota part number, 2AZ-FE engine, FWD drivetrain, differential configuration, speed gear, speed sensors, torque converter, electrical connectors, wiring, solenoids, axle interfaces, mounting brackets, backing plate, and cooler fittings.

For fitment assistance, nationwide freight shipping, or installation information, contact J-Spec Auto Sports before completing your order.
