JDM 2009–2011 Mazda RX-8 SJ6A-EL 6-Speed Automatic RWD Transmission

Replace your slipping, harsh-shifting, delayed-engagement, noisy, damaged, or failed automatic transmission with this low-mileage JDM Mazda RX-8 SJ6A-EL 6-speed automatic transmission from J-Spec Auto Sports.

This genuine Mazda JDM transmission targets compatible 2009–2011 Mazda RX-8 models equipped with the 13B-MSP Renesis rotary engine and rear-wheel drive.

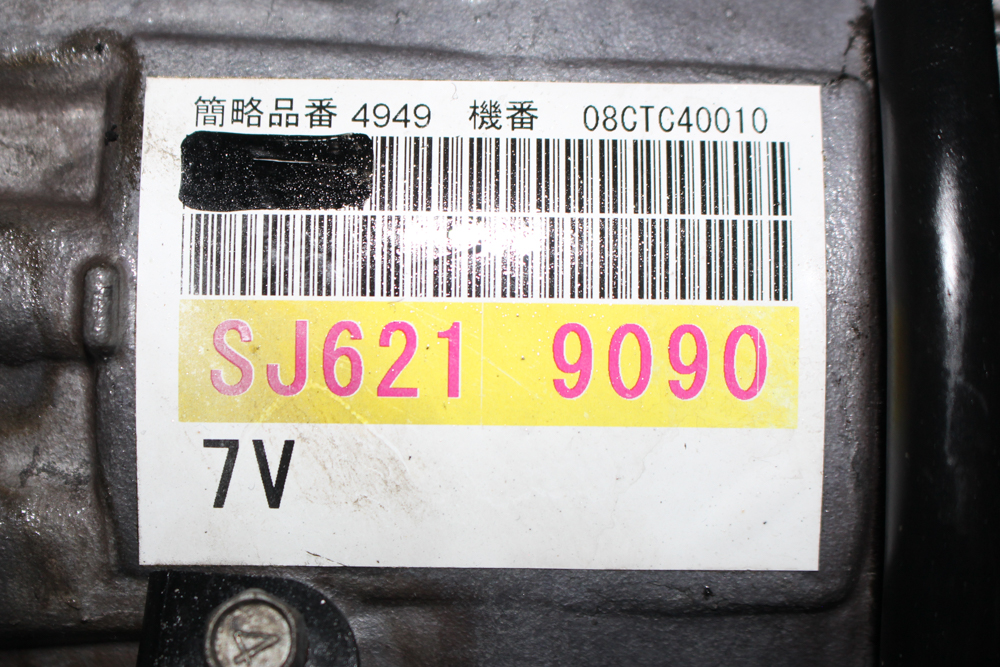

This individual inventory unit is Item ID 254056 with SKU MT957 SJ621-9090. The current J-Spec listing confirms the 2009–2011 Mazda RX-8 application, 6-speed automatic configuration, actual inventory photos, installation availability, and a 30-day warranty.

Mazda service information identifies the 2009 RX-8 automatic transmission as the SJ6A-EL, a 6-speed electronically controlled automatic transmission with lockup torque converter.

The primary drivetrain relationship is:

Mazda RX-8 → 2009–2011 → 13B-MSP Renesis → SJ6A-EL → 6-Speed Automatic → RWD

Quick Details

• Make: Mazda
• Model: RX-8
• Model Years: 2009–2011
• Engine: 13B-MSP Renesis
• Engine Type: Rotary
• Transmission Code: SJ6A-EL
• Transmission Type: Automatic
• Number of Gears: 6-Speed
• Drivetrain: Rear-Wheel Drive / RWD
• ATF Specification: Mazda Genuine JWS3309
• Approximate ATF Capacity: 8.0 L / 8.5 US qt
• Condition: Used JDM / Low Mileage
• Origin: Japan
• Item ID: 254056
• SKU: MT957 SJ621-9090
• Actual Product Photos: Yes
• Warranty: 30 Days
• Shipping: Nationwide Freight Shipping
• Installation: Affordable Installation Available
• Local Pickup: Richmond / Henrico, Virginia

SJ6A-EL 6-SPEED AUTOMATIC TRANSMISSION

The SJ6A-EL is Mazda’s 6-speed electronically controlled automatic transmission used in the later RX-8.

Mazda’s 2009 service information identifies the code as:

SJ6A-EL

The code indicates:

• SJ: Transmission model family
• 6: 6-speed
• A: Automatic transmission
• E: Electronic shift control
• L: Lockup torque converter

This transmission uses six conventional forward gears and a torque converter.

It is not a CVT.

13B-MSP RENESIS ROTARY APPLICATION

This transmission targets compatible Mazda RX-8 models equipped with the 13B-MSP Renesis rotary engine.

The Renesis differs fundamentally from a conventional piston engine and remains one of the defining characteristics of the RX-8 platform.

The important transmission relationship is:

13B-MSP Renesis + SJ6A-EL + RWD

Engine type alone, however, does not guarantee compatibility. Always verify the original transmission configuration.

VEHICLE COMPATIBILITY

2009 Mazda RX-8 Automatic

• 13B-MSP Renesis
• SJ6A-EL
• 6-speed automatic
• RWD
• Verify original transmission identification

2010 Mazda RX-8 Automatic

• 13B-MSP Renesis
• 6-speed automatic
• Rear-wheel drive
• Verify VIN and electrical configuration

2011 Mazda RX-8 Automatic

• 13B-MSP Renesis
• SJ6A-EL
• 6-speed automatic
• RWD
• Verify complete physical configuration

The live J-Spec listing identifies the application as 2009–2011 Mazda RX-8 6-Port.

2009–2011 vs. EARLIER RX-8 AUTOMATIC TRANSMISSIONS

Earlier Mazda RX-8 automatic-transmission configurations should not automatically be treated as interchangeable with the 2009–2011 SJ6A-EL.

The 2009 model uses the SJ6A-EL 6-speed automatic, while earlier RX-8 production included different transmission configurations.

Possible differences can include:

• Transmission case
• Internal gearing
• Valve body
• Electrical connectors
• Sensors
• Solenoids
• Torque converter
• Calibration
• External brackets
• Production revisions

Therefore, verify the original transmission before ordering.

REAR-WHEEL-DRIVE APPLICATION

This transmission targets a rear-wheel-drive RX-8.

The transmission output connects to the driveshaft, which transfers power to the rear differential.

Before installation, inspect:

• Transmission output
• Tailhousing
• Driveshaft interface
• Transmission mount
• Crossmember
• Driveshaft
• Related couplers and hardware

JDM-TO-USDM FITMENT

This transmission comes from a Japanese-market application.

Some external components may differ from the original U.S.-market transmission.

Before installation, place the JDM replacement beside the original USDM transmission.

Compare:

• SJ6A-EL transmission identification
• Transmission case
• Bellhousing
• Torque converter
• Electrical connectors
• Speed sensors
• Range switch
• Solenoids
• Cooler fittings
• Transmission mounts
• Output shaft
• Tailhousing
• Driveshaft interface
• External brackets
• Wiring

Transfer compatible original USDM components when required.

Keep the original transmission and related components until installation and road testing are complete.

WHAT IS INCLUDED?

The sale includes the actual automatic transmission represented in the product photographs.

Depending on the components shown, the transmission may include:

• SJ6A-EL 6-speed automatic transmission
• Transmission case
• Internal transmission components
• Valve-body components
• Attached sensors
• Attached solenoids
• Electrical connectors
• Torque converter when pictured
• External brackets when pictured

Only components shown in the actual product photos or specifically listed should be considered included.

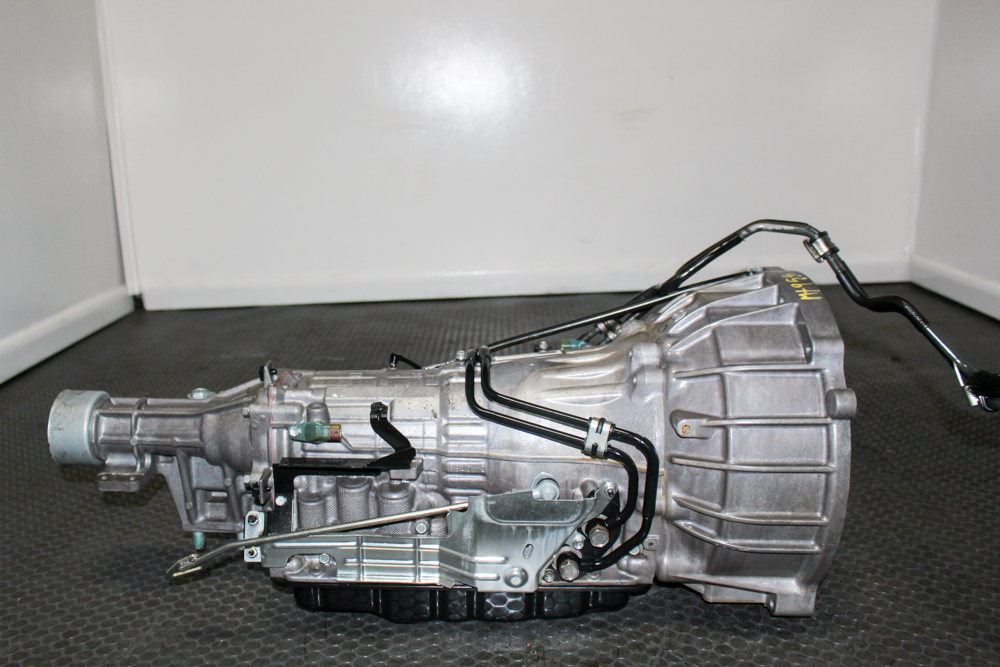

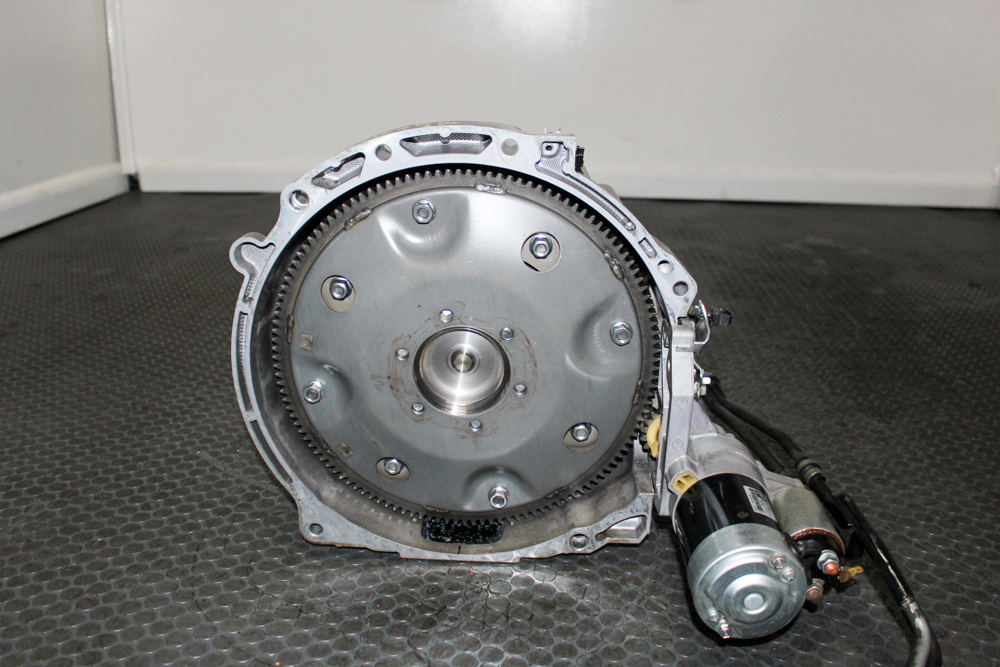

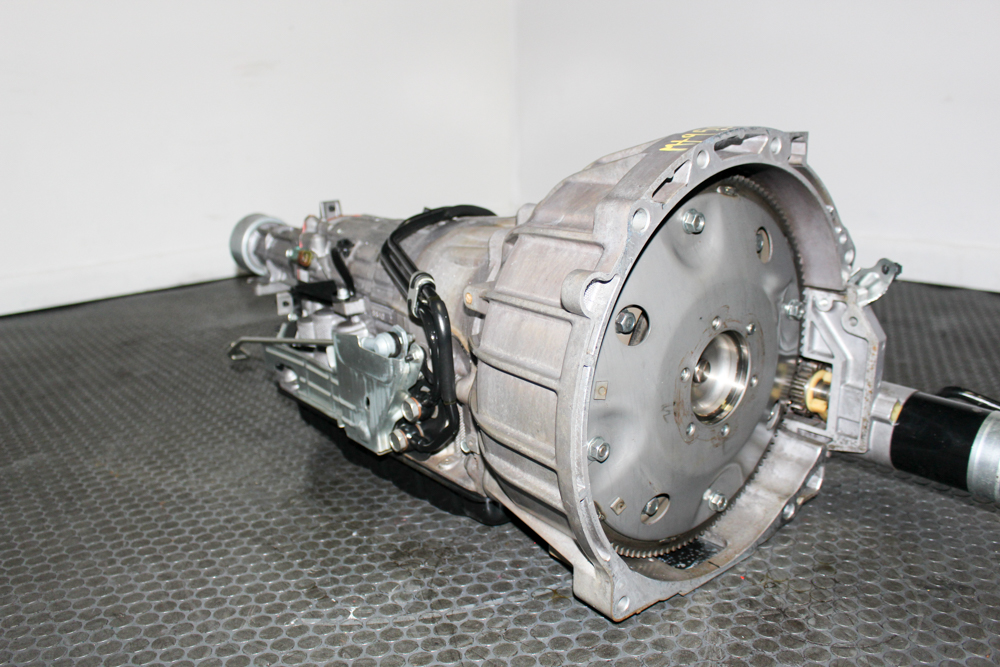

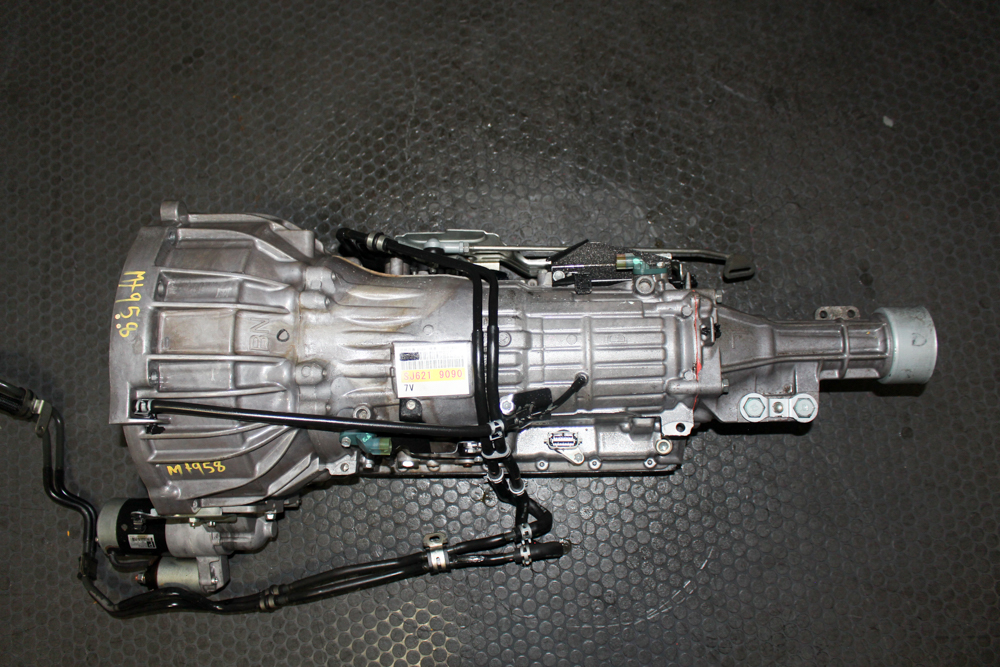

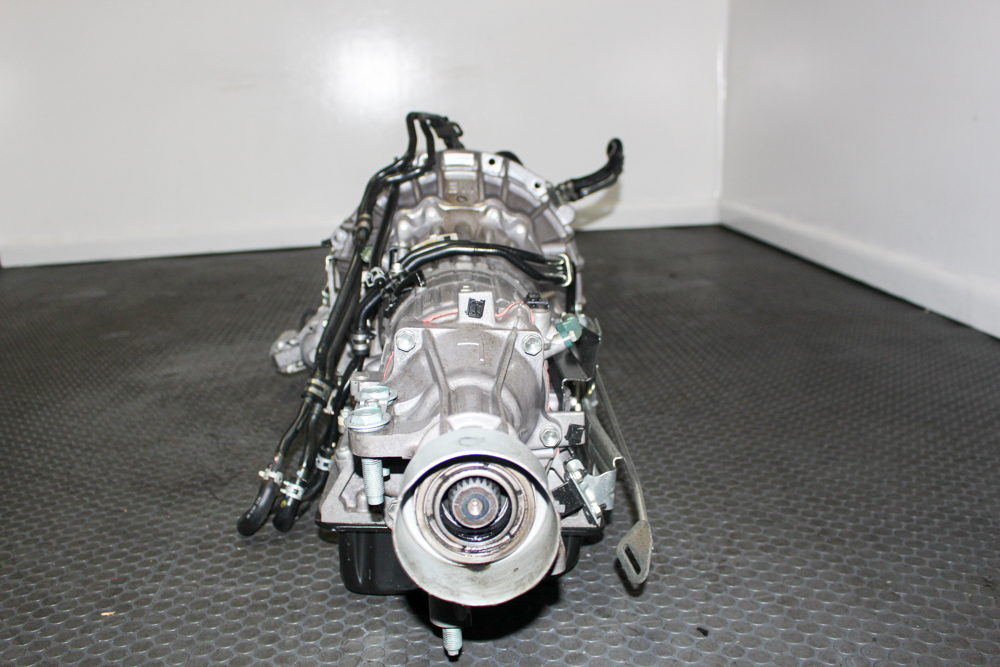

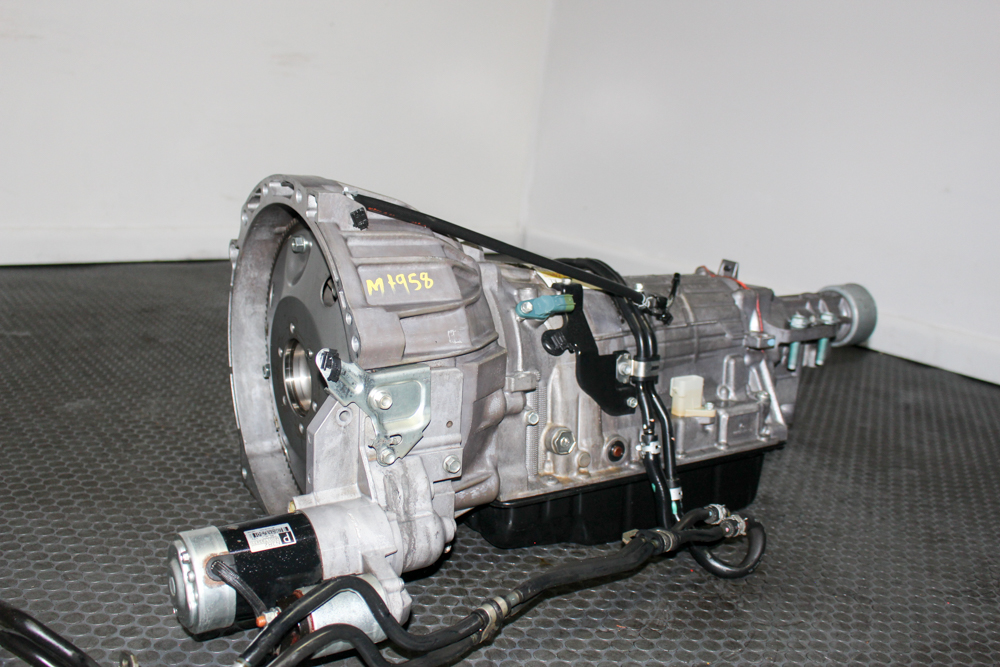

ACTUAL PRODUCT PHOTOS

The product listing uses actual inventory photographs.

Customers can compare:

• Transmission case
• Bellhousing
• Torque converter
• Electrical connectors
• Sensors
• Solenoids
• Cooler fittings
• Tailhousing
• Mounting points
• Overall condition

before ordering.

TRANSMISSION FLUID

Mazda specifies:

Mazda Genuine JWS3309 ATF

for the RX-8 automatic transmission. Mazda’s service bulletin lists 2006–2011 RX-8 → JWS3309 (T-IV).

Do not use:

• CVT fluid
• Gear oil
• Unverified universal ATF
• Old fluid from the failed transmission

Correct ATF helps support:

• Hydraulic pressure
• Shift quality
• Clutch operation
• Torque-converter lockup
• Lubrication
• Temperature control

TRANSMISSION FLUID CAPACITY

Mazda service information for the SJ6A-EL lists an approximate quantity of:

8.0 liters / 8.5 US quarts

during ATF replacement procedures.

Actual refill quantity may vary depending on how much fluid remains in:

• Transmission
• Torque converter
• Cooler
• Cooler lines

Always set the final ATF level using the proper service procedure.

OVERFLOW-TYPE ATF LEVEL PROCEDURE

The SJ6A-EL uses a filler and overflow system for fluid servicing.

Mazda service information instructs the installer to add JWS3309 through the filler opening and verify fluid at the overflow opening during the service procedure.

Proper fluid level is critical.

Both overfilling and underfilling can cause transmission problems.

NEVER REUSE OLD TRANSMISSION FLUID

Always fill the replacement transmission with fresh JWS3309 ATF.

Old fluid may contain:

• Metal particles
• Clutch material
• Friction debris
• Oxidized fluid
• Dirt
• Other contamination

Contaminated ATF can damage the replacement transmission.

FLUSH THE TRANSMISSION COOLER AND LINES

Thoroughly flush and inspect the transmission cooler and cooler lines before installation.

A failed automatic transmission can circulate:

• Metal particles
• Friction debris
• Clutch material
• Contaminated ATF

through the cooling circuit.

Therefore:

• Flush the transmission cooler.
• Flush all cooler lines.
• Inspect for restrictions.
• Remove contaminated fluid.
• Replace components that cannot be properly cleaned.

Never install a replacement transmission onto a contaminated cooling system.

INSPECT THE TORQUE CONVERTER

Compare the replacement torque converter with the original unit.

Inspect:

• Converter hub
• Splines
• Mounting pattern
• Seal surface
• Physical configuration

Make sure the converter seats completely inside the transmission before installation.

Never use the bellhousing bolts to force the transmission against the engine.

Improper torque-converter installation can damage the front pump.

REPLACE ACCESSIBLE SEALS

Inspect accessible transmission seals before installation.

Replace worn or questionable:

• Torque-converter/front seal
• Output seal
• Cooler-line seals
• Transmission-pan gasket
• Filler and overflow sealing components when required
• Other accessible seals

Preventive seal replacement can help reduce future fluid leaks.

INSPECT ELECTRICAL COMPONENTS

Compare the replacement transmission with the original unit.

Inspect:

• Electrical connectors
• Input/output speed sensors
• Range-related components
• Solenoid wiring
• Valve-body electronics
• Harness connections

Look for:

• Bent pins
• Corrosion
• Broken wiring
• Damaged connectors
• Physical differences

Transfer compatible original components when necessary.

INSPECT TRANSMISSION MOUNT AND DRIVESHAFT

Inspect:

• Transmission mount
• Crossmember
• Driveshaft
• Driveshaft flanges
• Couplers
• Support components
• Related hardware

A worn drivetrain component can create vibration, clunking, or shudder that may appear to be a transmission problem.

SCAN THE VEHICLE BEFORE REMOVAL

Record all diagnostic trouble codes before removing the original transmission.

Pay attention to:

• Gear-ratio codes
• Shift-solenoid codes
• Pressure-control codes
• Torque-converter codes
• Speed-sensor codes
• Engine codes
• Communication faults

Use the stored diagnostic information to help identify the cause of the original failure.

TRANSMISSION INITIALIZATION AND RELEARN

After installation, complete all applicable:

• Diagnostic trouble-code resets
• Transmission initialization
• Adaptive relearn
• PCM/TCM reset procedures
• Road-test relearn

Use Mazda-compatible professional diagnostic equipment when required.

INITIAL STARTUP CHECKLIST

Before road testing:

• Confirm 2009–2011 Mazda RX-8 application.
• Confirm 13B-MSP Renesis engine.
• Confirm SJ6A-EL transmission.
• Confirm 6-speed automatic configuration.
• Confirm RWD drivetrain.
• Compare original and replacement transmissions.
• Flush transmission cooler.
• Flush cooler lines.
• Inspect accessible seals.
• Properly seat torque converter.
• Fill with Mazda Genuine JWS3309 ATF.
• Verify correct ATF level.
• Connect all electrical connectors.
• Inspect sensors.
• Inspect solenoid wiring.
• Check cooler connections.
• Verify transmission mount.
• Verify driveshaft installation.
• Confirm Park engagement.
• Confirm Reverse engagement.
• Confirm Drive engagement.
• Check warning lights.
• Scan for trouble codes.
• Inspect for ATF leaks.

INITIAL ROAD TEST

Begin with a gentle road test.

Monitor:

• Reverse engagement
• Drive engagement
• 1–2 shift
• 2–3 shift
• 3–4 shift
• 4–5 shift
• 5–6 shift
• Downshifts
• Manual shift mode
• Paddle-shift operation when equipped
• Torque-converter lockup
• Shift flare
• Slipping
• Shudder
• Driveline vibration
• Abnormal noises
• Warning lights
• ATF leaks

Mazda offered the 2009 RX-8 automatic with a 6-speed automatic, paddle shifters, and Adaptive Shift Logic.

Avoid aggressive acceleration until normal transmission operation has been confirmed.

After the road test:

• Recheck ATF level.
• Inspect for leaks.
• Scan for trouble codes.
• Check cooler connections.
• Inspect mounting hardware.
• Inspect driveshaft connections.

COMMON SIGNS OF MAZDA RX-8 AUTOMATIC TRANSMISSION PROBLEMS

A failing RX-8 automatic transmission may produce:

• Delayed Drive engagement
• Delayed Reverse engagement
• Harsh shifting
• Transmission slipping
• Shift flare
• Shudder
• Failure to upshift
• Torque-converter problems
• Abnormal transmission noises
• Burnt ATF
• Warning lights
• Diagnostic trouble codes
• Fluid leaks

Similar symptoms can also result from:

• Valve-body problems
• Solenoid faults
• Sensor failures
• Wiring problems
• Torque-converter faults
• Incorrect ATF
• Low ATF
• Contaminated ATF
• Transmission mounts
• Driveshaft problems

Proper diagnosis should be completed before replacing the complete transmission.

WHY CHOOSE THIS JDM SJ6A-EL TRANSMISSION?

This JDM SJ6A-EL transmission provides an OEM Mazda-based replacement option for compatible RX-8 models with a damaged, worn, slipping, or failed original automatic transmission.

Key features include:

• Genuine Mazda OEM transmission
• SJ6A-EL transmission code
• 13B-MSP Renesis application
• 6-speed automatic configuration
• RWD drivetrain
• Mazda JWS3309 ATF specification
• Actual inventory photographs
• Individual Item ID
• 30-day limited warranty
• Nationwide freight shipping
• Affordable installation available

WHY BUY FROM J-SPEC AUTO SPORTS?

J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.

Customers benefit from:

• Actual inventory photographs
• Transmission-code-level identification
• Application-specific fitment information
• Rotary drivetrain experience
• Nationwide freight shipping
• Local Richmond / Henrico, Virginia pickup
• Affordable installation options
• Limited warranty coverage

INDIVIDUAL INVENTORY INFORMATION

Vehicle: Mazda RX-8
Years: 2009–2011
Engine: 13B-MSP Renesis Rotary
Transmission Code: SJ6A-EL
Transmission: 6-Speed Automatic
Drivetrain: RWD
ATF: Mazda Genuine JWS3309
Approx. ATF Capacity: 8.0 L / 8.5 US qt
Item ID: 254056
SKU: MT957 SJ621-9090
Condition: Used JDM / Low Mileage
Warranty: 30-Day Limited Warranty

30-DAY LIMITED WARRANTY

This individual Item ID 254056 includes a 30-day limited warranty, subject to J-Spec Auto Sports’ current warranty terms and installation requirements.

Keep installation and service documentation for:

• JWS3309 ATF
• Transmission cooler flushing
• Cooler-line flushing
• Seal replacement
• Torque-converter installation
• Professional installation
• Diagnostic procedures
• Related maintenance

SHIPPING

Nationwide freight shipping is available throughout the continental United States.

J-Spec’s current shipping policy states that orders generally ship within 1–2 business days, with estimated continental U.S. delivery of approximately 2–7 business days, depending on location.

Inspect the shipment for visible freight damage at delivery.

Local pickup is also available in Richmond / Henrico, Virginia.

FREQUENTLY ASKED QUESTIONS

What transmission does the 2009–2011 Mazda RX-8 automatic use?

The later RX-8 uses the SJ6A-EL 6-speed automatic transmission.

Is this a 6-speed automatic?

Yes. This is a conventional 6-speed automatic transmission.

Is this a CVT?

No. The SJ6A-EL is not a CVT.

What engine works with this transmission?

This transmission targets compatible 13B-MSP Renesis rotary-engine applications.

Is this transmission RWD?

Yes. The Mazda RX-8 uses a rear-wheel-drive drivetrain.

Will it fit a 2009 Mazda RX-8?

It targets compatible 2009 RX-8 automatic applications after complete fitment verification.

Will it fit a 2010 Mazda RX-8?

It targets compatible 2010 Mazda RX-8 automatic applications after verifying the original transmission.

Will it fit a 2011 Mazda RX-8?

It targets compatible 2011 RX-8 automatic applications after complete fitment verification.

Will it fit a 2004–2008 Mazda RX-8?

Compatibility should not be assumed. Earlier RX-8 automatic transmissions use different configurations, and the 2009 model specifically uses the SJ6A-EL 6-speed automatic.

What transmission fluid does it use?

Use Mazda Genuine JWS3309 ATF.

How much ATF does the SJ6A-EL hold?

Mazda service information lists approximately 8.0 liters / 8.5 US quarts for the ATF replacement procedure.

Does this transmission use an overflow-style fluid-level procedure?

Yes. Mazda service information describes filler and overflow plugs as part of the SJ6A-EL fluid service procedure.

Can I reuse the old ATF?

No. Always use fresh JWS3309 ATF.

Should the transmission cooler be flushed?

Yes. Thoroughly flush and inspect the cooler and cooler lines before installation.

Should accessible seals be replaced?

Inspect accessible seals before installation and replace worn or questionable components.

Does the torque converter need to be seated correctly?

Yes. The torque converter must seat fully inside the transmission before installation.

Does this transmission support paddle shifting?

Automatic 2009 RX-8 models were offered with a 6-speed automatic, paddle shifters, and Adaptive Shift Logic.

Can external components be transferred from the original transmission?

Yes. Compatible sensors, brackets, wiring components, switches, or other external parts may need to be transferred when required.

Does this transmission require a relearn?

Depending on the vehicle and repair, transmission initialization, PCM/TCM reset, or adaptive relearn procedures may be required.

Is this transmission rebuilt?

No. This is a used OEM JDM transmission, unless specifically stated otherwise.

Are the pictures of the actual transmission?

Yes. The live listing presents the actual product inventory photographs.

Does this transmission have a warranty?

Yes. Item ID 254056 currently carries a 30-day limited warranty.

Does J-Spec Auto Sports offer installation?

Yes. Affordable installation is available.

Does J-Spec Auto Sports ship nationwide?

Yes. Nationwide freight shipping is available.

ORDER YOUR JDM MAZDA RX-8 SJ6A-EL TRANSMISSION

Replace your damaged or failed automatic transmission with this low-mileage JDM Mazda RX-8 SJ6A-EL 6-speed RWD automatic transmission.

This genuine Mazda OEM transmission targets compatible 2009–2011 Mazda RX-8 models equipped with the 13B-MSP Renesis rotary engine and rear-wheel drive.

Vehicle: Mazda RX-8
Years: 2009–2011
Engine: 13B-MSP Renesis Rotary
Transmission Code: SJ6A-EL
Transmission: 6-Speed Automatic
Drivetrain: RWD
ATF: Mazda Genuine JWS3309
Approx. ATF Capacity: 8.0 L / 8.5 US qt
Item ID: 254056
SKU: MT957 SJ621-9090
Warranty: 30-Day Limited Warranty

Verify the VIN, original SJ6A-EL transmission identification, electrical connectors, sensors, torque converter, RWD output configuration, mounts, cooler fittings, and complete physical configuration before ordering.
