JDM 2012–2016 Nissan Versa RE0F11A / JF015E 1.6L HR16DE CVT FWD Transmission

Replace your slipping, shuddering, delayed-engagement, noisy, overheating, or failed Nissan Versa CVT with this low-mileage JDM RE0F11A / JF015E continuously variable transmission from J-Spec Auto Sports.

This genuine Nissan/Jatco JDM transmission targets compatible 2012–2016 Nissan Versa models equipped with the HR16DE 1.6L DOHC 4-cylinder engine, CVT automatic transmission, and front-wheel drive.

This individual inventory unit is Item ID 251587 and carries identification 620N04 with SKU MT904 HR16DE CVT Transmission. The live J-Spec listing confirms the 2012–2016 Versa 1.6L application, FWD drivetrain, actual product inventory, and a 90-day parts-only warranty.

The correct transmission-family identity is:

Nissan Versa → 2012–2016 → HR16DE 1.6L → RE0F11A / JF015E → CVT → FWD

Quick Details

• Make: Nissan
• Model: Versa
• Model Years: 2012–2016
• Engine Code: HR16DE
• Engine Size: 1.6L
• Engine Configuration: DOHC Inline 4-Cylinder
• Nissan Transmission Code: RE0F11A
• Jatco Transmission Code: JF015E
• Unit Identification: 620N04
• Transmission Type: CVT Automatic
• Drivetrain: Front-Wheel Drive / FWD
• CVT Fluid: Nissan CVT Fluid – verify applicable NS-2 / NS-3 specification
• Condition: Used JDM / Low Mileage
• Origin: Japan
• Item ID: 251587
• SKU: MT904 HR16DE CVT Transmission
• Actual Product Photos: Yes
• Warranty: 90-Day Limited Parts Warranty
• Shipping: Nationwide Freight Shipping
• Installation: Affordable Installation Available
• Local Pickup: Richmond / Henrico, Virginia

RE0F11A / JF015E CVT TRANSMISSION

The transmission family used in this Nissan Versa application is known by two commonly searched codes:

Nissan Code: RE0F11A

Jatco Code: JF015E

The JF015E is a compact continuously variable transmission designed for small-displacement front-wheel-drive vehicles.

Unlike a conventional automatic transmission with five or six fixed forward gears, the CVT continuously varies its operating ratio to match vehicle speed, load, and engine demand.

The RE0F11A / JF015E includes:

• Variable-ratio CVT operation
• Torque converter
• Primary and secondary pulleys
• Steel belt
• Auxiliary gearset
• Electronically controlled hydraulic valve body
• Integrated front differential
• FWD transaxle configuration

IMPORTANT TRANSMISSION CODE INFORMATION

The identification 620N04 appears on this individual J-Spec inventory unit. However, the transmission-family code for the Versa HR16DE application is:

RE0F11A / JF015E

For product data, search optimization, and customer fitment, the clean identification structure is:

Transmission Code: RE0F11A / JF015E
Unit Identification / Serial: 620N04

This separates the transmission family from the individual inventory identifier.

HR16DE 1.6L ENGINE APPLICATION

This CVT targets compatible Nissan Versa models equipped with the HR16DE 1.6L 4-cylinder engine.

The important drivetrain relationship is:

HR16DE 1.6L + RE0F11A/JF015E + FWD

Engine displacement alone does not guarantee fitment. Nissan used different CVT part numbers and revisions during production.

Therefore, verify the original transmission identification and VIN before purchase.

VEHICLE COMPATIBILITY

2012 Nissan Versa 1.6L CVT

• HR16DE 1.6L
• RE0F11A / JF015E
• CVT automatic
• FWD
• Verify original transmission model code
• Verify production date and Nissan part number

2013 Nissan Versa 1.6L CVT

• HR16DE
• RE0F11A / JF015E family
• CVT
• FWD
• Verify original part number and calibration

2014 Nissan Versa 1.6L CVT

• HR16DE 1.6L
• CVT automatic
• FWD
• Verify transmission tag and electrical configuration

2015 Nissan Versa 1.6L CVT

• HR16DE
• RE0F11A / JF015E
• Front-wheel drive
• Verify VIN and transmission configuration

2016 Nissan Versa 1.6L CVT

• HR16DE 1.6L
• CVT
• FWD
• Verify complete transmission specification

The current J-Spec listing targets 2012–2016 Nissan Versa 1.6L applications.

2012 vs. 2013–2016 CVT REVISIONS

The RE0F11A/JF015E family spans several Nissan Versa production revisions.

Fitment data distinguishes the 2012 Versa 1.6L from later 2013–2019 Versa 1.6L applications with different Nissan transmission assembly numbers and model-code suffixes. For example, 2012 applications are associated with model code 3JX4E, while later applications include 3JX6C/X425A/X424C variants.

Therefore, do not advertise every RE0F11A/JF015E as universally interchangeable.

Verify:

• VIN
• Production date
• RE0F11A identification
• Nissan assembly number
• Model-code suffix
• TCM calibration
• Sensors
• Electrical connectors
• Valve-body configuration

NISSAN VERSA vs. VERSA NOTE

The Versa Note also uses HR16DE/JF015E-family CVTs in certain later applications.

However, this individual product is listed primarily for:

2012–2016 Nissan Versa

Do not automatically advertise Versa Note interchange based only on engine size or JF015E family identification.

Check the exact Nissan transmission part number, production date, wiring, sensors, and calibration first.

FRONT-WHEEL-DRIVE APPLICATION

This transmission targets FWD / 2WD Nissan Versa applications.

The RE0F11A/JF015E integrates the front differential into the CVT transaxle assembly.

Before installation, inspect:

• Left axle interface
• Right axle interface
• Differential seals
• Axle splines
• CV joints
• Transmission mounts

JDM-TO-USDM FITMENT

This transmission comes from a Japanese-market application.

Some external components or electronic configurations may differ from the original U.S.-market Versa CVT.

Before installation, place the JDM and original USDM transmissions side by side.

Compare:

• RE0F11A / JF015E transmission family
• Nissan part number
• Unit identification
• Transmission case
• Bellhousing
• Torque converter
• Electrical connectors
• Primary speed sensor
• Secondary speed sensor
• Output speed sensor
• Range switch
• Valve-body connections
• Cooler fittings
• Transmission mounts
• Axle openings
• External brackets
• Shift linkage

Transfer compatible original USDM components when necessary.

Keep the original transmission until the replacement unit has been installed, programmed as required, and successfully road-tested.

WHAT IS INCLUDED?

The sale includes the actual CVT represented in the product photographs.

Depending on what remains attached and is pictured, the transmission may include:

• RE0F11A / JF015E CVT assembly
• Transmission case
• Internal pulley and belt assembly
• Integrated differential
• Valve-body components
• Attached sensors
• Electrical connectors
• Torque converter when pictured
• External brackets when pictured

Only components shown in the actual inventory photos or specifically stated should be considered included.

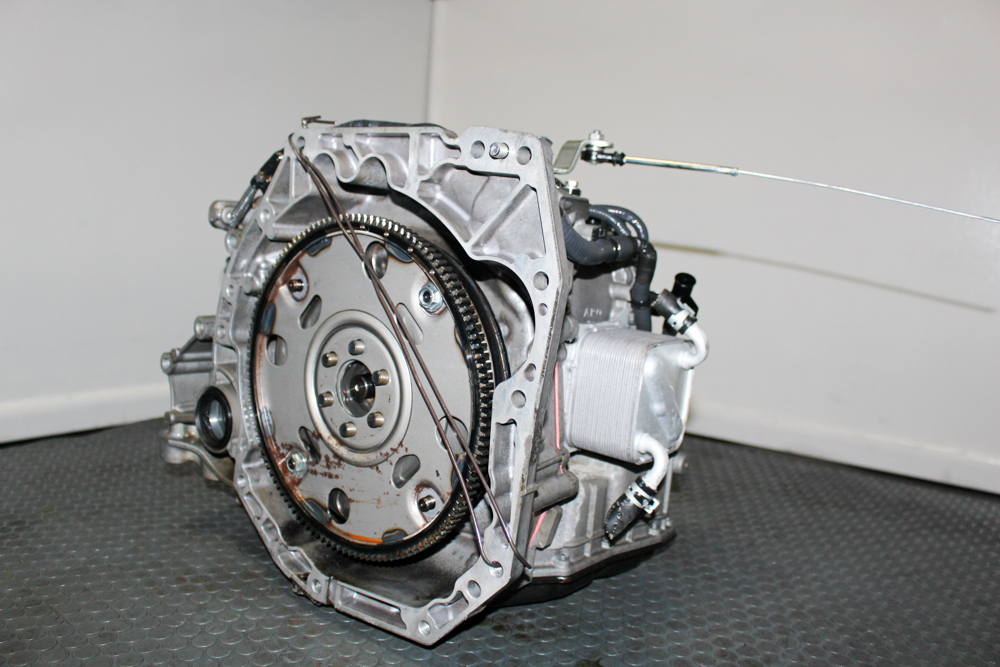

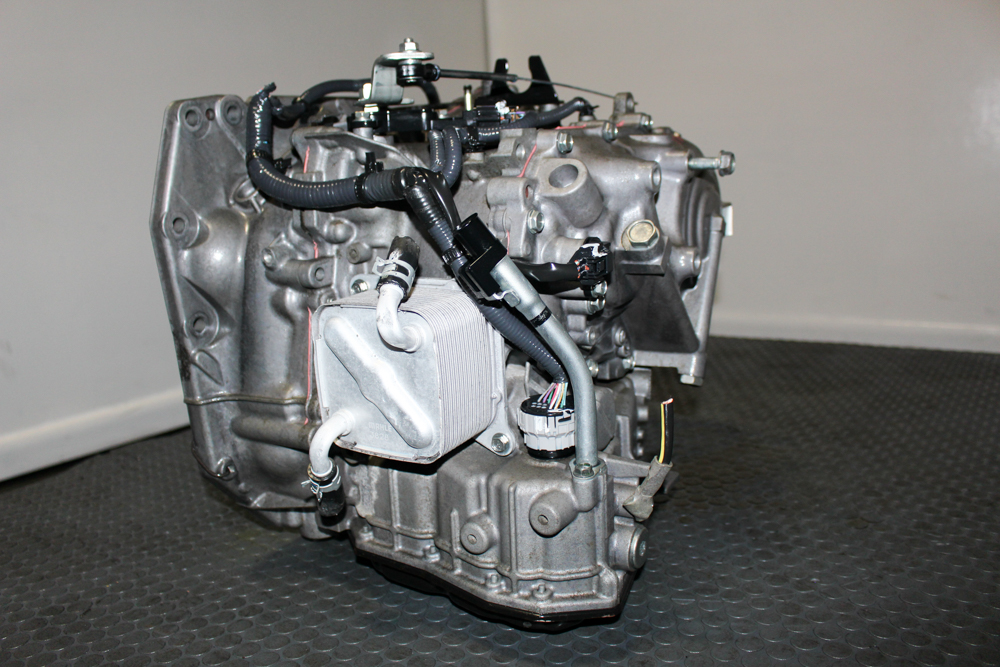

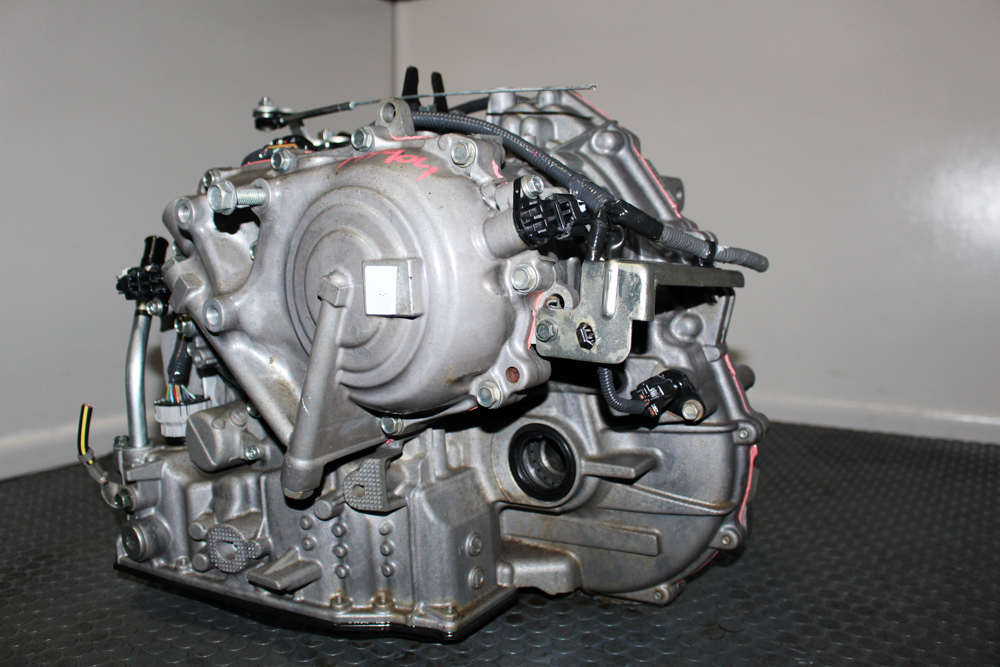

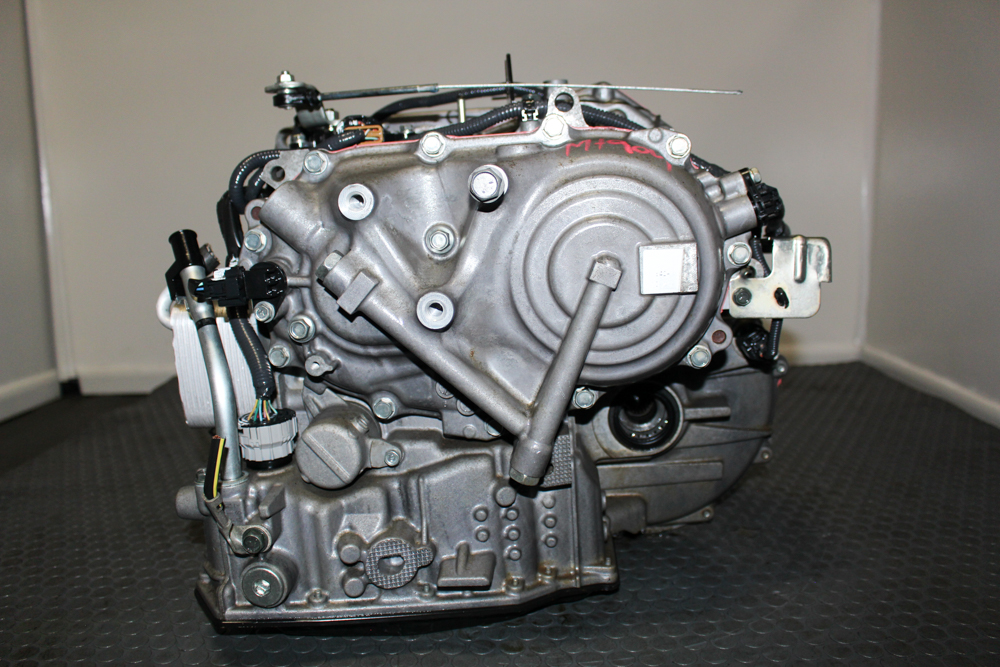

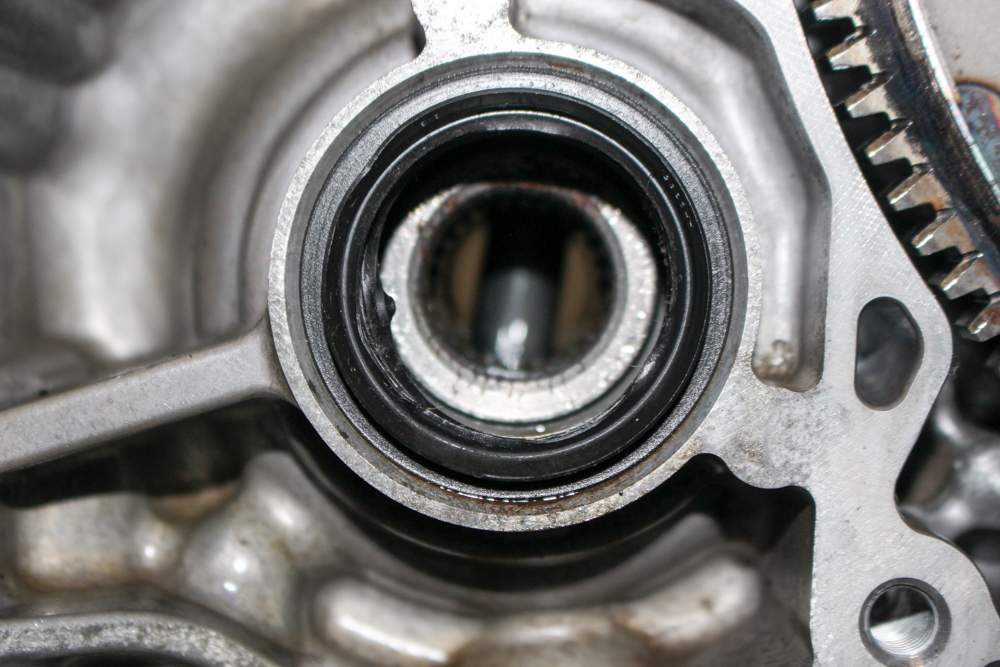

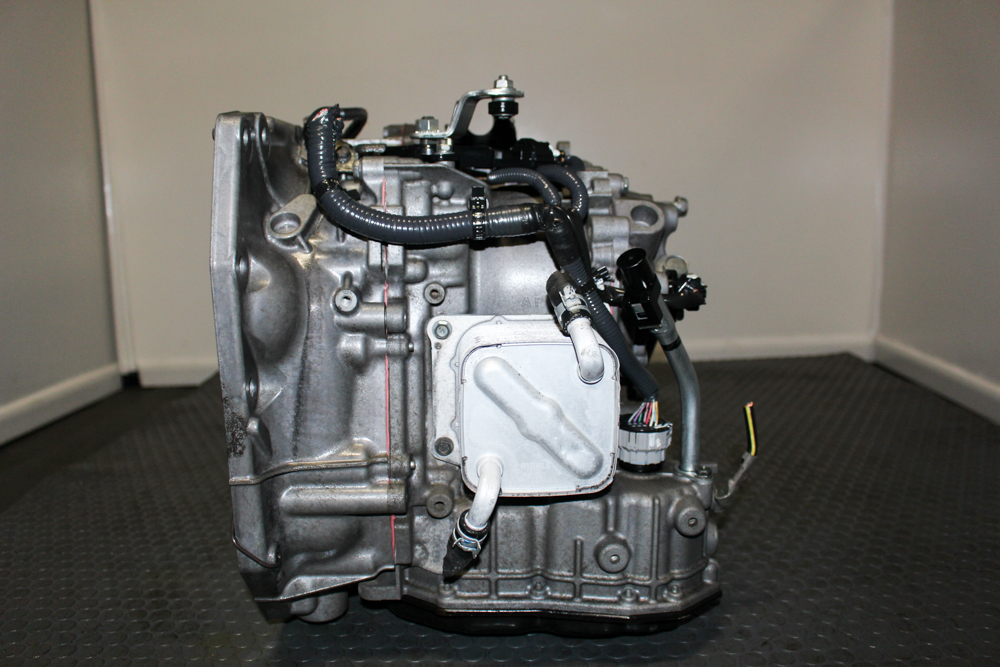

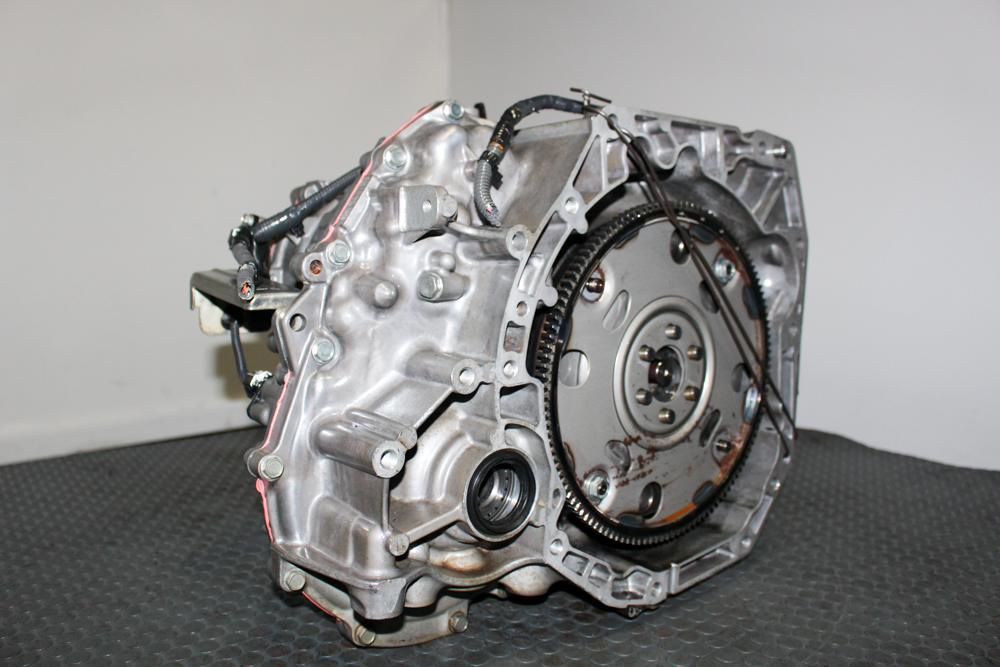

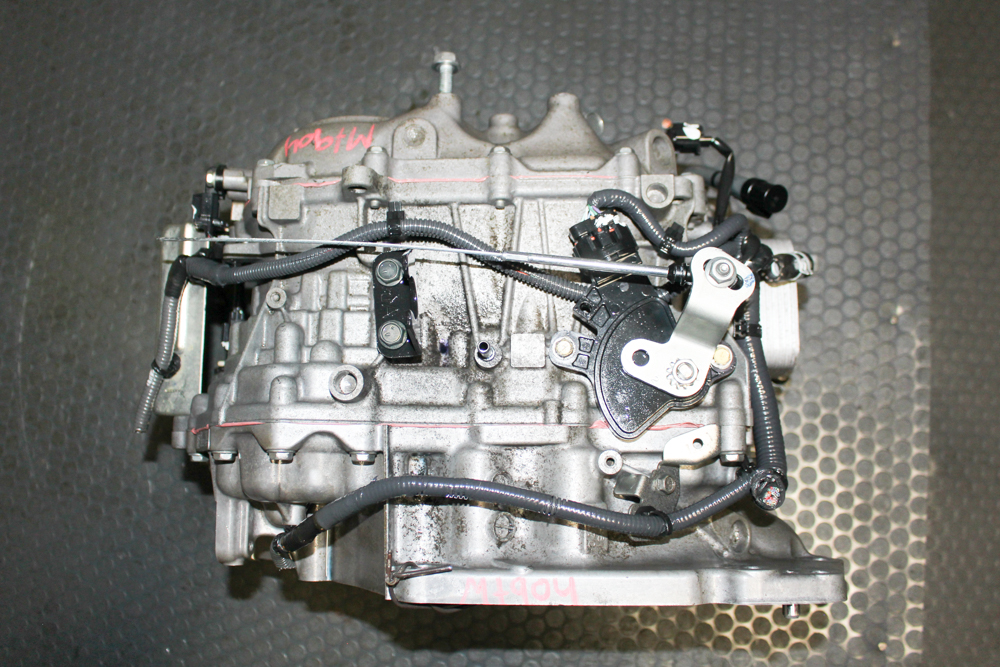

ACTUAL PRODUCT PHOTOS

The product photographs represent the actual inventory unit offered for sale.

Use the photos to compare:

• 620N04 identification
• Transmission case
• Bellhousing
• Torque converter
• Electrical connectors
• Speed sensors
• Valve-body connections
• Axle openings
• Cooler fittings
• Mounting locations
• External brackets
• Overall condition

CVT FLUID SPECIFICATION

Correct fluid is especially important on the RE0F11A/JF015E.

Nissan’s 2012 Versa RE0F11A factory service data specifies Genuine Nissan CVT Fluid NS-2 for that early application.

Later Versa/Versa Note applications specify Genuine Nissan CVT Fluid NS-3; for example, Nissan’s 2016 Versa Note owner’s manual requires NS-3 and warns against mixing incorrect fluids.

Therefore, the correct service rule for a 2012–2016 replacement transmission is:

Verify the required Nissan CVT fluid by VIN, model year, original transmission part number, and factory service information before filling the transmission.

Do not mix:

• NS-2 and NS-3 without an applicable Nissan procedure
• Conventional automatic transmission fluid
• Dexron/Mercon
• Gear oil
• Unverified universal CVT fluid

NEVER REUSE OLD CVT FLUID

Do not reuse fluid from the failed transmission.

Old CVT fluid can contain:

• Metal particles
• Belt/pulley wear material
• Friction debris
• Valve-body contamination
• Oxidized fluid
• Other contaminants

Always start the replacement transmission with fresh, correct-specification Nissan CVT fluid.

FLUSH OR REPLACE THE TRANSMISSION COOLER SYSTEM

A failed CVT can send contamination into the cooler and cooler lines.

Before installing the replacement transmission:

• Inspect the transmission cooler.
• Inspect all cooler lines.
• Remove contamination.
• Follow Nissan’s applicable cooler-cleaning procedure.
• Replace components that cannot be safely cleaned.
• Confirm unrestricted fluid flow.

J-Spec’s published transmission requirements also call for flushing and inspecting the transmission cooling lines.

Do not connect a clean replacement CVT to a contaminated cooling circuit.

INSPECT THE TORQUE CONVERTER

Compare the replacement torque converter with the original.

Inspect:

• Converter hub
• Splines
• Mounting points
• Seal surface
• Overall configuration

Make sure the torque converter seats fully inside the transmission before installation.

Never use the bellhousing bolts to pull the transmission against the engine.

J-Spec’s published transmission installation requirements specifically call for proper torque-converter alignment.

REPLACE ACCESSIBLE SEALS

Inspect and replace worn or questionable:

• Torque-converter/front seal
• Left axle seal
• Right axle seal
• Cooler-line seals
• Other accessible transmission seals

J-Spec’s transmission requirements specifically identify front and axle seals among the service items for transmission installation.

INSPECT THE VALVE BODY AND ELECTRICAL COMPONENTS

The RE0F11A/JF015E relies heavily on electronic and hydraulic control.

Inspect:

• Valve-body connections
• Primary speed sensor
• Secondary speed sensor
• Output speed sensor
• Range switch
• Electrical connectors
• Wiring
• Harness clips

Look for:

• Bent pins
• Corrosion
• Broken wiring
• Damaged connectors
• Physical differences between JDM and USDM units

Transfer compatible original components when required.

TCM / CVT PROGRAMMING AND INITIALIZATION

Proper electronic setup is critical after replacing a Nissan CVT.

Depending on the vehicle, applicable procedures may include:

• TCM initialization
• TCM programming
• CVT calibration
• Control-valve / valve-body data procedures
• DTC clearing
• Accelerator-pedal released-position learning
• Throttle-valve closed-position learning
• Idle-air-volume learning
• CVT relearn / road-test adaptation

Use Nissan CONSULT-compatible diagnostic equipment or another professional scan tool with applicable Nissan CVT functions.

J-Spec’s published transmission requirements also call for resetting control-module codes after installation.

SCAN THE VEHICLE BEFORE REMOVAL

Record all diagnostic trouble codes before removing the failed CVT.

Pay particular attention to:

• P0705 range-related codes
• Pressure-control codes
• CVT judder codes
• Pulley-speed codes
• Ratio-performance codes
• Torque-converter codes
• Temperature-related codes
• Engine codes
• CAN communication faults

Do not simply erase the original diagnostic history.

Use it to identify external problems that could affect the replacement transmission.

INSPECT ENGINE AND TRANSMISSION MOUNTS

Check all mounts for:

• Cracks
• Separation
• Excessive movement
• Damaged brackets
• Loose hardware

Worn mounts can create vibration or harsh engagement that may be mistaken for CVT failure.

INSPECT FRONT AXLES

Inspect:

• CV joints
• Axle splines
• CV boots
• Intermediate shaft components when applicable
• Excessive play
• Grease leakage

Damaged axle components can create vibration or noise that may appear to come from the transmission.

INITIAL STARTUP CHECKLIST

Before road testing:

• Confirm 2012–2016 Nissan Versa application.
• Confirm HR16DE 1.6L engine.
• Confirm RE0F11A / JF015E transmission family.
• Confirm FWD drivetrain.
• Confirm unit identification 620N04.
• Verify VIN and production date.
• Verify original Nissan transmission part number.
• Compare original and replacement transmissions.
• Inspect torque converter.
• Flush or service the cooler circuit.
• Inspect accessible seals.
• Properly seat the torque converter.
• Fill with the correct Nissan CVT fluid.
• Verify correct fluid level.
• Connect all electrical connectors.
• Inspect speed sensors.
• Inspect valve-body connections.
• Check cooler-line connections.
• Verify axle installation.
• Perform applicable TCM/CVT initialization.
• Confirm Park.
• Confirm Reverse.
• Confirm Drive.
• Check warning lights.
• Scan for diagnostic codes.
• Inspect for CVT-fluid leaks.

INITIAL ROAD TEST

Begin with a gentle road test.

Monitor:

• Reverse engagement
• Drive engagement
• Initial takeoff
• Smooth ratio changes
• Engine RPM behavior
• CVT shudder
• Slipping
• Hesitation
• Flare
• Torque-converter lockup
• Abnormal vibration
• Whining or grinding noises
• Transmission temperature
• Warning lights
• CVT-fluid leaks

Avoid aggressive acceleration until correct transmission operation and adaptation have been confirmed.

After the road test:

• Recheck CVT fluid.
• Inspect for leaks.
• Scan for DTCs.
• Verify cooler operation.
• Recheck transmission mounts.
• Confirm no shudder or abnormal ratio behavior.

COMMON SIGNS OF NISSAN VERSA CVT PROBLEMS

A failing Nissan Versa CVT may produce:

• Shudder during acceleration
• Delayed Drive engagement
• Delayed Reverse engagement
• Slipping
• Hesitation
• High engine RPM with poor acceleration
• Loss of power
• Whining
• Overheating
• Jerking
• Warning lights
• Limp mode
• Diagnostic trouble codes
• CVT-fluid leaks

However, these symptoms can also result from:

• Valve-body faults
• Pressure-control problems
• Sensor failures
• TCM calibration
• Wiring faults
• Incorrect fluid
• Low CVT fluid
• Contaminated fluid
• Cooler problems
• Engine performance problems
• Worn mounts

Proper diagnosis should be completed before replacing the complete CVT.

WHY CHOOSE THIS JDM RE0F11A / JF015E CVT?

This JDM RE0F11A/JF015E provides an OEM Nissan/Jatco replacement option for compatible Versa models with a damaged, worn, shuddering, or failed original CVT.

Key features include:

• Genuine Nissan/Jatco JDM transmission
• RE0F11A Nissan transmission family
• JF015E Jatco identification
• HR16DE 1.6L application
• CVT automatic configuration
• FWD drivetrain
• Individual identification 620N04
• Used JDM low-mileage unit
• Actual inventory photos
• Individual Item ID
• 90-day limited parts warranty
• Nationwide freight shipping
• Affordable installation available

WHY BUY FROM J-SPEC AUTO SPORTS?

J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.

Customers benefit from:

• Actual inventory photographs
• Transmission-code-level identification
• Individual inventory tracking
• Application-specific fitment guidance
• JDM Nissan drivetrain experience
• Nationwide freight shipping
• Local Richmond / Henrico, Virginia pickup
• Affordable installation options
• Limited warranty coverage

INDIVIDUAL INVENTORY INFORMATION

Vehicle: Nissan Versa
Years: 2012–2016
Engine: HR16DE 1.6L DOHC 4-Cylinder
Nissan Transmission Code: RE0F11A
Jatco Transmission Code: JF015E
Unit Identification / Serial: 620N04
Transmission: CVT Automatic
Drivetrain: FWD
Item ID: 251587
SKU: MT904 HR16DE CVT Transmission
Condition: Used JDM / Low Mileage
Warranty: 90-Day Limited Parts Warranty

90-DAY LIMITED WARRANTY

This individual Item ID 251587 includes a 90-day parts-only warranty, subject to J-Spec Auto Sports’ current warranty terms and installation requirements.

Keep installation and service documentation for:

• Correct Nissan CVT fluid
• Cooler service
• Cooler-line service
• Seal replacement
• Torque-converter installation
• TCM/CVT programming
• Relearn procedures
• Professional installation
• Diagnostic procedures

SHIPPING

Nationwide freight shipping is available throughout the continental United States.

J-Spec currently states that transmissions ship by freight and generally ship within 1–2 business days, with estimated continental U.S. delivery of approximately 2–7 business days, depending on destination.

Local pickup is also available in Richmond / Henrico, Virginia.

FREQUENTLY ASKED QUESTIONS

What transmission does the 2012–2016 Nissan Versa 1.6L use?

Compatible CVT-equipped Versa models use the RE0F11A, also known by Jatco as the JF015E.

Is 620N04 the transmission code?

For this individual J-Spec unit, 620N04 is the inventory/unit identification. The transmission-family codes are RE0F11A / JF015E.

Is this a conventional automatic transmission?

No. This is a continuously variable transmission (CVT).

Does this CVT have fixed gears?

The CVT primarily varies its ratio continuously rather than operating like a conventional 5- or 6-speed automatic.

What engine does it work with?

This listing targets compatible HR16DE 1.6L 4-cylinder Nissan Versa applications.

Is this transmission FWD?

Yes. The application is front-wheel drive.

Will it fit a 2012 Nissan Versa?

It targets compatible 2012 Versa HR16DE CVT applications, but the 2012 transmission has production-specific part numbers and model-code differences. Verify the VIN and original transmission before purchase.

Will it fit a 2013 Nissan Versa?

It targets compatible 2013 HR16DE CVT applications after transmission-code and part-number verification.

Will it fit a 2014 Nissan Versa?

It targets compatible 2014 Versa 1.6L CVT applications after complete fitment verification.

Will it fit a 2015 Nissan Versa?

It targets compatible 2015 HR16DE FWD CVT applications.

Will it fit a 2016 Nissan Versa?

It targets compatible 2016 Versa 1.6L CVT applications after verifying the original transmission part number and electronic configuration.

Will it fit a Nissan Versa Note?

Certain Versa Note models use the same RE0F11A/JF015E family. However, direct interchange should be verified by VIN, production date, transmission part number, sensors, and calibration before ordering.

What CVT fluid does a 2012 Versa use?

Nissan factory service information for the 2012 Versa RE0F11A specifies Genuine Nissan CVT Fluid NS-2.

What CVT fluid do later Versa applications use?

Later applications use Genuine Nissan CVT Fluid NS-3. Verify the exact fluid requirement by model year, VIN, and factory service information before filling the replacement CVT.

Can conventional automatic transmission fluid be used?

No. Use only the correct Nissan-approved CVT fluid for the vehicle.

Can old CVT fluid be reused?

No. Always use fresh, correct-specification CVT fluid.

Should the transmission cooler be serviced?

Yes. Inspect and service the cooler and cooler lines before installing a replacement CVT, especially after an internal transmission failure.

Does the torque converter need to be seated correctly?

Yes. Proper torque-converter alignment is required before installation.

Should the axle seals be replaced?

Inspect and replace worn or questionable front and axle seals before installation.

Does the CVT require programming or relearn?

Depending on the vehicle and replacement components, TCM programming, initialization, calibration, or relearn procedures may be required.

Can sensors from the original transmission be transferred?

Compatible sensors, brackets, cooler fittings, wiring components, range-switch components, or other external parts may need to be transferred when required.

Is this transmission rebuilt?

No. This is a used OEM JDM CVT, unless specifically stated otherwise.

Are the photos of the actual transmission?

Yes. The J-Spec listing represents this individual inventory unit.

Does it have a warranty?

Yes. Item ID 251587 currently carries a 90-day parts-only warranty.

Does J-Spec Auto Sports offer installation?

Yes. Affordable installation is available.

Does J-Spec Auto Sports ship nationwide?

Yes. Nationwide freight shipping is available.

ORDER YOUR JDM NISSAN VERSA RE0F11A / JF015E CVT

Replace your damaged or failed Versa CVT with this low-mileage JDM Nissan RE0F11A / Jatco JF015E transmission.

This OEM JDM CVT targets compatible 2012–2016 Nissan Versa models equipped with the HR16DE 1.6L 4-cylinder engine and front-wheel drive.

Vehicle: Nissan Versa
Years: 2012–2016
Engine: HR16DE 1.6L
Nissan Transmission Code: RE0F11A
Jatco Code: JF015E
Unit Identification: 620N04
Transmission: CVT Automatic
Drivetrain: FWD
Item ID: 251587
SKU: MT904 HR16DE CVT Transmission
Warranty: 90-Day Limited Parts Warranty

Verify the VIN, production date, original RE0F11A/JF015E model number, Nissan part number, electrical connectors, sensors, TCM calibration, torque converter, mounts, axle interfaces, cooler system, and complete physical configuration before ordering.
