Item ID: 254413
Product Code: 2ZR
Serial Number: 2ZR-FXE
Year: 2010-2015
Mileage: ~60000 miles miles
Applications:

2010-2017 Lexus CT200h
2010-2015 Toyota Prius

What engine does the 2010–2015 Toyota Prius use?

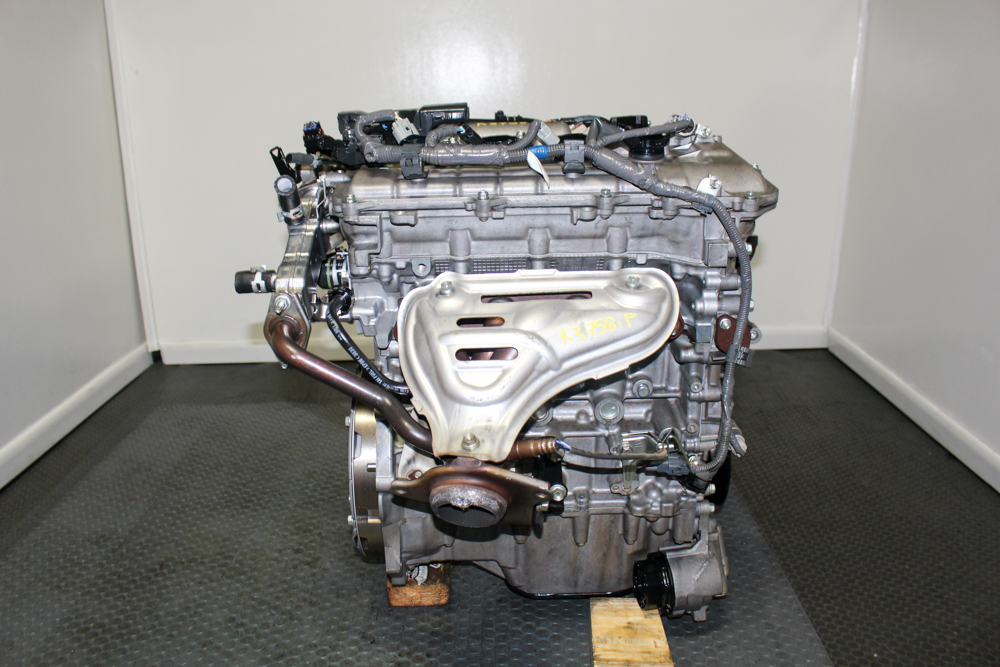

The third-generation Prius uses Toyota’s 2ZR-FXE 1.8L Atkinson-cycle gasoline engine as part of its hybrid powertrain. Toyota lists the engine at 1,797cc.

Is this a complete Prius hybrid system?

No. This listing is primarily for the 2ZR-FXE gasoline engine long block. It does not automatically include the hybrid transaxle, traction battery, inverter or other complete hybrid-system components.

Will this engine fit a 2010–2015 Toyota Prius?

J-Spec Auto lists this engine for 2010–2015 Toyota Prius applications. However, buyers should still verify their VIN, original engine and vehicle-specific external components before purchasing. (jspecauto.com)

Will this 2ZR-FXE fit a Lexus CT200h?

The Lexus CT200h uses the 2ZR-FXE engine family in its hybrid system. However, external components and model-year details can vary. Therefore, verify your exact CT200h application before purchasing.

Does the 2ZR-FXE use a timing belt or timing chain?

The 2ZR-FXE uses a timing chain. Therefore, your technician should inspect the chain, guides and tensioner rather than planning conventional timing-belt replacement.

What should I replace before installing a used JDM 2ZR-FXE?

Before installation, inspect and replace appropriate service and wear components. Depending on condition and service history, these may include:

• Timing-chain tensioner and guides as needed
• Water pump
• Thermostat
• Valve-cover gasket
• Front crankshaft seal
• Intake and exhaust gaskets
• Spark plugs
• Ignition components as needed
• PCV valve
• Engine oil
• Oil filter
• Coolant
• Other accessible seals and maintenance components

In addition, inspect and clean the EGR system, intake passages and related components as appropriate before installation.

Should I service the EGR system during a Prius engine replacement?

Yes, the technician should inspect the EGR system and related intake components during engine replacement. Carbon buildup or restriction should not simply transfer from the old engine to the replacement installation.

Cleaning or servicing the appropriate EGR passages and components while the engine is accessible can also reduce future labor.

Should I replace the gaskets and seals before installation?

Inspect and replace appropriate accessible gaskets and seals while the engine remains outside the vehicle.

These may include the valve-cover gasket, crankshaft seal, intake and exhaust gaskets, water-pump sealing surfaces and other accessible seals.

Moreover, correcting leaks before installation generally requires less labor than performing the same work later.

Should I install new spark plugs and inspect the ignition system?

Yes. Install appropriate new spark plugs and inspect ignition coils, wiring and connectors before initial startup.

Doing this before startup also provides known-good ignition components when diagnosing the replacement engine.

How should I prime the 2ZR-FXE before first startup?

Do not immediately command the hybrid system to start the replacement gasoline engine after installation.

First, fill the engine with the correct oil and install a new oil filter. Next, follow the applicable Toyota hybrid service procedure to establish oil circulation without allowing an uncontrolled initial start.

Because Prius hybrid operation differs from a conventional starter-motor vehicle, a technician familiar with Toyota hybrid systems should perform the priming and initial-start procedure.

Confirm proper lubrication before allowing normal engine operation.

How should I bleed the Prius cooling system?

The Prius uses cooling circuits that require proper filling and bleeding procedures. Therefore, the technician should follow the correct Toyota service procedure for the specific circuit being serviced.

For the gasoline-engine cooling system, fill with the correct Toyota-compatible coolant and thoroughly remove trapped air while monitoring coolant level and temperature.

After the initial heat cycle, confirm stable temperature, heater operation where applicable and proper coolant circulation. Then, allow the system to cool completely and recheck coolant level and leaks.

Do not consider the installation complete until the technician confirms proper coolant circulation and no trapped air.

Does the hybrid system require special safety precautions?

Yes. A Toyota Prius contains a high-voltage hybrid electrical system. Only properly trained technicians should disconnect, service or work near high-voltage hybrid components.

The engine-installation procedure must follow Toyota hybrid safety procedures, including proper shutdown and isolation of high-voltage systems when required.

What should I check during first startup?

During initial operation, monitor:

• Engine oil-pressure/lubrication operation
• Coolant temperature
• Coolant circulation
• Engine oil leaks
• Coolant leaks
• Fuel leaks
• Abnormal engine noises
• Misfires
• Check-engine or hybrid-system warnings
• EGR-related faults
• Cooling-fan operation
• Hybrid-system diagnostic codes

Furthermore, scan all relevant control modules for diagnostic trouble codes before returning the vehicle to normal service.

What is the recommended 2ZR-FXE installation checklist?

Have a qualified Toyota hybrid technician:

1. Compare the replacement 2ZR-FXE with the original engine.
2. Transfer all required vehicle-specific components.
3. Inspect and replace appropriate gaskets and seals.
4. Inspect the timing chain, guides and tensioner.
5. Inspect or replace the water pump and thermostat as appropriate.
6. Inspect and service the EGR and intake system as needed.
7. Install new spark plugs and inspect ignition components.
8. Install fresh engine oil and a new oil filter.
9. Follow the proper Toyota hybrid procedure to establish engine lubrication before initial operation.
10. Fill and thoroughly bleed the engine cooling system.
11. Follow all required high-voltage hybrid safety procedures.
12. Confirm stable coolant temperature and circulation.
13. Check carefully for oil, coolant and fuel leaks.
14. Scan the engine and hybrid control modules for diagnostic trouble codes.
15. Recheck oil and coolant after the engine completely cools.

Always follow applicable Toyota factory service procedures and J-Spec Auto Sports warranty requirements.
