Used JDM Subaru 6MT Transmission (TY856WBEAA)

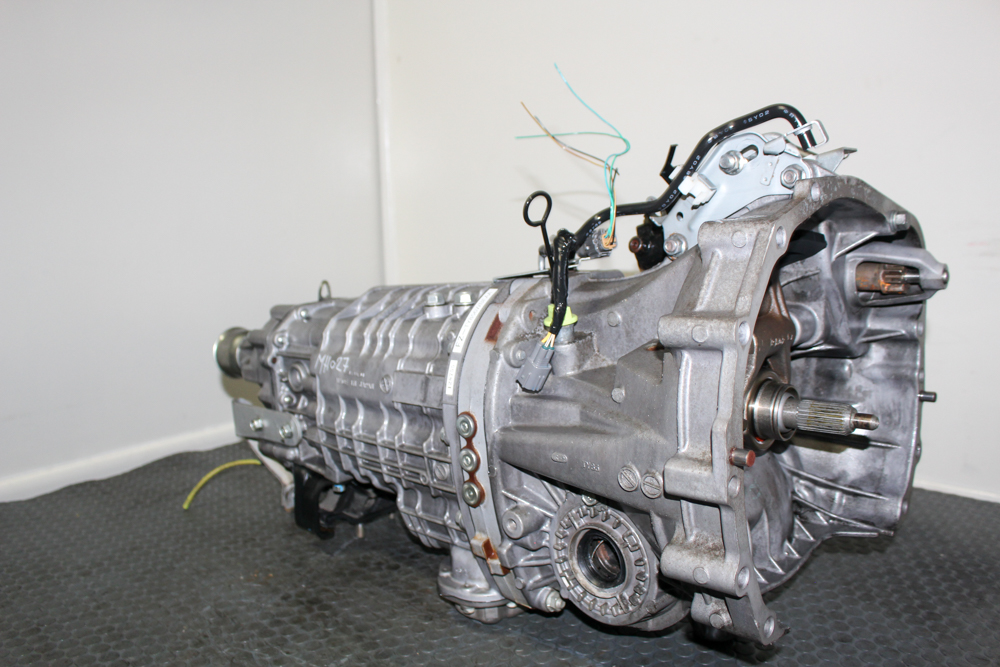

Have you outgrown your 5-speed? This used JDM Subaru 6MT transmission is a direct path to a stronger gearbox. It came out of a Japanese-market Legacy Tuned by STI, carries code TY856WBEAA and runs a 3.90 final drive. Since it is a non-DCCD unit, there is no controller, switch or extra harness to add. Please note that this listing is for the transmission only.

5MT vs 6MT: Why Subaru Owners Upgrade

Subaru 5-speeds are known to struggle behind modified turbo engines, especially with sticky tires and hard launches. In contrast, the 6-speed uses a heavier case and stronger gears. It also adds a sixth ratio, so the gaps between gears are tighter and highway rpm drops. For these reasons, the 6MT is one of the most common drivetrain upgrades for EJ-powered WRX, Forester XT and Legacy GT owners.

Non-DCCD: Simpler Than an STI 6-Speed

STI transmissions use a DCCD center differential, which needs its own controller and wiring. This unit does not. Instead, its center differential works mechanically, much like a standard 5-speed. That makes the install cleaner, the wiring easier and the overall swap more affordable.

Parts You Will Need for a 6MT Swap

Because this is a bare transmission, plan the rest of the drivetrain first. A typical 5MT-to-6MT swap needs:

• A 3.90 rear differential, since the front and rear ratios must match on an AWD Subaru
• Rear axles and diff mounts that fit the rear differential you choose
• A 6-speed shifter, linkage and transmission crossmember
• A driveshaft of the right length for the 6-speed case
• A clutch, flywheel and release parts that match this transmission
• Minor wiring for the reverse light and speed sensor

Also, if your current final drive is not 3.90, expect a small speedometer change. Want the diff and axles too? Take a look at our complete 6MT swap package with R180 rear differential.

Which Cars Can Use This Gearbox?

• 2007–2009 Subaru Legacy (Spec B and Tuned by STI)
• 2002–2007 Subaru WRX, with conversion parts
• 2003–2008 Subaru Forester, with conversion parts
• Other EJ-powered Subaru builds, so call us to confirm your car

In Japan, this gearbox was paired with the turbocharged EJ20 and EJ25 family. That is why it bolts up to the boxer engines most US swaps already use.

Real Photos, Real Serial Number

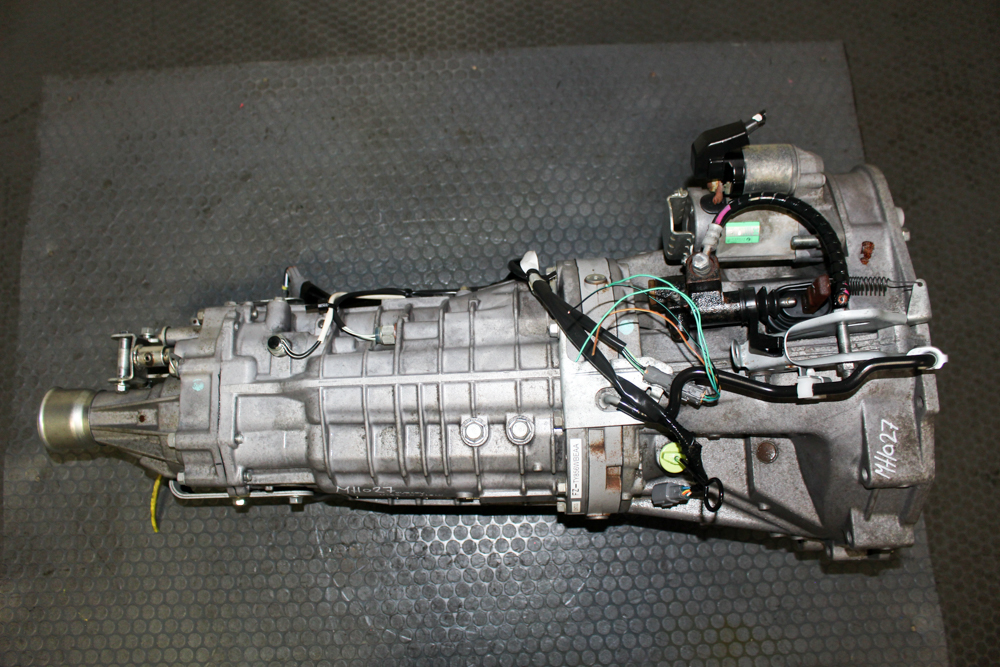

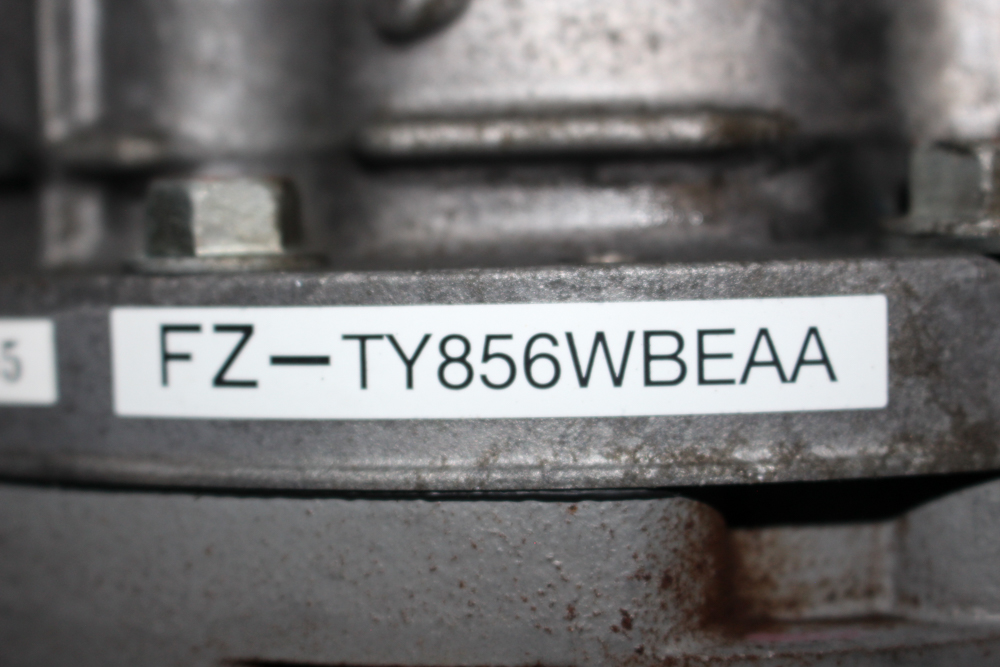

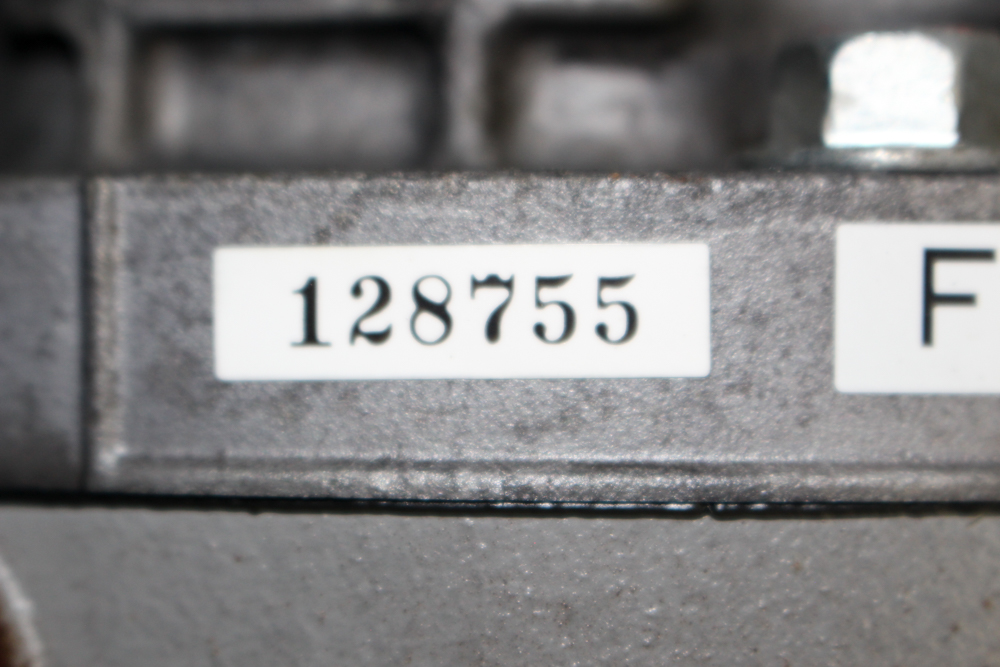

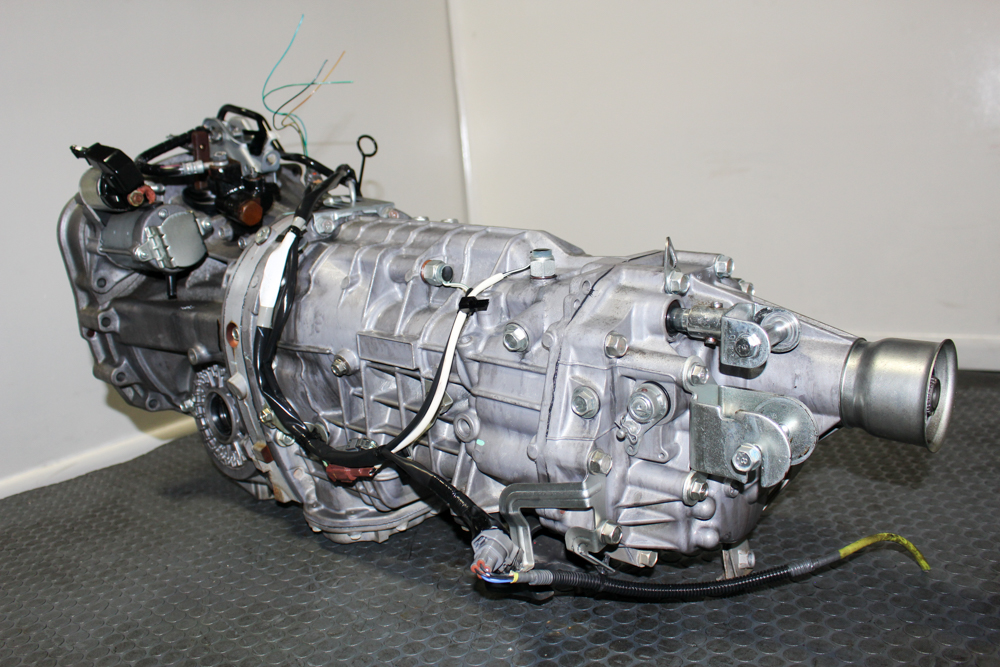

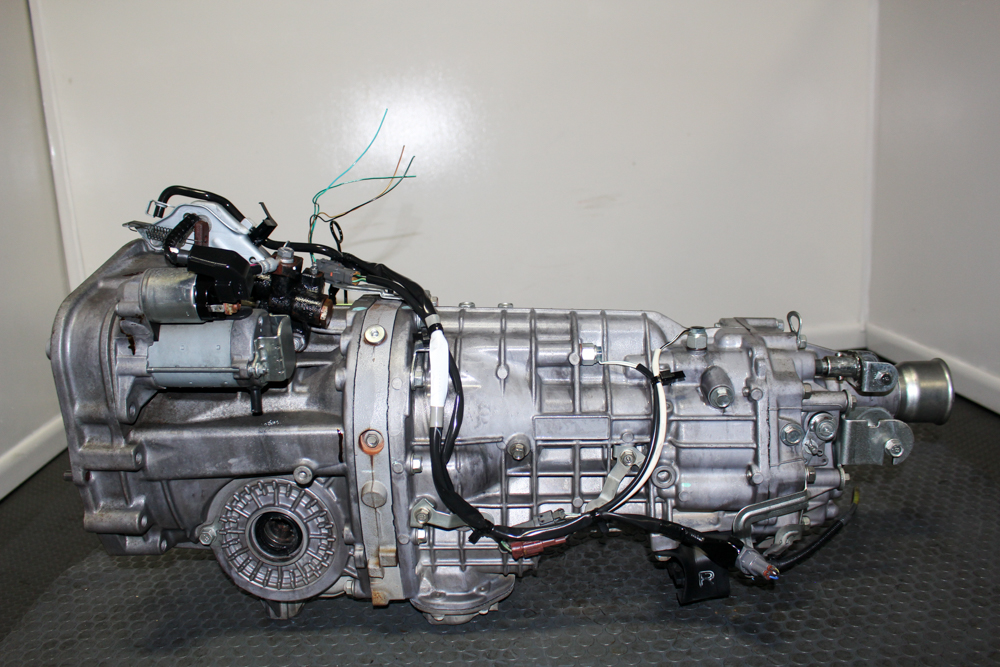

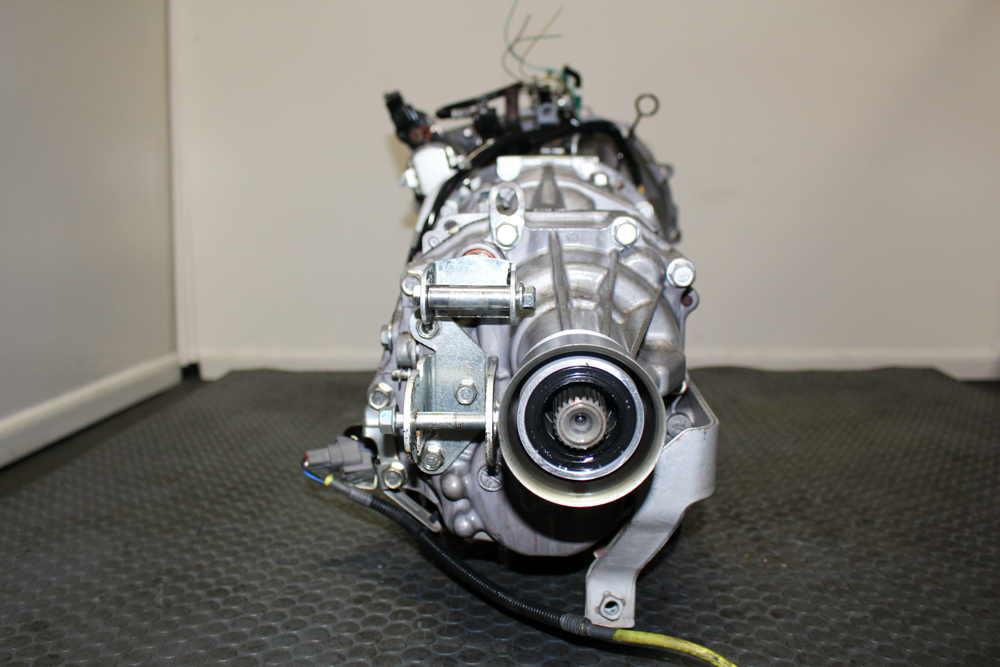

We photograph the exact transmission you will receive, including the code tag and serial number. Each unit is imported from Japan and checked in Virginia, then drained, capped and strapped to a pallet for freight. As a result, it reaches you clean and ready to install.

Professional Installation Available

Want it done right the first time? J-Spec Auto Sports installs the engines, transmissions and parts we sell at our shop in Henrico, Virginia, near Richmond. Our technicians handle 5MT-to-6MT swaps regularly, so the rear diff, driveshaft and shifter are planned from the start. To get a quote or book a time, schedule an appointment or call 866-683-3747.

Warranty and Shipping

This Subaru 6MT transmission includes a 30-day warranty. It ships by freight within the continental US in about 2–7 business days, and local pickup is welcome in Henrico, VA. Financing is available through Lightstream.

FAQ

Is a 6MT stronger than a Subaru 5-speed?
Yes. The 6-speed has a heavier case and stronger gears, which is why turbo WRX, Forester XT and Legacy GT owners upgrade.

Is a rear differential included?
No. This is the transmission only. You’ll need a 3.90 rear differential, and our complete swap package includes one.

What’s the difference between non-DCCD and DCCD?
A DCCD (STI) transmission needs a controller and wiring for its center diff. A non-DCCD transmission like this one doesn’t, so the swap is simpler.

Can I put this 6MT in my WRX or Forester?
Yes, with conversion parts: a 3.90 rear diff, axles, a shifter, a crossmember, a driveshaft and a clutch.

Can J-Spec Auto install this for me?
Yes. We do 6MT swaps at our shop in Henrico, VA. Call 866-683-3747 or book online.
