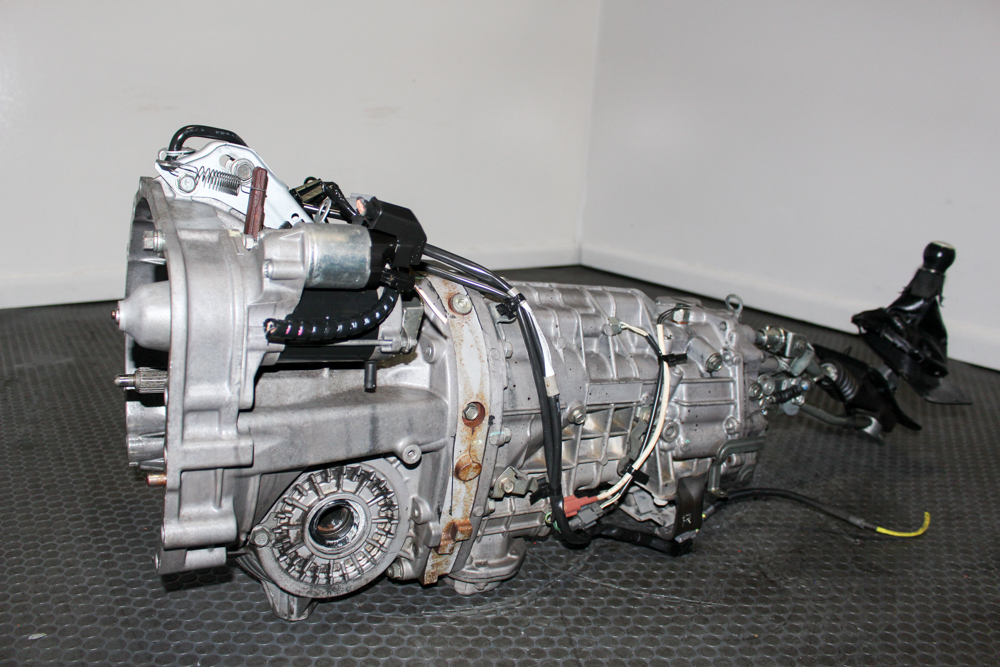

JDM SUBARU LEGACY SPEC B TY856WBEAA 6-SPEED MANUAL AWD TRANSMISSION

Upgrade your Subaru drivetrain with this genuine JDM TY856WBEAA 6-speed manual AWD transmission from J-Spec Auto Sports.

Originally associated with performance-oriented Legacy Spec B applications, the TY856WBEAA belongs to Subaru’s respected TY856 6-speed manual transmission family.

Unlike many STI 6-speed transmissions, however, this particular configuration is non-DCCD. As a result, it can offer a simpler foundation for certain Subaru 6-speed conversions where electronically controlled DCCD functionality is not required.

The primary product relationship is:

Subaru Legacy Spec B → TY856WBEAA → TY856 6-Speed Manual → AWD → Non-DCCD → 3.90 Transmission Final Drive → Matching 3.54 Rear Differential Required

For this individual transmission:

Transmission Code: TY856WBEAA

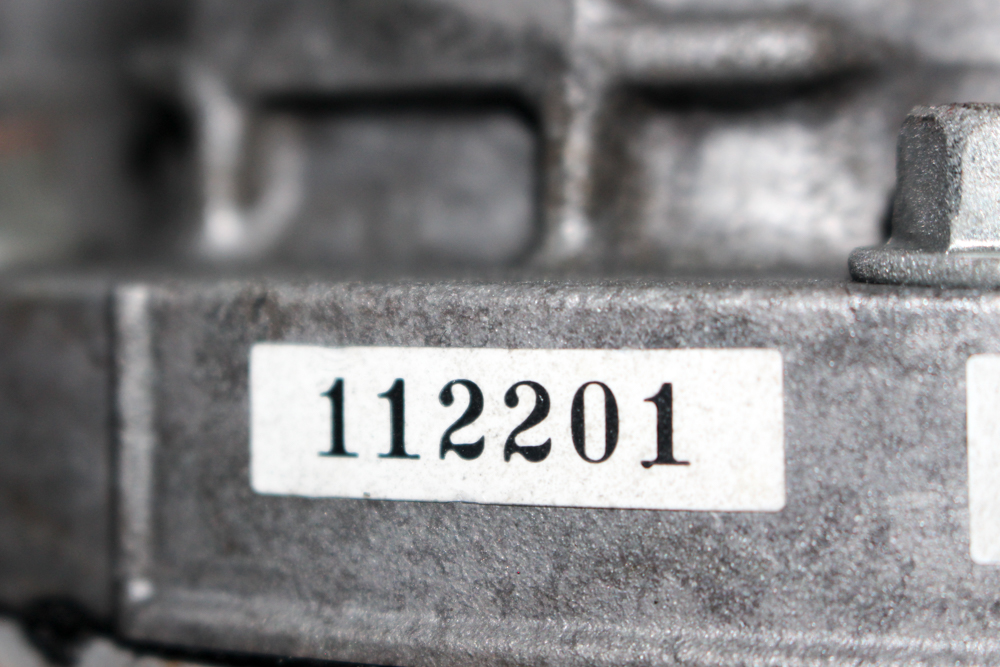

Serial Number: TY856WBEAA 112201

Item ID: 254065

SKU: MT959 TY856WBEAA

QUICK DETAILS

• Manufacturer: Subaru
• Primary Application: Legacy Spec B
• Transmission Code: TY856WBEAA
• Serial Number: TY856WBEAA 112201
• Transmission Family: TY856
• Transmission Type: 6-Speed Manual
• Gears: 6
• Drivetrain: AWD
• Center Differential: Non-DCCD
• Transmission Final Drive: 3.90
• Matching Rear Differential: 3.54 Required
• Shifter Linkage: Not Included
• Condition: Used OEM JDM / Low Mileage
• Origin: Japan
• Item ID: 254065
• SKU: MT959 TY856WBEAA
• Warranty: 30 Days
• Shipping: Nationwide Freight
• Installation: Available
• Local Pickup: Richmond / Henrico, Virginia

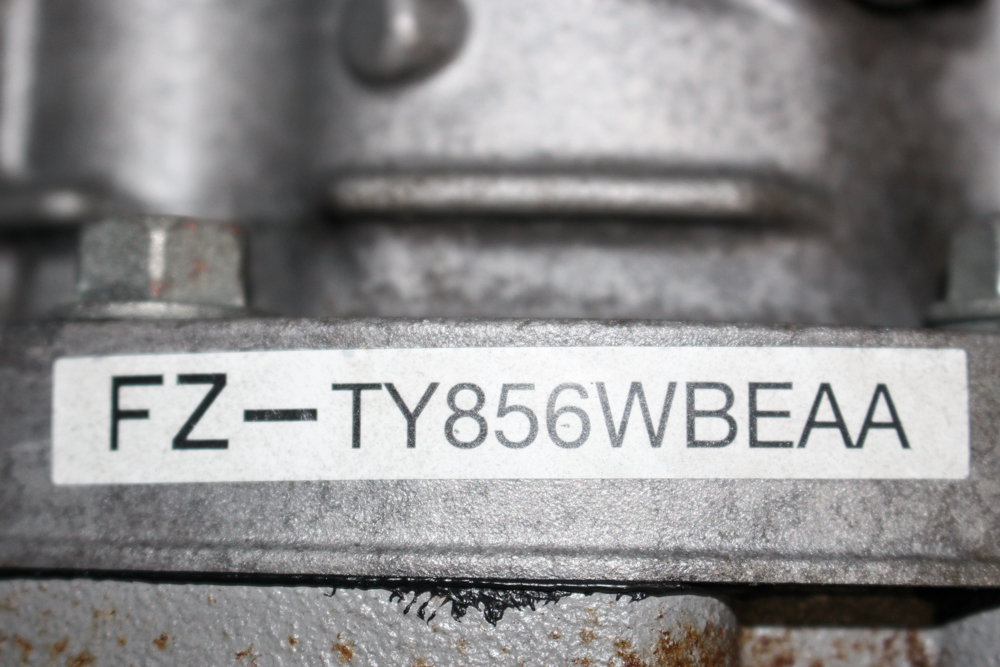

TY856WBEAA TRANSMISSION CODE

The most important technical identifier for this product is:

TY856WBEAA

Subaru produced many different TY856 6-speed transmission variants. Therefore, the TY856 family name alone is not enough to establish interchange.

Different TY856 versions may use different:

• Gear ratios
• Final-drive arrangements
• Rear differential requirements
• Center differential systems
• DCCD configurations
• Clutch systems
• Axles
• Sensors
• Switches
• Vehicle applications

For that reason, always verify the complete code:

TY856WBEAA

TY856 6-SPEED MANUAL TRANSMISSION

This gearbox belongs to Subaru’s:

TY856 6-Speed Manual

transmission family.

It provides six forward gears and an AWD drivetrain configuration.

The published ratios for this individual listing are:

1st Gear: 3.636

2nd Gear: 2.235

3rd Gear: 1.521

4th Gear: 1.137

5th Gear: 0.971

6th Gear: 0.756

These ratios help distinguish TY856WBEAA from other Subaru TY856 variants.

NON-DCCD CONFIGURATION

One of the most important features of TY856WBEAA is its:

Non-DCCD Center Differential Configuration

DCCD stands for:

Driver Controlled Center Differential

Many WRX STI 6-speed transmissions incorporate electronically controlled DCCD functionality.

TY856WBEAA, however, does not require the same DCCD control strategy.

Consequently, this transmission can be attractive for certain Legacy GT, WRX, Forester XT, and custom Subaru conversions where a mechanically simpler 6MT solution is preferred.

TY856WBEAA vs. STI DCCD 6MT

Do not confuse this transmission with DCCD-equipped STI transmissions such as certain:

TY856U-series

gearboxes.

Although both belong to Subaru’s TY856 family, their center differential configurations are different.

This page should primarily target:

• TY856WBEAA
• Legacy Spec B 6-speed
• Subaru non-DCCD 6-speed
• Legacy GT 6MT conversion

Meanwhile, DCCD-equipped STI pages should separately target:

• STI DCCD transmission
• WRX STI 6MT
• GRB STI transmission
• GDB STI transmission

This separation improves both technical accuracy and SEO relevance.

3.90 TRANSMISSION FINAL DRIVE

The live structured product data identifies the transmission final drive as:

3.90

However, this specification should not be confused with the rear differential ratio.

The live listing separately states that the vehicle will need a:

3.54 Rear Differential

to match this transmission configuration.

Therefore, structure the product information as:

Transmission Final Drive: 3.90

Matching Rear Differential: 3.54 Required

Do not simply call the rear differential 3.90.

MATCHING 3.54 REAR DIFFERENTIAL REQUIRED

A compatible 3.54 rear differential is required for the drivetrain configuration specified by this listing.

Most importantly, do not select a rear differential by appearance alone.

Verify:

• Differential ratio
• Differential type
• Input flange
• Axle configuration
• Hub configuration
• Driveshaft compatibility
• Complete AWD drivetrain relationship

before operating the vehicle.

WHY AWD RATIO MATCHING MATTERS

Subaru AWD systems depend on the front and rear drivetrain operating at compatible effective ratios.

An incorrect drivetrain combination can result in:

• Drivetrain binding
• Tire scrubbing
• Excessive heat
• Center differential stress
• Bearing damage
• Differential damage
• Transmission damage

Therefore, rear differential verification is a required part of any TY856WBEAA installation.

REAR DIFFERENTIAL NOT INCLUDED

This listing states that a 3.54 rear differential is required.

However, it does not state that the matching rear differential is included with Item ID 254065.

Therefore, list:

Rear Differential: Not Included – Matching 3.54 Required

unless the physical inventory proves otherwise.

SHIFTER LINKAGE NOT INCLUDED

The current live page contains contradictory information about the shifter linkage.

The notice near the product price states:

Shifter Linkage Is Not Included

Therefore, this description treats the shifter as:

NOT INCLUDED

unless Item ID 254065 is physically inspected and confirmed otherwise.

Recommended above-the-fold notice:

IMPORTANT: 6-Speed Shifter Linkage Is Not Included. A compatible shifter assembly must be reused or sourced separately.

LEGACY SPEC B APPLICATION

The TY856WBEAA is strongly associated with Subaru Legacy Spec B applications.

For search purposes, important related terms include:

• Legacy Spec B transmission
• Legacy Spec B 6-speed
• Subaru Legacy 6MT
• TY856WBEAA Legacy transmission

However, model name alone should not determine fitment.

Always compare the complete original transmission and drivetrain configuration.

LEGACY GT 5MT-TO-6MT CONVERSION

TY856WBEAA can provide an excellent foundation for a properly planned Legacy GT 5-speed-to-6-speed conversion.

Nevertheless, converting from a 5MT to a 6MT may require additional components.

Depending on the vehicle, verify:

• Clutch
• Flywheel
• Shifter assembly
• Driveshaft
• Transmission mount
• Crossmember
• Rear differential
• Axles
• Hubs
• Sensors
• Neutral switch
• Reverse-light switch

Do not assume the transmission alone completes the conversion.

WRX 5MT-TO-6MT CONVERSION

The non-DCCD TY856WBEAA is also considered for certain WRX 6-speed conversions.

However, this should be presented as a:

Conversion Application

rather than universal direct fit.

Before installation, verify:

• Original WRX transmission
• Clutch configuration
• Flywheel
• Driveshaft
• Rear differential
• Axles
• Hubs
• Transmission mount
• Shifter
• Electrical switches

FORESTER XT CONVERSION APPLICATION

Certain Subaru enthusiasts also use Legacy Spec B 6MT components for Forester XT performance builds.

Nevertheless, Forester XT interchange should be verified individually.

Do not advertise every Forester XT as a direct-fit application.

Instead, use:

Potential Forester XT 6MT conversion application after complete drivetrain verification.

EJ20 / EJ25 APPLICATIONS

This transmission may appear in searches involving Subaru EJ-series turbo engines.

Related searches can include:

• EJ20 6-speed transmission
• EJ25 6-speed transmission
• EJ255 6-speed swap
• EJ257 6-speed transmission

However, engine bellhousing compatibility does not guarantee complete drivetrain compatibility.

Therefore, exact transmission code and drivetrain configuration remain more important.

DO NOT USE “2002–2020 WRX” AS DIRECT FITMENT

The current structured application field broadly lists:

2002–2020 Subaru Impreza/WRX

That range is far too broad to imply direct fitment.

Subaru changed:

• Chassis platforms
• Transmission configurations
• Axles
• Hubs
• Driveshafts
• Electronics
• Mounts
• Differentials

throughout that period.

Recommended wording:

Subaru WRX 6-speed conversion applications – exact fitment depends on year and drivetrain configuration.

Do not present 2002–2020 WRX as universal direct fit.

CLUTCH AND FLYWHEEL VERIFICATION

Before installation, confirm the correct:

• Clutch disc
• Pressure plate
• Flywheel
• Release bearing
• Pilot bearing
• Clutch fork
• Slave cylinder

A 5-speed clutch setup should not automatically be assumed compatible with a TY856 6-speed.

INSPECT THE CLUTCH

While the transmission is removed, inspect:

• Clutch friction material
• Pressure plate
• Flywheel surface
• Release bearing
• Pilot bearing
• Fork
• Pivot
• Hydraulic components

Because access is easy at this stage, preventive replacement can save substantial labor later.

VERIFY THE DRIVESHAFT

A 5MT-to-6MT conversion may require a different driveshaft configuration.

Before installation, verify:

• Driveshaft length
• Transmission output
• Rear differential flange
• Carrier bearing
• Universal joints
• Overall condition

Do not assume the original 5MT driveshaft will work automatically.

VERIFY AXLES AND HUBS

Depending on the target vehicle and rear differential selected, axle and hub requirements may change.

Therefore, compare:

• Front axles
• Rear axles
• Inner CV joints
• Outer splines
• Hub splines
• Wheel-bearing configuration

before final assembly.

VERIFY TRANSMISSION MOUNT AND CROSSMEMBER

Inspect:

• Transmission mount
• Crossmember
• Mounting brackets
• Bushings
• Fasteners

If converting from another transmission family, verify that the mount and crossmember position the TY856 correctly.

VERIFY SENSORS AND SWITCHES

Compare the JDM transmission against the original gearbox.

Pay particular attention to:

• Neutral switch
• Reverse-light switch
• Vehicle speed sensor where applicable
• Electrical connectors
• Harness routing

Depending on the target vehicle, original switches or sensors may need to transfer.

MANUAL TRANSMISSION / FRONT DIFFERENTIAL OIL

The Subaru 6-speed manual transmission and integrated front differential use the gearbox lubricant system.

Use Subaru-approved gear oil meeting the specification for the exact TY856 application.

A commonly specified viscosity for Subaru manual transmissions is:

75W-90

However, always confirm the correct specification before filling.

DO NOT USE CVT FLUID OR ATF

This is a manual transmission.

Do not fill it with:

• Subaru CVT fluid
• High Torque CVT Fluid
• Conventional automatic transmission fluid
• Engine oil

Use the correct manual transmission/front differential gear lubricant.

DRAIN THE DONOR GEAR OIL

Before installation:

• Drain the existing transmission oil.
• Inspect the fluid for metal.
• Inspect the magnetic drain plug.
• Check for contamination.
• Clean the drain plug.
• Replace sealing washers when required.
• Refill with fresh correct-specification gear oil.

This provides a known service baseline.

INSPECT ACCESSIBLE SEALS

While the transmission is outside the vehicle, inspect:

• Input/front seal area
• Axle seals
• Output/driveshaft seal
• Shifter seals
• Drain plug
• Fill plug

Replace questionable accessible seals before installation.

INSPECT THE TRANSMISSION MOUNT

Check the transmission mount for:

• Cracks
• Torn rubber
• Excessive movement
• Deformation
• Damaged hardware

A failed mount can create clunking, vibration, and excessive shifter movement.

ACTUAL PRODUCT PHOTOS

Actual inventory photography is especially important for this transmission.

Photograph:

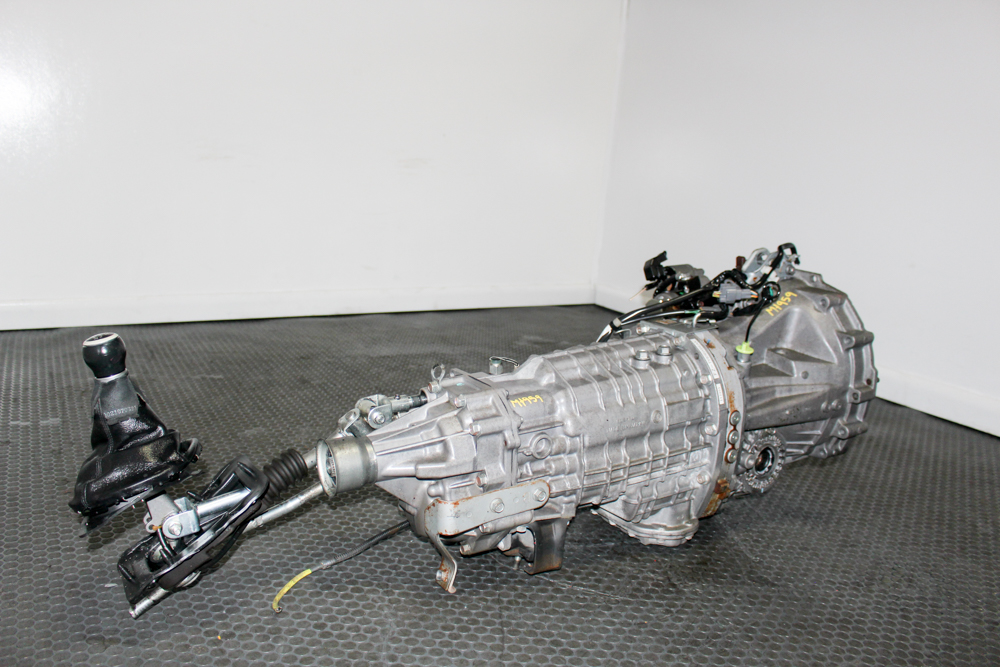

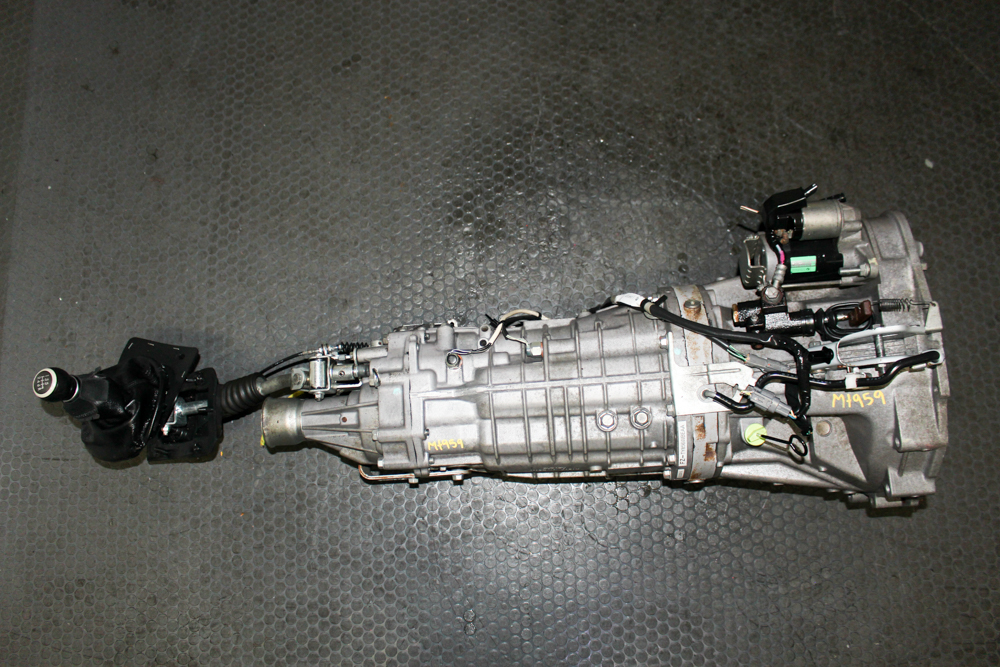

• Complete TY856WBEAA transmission
• Transmission identification
• Serial TY856WBEAA 112201

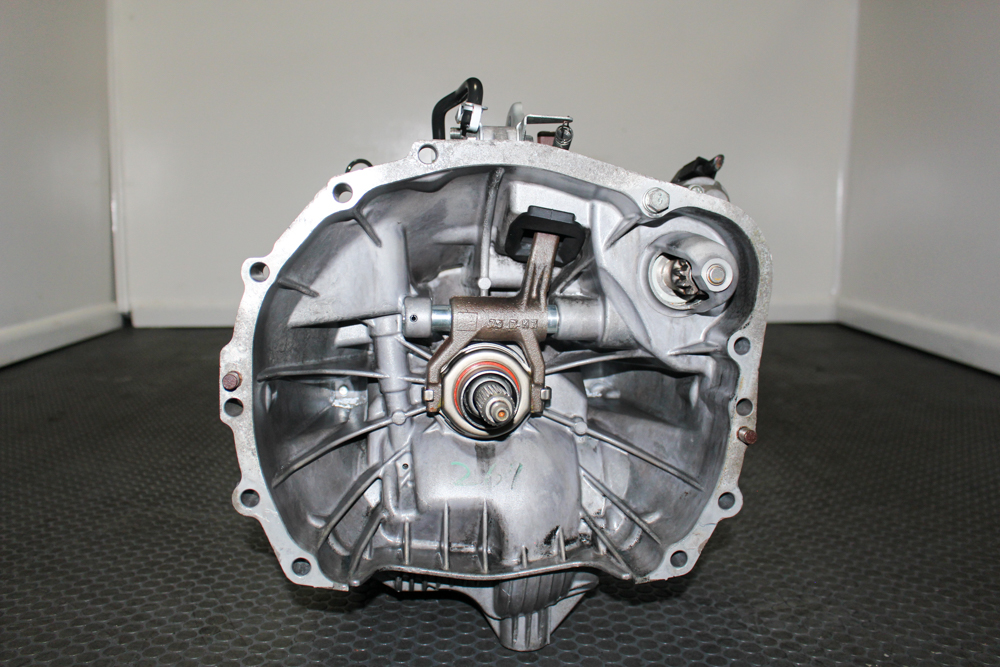

• Bellhousing
• Input shaft

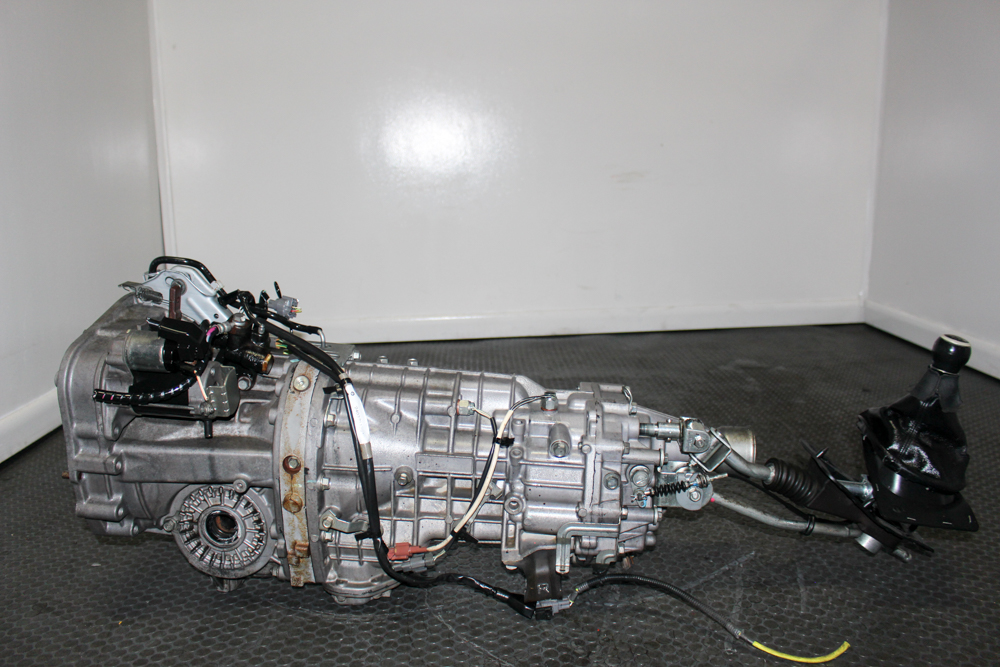

• Side profile

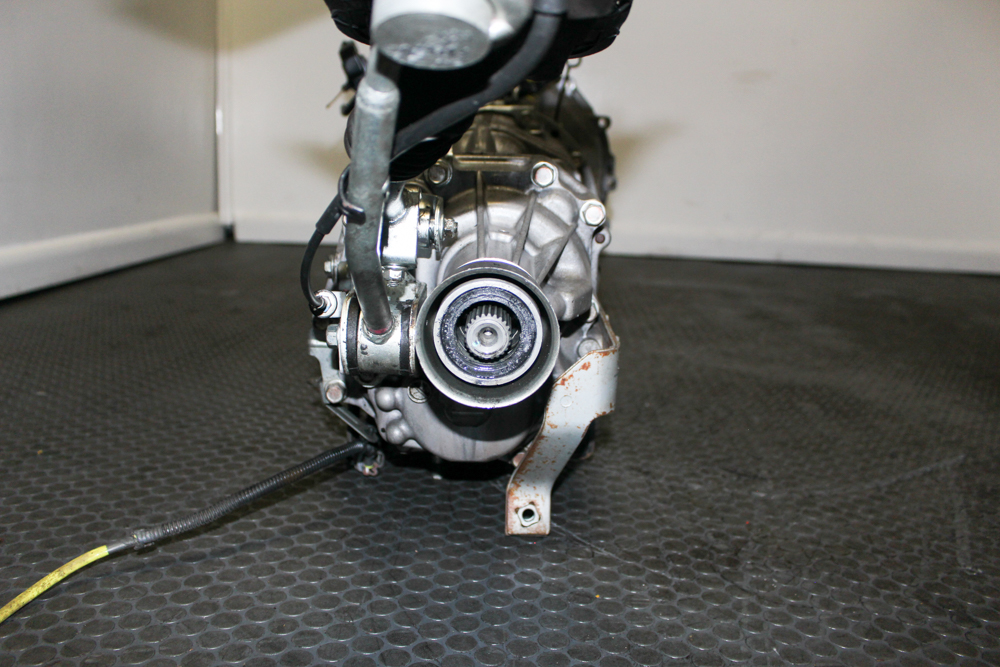

• Rear/output section

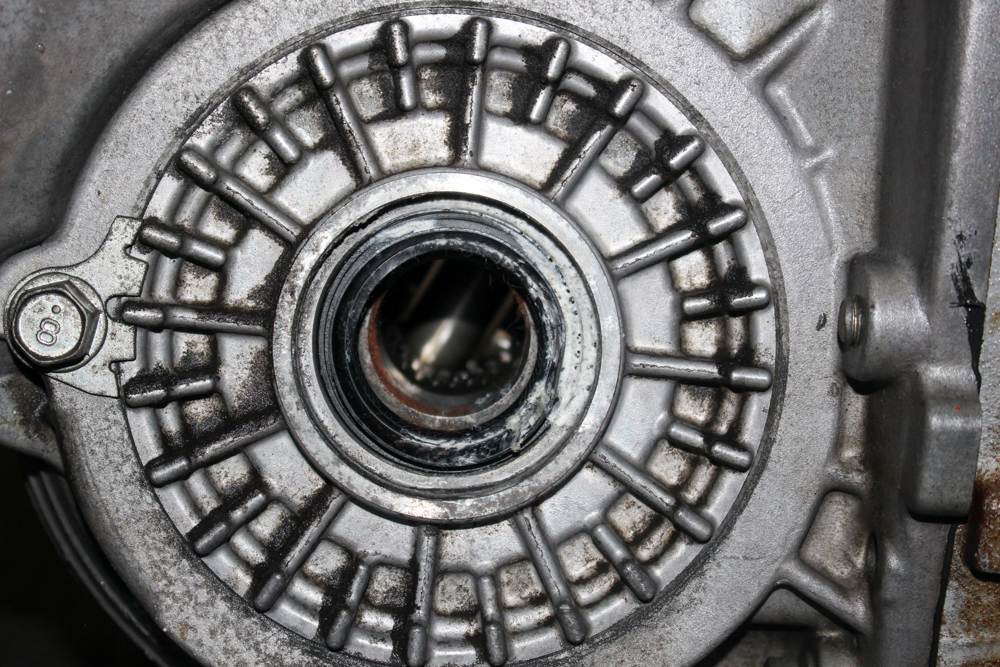

• Axle openings
• Sensors
• Switches
• Transmission mount
• Shifter area

Additionally, photograph the package contents together so customers can clearly see that the shifter linkage is not included.

INITIAL INSTALLATION CHECKLIST

Before installation:

• Confirm TY856WBEAA transmission code.
• Confirm serial TY856WBEAA 112201.
• Confirm 6-speed manual configuration.
• Confirm non-DCCD configuration.
• Verify transmission final drive.
• Verify required rear differential ratio.
• Source the correct 3.54 rear differential.
• Confirm shifter requirements.
• Source compatible 6MT shifter linkage.
• Compare JDM and original transmissions.
• Verify clutch configuration.
• Inspect clutch disc.
• Inspect pressure plate.
• Inspect flywheel.
• Inspect pilot bearing.
• Inspect release bearing.
• Verify driveshaft.
• Verify front axles.
• Verify rear axles.
• Verify hubs.
• Inspect transmission mount.
• Verify neutral switch.
• Verify reverse-light switch.
• Inspect accessible seals.
• Drain donor gear oil.
• Refill with fresh correct lubricant.
• Check for leaks.

INITIAL ROAD TEST

Begin with a conservative road test.

Monitor:

• 1st gear engagement
• 1–2 shift
• 2–3 shift
• 3–4 shift
• 4–5 shift
• 5–6 shift
• Downshifts
• Reverse engagement
• Synchronizer operation
• Gear grinding
• Gear pop-out
• Bearing noise
• Transmission whine
• Clutch engagement
• Shifter movement
• Driveshaft vibration
• Axle vibration
• Rear differential noise
• AWD binding
• Fluid leakage

Most importantly, stop driving immediately if severe AWD binding occurs.

COMMON SUBARU 6MT PROBLEMS AND SYMPTOMS

Possible drivetrain symptoms include:

• Difficult shifting
• Gear grinding
• Synchronizer wear
• Gear pop-out
• Bearing noise
• Transmission whine
• Difficult Reverse engagement
• Shifter play
• Oil leaks
• Drivetrain clunking

However, similar symptoms may come from:

• Clutch problems
• Release bearing
• Pilot bearing
• Driveshaft
• Axles
• Rear differential
• Transmission mount
• Shifter bushings

Therefore, diagnose the complete drivetrain before replacing the transmission.

WHY CHOOSE THIS TY856WBEAA?

This individual JDM transmission offers a rare Subaru non-DCCD 6-speed option.

Key features include:

• Genuine Subaru OEM JDM transmission
• TY856WBEAA exact code
• Serial TY856WBEAA 112201
• TY856 6-speed manual
• AWD
• Non-DCCD center differential configuration
• 3.90 transmission final drive
• 3.54 matching rear differential requirement
• Low-mileage Japanese import
• Individual Item ID
• Actual inventory photos
• 30-day limited warranty
• Nationwide freight shipping
• Affordable installation available

WHY BUY FROM J-SPEC AUTO SPORTS?

J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.

Customers benefit from:

• Actual inventory photography
• Exact transmission-code identification
• Individual serial tracking
• Subaru drivetrain experience
• Rare JDM performance inventory
• Nationwide freight shipping
• Local Richmond / Henrico pickup
• Installation availability
• Limited warranty coverage

INDIVIDUAL INVENTORY INFORMATION

Primary Application: Subaru Legacy Spec B

Transmission Code: TY856WBEAA

Serial Number: TY856WBEAA 112201

Transmission Family: TY856

Transmission: 6-Speed Manual / 6MT

Drivetrain: AWD

Center Differential: Non-DCCD

Transmission Final Drive: 3.90

Matching Rear Differential: 3.54 Required

Shifter Linkage: Not Included

Item ID: 254065

SKU: MT959 TY856WBEAA

Condition: Used OEM JDM / Low Mileage

Warranty: 30 Days

30-DAY LIMITED WARRANTY

This individual transmission carries a 30-day limited warranty, subject to J-Spec Auto Sports’ current warranty terms and installation requirements.

For warranty documentation, retain records for:

• Correct transmission gear oil
• Rear differential verification
• Clutch inspection
• Flywheel inspection
• Seal inspection
• Driveshaft verification
• Professional installation

FREQUENTLY ASKED QUESTIONS

What is the transmission code?

TY856WBEAA

What is the serial number?

TY856WBEAA 112201

What transmission family is it?

TY856

How many gears does it have?

Six forward gears.

Is this a manual transmission?

Yes.

It is a 6-speed manual / 6MT.

Is it AWD?

Yes.

Does it have DCCD?

No.

The TY856WBEAA is a non-DCCD transmission configuration.

What is the transmission final drive?

The live structured data identifies:

3.90

What rear differential is required?

The current listing states that a matching:

3.54 rear differential

is required.

Is the rear differential included?

No rear differential is currently identified as included with Item ID 254065.

Therefore, plan to source the correct compatible 3.54 differential separately.

Is the shifter linkage included?

No.

The live notice near the product price specifically states:

Shifter linkage is not included.

Why does the long description say the shifter is included?

The current live page contains conflicting information.

Until Item ID 254065 is physically verified, the safest specification is:

Shifter Linkage: Not Included

Can this replace a Legacy Spec B transmission?

Potentially, provided the complete TY856WBEAA drivetrain configuration matches the target vehicle.

Can I use it for a Legacy GT 5MT-to-6MT swap?

Yes, it can provide a strong foundation for a properly planned Legacy GT 6-speed conversion.

However, additional components may be required.

Can it be used in a WRX?

Potentially as part of a correctly planned conversion.

Do not treat the current broad 2002–2020 WRX application as universal direct fit.

Can it work in a Forester XT?

Potentially as a custom 6MT conversion after verifying all drivetrain components.

Is TY856WBEAA the same as an STI DCCD transmission?

No.

Although both may belong to the TY856 family, TY856WBEAA is a non-DCCD configuration.

What are the gear ratios?

The current listing provides:

1st: 3.636
2nd: 2.235
3rd: 1.521
4th: 1.137
5th: 0.971
6th: 0.756

What transmission oil should I use?

Use Subaru-approved manual transmission/front differential gear lubricant meeting the specification for the exact TY856 application.

A commonly specified viscosity is 75W-90.

Can I use CVT fluid?

No.

This is a manual transmission.

Should I replace the transmission oil before installation?

Yes.

Drain and inspect the donor oil, then refill with fresh correct-specification gear lubricant.

Should I inspect the clutch?

Yes.

Inspect the clutch disc, pressure plate, flywheel, pilot bearing, release bearing, fork, and related components while the transmission is removed.

Should I keep my original transmission?

Yes.

Keep the original gearbox until installation is complete because sensors, switches, brackets, or other components may need to transfer.

Is this transmission rebuilt?

No.

Unless specifically stated otherwise, this is a used OEM JDM Subaru transmission.

Does it have a warranty?

Yes.

Item 254065 carries a 30-day limited warranty.

ORDER ITEM 254065 – TY856WBEAA SUBARU 6MT

Upgrade or replace your Subaru drivetrain with this low-mileage JDM TY856WBEAA 6-speed manual AWD non-DCCD transmission.

Transmission Code: TY856WBEAA

Serial Number: TY856WBEAA 112201

Transmission: 6-Speed Manual

Drivetrain: AWD

Center Differential: Non-DCCD

Transmission Final Drive: 3.90

Matching Rear Differential: 3.54 Required

Shifter Linkage: Not Included

Item ID: 254065

SKU: MT959 TY856WBEAA

Warranty: 30 Days

Before ordering, verify the original transmission code, rear differential, clutch, flywheel, driveshaft, axles, hubs, shifter, sensors, switches, mounts, and complete physical drivetrain configuration.
