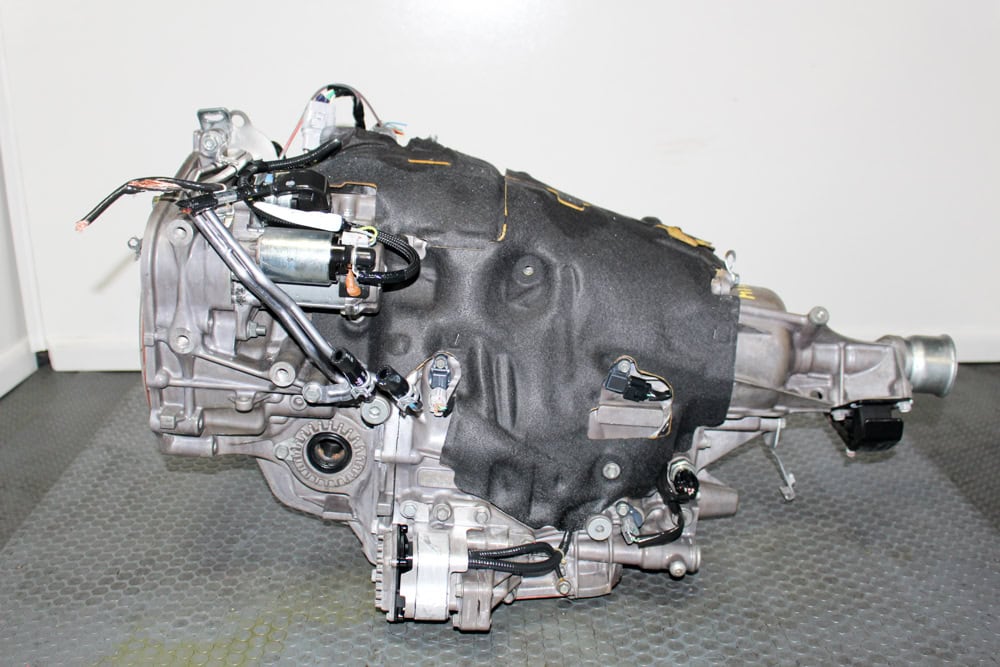

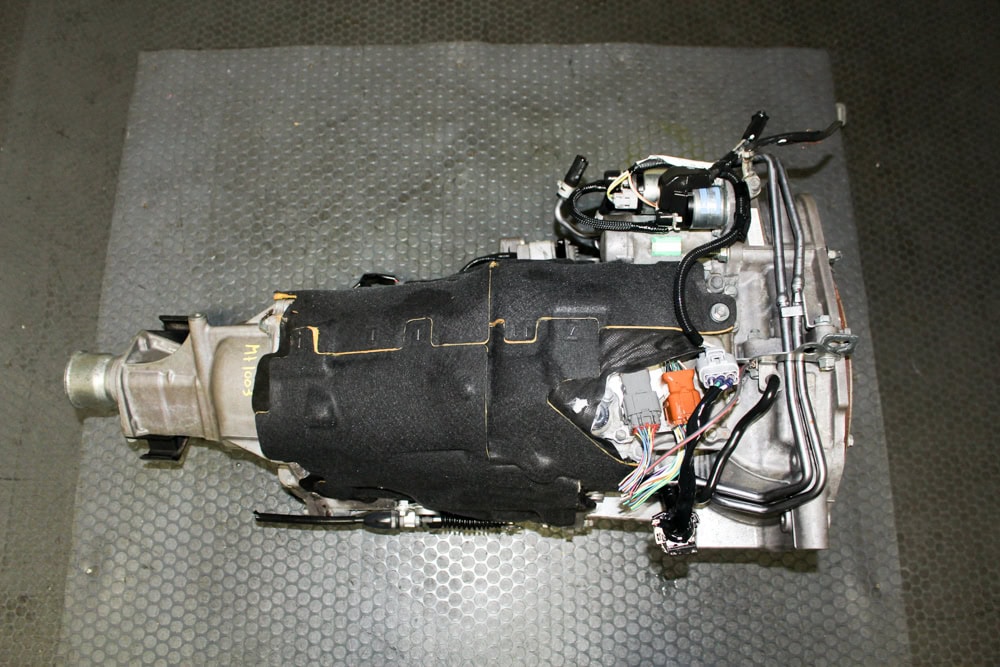

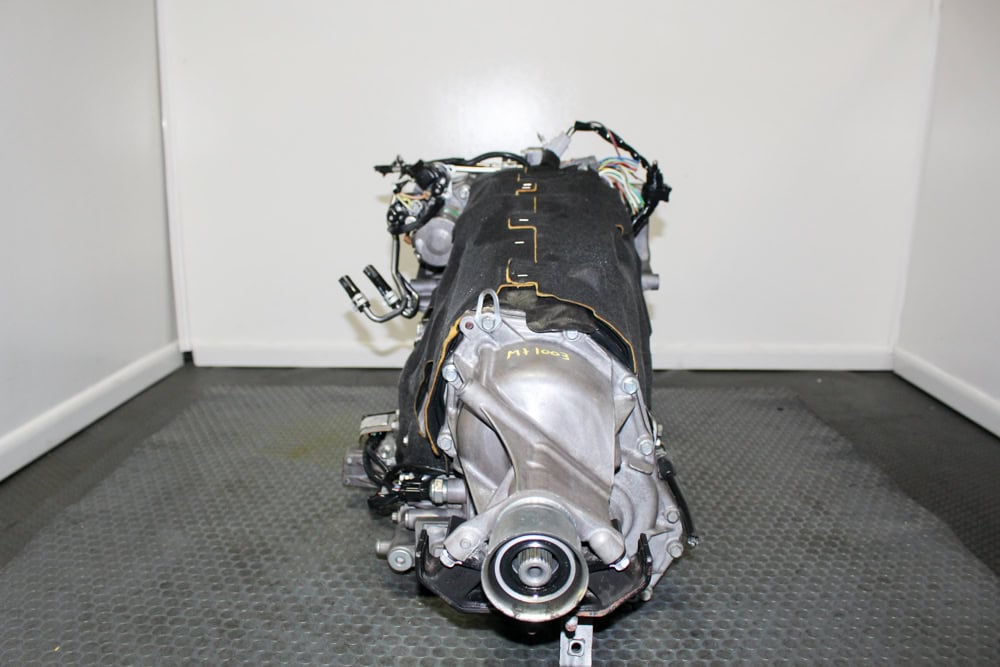

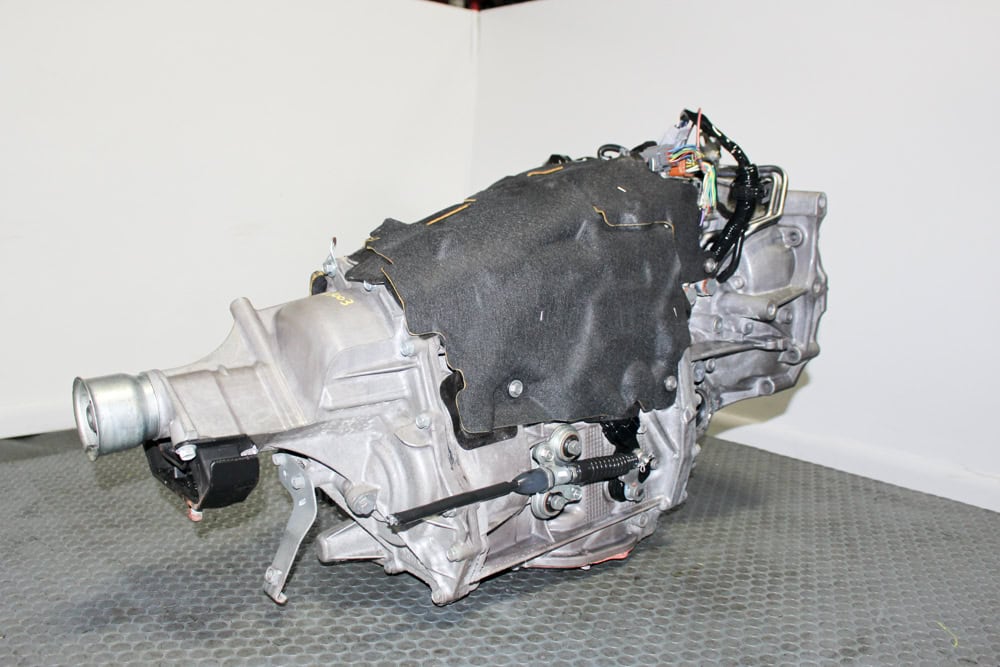

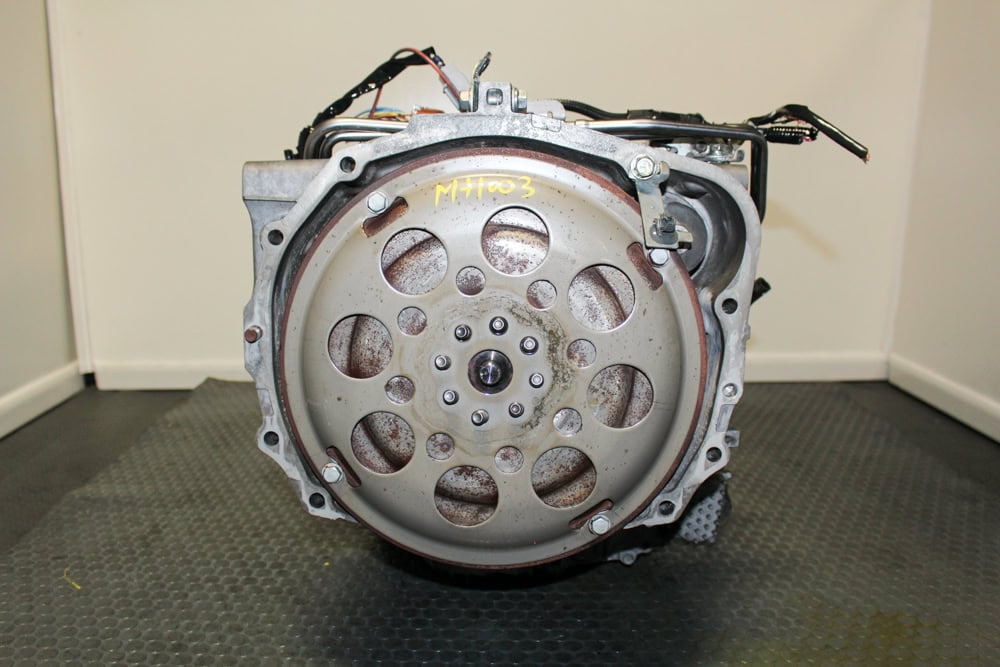

JDM SUBARU LEGACY TR580FHEAA FB25 2.5L LINEARTRONIC CVT

Replace your worn or failed Subaru Legacy CVT with this low-mileage JDM TR580FHEAA Lineartronic AWD transmission from J-Spec Auto Sports.

This genuine used OEM Subaru transmission was imported from Japan and targets compatible 2013–2014 Subaru Legacy 2.5L AWD applications equipped with the FB25 naturally aspirated Boxer engine.

The strongest technical product identity is:

Subaru Legacy → 2013–2014 → FB25 2.5L → TR580FHEAA → Lineartronic CVT → AWD → 3.70 Final Drive

This exact inventory unit is:

Transmission Code: TR580FHEAA

Serial Number: TR580FHEAA 061594

Item ID: 254615

Because Subaru produced numerous TR580 variants, always match the complete transmission code and drivetrain configuration rather than relying only on the TR580 family designation.

QUICK DETAILS

• Manufacturer: Subaru
• Vehicle: Legacy
• Years: 2013–2014
• Engine Code: FB25
• Engine Size: 2.5L
• Engine Type: Naturally Aspirated Boxer 4-Cylinder
• Transmission Code: TR580FHEAA
• Serial Number: TR580FHEAA 061594
• Transmission Family: TR580
• Transmission Type: Lineartronic CVT
• Drivetrain: AWD
• Final Drive Ratio: 3.70
• Rear Differential: Matching compatible ratio required
• Item ID: 254615
• SKU: TR580FHEAA 061594 MT1003
• Condition: Used OEM JDM / Low Mileage
• Warranty: 90 Days
• Actual Product Photos: Yes
• Nationwide Shipping: Available
• Installation: Available

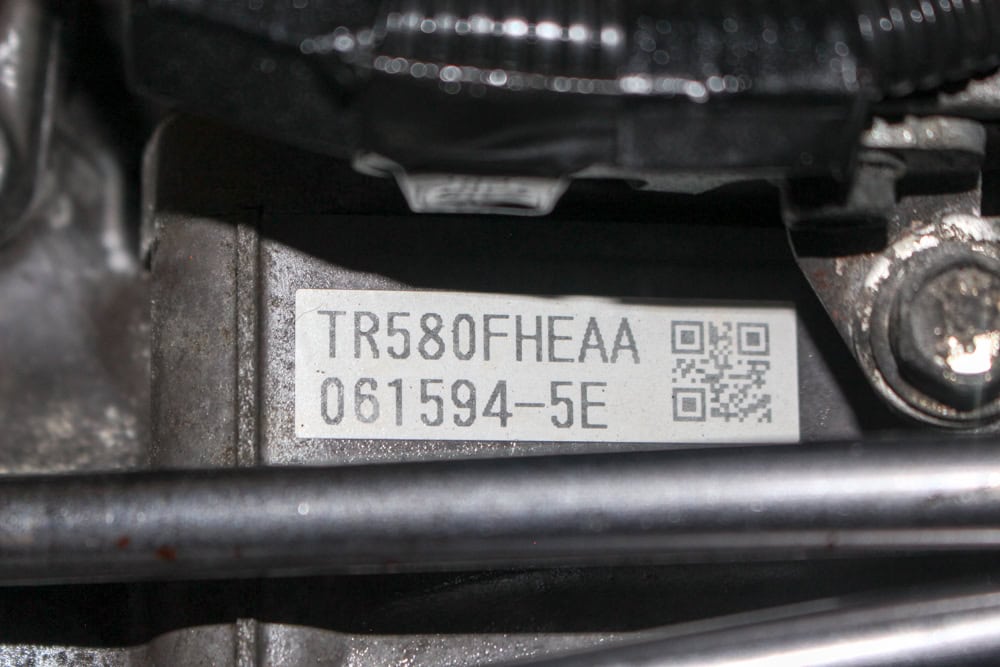

TR580FHEAA TRANSMISSION CODE

The most important identifier for Item 254615 is:

TR580FHEAA

The exact serial identification is:

TR580FHEAA 061594

Use the complete TR580FHEAA code throughout:

• Product title
• H1
• Short description
• Product specifications
• Image ALT text
• Image titles
• FAQ
• Structured data
• Inventory records

Do not identify this transmission as:

TR580DHACA

The physical product data on Item 254615 identifies it as:

TR580FHEAA

That should be the primary code everywhere on the page.

TR580FHEAA VS. TR580DHACA

TR580FHEAA and TR580DHACA are different Subaru transmission codes.

Do not combine them on the same product page.

Although both belong to Subaru’s TR580 Lineartronic family, differences may involve:

• Final-drive ratio
• Valve body
• Sensors
• Solenoids
• Electrical connectors
• Internal calibration
• AWD configuration
• Vehicle application
• Production specification

Therefore:

TR580FHEAA does not automatically equal TR580DHACA.

Item 254615 should be indexed and marketed using its actual physical code:

TR580FHEAA

LINEARTRONIC CVT – NOT A 5-SPEED AUTOMATIC

The TR580FHEAA is a:

Subaru Lineartronic Continuously Variable Transmission

It is not a conventional 5-speed automatic.

Therefore, remove:

Gears: 5

from the WooCommerce product specifications.

A CVT continuously varies its operating ratio rather than shifting through five fixed mechanical forward gears.

Recommended product data:

Type: Lineartronic CVT

Gears: CVT / Variable Ratio

Drivetrain: AWD

FB25 2.5L ENGINE APPLICATION

This transmission targets compatible vehicles equipped with Subaru’s:

FB25 2.5L Naturally Aspirated Boxer Engine

Use the complete:

FB25

engine code throughout the page.

This provides a stronger product identity than simply:

Subaru 2.5L transmission

However, FB25 alone does not establish transmission interchange.

Always verify:

FB25 + TR580FHEAA + AWD + 3.70 Final Drive

2013 SUBARU LEGACY 2.5L

Item 254615 targets compatible:

2013 Subaru Legacy 2.5i AWD

applications using the correct TR580FHEAA configuration.

Verify:

• FB25 2.5L engine
• TR580FHEAA transmission configuration
• AWD
• 3.70 final drive
• Rear differential ratio
• Valve body
• Sensors
• Electrical connectors
• Mounting configuration

2014 SUBARU LEGACY 2.5L

Item 254615 also targets compatible:

2014 Subaru Legacy 2.5i AWD

applications after complete code verification.

Confirm:

• Original transmission code
• FB25 engine
• AWD configuration
• 3.70 final drive
• Rear differential
• Electrical connectors
• Valve body
• Sensors
• Solenoids
• Mounting configuration

Do not rely solely on model year.

IMPORTANT – REMOVE 2015–2017 FROM THIS PAGE

Do not automatically extend Item 254615 to:

2015–2017 Subaru Legacy

simply because those vehicles also use a 2.5L engine and Lineartronic CVT.

Subaru changed drivetrain specifications across generations and model years.

Therefore, this individual TR580FHEAA listing should remain tightly targeted to the verified:

2013–2014 Subaru Legacy 2.5L AWD

application unless later fitment is independently confirmed for this exact transmission configuration.

IMPORTANT – REMOVE OUTBACK FROM THE PRIMARY FITMENT

Do not automatically advertise Item 254615 as a direct:

2013–2014 Subaru Outback

replacement.

Legacy and Outback vehicles can use different drivetrain ratios even when they share:

• FB25 engine
• TR580 transmission family
• AWD
• Similar model years

The complete transmission code and final-drive ratio must match.

Therefore, keep this page focused on the verified:

Legacy + TR580FHEAA + 3.70

relationship.

3.70 FINAL DRIVE

The verified application final-drive ratio for this transmission is:

3.70

This specification is one of the most important fields on the product page.

For Subaru AWD applications, the front and rear drivetrain ratios must be compatible.

The correct product identity is:

TR580FHEAA + 3.70 Final Drive + Matching Rear Differential

Do not install a different-ratio transmission simply because it physically bolts to the FB25 engine.

MATCHING REAR DIFFERENTIAL REQUIRED

Before installation, verify the vehicle’s rear differential ratio.

The replacement drivetrain must maintain compatible front-to-rear gearing.

Check:

• Transmission code
• Transmission final drive
• Rear differential identification
• Rear differential ratio
• AWD configuration
• Tire circumference

Operating an AWD Subaru with incompatible front and rear ratios may cause:

• Drivetrain binding
• Transfer-system stress
• Excessive heat
• Front differential damage
• Rear differential damage
• CVT damage

AWD CONFIGURATION

The TR580FHEAA is an:

AWD Lineartronic CVT

for the applicable Subaru Legacy platform.

The transmission contains the integrated front differential and AWD transfer components.

Therefore, drivetrain verification is just as important as engine compatibility.

TR580FHEAA VS. TR580FHDAA

TR580FHEAA and TR580FHDAA should not automatically be treated as the same transmission.

Although both belong to the TR580 family and can appear in related Subaru Legacy applications, suffix differences can identify application-specific variations.

Before substituting one for the other, verify:

• Complete transmission code
• Subaru part number
• Model year
• Final-drive ratio
• Valve body
• Sensors
• Solenoids
• Electrical connectors
• Wiring
• Case configuration
• Mounting

Never purchase a Subaru CVT based only on:

TR580

JDM-TO-USDM FITMENT

Japanese-market and U.S.-market Subaru transmissions may have differences even when they belong to the same basic transmission family.

Before installation, place Item 254615 next to the original transmission.

Compare:

• Complete transmission code
• Subaru OEM part number
• Transmission case
• Bellhousing
• Torque converter
• Valve body
• Solenoids
• Sensors
• Electrical connectors
• Wiring harness
• Front differential
• AWD transfer section
• Axle openings
• Cooler fittings
• Transmission mounts
• External brackets
• Shift linkage

Transfer compatible original components only when required and verified.

VALVE BODY VERIFICATION

TR580 variants can use different valve-body configurations.

Before installation, compare:

• Valve-body part number
• Solenoid configuration
• Pressure-control components
• Electrical connectors
• Harness
• Sensors

Do not automatically transfer the valve body.

Likewise, do not assume another TR580 valve body is interchangeable simply because the transmission case appears similar.

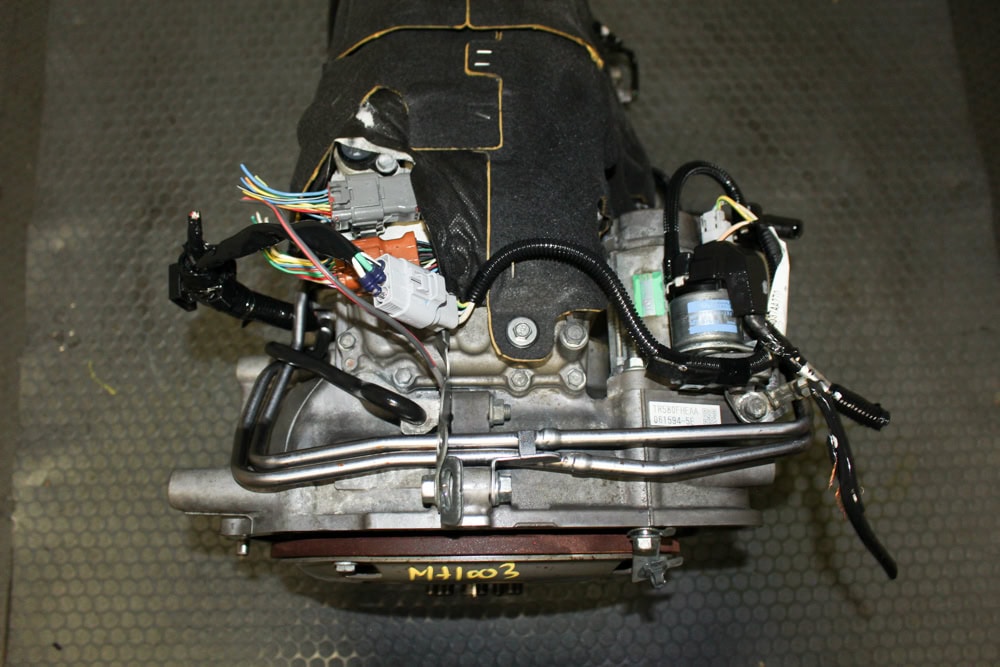

ELECTRICAL CONNECTORS AND SENSORS

Compare:

• Main transmission connector
• Connector shape
• Connector pin count
• Harness routing
• Speed sensors
• Pressure sensors
• Temperature sensors
• Solenoid connectors

Electronic compatibility is essential for correct CVT operation.

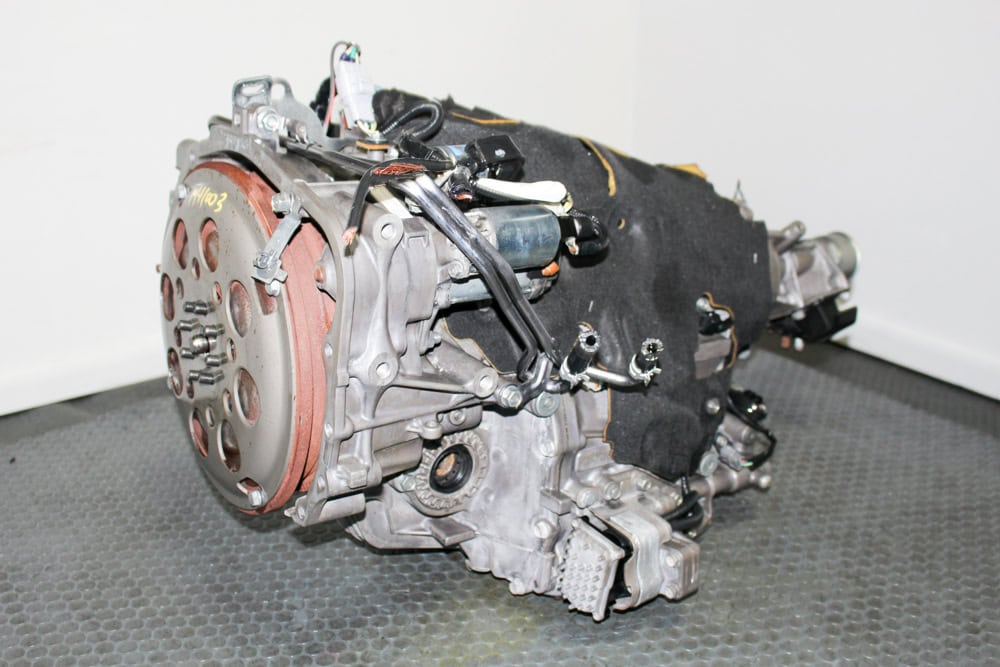

TORQUE CONVERTER

Verify torque-converter inclusion from the actual Item 254615 inventory photographs before advertising it as included.

If supplied, inspect:

• Converter hub
• Splines
• Pilot
• Seal surface
• Mounting points
• Overall physical condition

Most importantly, fully seat the torque converter before mating the transmission to the engine.

Never use bellhousing bolts to pull the transmission against the engine.

Improper torque-converter installation can damage the transmission pump.

USE THE CORRECT SUBARU CVT FLUID

Use the Subaru-specified CVT fluid for the exact TR580FHEAA and target vehicle application.

For applicable later TR580 service procedures, Subaru CVTF-II may be specified.

However, verify the correct fluid specification by:

• VIN
• Transmission code
• Subaru service information
• Applicable service bulletin

before filling the transmission.

Do not use:

• Conventional ATF
• Subaru ATF-HP
• Gear oil
• Generic universal ATF
• Unverified universal CVT fluid

FRONT DIFFERENTIAL FLUID IS SEPARATE

The front differential and CVT hydraulic circuits use separate lubricants.

Do not put CVT fluid in the front differential.

Likewise, never put differential gear oil into the CVT.

During installation:

• Drain and inspect the front differential.
• Inspect for contamination.
• Refill with the correct Subaru-approved gear oil.
• Verify the proper fluid level.
• Inspect axle seals.

FLUSH THE CVT COOLER AND LINES

Before operating Item 254615, thoroughly flush the transmission cooler and cooler lines.

A failed CVT may leave:

• Metal particles
• Bearing debris
• Friction material
• Contaminated CVT fluid
• Sludge

inside the cooler circuit.

Connecting the replacement transmission to contaminated lines can immediately expose the replacement unit to debris.

Therefore:

• Flush the CVT cooler.
• Flush cooler lines.
• Confirm unrestricted flow.
• Remove contaminated fluid.
• Replace a cooler that cannot be properly cleaned.

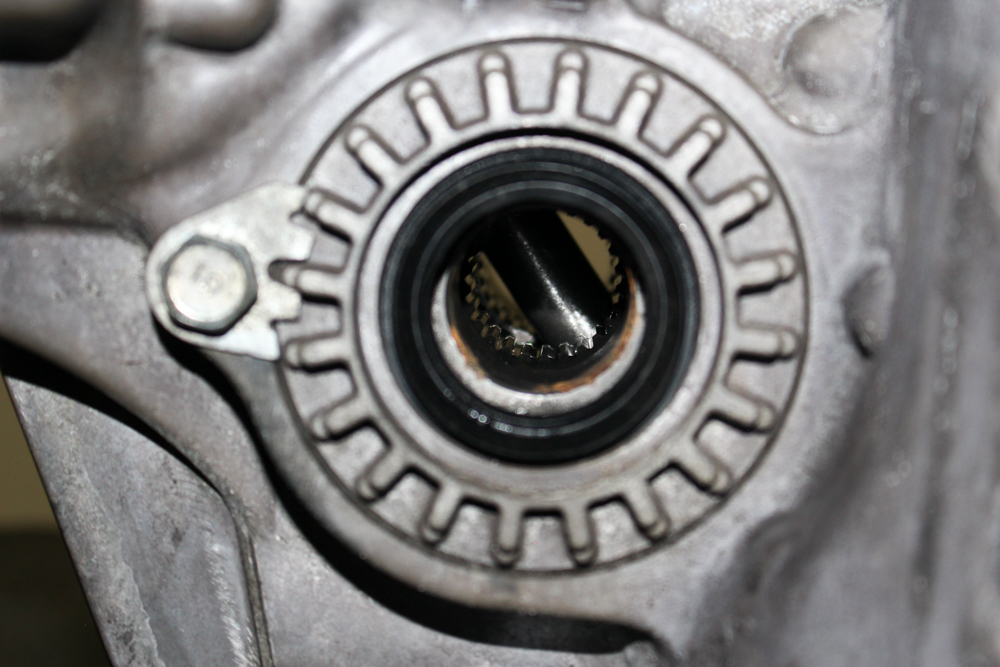

INSPECT ACCESSIBLE SEALS

While the transmission is outside the vehicle, inspect:

• Torque-converter / input seal
• Front axle seals
• Cooler-line seals
• Selector-shaft seal
• Case sealing surfaces

Replace questionable accessible seals before installation.

KEEP THE ORIGINAL TRANSMISSION

Do not discard the original CVT until Item 254615 has been:

• Installed
• Filled correctly
• Initialized
• Relearned
• Heat-cycled
• Road-tested
• Verified for correct AWD operation

The original transmission may provide compatible:

• Valve body
• Sensors
• Solenoids
• Wiring
• Brackets
• Mounts
• Cooler fittings
• Shift linkage
• External hardware

TCM INITIALIZATION / CVT RELEARN

After installation, perform all applicable Subaru:

• TCM initialization
• CVT learning
• Relearn
• Adaptation procedures

Use a Subaru-capable diagnostic scan tool whenever possible.

Depending on the vehicle, the process may include:

• Clearing CVT DTCs
• TCM memory reset
• CVT learning
• Calibration
• Road-learning procedure
• Software-update verification

Do not assume the CVT is ready for unrestricted driving immediately after installation.

CHECK FOR ECM / TCM SOFTWARE UPDATES

Before completing the repair, check the target VIN for applicable:

• TCM software updates
• ECM updates
• Subaru Technical Service Bulletins
• CVT service procedures
• Campaigns

Software differences can affect operation even when the mechanical transmission fits.

MATCH ALL FOUR TIRES

Subaru AWD systems are sensitive to differences in tire circumference.

Before road testing, verify:

• Tire size
• Tread depth
• Tire circumference
• Inflation pressure

All four tires should be closely matched according to Subaru specifications.

INSTALLATION CHECKLIST

Before installation:

• Confirm 2013–2014 Subaru Legacy.
• Confirm FB25 2.5L engine.
• Confirm AWD.
• Verify TR580FHEAA code.
• Verify serial TR580FHEAA 061594.
• Confirm 3.70 final drive.
• Confirm compatible rear differential ratio.
• Verify Subaru OEM part number where available.
• Compare original and replacement transmissions.
• Compare bellhousing.
• Compare torque converter.
• Compare valve body.
• Compare solenoids.
• Compare sensors.
• Compare electrical connectors.
• Compare wiring.
• Compare front differential.
• Compare AWD transfer section.
• Compare axle openings.
• Compare cooler fittings.
• Compare mounting brackets.
• Inspect accessible seals.
• Flush CVT cooler.
• Flush cooler lines.
• Service front differential separately.
• Fill with the correct Subaru-specified CVT fluid.
• Complete TCM initialization.
• Complete CVT relearn/adaptation.
• Check for applicable software updates.
• Verify all four tires are properly matched.

INITIAL STARTUP

After installation:

• Fill the CVT according to Subaru service procedures.
• Start the engine.
• Allow fluid to circulate.
• Slowly move the selector through each range.
• Confirm Reverse.
• Confirm Drive.
• Monitor CVT fluid temperature.
• Inspect cooler connections.
• Inspect axle seals.
• Check for fluid leaks.
• Recheck CVT fluid level.
• Scan for transmission-related DTCs.

Avoid aggressive acceleration during initial operation.

MULTIPLE HEAT CYCLES

Perform several controlled heat cycles.

CVT fluid level changes with temperature, and the cooler circuit continues filling during initial operation.

During each heat cycle:

• Monitor CVT temperature.
• Recheck CVT fluid level.
• Inspect cooler connections.
• Inspect axle seals.
• Verify Reverse and Drive engagement.
• Check for leaks.

Proceed to the road test only after fluid level remains stable.

INITIAL ROAD TEST

Begin with light throttle.

Monitor:

• Reverse engagement
• Drive engagement
• Initial takeoff
• CVT ratio changes
• Engine RPM behavior
• Torque-converter lockup
• Shudder
• Slipping
• Hesitation
• Abnormal noise
• Vibration
• AWD binding
• Warning lights
• CVT temperature
• Fluid leaks

Afterward, rescan the vehicle for stored or pending diagnostic trouble codes.

COMMON TR580 CVT FAILURE SYMPTOMS

Possible symptoms include:

• Shudder
• Slipping
• Delayed engagement
• RPM flare
• Hesitation
• Abnormal CVT noise
• Vibration
• Poor acceleration
• Warning lights
• CVT temperature warning
• Transmission diagnostic codes
• Failure to move

However, similar symptoms may also result from:

• Valve-body faults
• Solenoid problems
• Sensor failures
• Wiring problems
• Incorrect CVT fluid
• Incorrect fluid level
• Torque-converter problems
• Cooler restrictions
• TCM calibration
• AWD ratio mismatch
• Tire circumference mismatch
• Engine-related faults

Therefore, diagnose the complete vehicle before replacing the CVT whenever possible.

WHY THE COMPLETE TR580 CODE MATTERS

The phrase:

Subaru TR580 CVT

is too broad.

The stronger product identity is:

2013–2014 Subaru Legacy → FB25 2.5L → TR580FHEAA → Lineartronic CVT → AWD → 3.70 Final Drive

This improves:

• Fitment accuracy
• Customer confidence
• Google search relevance
• AI / LLM understanding
• Product schema
• Inventory tracking
• Warranty documentation

WHY CHOOSE ITEM 254615?

Item 254615 provides a code-specific JDM Subaru CVT option for properly verified Legacy applications.

Key features include:

• Genuine used OEM Subaru JDM transmission
• TR580FHEAA transmission code
• Serial TR580FHEAA 061594
• FB25 2.5L application
• Lineartronic CVT
• AWD configuration
• 3.70 final-drive application
• Individual inventory tracking
• Actual product photographs
• 90-day limited warranty
• Nationwide freight shipping
• Affordable installation available

WHY BUY FROM J-SPEC AUTO SPORTS?

J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.

Customers benefit from:

• Actual inventory photographs
• Individual serial-number tracking
• Complete transmission-code identification
• Subaru drivetrain experience
• Final-drive verification
• Fitment assistance
• Nationwide freight shipping
• Local pickup
• Affordable installation options
• Limited warranty coverage

Most importantly, careful transmission-code and drivetrain verification helps reduce expensive Subaru AWD compatibility problems.

INDIVIDUAL INVENTORY INFORMATION

Make: Subaru

Model: Legacy

Years: 2013–2014

Engine Code: FB25

Engine Size: 2.5L

Aspiration: Naturally Aspirated

Transmission Code: TR580FHEAA

Serial Number: TR580FHEAA 061594

Transmission Family: TR580

Transmission Type: Lineartronic CVT

Drivetrain: AWD

Final Drive Ratio: 3.70

Rear Differential: Matching compatible ratio required

CVT Fluid: Verify Subaru-specified CVT fluid by VIN and transmission code

Front Differential Fluid: Separate Subaru-approved gear oil

Torque Converter: Verify Included / Not Included from actual inventory

Item ID: 254615

SKU: TR580FHEAA 061594 MT1003

Condition: Used OEM JDM / Low Mileage

Warranty: 90 Days

90-DAY LIMITED WARRANTY

Item 254615 currently includes a 90-day limited warranty, subject to J-Spec Auto Sports’ current warranty terms and installation requirements.

Retain installation documentation showing:

• Correct Subaru CVT fluid
• CVT cooler flushing
• Cooler-line flushing
• Separate front differential service
• Correct rear differential ratio
• Accessible seal inspection/replacement
• Proper torque-converter installation
• TCM initialization
• CVT relearn/adaptation
• Professional installation

FREQUENTLY ASKED QUESTIONS

What transmission code is this?

This exact transmission is:

TR580FHEAA

What is the serial number?

TR580FHEAA 061594

What vehicle is this transmission for?

This page should primarily target compatible:

2013–2014 Subaru Legacy 2.5L AWD

applications.

What engine does it work with?

The target engine is Subaru’s:

FB25 2.5L naturally aspirated Boxer engine

Is TR580FHEAA a CVT?

Yes.

It belongs to Subaru’s Lineartronic CVT family.

Is it a 5-speed automatic?

No.

It is a continuously variable transmission and should not be listed as a conventional five-speed automatic.

Is it AWD?

Yes.

This is an AWD Subaru Lineartronic CVT application.

What is the final-drive ratio?

3.70

Does the rear differential need to match?

Yes.

Always verify compatible front and rear drivetrain ratios before operating an AWD Subaru.

Will it fit a 2013 Subaru Legacy?

It targets compatible 2013 Legacy FB25 2.5L AWD applications when the TR580FHEAA configuration and drivetrain ratio match.

Will it fit a 2014 Subaru Legacy?

It targets compatible 2014 Legacy FB25 2.5L AWD applications after complete transmission-code and ratio verification.

Will it fit a 2015 Subaru Legacy?

Do not automatically use this TR580FHEAA as a 2015 Legacy replacement.

Verify the original transmission code, final drive, valve body, electronics, and Subaru part number before considering interchange.

Will it fit a 2013 Subaru Outback?

Do not assume direct interchange.

Legacy and Outback applications can use different drivetrain ratios even when both use an FB25 engine and TR580-family CVT.

Is TR580FHEAA the same as TR580FHDAA?

Do not assume direct interchangeability.

Verify the complete code, final-drive ratio, valve body, sensors, electronics, and Subaru part number.

Is TR580FHEAA the same as TR580DHACA?

No automatic interchange should be assumed.

They are different Subaru transmission codes.

What CVT fluid should I use?

Use the Subaru-specified Lineartronic CVT fluid for the exact transmission and target VIN.

Verify the current Subaru service specification before filling the transmission.

Does the front differential use CVT fluid?

No.

The front differential uses a separate gear-oil circuit.

Should the cooler be flushed?

Yes.

Flush the CVT cooler and cooler lines thoroughly before operating the replacement transmission.

Does the transmission require a relearn?

Applicable Subaru TCM initialization and CVT relearn/adaptation procedures should be completed after installation.

Should I keep the original transmission?

Yes.

Keep it until Item 254615 has been installed, initialized, heat-cycled, and road-tested successfully.

Is the torque converter included?

Verify the actual Item 254615 photographs and physical inventory before advertising torque-converter inclusion.

Is this transmission rebuilt?

No.

Unless specifically stated otherwise, this is a:

Used OEM JDM Subaru transmission imported from Japan

What warranty does it have?

Item 254615 currently carries a:

90-day limited warranty

ORDER ITEM 254615 – SUBARU LEGACY TR580FHEAA CVT

Replace your damaged or failed CVT with this low-mileage JDM Subaru TR580FHEAA Lineartronic AWD transmission for properly verified 2013–2014 Subaru Legacy FB25 2.5L applications.

Vehicle: Subaru Legacy
Years: 2013–2014
Engine: FB25 2.5L
Transmission: TR580FHEAA
Serial: TR580FHEAA 061594
Type: Lineartronic CVT
Drivetrain: AWD
Final Drive: 3.70
Item ID: 254615
SKU: TR580FHEAA 061594 MT1003
Warranty: 90 Days

Before ordering, verify the VIN, original transmission code, Subaru part number, FB25 engine, AWD configuration, final-drive ratio, rear differential ratio, valve body, sensors, solenoids, electrical connectors, torque converter, cooler fittings, and TCM compatibility.

For fitment assistance, nationwide freight shipping, or installation information, contact J-Spec Auto Sports before completing your order
