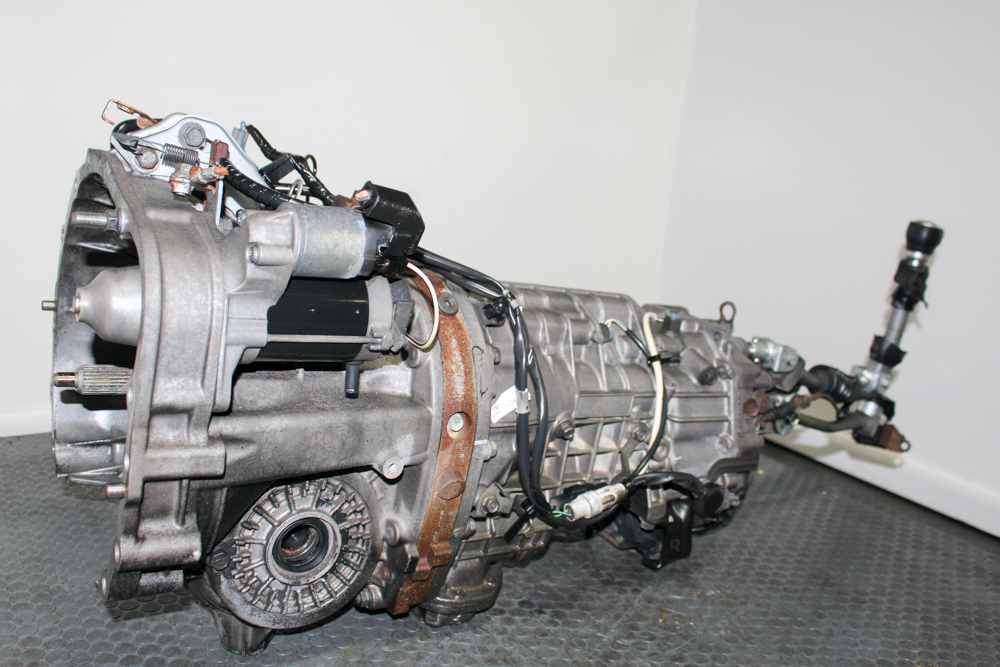

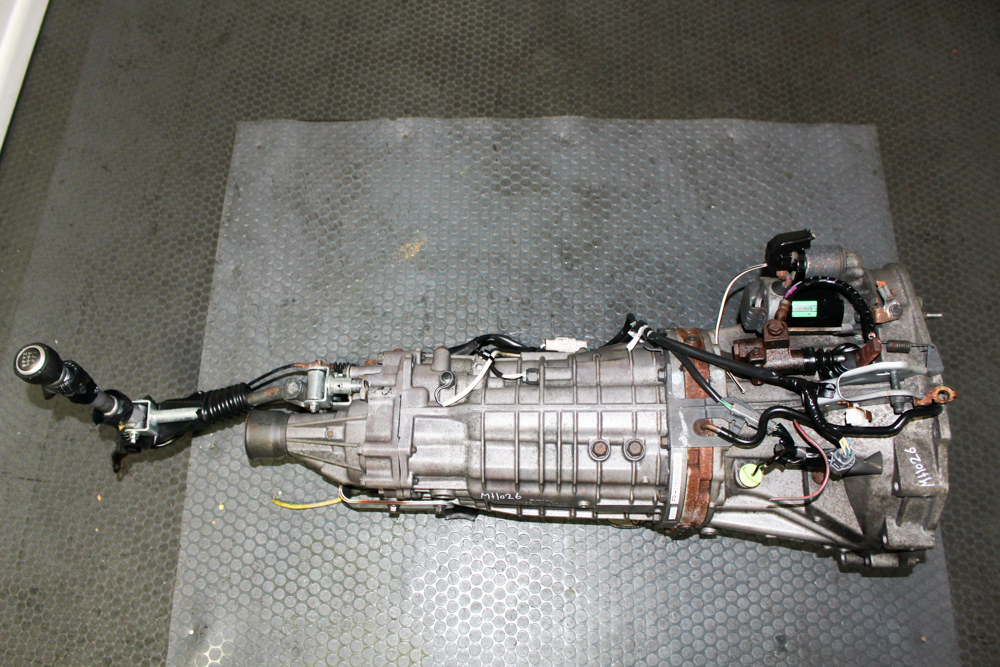

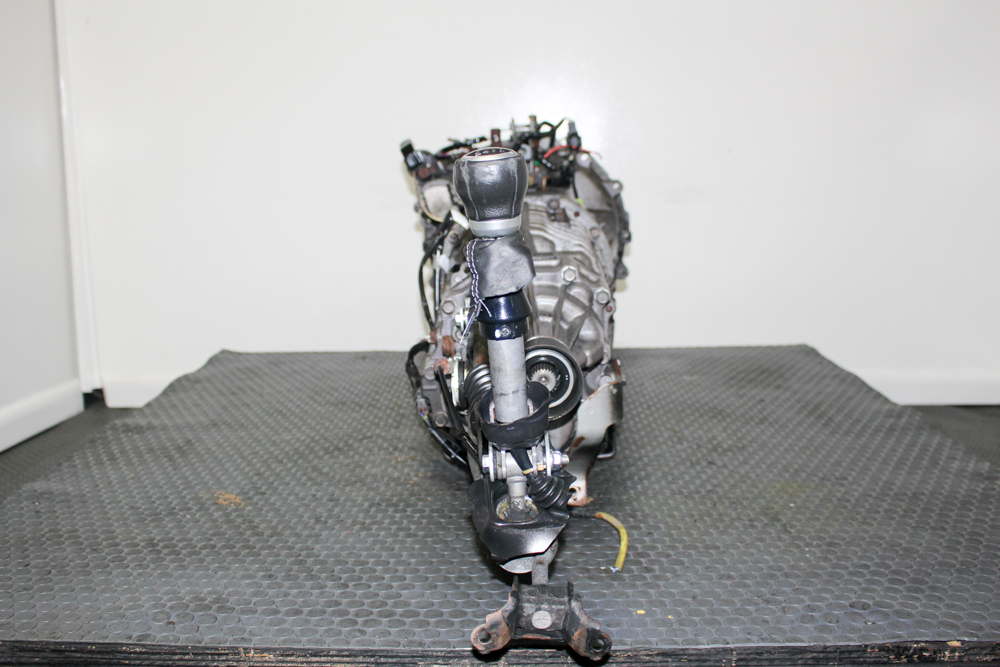

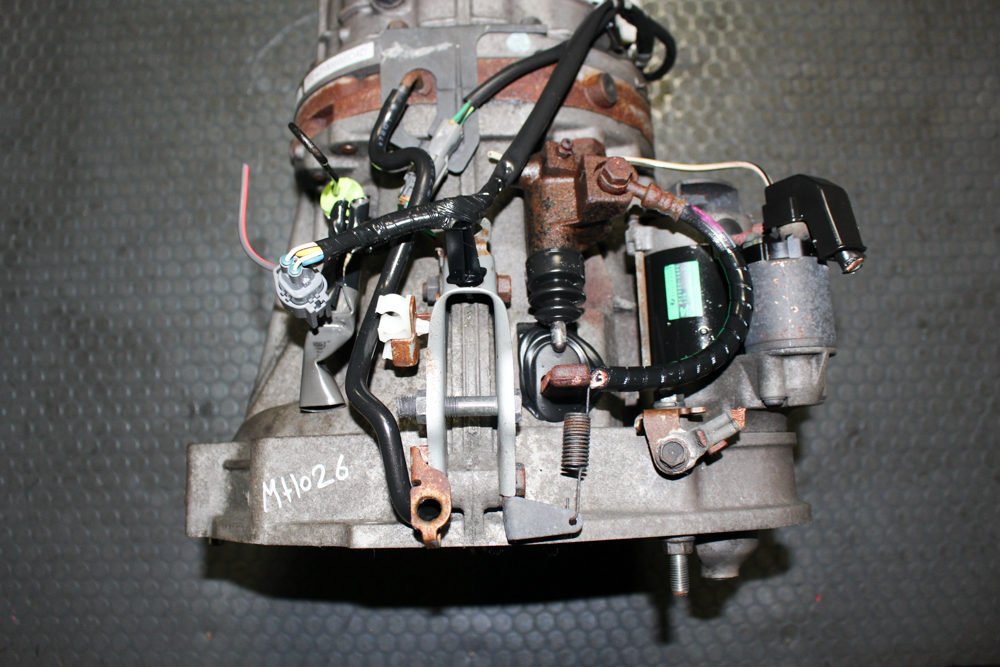

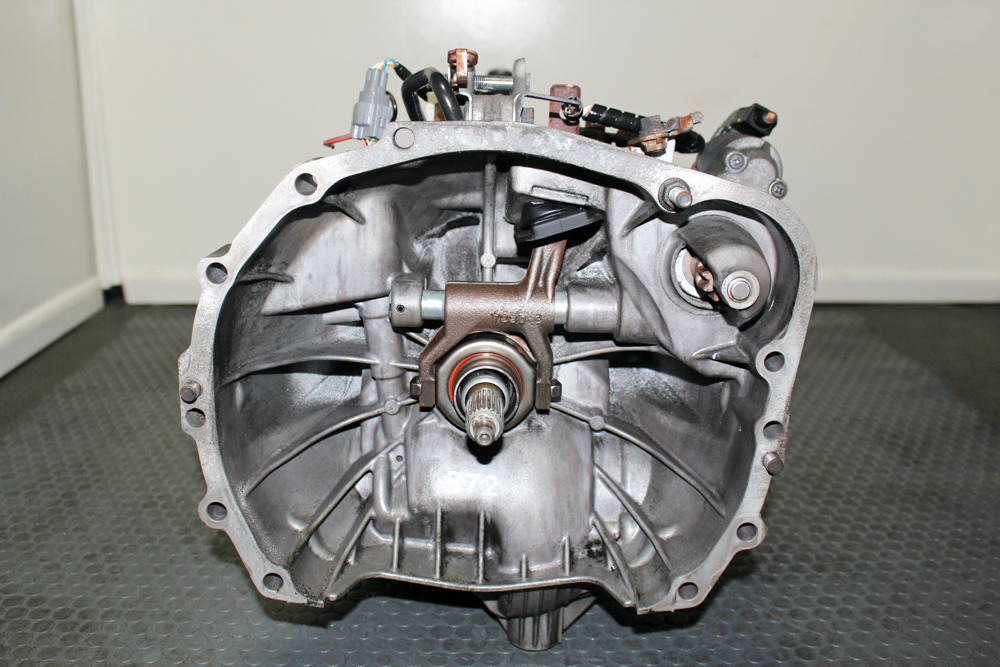

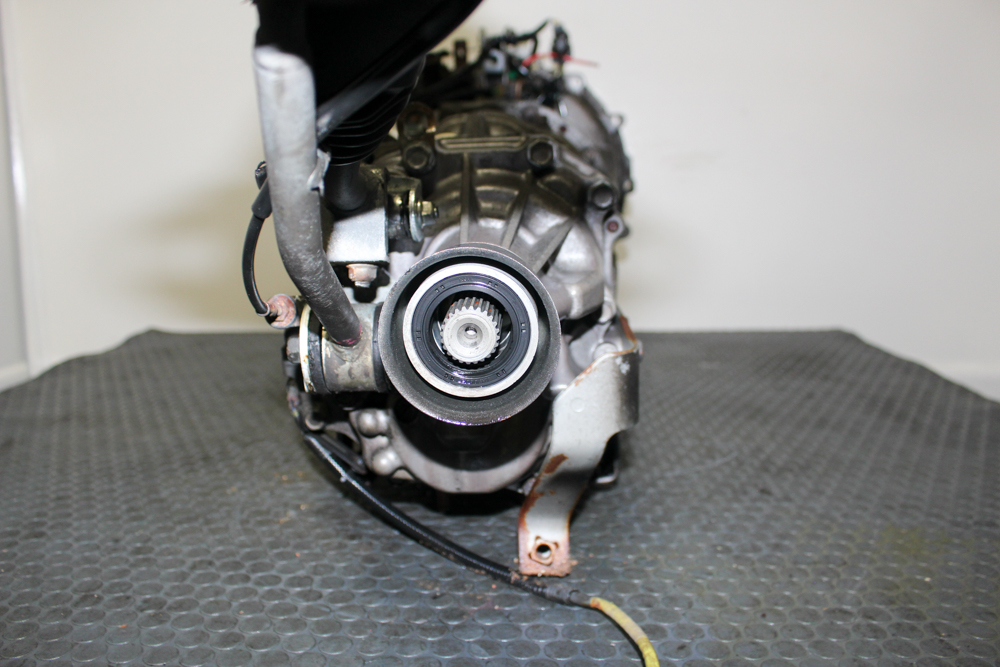

JDM Legacy Spec B 6-Speed Transmission (TY856WBDAD, Non-DCCD)

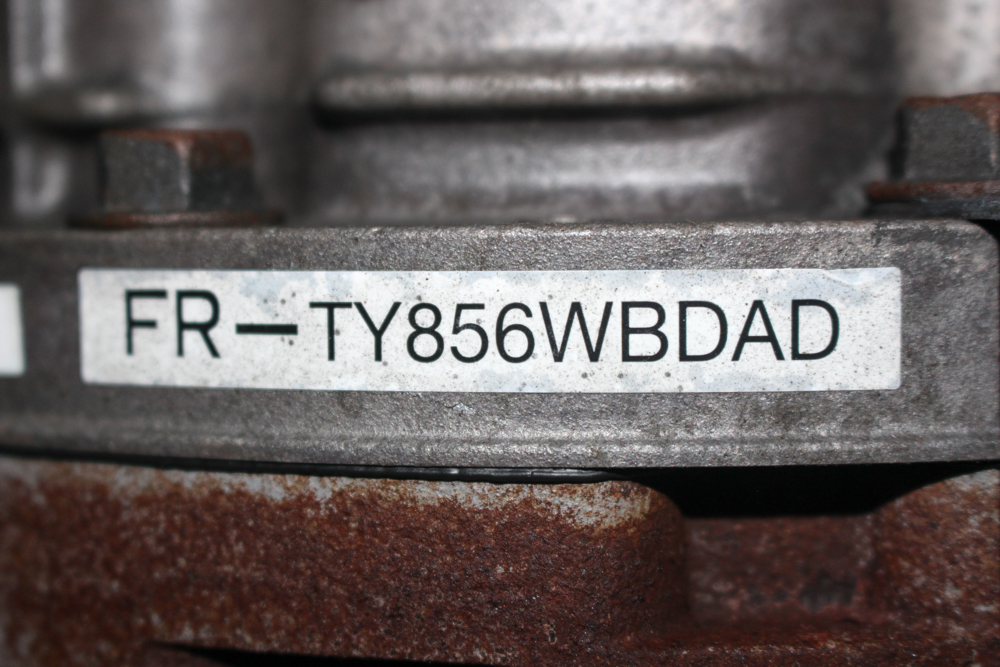

This used JDM Spec B 6-speed transmission comes from a Subaru Legacy Tuned by STI and is sold as the transmission alone. It carries code TY856WBDAD with a 3.90 final drive. Because it is a non-DCCD unit, you do not need a DCCD controller, a switch or extra wiring. As a result, it is one of the simplest ways to put a stronger 6-speed into a Legacy, WRX or Forester.

Why Choose a Spec B 6-Speed Transmission?

Compared to the factory 5-speed, the 6-speed has a stronger case and gear set. In addition, the extra gear gives closer ratios for spirited driving and a more relaxed highway cruise. For turbo builds that have outgrown a 5-speed, this transmission is a common next step. Moreover, the non-DCCD center differential works on its own, so the swap stays mechanically simple.

What’s Included (and What’s Not)

• Included: 6-speed manual transmission, TY856WBDAD, as pictured
• Not included: rear differential, axles, driveshaft, shifter, clutch, and flywheel

Need everything in one purchase? See our Spec B 6MT swap package with R180 diff, axles, subframe, brakes and hubs.

Important: Match the 3.90 Rear Differential

All-wheel-drive Subarus need the front and rear final drives to match. Since this transmission uses a 3.90 final drive, you must pair it with a 3.90 rear differential. Otherwise, the center differential and drivetrain can be damaged quickly. Also, if your car currently runs a different ratio, your speedometer may read slightly off after the swap.

Swapping Into a WRX or Forester

For a 2002–2007 WRX or a 2003–2008 Forester, plan on these conversion parts:

• A matching 3.90 rear differential, usually an R180 for 6-speed strength
• Rear diff mounts and rear axles that fit the differential you choose
• A 6-speed shifter, linkage and transmission crossmember or mount
• A driveshaft of the correct length for the 6-speed
• A clutch, flywheel and release parts matched to this transmission
• Reverse-light and speed sensor wiring adjustments

Not sure what your car needs? Call us before you buy, and we will help you plan the full parts list.

About the Legacy Tuned by STI

The Legacy Tuned by STI was a limited Japanese-market version of the fourth-generation Subaru Legacy, built with input from Subaru Tecnica International (STI). Like the US Legacy Spec B, it used a 6-speed manual paired with the turbocharged EJ255.

Inspected and Ready to Ship

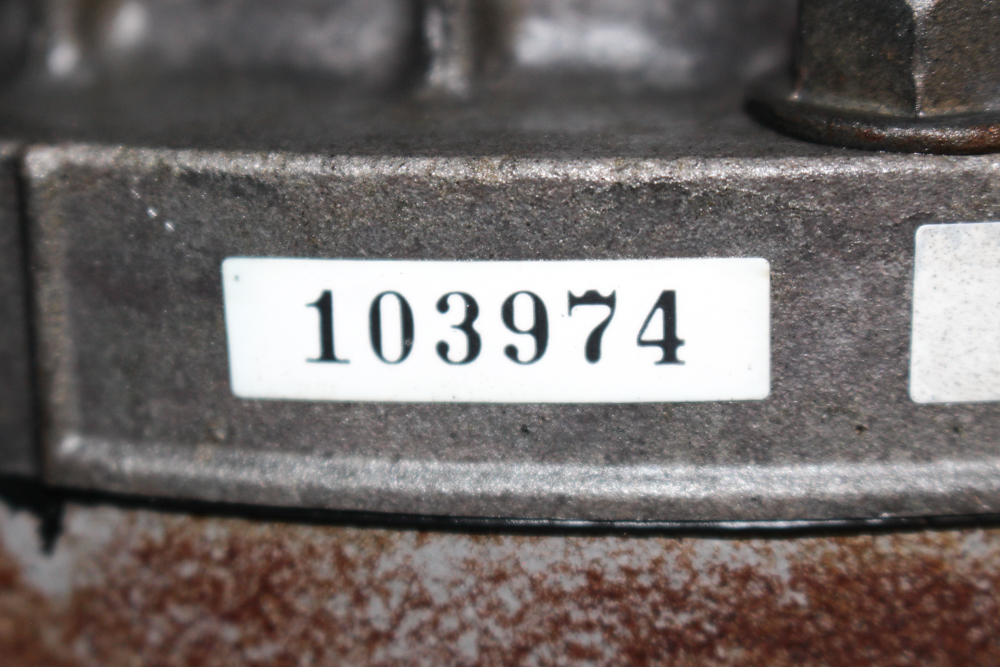

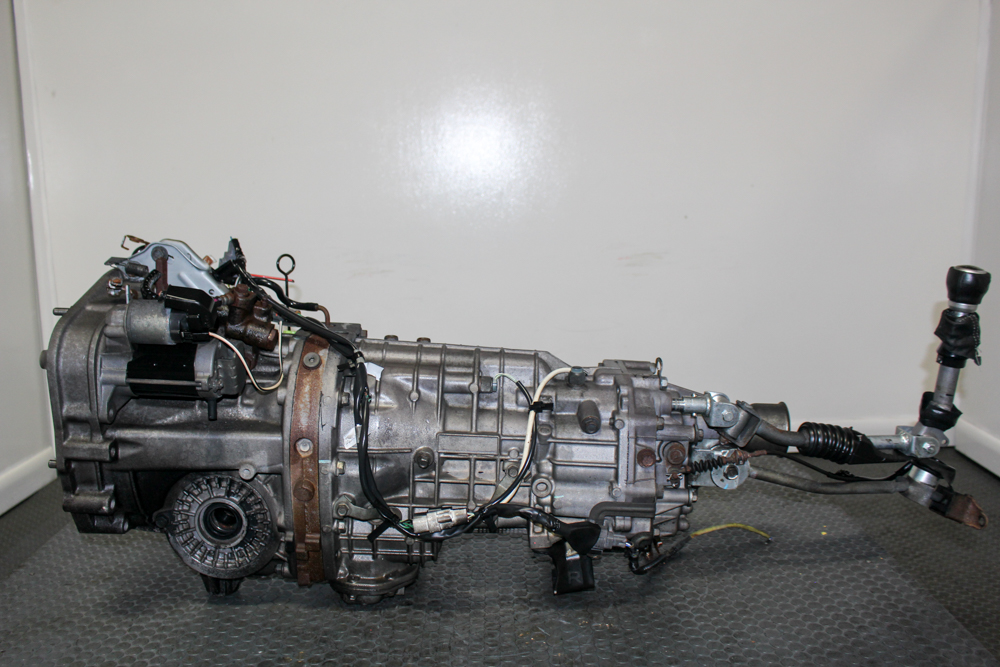

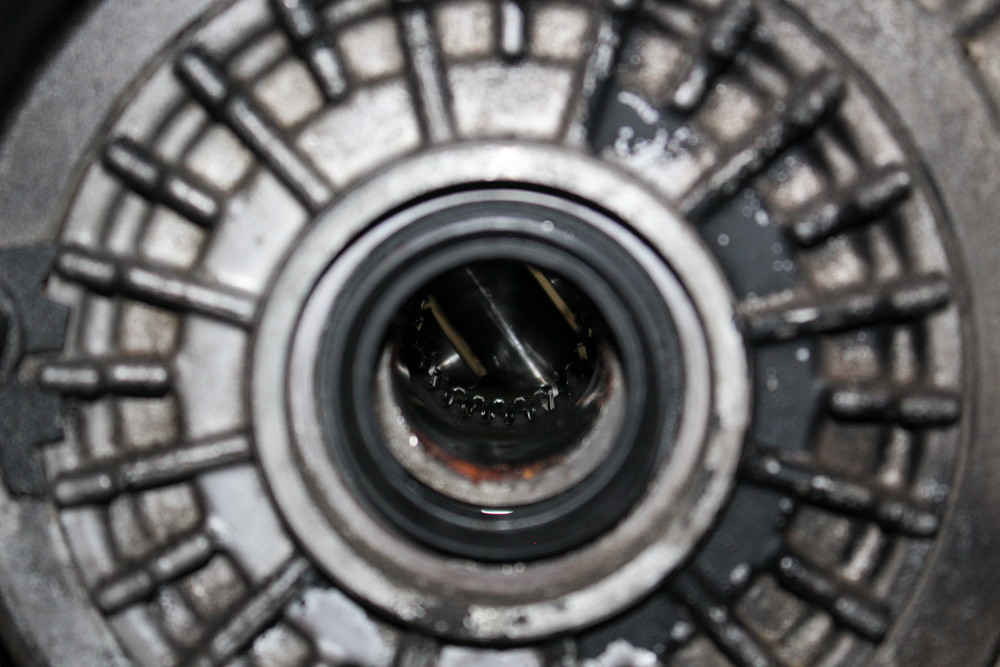

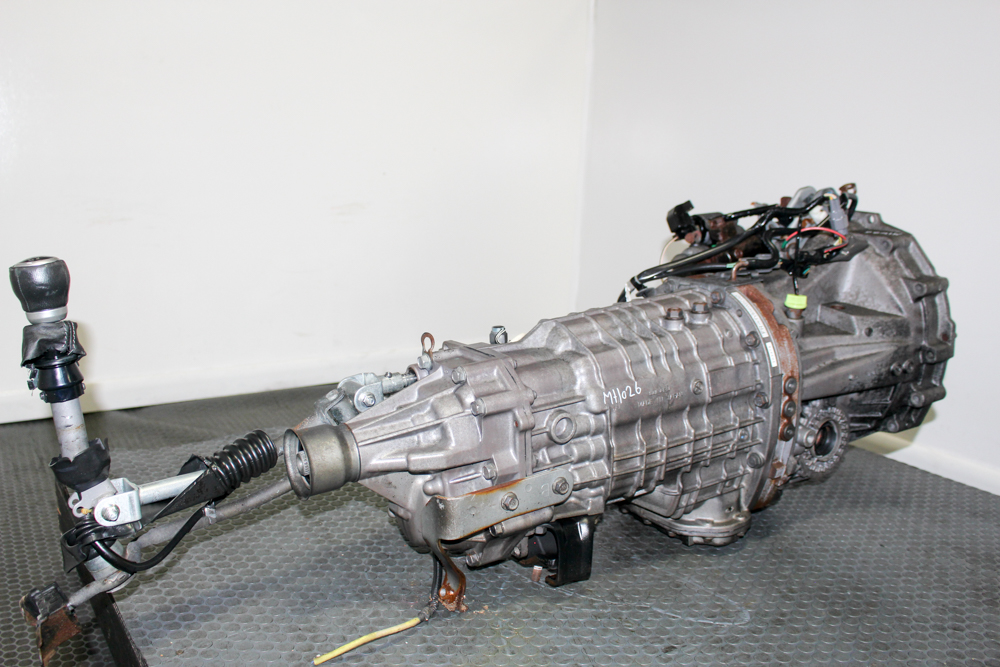

Every unit is imported directly from Japan and checked by our team in Virginia. Additionally, the photos show this actual transmission, including the code and serial number. Each transmission is drained, capped and strapped to a pallet, then shipped by freight to a business or residential address anywhere in the US.

Professional Installation Available

Want it done right the first time? J-Spec Auto Sports installs the engines, transmissions and parts we sell at our shop in Henrico, Virginia, near Richmond. Our technicians handle 5-speed to 6-speed conversions regularly, so the right rear diff, driveshaft and shifter are part of the plan from the start. To get a quote or book a time, schedule an appointment or call 866-683-3747.

Shipping and Warranty

This Spec B 6-speed transmission includes a 30-day warranty. We ship nationwide by freight, and local pickup is available in Henrico, VA. For questions, call 866-683-3747.
