JDM Subaru WRX STI VAB 2.0L Twin Scroll Turbo Engine 2015–2020

Looking for a JDM Subaru WRX STI VAB engine for sale? J-Spec Auto Sports offers this low-mileage 2.0L turbocharged Subaru boxer engine imported directly from Japan. With approximately 60,000 miles, this engine provides a premium replacement option for compatible 2015–2020 Subaru WRX STI VAB applications.

Most importantly, J-Spec Auto Sports compression tests and inspects this engine before sale. The engine also features Dual AVCS and a VF49 twin-scroll turbocharger. Therefore, buyers receive a complete JDM performance engine with important original turbo components.

This specific engine carries serial number D725593 and includes a 30-day limited warranty. In addition, J-Spec Auto Sports offers nationwide freight shipping and professional engine installation in Richmond, Virginia.

Quick Engine Details

• Engine Family: Subaru EJ-Series JDM STI
• Displacement: 2.0L
• Configuration: Horizontally Opposed 4-Cylinder Boxer
• Cylinder Heads: DOHC
• Valve Timing: Dual AVCS
• Aspiration: Turbocharged
• Turbocharger: VF49 Twin Scroll
• Timing System: Timing Belt
• Fuel System: Electronic Fuel Injection
• Mileage: Approximately 60,000 Miles
• Engine Serial Number: D725593
• Chassis Application: Subaru WRX STI VAB
• Origin: Japan / JDM Import
• Condition: Used
• Testing: Compression Tested
• Warranty: 30-Day Limited Warranty
• Shipping: Nationwide Freight Available
• Installation: Professional Installation Available in Richmond, Virginia

Subaru WRX STI VAB Engine Compatibility

This JDM 2.0L turbo engine is intended for compatible Subaru WRX STI VAB applications.

Although the JDM and USDM vehicles share the VAB chassis platform, their engine configurations are not identical.

Therefore, customers should verify the VIN, engine code, ECU, wiring harness, AVCS configuration, turbo system, sensors, intake system, exhaust system, and emissions components before installation.

Professional installation by a technician familiar with JDM Subaru engines is strongly recommended.

Will a JDM 2.0L STI Engine Work in a USDM 2015–2020 WRX STI?

A JDM 2.0L STI engine can be used in certain USDM VAB STI applications when the conversion is properly planned and configured. However, it should not automatically be treated as a complete plug-and-play replacement for the USDM 2.5L EJ257.

The JDM engine is a 2.0L turbocharged platform, while the U.S.-market STI uses a different engine configuration.

Consequently, ECU calibration, wiring, sensors, AVCS operation, fueling, turbo configuration, exhaust components, and other supporting systems must be considered.

Depending on the installation strategy, original USDM components may need to be transferred or adapted.

JDM-to-USDM Components That May Require Transfer

Japanese-market and North American Subaru STI engines can use different external components and engine-management systems.

Therefore, installers may need to transfer or configure components such as:

• Engine wiring components
• Vehicle-side wiring
• Sensors
• Intake components
• Fuel-system components
• Ignition components
• Engine accessories
• Air-conditioning components
• Power steering components where applicable
• Cooling-system components
• Engine brackets
• Exhaust components
• Turbo-related components
• Emissions equipment
• ECU-related components

Before installation, place the replacement JDM engine and original USDM engine side by side whenever possible.

Next, compare all sensors, connectors, brackets, accessories, coolant connections, intake components, turbo hardware, and exhaust connections. This process helps identify differences before the replacement engine enters the vehicle.

Dual AVCS – Important Compatibility Information

This JDM Subaru STI engine features Dual AVCS, which provides variable camshaft timing.

However, proper AVCS operation depends on the ECU, wiring, sensors, and complete engine-management configuration.

As a result, installers should verify the intended ECU and wiring strategy before beginning the conversion.

Correct engine management is especially important on a turbocharged Subaru engine. Therefore, professional setup and tuning may be required depending on the final configuration.

VF49 Twin-Scroll Turbocharger

This engine package includes a VF49 twin-scroll turbocharger.

The twin-scroll configuration separates exhaust pulses before they reach the turbine. When combined with the correct exhaust components, this design supports responsive turbo operation.

However, turbo and exhaust configurations can differ between JDM and USDM vehicles.

Before installation, verify compatibility of the:

• Turbocharger
• Exhaust manifold
• Up-pipe
• Downpipe
• Turbo oil supply line
• Turbo oil return line
• Turbo coolant lines
• Boost-control components
• Intake system

If the vehicle will use a different turbo configuration, plan the required component transfer before installing the engine.

What’s Included?

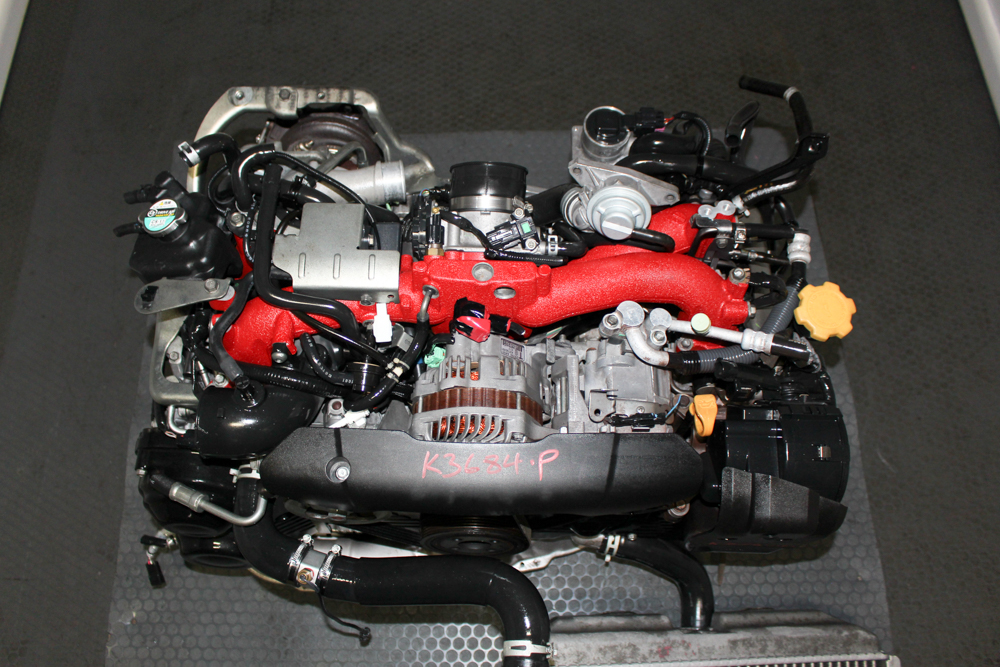

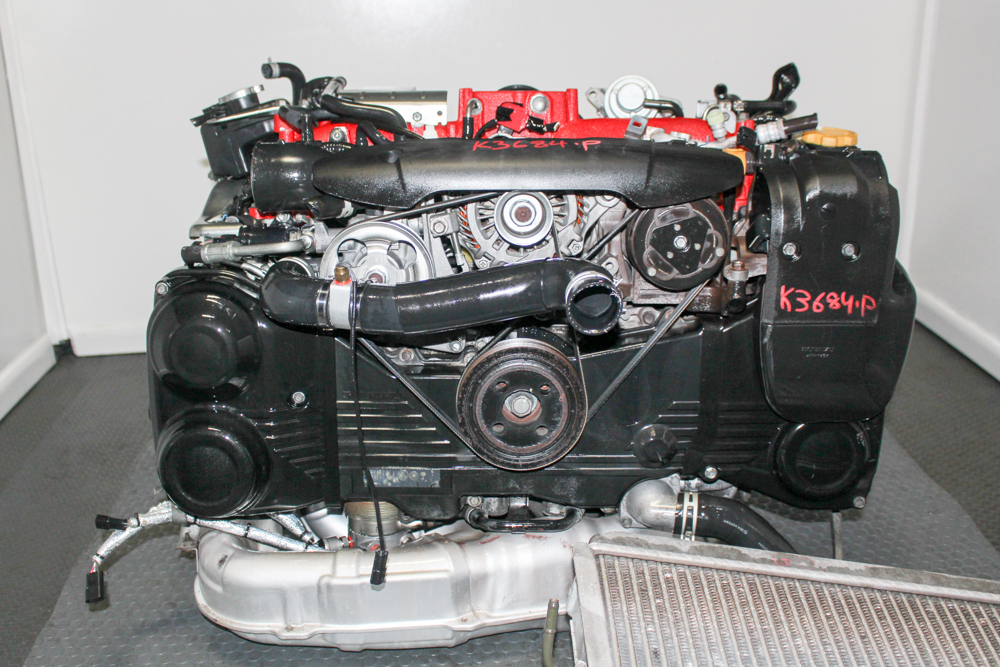

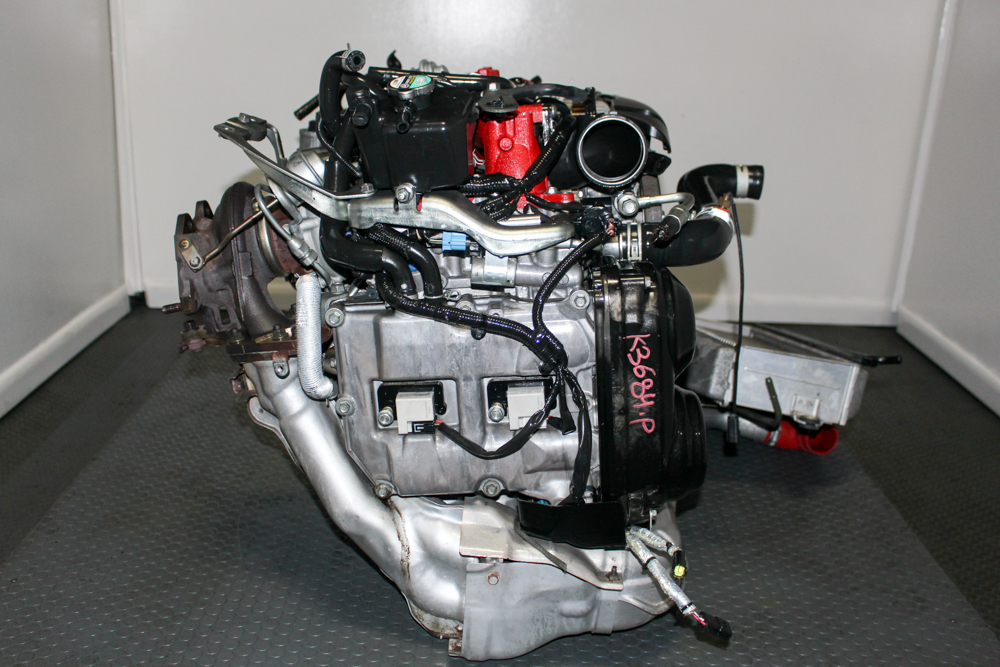

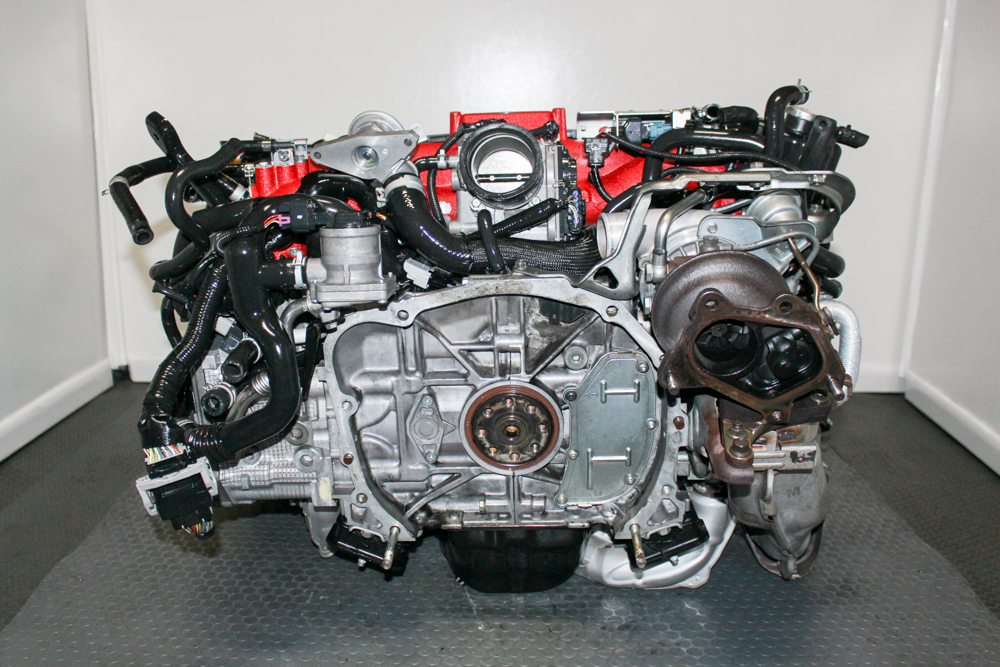

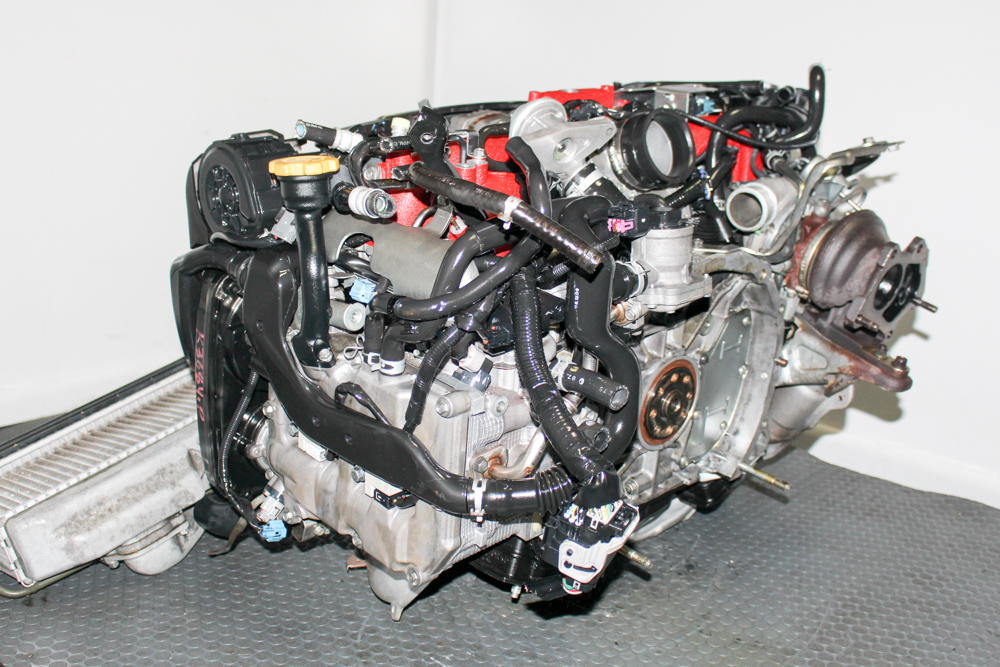

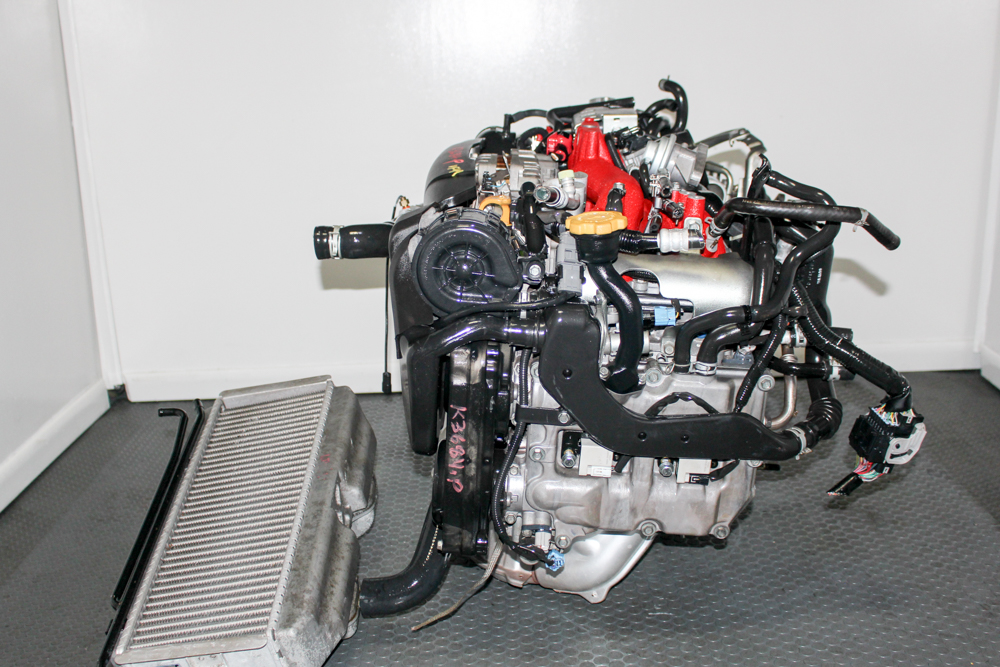

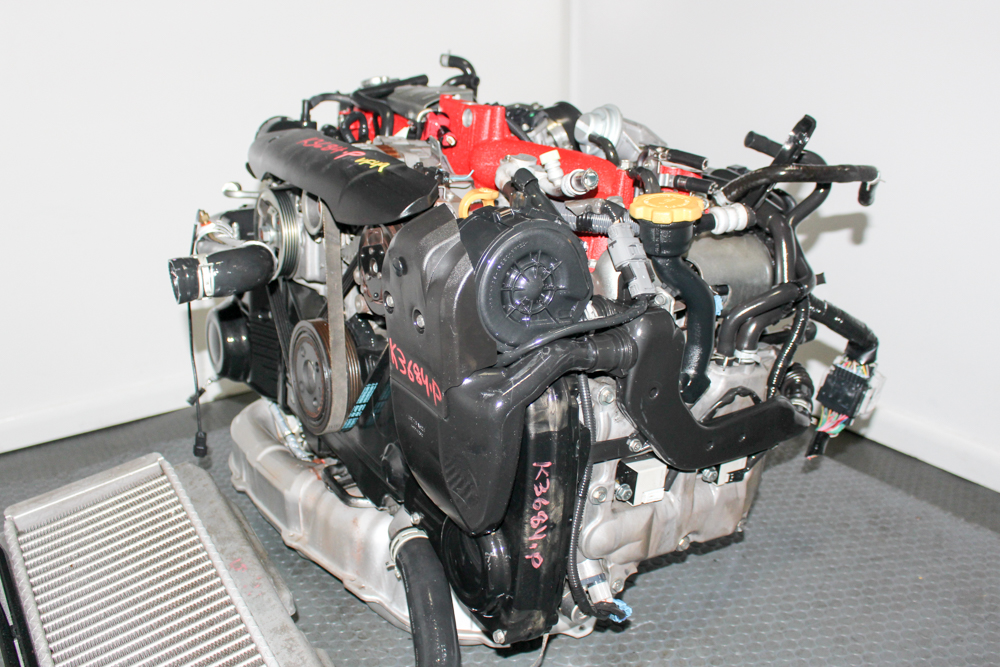

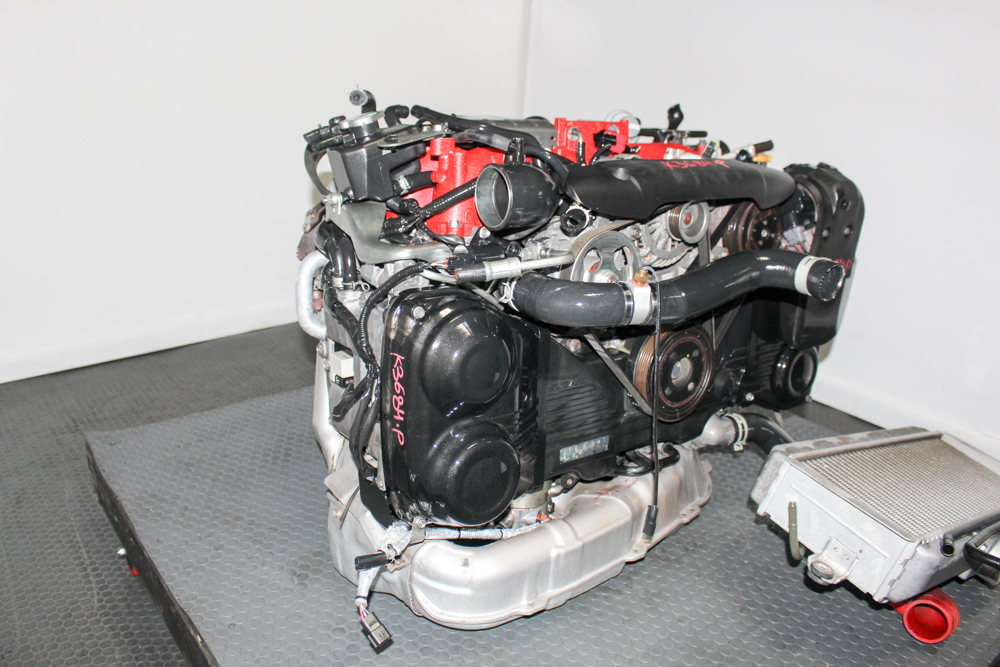

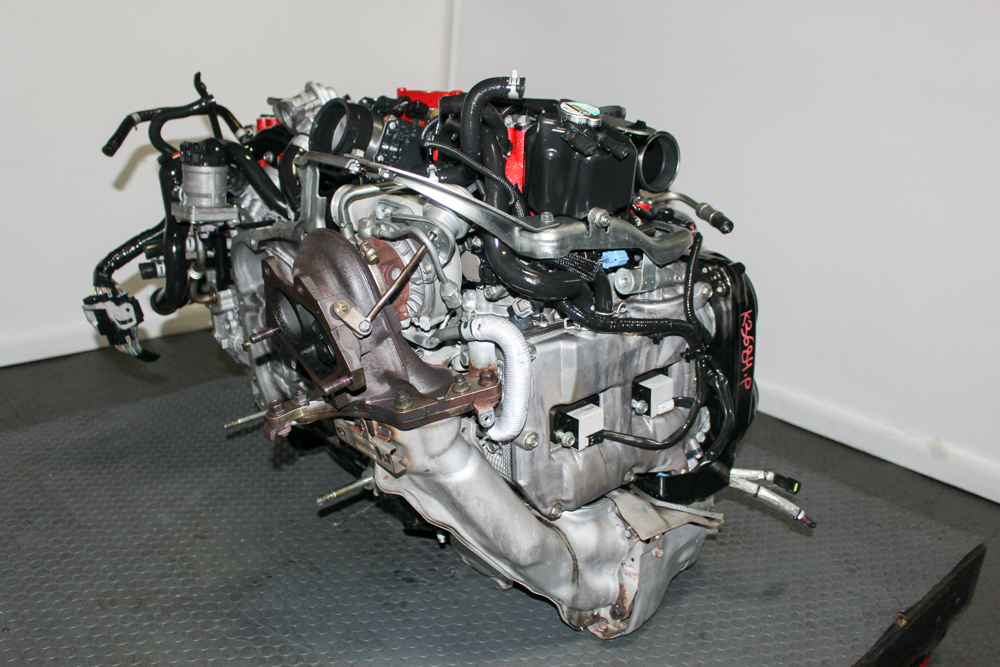

This JDM Subaru STI engine is sold substantially as pictured.

The package may include:

• Complete 2.0L turbo long block
• Intake manifold
• VF49 twin-scroll turbocharger
• Fuel rail
• Fuel injectors
• Engine sensors
• Brackets
• Various engine accessories

However, attached accessories should generally be considered convenience items unless specifically guaranteed.

Therefore, customers should review the actual product photographs carefully to confirm what comes with this specific engine.

Compression-Tested JDM Subaru STI Engine

J-Spec Auto Sports compression tests this engine as part of its inspection process.

Compression testing provides useful information about cylinder sealing and the internal condition of a used engine. In addition, our team visually inspects the engine before offering it for sale.

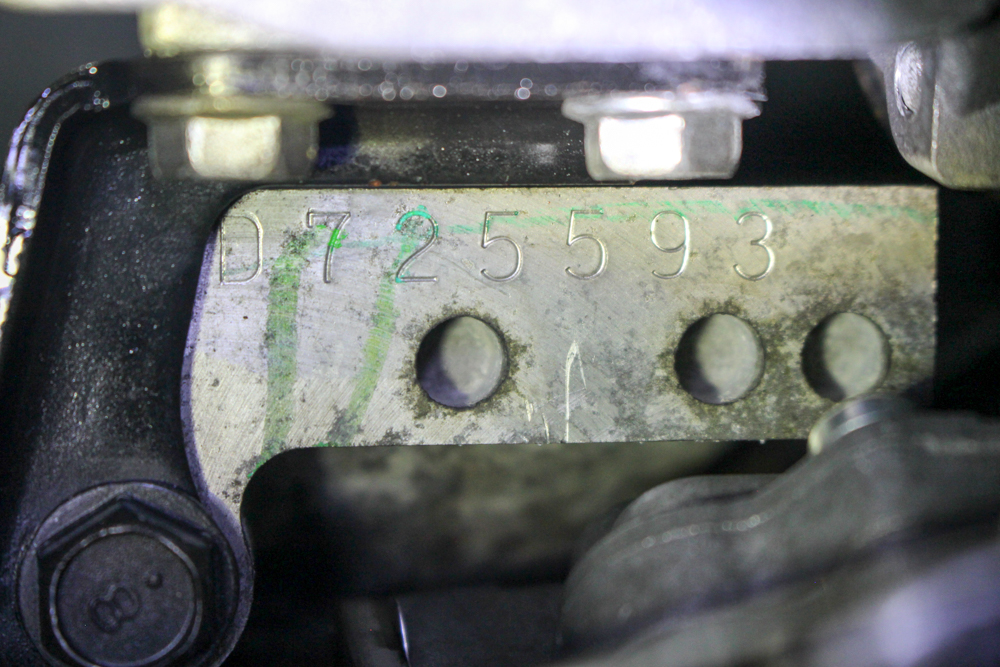

This specific engine has approximately 60,000 miles and carries serial number:

D725593

Whenever available, customers should review the actual photographs and compression-testing evidence associated with this specific engine.

Why Consider a JDM STI 2.0L Engine?

A JDM 2.0L turbo engine can provide an alternative for Subaru owners building, repairing, or converting a compatible STI.

Additionally, the combination of Dual AVCS and a twin-scroll turbo system makes this engine attractive for properly planned Subaru performance applications.

However, the best results depend on correct installation and engine management. Consequently, customers should determine the complete ECU, wiring, fueling, turbo, exhaust, and tuning strategy before installation.

Recommended Maintenance Before Installation

Preventative maintenance is especially important when installing a used turbocharged Subaru engine.

Moreover, completing accessible maintenance while the engine is outside the vehicle can save significant labor later.

Before installation, J-Spec Auto Sports recommends:

• Replace the timing belt if its service history cannot be verified.
• Inspect or replace the hydraulic timing-belt tensioner.
• Inspect the timing-belt idler pulleys.
• Inspect the water pump and replace it when appropriate.
• Inspect the front crankshaft seal.
• Inspect the camshaft seals for leakage.
• Inspect the valve cover gaskets.
• Install new spark plugs when appropriate.
• Inspect the ignition coils.
• Inspect the thermostat and cooling-system components.
• Inspect coolant hoses.
• Check vacuum and boost hoses.
• Inspect accessory belts.
• Inspect the turbo oil supply line.
• Inspect the turbo oil return line.
• Inspect turbo coolant lines.
• Install a new engine oil filter.
• Fill the engine with the manufacturer’s recommended oil.
• Verify all transferred USDM components.
• Verify ECU and wiring compatibility.
• Prime the engine lubrication system before initial startup.
• Fill the cooling system with the proper coolant.
• Thoroughly bleed trapped air from the cooling system.

Additionally, inspect the turbocharger carefully before installation.

Timing Belt Service Before Installation

This Subaru EJ-series engine uses a timing belt.

Therefore, if the timing belt’s service history cannot be confirmed, replacing the belt before installation is recommended.

At the same time, inspect:

• Timing belt
• Hydraulic tensioner
• Idler pulleys
• Water pump
• Camshaft seals
• Front crankshaft seal

Because the engine is already outside the vehicle, servicing these components now can reduce future labor.

Turbocharger Inspection

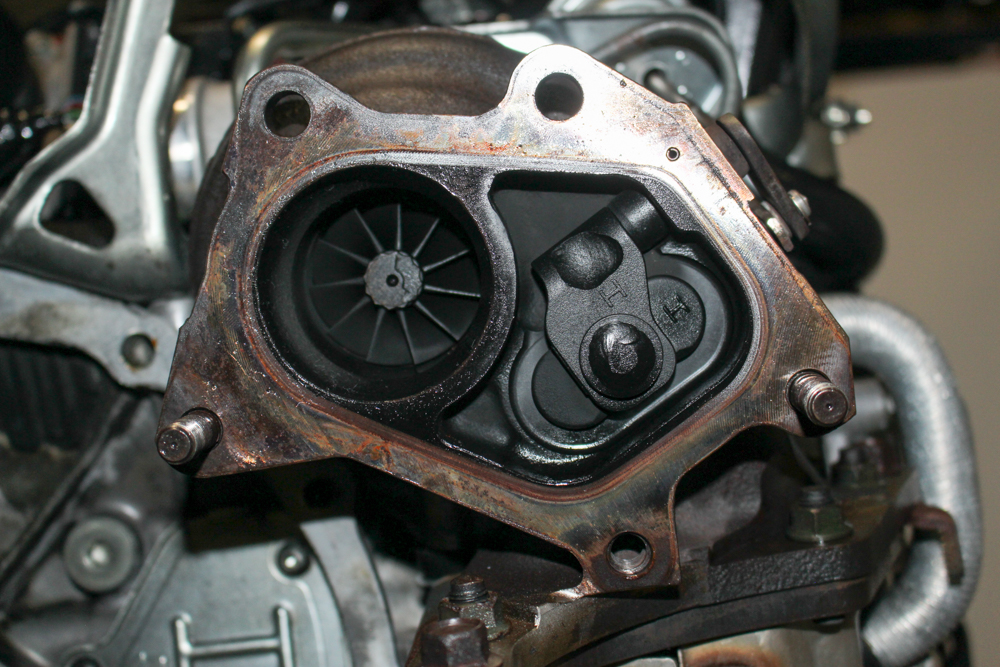

Before installation, inspect the included VF49 twin-scroll turbocharger carefully.

Check for:

• Excessive shaft movement
• Oil leakage
• Damaged compressor blades
• Damaged turbine components
• Restricted oil lines
• Damaged coolant lines
• Cracked or damaged connections

Most importantly, confirm proper turbo lubrication before initial startup.

A restricted oil supply can quickly damage a turbocharger. Therefore, carefully inspect the turbo oil supply and return system before placing the engine into service.

Initial Startup Checklist

Proper initial startup is critical after installing a replacement turbocharged Subaru engine.

Before Starting

1. Verify the correct engine oil level.
2. Install a new oil filter.
3. Fill the cooling system with the proper coolant.
4. Verify all electrical grounds.
5. Confirm ECU and wiring connections.
6. Verify AVCS-related connections.
7. Inspect fuel connections.
8. Check vacuum and boost hoses.
9. Verify turbo oil and coolant lines.
10. Confirm intake and exhaust connections.
11. Verify transferred USDM components.
12. Prime the lubrication system before startup.

During Initial Startup

Start the engine and allow it to idle while carefully monitoring operation.

• Check for engine oil leaks.
• Inspect for coolant leaks.
• Check for fuel leaks.
• Inspect turbo oil connections.
• Inspect turbo coolant connections.
• Listen for abnormal engine noises.
• Listen for abnormal turbo noises.
• Monitor coolant temperature.
• Verify cooling-fan operation.
• Check for warning lights.
• Scan the ECU for diagnostic trouble codes.

Most importantly, avoid immediately placing the replacement engine under heavy load or boost.

After the First Heat Cycle

Allow the engine to reach normal operating temperature. Then, let it cool completely.

Afterward:

• Recheck engine oil.
• Recheck coolant.
• Inspect again for leaks.
• Inspect turbo lines.
• Verify cooling-system operation.
• Scan for diagnostic trouble codes.
• Confirm stable idle.
• Check for abnormal noises.
• Verify proper engine operation.

Finally, thoroughly bleed any remaining air from the cooling system before normal vehicle operation.

Nationwide Subaru STI Engine Shipping

J-Spec Auto Sports offers nationwide freight shipping throughout the continental United States.

Our team securely prepares and palletizes engines for freight transportation. Commercial delivery locations with a forklift or loading dock are preferred whenever possible.

However, residential delivery and liftgate services may also be available.

Contact J-Spec Auto Sports for assistance with freight arrangements and shipping questions.

Professional Subaru STI Engine Installation in Richmond, Virginia

Need professional installation?

J-Spec Auto Sports offers Subaru engine installation in Richmond, Virginia.

Professional installation is especially valuable for this engine because a JDM-to-USDM conversion may involve:

• JDM-to-USDM engine conversion
• ECU configuration
• Dual AVCS compatibility
• Wiring differences
• Sensor compatibility
• Turbo configuration
• Exhaust compatibility
• Fuel-system setup
• Cooling-system setup
• Initial startup and testing

Contact J-Spec Auto Sports for current installation pricing and scheduling.

30-Day Limited Warranty

This JDM Subaru STI engine includes a 30-day limited warranty from J-Spec Auto Sports.

Warranty terms, exclusions, maintenance requirements, and installation requirements apply. Therefore, review the complete J-Spec Auto Sports warranty policy before installation.

Proper installation, timing-system maintenance, engine lubrication, turbo lubrication, cooling-system operation, and engine management are essential for reliability.

Why Buy a JDM Subaru STI Engine From J-Spec Auto Sports?

J-Spec Auto Sports specializes in JDM Subaru engines, transmissions, and performance parts imported from Japan.

This engine offers:

• Compression-tested JDM STI engine
• Approximately 60,000 miles
• 2.0L turbocharged boxer engine
• Dual AVCS
• VF49 twin-scroll turbocharger
• Actual engine serial number provided
• 30-day limited warranty
• Nationwide freight shipping
• Compatibility assistance
• Professional customer support
• Professional installation available

J-Spec Auto Sports is located in Richmond, Virginia, and supplies JDM engines and drivetrain components to customers throughout the United States.

Frequently Asked Questions

Where can I buy a JDM Subaru STI VAB engine?

J-Spec Auto Sports in Richmond, Virginia, sells JDM Subaru STI 2.0L turbo engines imported from Japan. Nationwide freight shipping is available throughout the continental United States.

How many miles are on this engine?

This engine has approximately 60,000 miles.

What is the engine serial number?

The serial number for this specific engine is D725593.

Has this engine been compression tested?

Yes. J-Spec Auto Sports compression tests this engine as part of its inspection process.

What turbocharger comes with this engine?

This engine is currently listed with a VF49 twin-scroll turbocharger.

Does this engine have Dual AVCS?

Yes. This JDM STI engine features Dual AVCS. However, proper operation depends on the ECU, wiring, sensors, and final engine-management configuration.

Will this JDM engine work in a 2015–2020 USDM Subaru WRX STI?

It may be used in compatible VAB STI applications when properly configured. However, the JDM 2.0L engine differs from the USDM 2.5L EJ257. Therefore, verify ECU, wiring, sensors, turbo, fueling, exhaust, and tuning requirements before installation.

Is this engine a direct replacement for an EJ257?

Do not assume it is a complete plug-and-play EJ257 replacement. The JDM 2.0L and USDM EJ257 differ in displacement and engine-management configuration. A properly planned conversion may require component transfer, wiring work, ECU calibration, or tuning.

Does this engine use a timing belt?

Yes. This EJ-series engine uses a timing belt. Therefore, inspect or replace the belt, tensioner, idlers, water pump, and accessible seals when service history cannot be confirmed.

Should I prime the engine before first startup?

Yes. Prime the lubrication system before initial startup. Proper oil circulation is especially important for both the engine and turbocharger.

Does the Subaru cooling system need to be bled?

Yes. Properly fill and thoroughly bleed the cooling system after installation. Additionally, monitor coolant temperature during initial startup and the first complete heat cycle.

Does this engine include a warranty?

Yes. This engine currently includes a 30-day limited warranty from J-Spec Auto Sports. Warranty terms and installation requirements apply.

Can J-Spec Auto install this engine?

Yes. Professional engine installation is available at J-Spec Auto Sports in Richmond, Virginia. Contact our team for current installation pricing and compatibility assistance.

Can J-Spec Auto ship this engine?

Yes. Nationwide freight shipping is available throughout the continental United States.
