JDM Nissan Juke MR16DDT 1.6L DIG Turbo Engine – 2011–2017 Juke / NISMO / NISMO RS

Looking for a Nissan Juke engine for sale to replace a damaged or high-mileage 1.6L turbo motor? This JDM Nissan MR16DDT 1.6L turbo engine is imported from Japan and available from J-Spec Auto Sports for compatible 2011–2017 Nissan Juke applications, including applicable Juke NISMO and NISMO RS models.

This particular engine has approximately 45,000–55,000 miles and has been compression tested by J-Spec Auto Sports. It carries engine serial number MR16 Turbo 198271A and is backed by our 90-day warranty, subject to applicable warranty terms and installation requirements.

The MR16DDT is part of Nissan’s MR engine family. However, this is far more than a basic naturally aspirated MR-series engine. Nissan equipped the MR16DDT with DIG direct fuel injection, turbocharging, intercooling, DOHC cylinder heads, variable valve timing, and a timing-chain system.

The result is the compact, responsive 1.6L turbo engine found in the performance-oriented Nissan Juke.

MR16DDT Engine Specifications

• Engine Code: MR16DDT
• Engine Family: Nissan MR
• Displacement: 1.6L / 1618cc
• Configuration: Inline 4-cylinder
• Valvetrain: DOHC, 16-valve
• Aspiration: Turbocharged and intercooled
• Fuel System: DIG – Direct Injection Gasoline
• Valve Timing: Continuously Variable Valve Timing Control
• Timing System: Timing chain
• Block Material: Aluminum alloy
• Cylinder Head: Aluminum alloy
• Orientation: Transverse
• Fuel Type: Gasoline
• Condition: Used JDM imported engine
• Mileage: Approximately 45,000–55,000 miles
• Testing: Compression tested

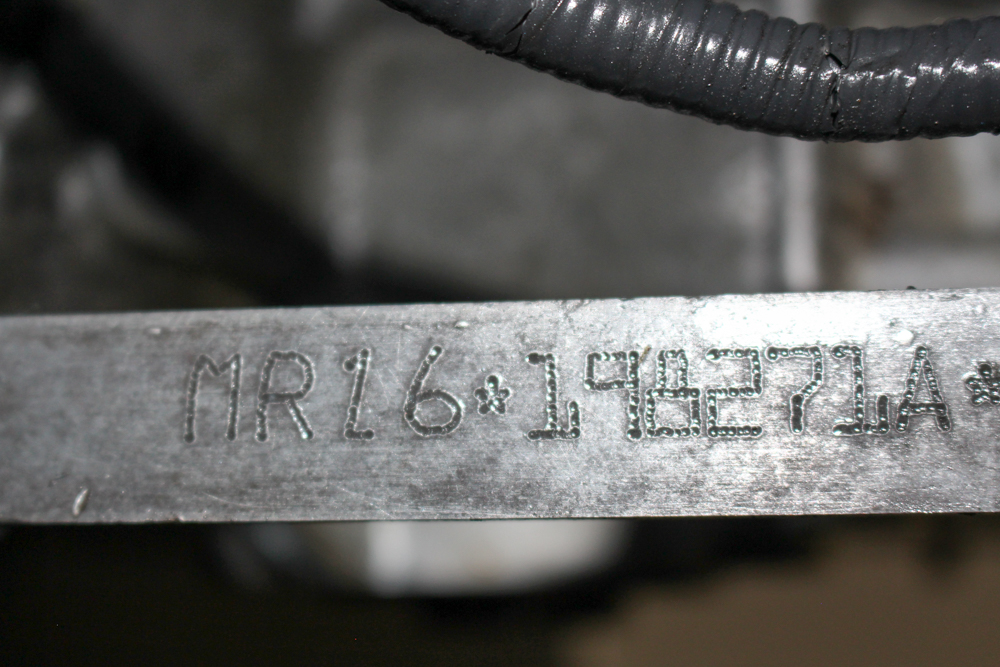

• Serial Number: MR16 Turbo 198271A
• Item ID: 53333
• SKU: A3325
• Warranty: 90-day warranty
• Transmission: Not included

Nissan Juke MR16DDT Compatibility

This JDM MR16DDT is intended as a replacement engine for compatible:

• 2011 Nissan Juke 1.6L Turbo
• 2012 Nissan Juke 1.6L Turbo
• 2013 Nissan Juke 1.6L Turbo
• 2014 Nissan Juke 1.6L Turbo
• 2015 Nissan Juke 1.6L Turbo
• 2016 Nissan Juke 1.6L Turbo
• 2017 Nissan Juke 1.6L Turbo
• Nissan Juke NISMO
• Nissan Juke NISMO RS

Important NISMO / NISMO RS Fitment Information

The MR16DDT was offered in different output levels and vehicle configurations.

Therefore, do not assume every MR16DDT complete engine assembly is identical simply because the engine code matches.

Depending on the vehicle, differences can exist in:

• Engine calibration
• Turbo-related components
• Sensors
• Wiring
• Intake components
• Fuel-system components
• Accessories
• Brackets
• Engine mounts
• Exhaust components
• Emissions equipment
• Transmission-related components

This is particularly important when working with Juke NISMO and NISMO RS applications.

Your installer should compare the replacement JDM engine directly with the original USDM engine before installation.

CVT vs. Manual Transmission Applications

The MR16DDT was paired with different transmissions depending on the Juke model, drivetrain, and performance package.

This engine may provide the appropriate replacement long-block foundation for compatible CVT or manual-transmission applications. However, transmission compatibility should be verified before ordering.

Do not assume that every flywheel, flexplate, bracket, sensor, harness, or transmission-related component will transfer directly between applications.

If you are unsure, contact J-Spec Auto Sports with your vehicle’s year, model, drivetrain, transmission type, VIN, and original engine information.

What Is Included?

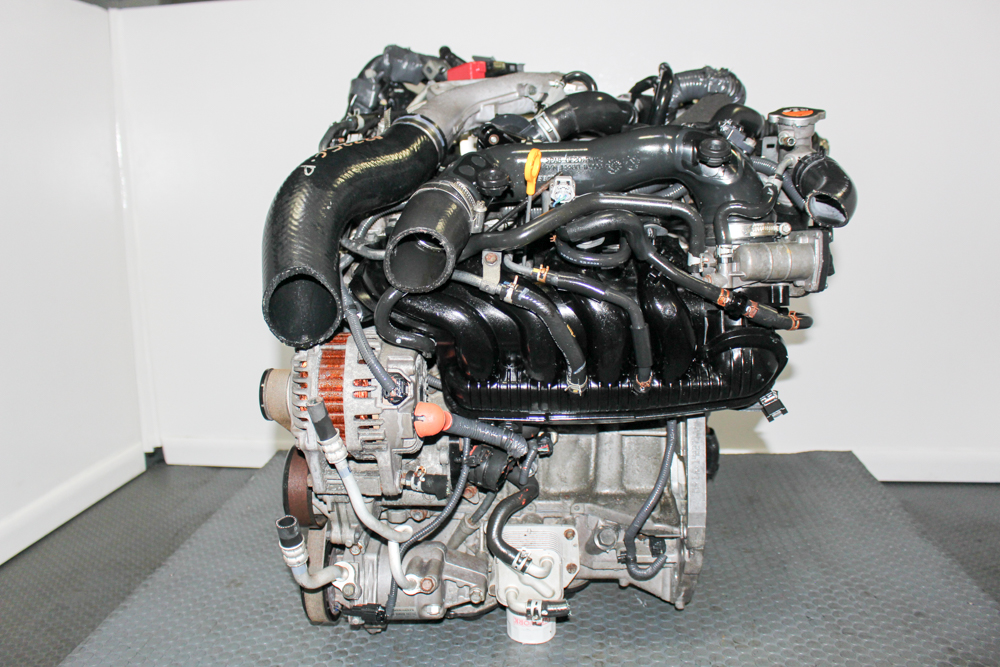

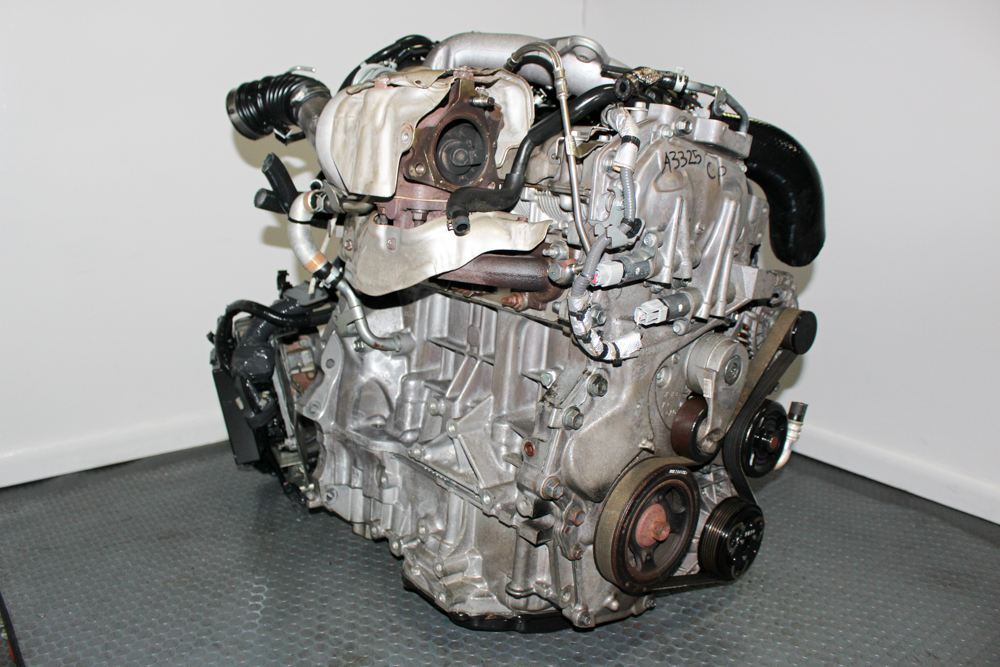

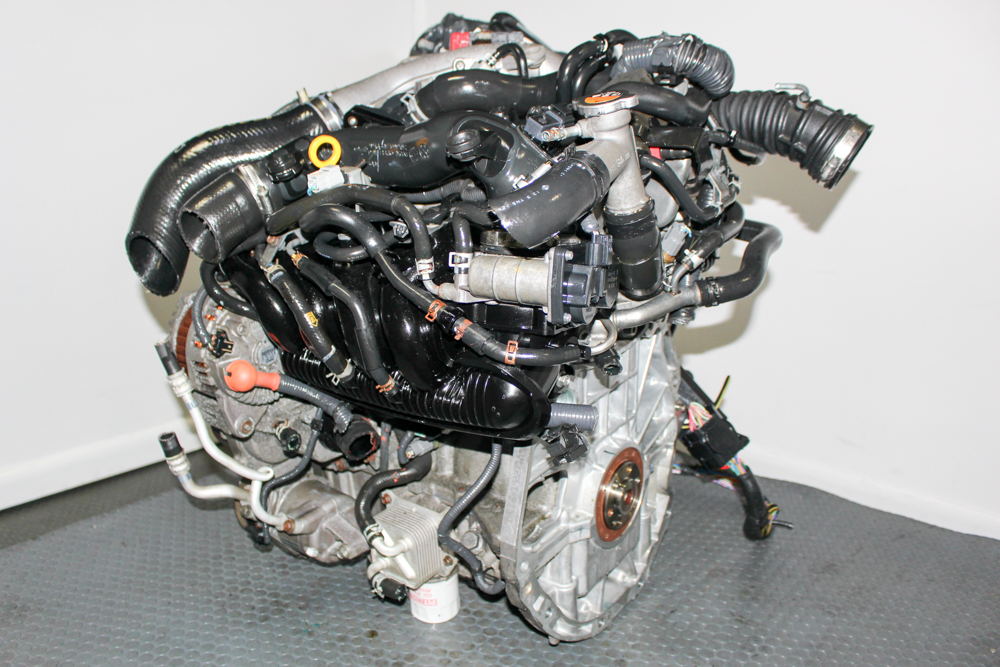

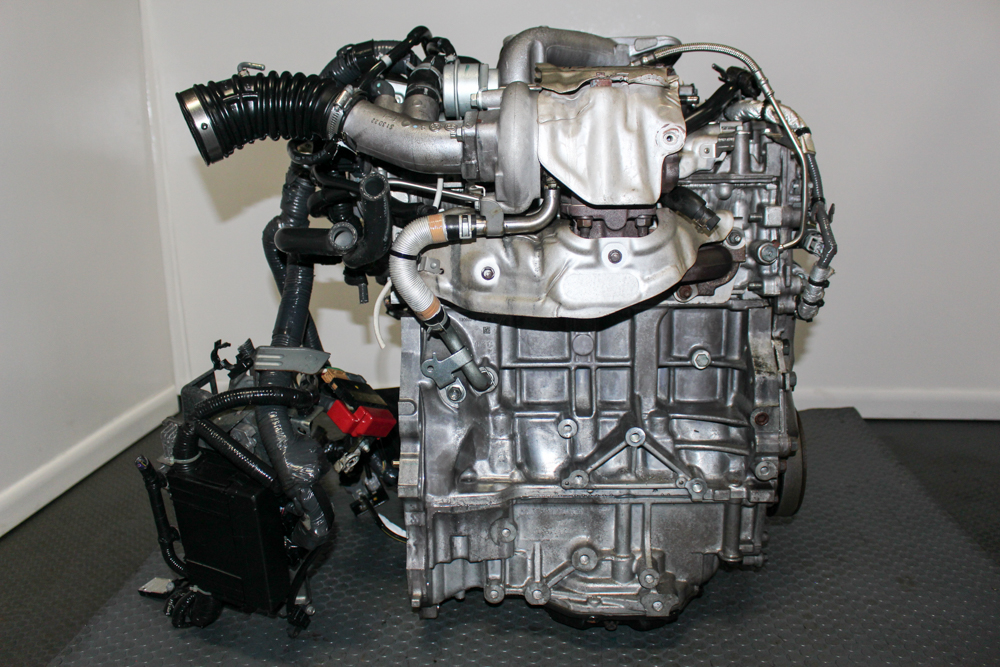

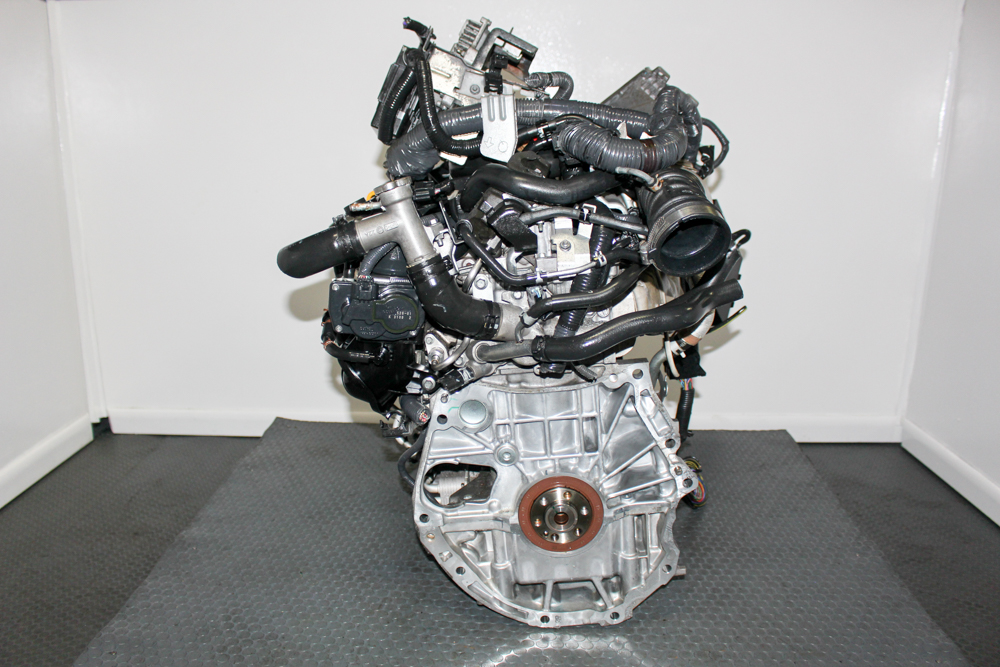

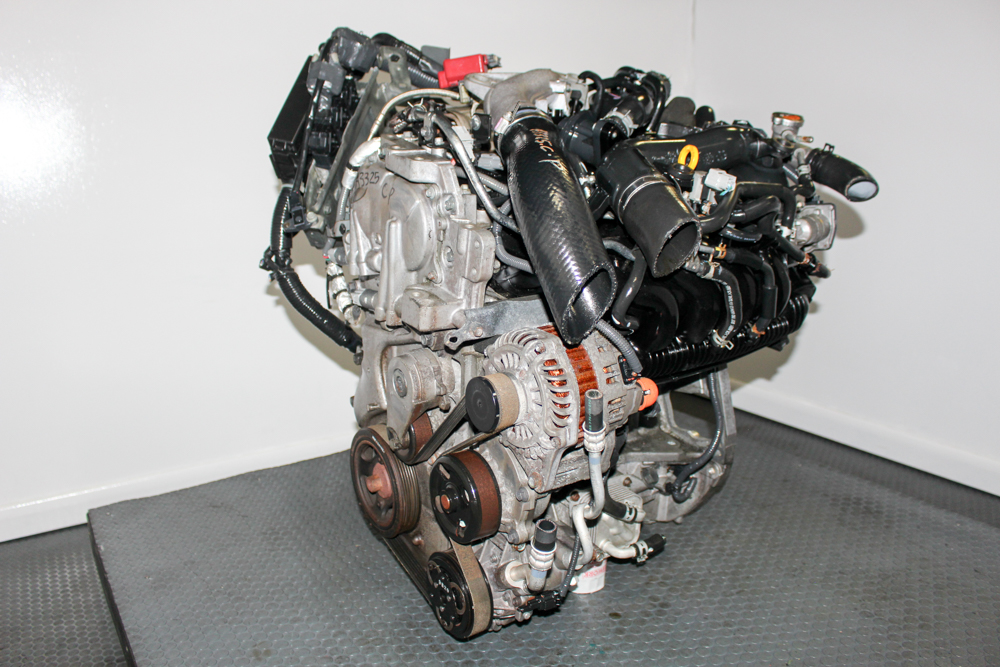

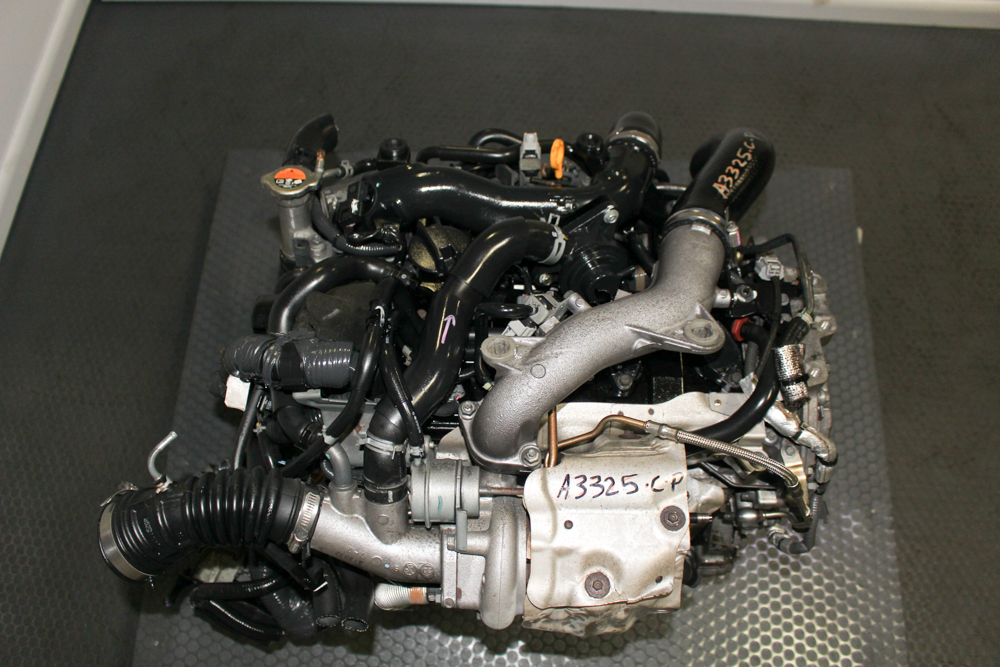

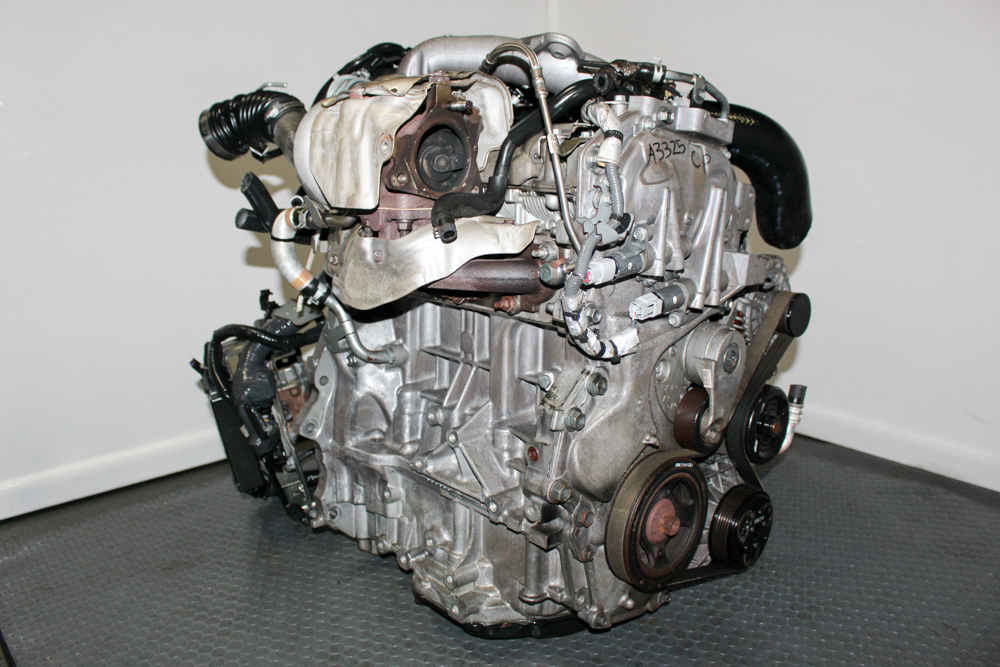

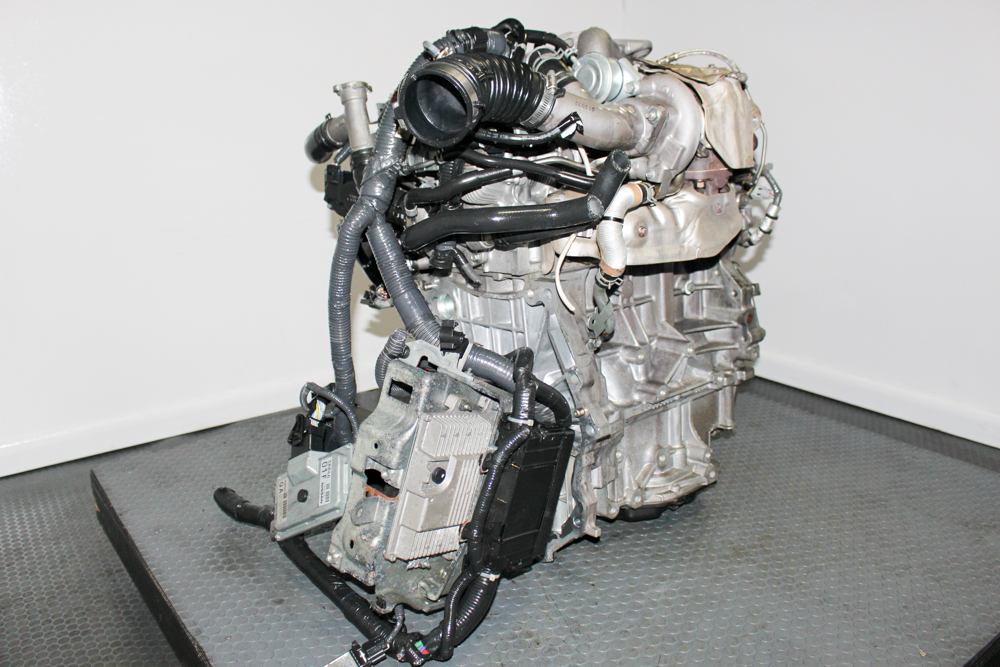

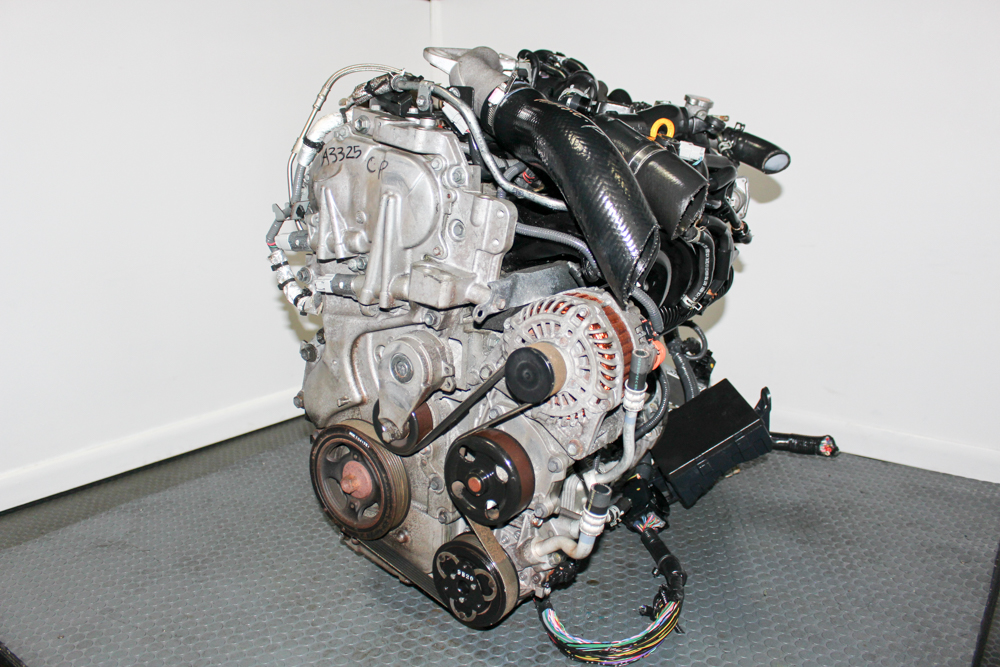

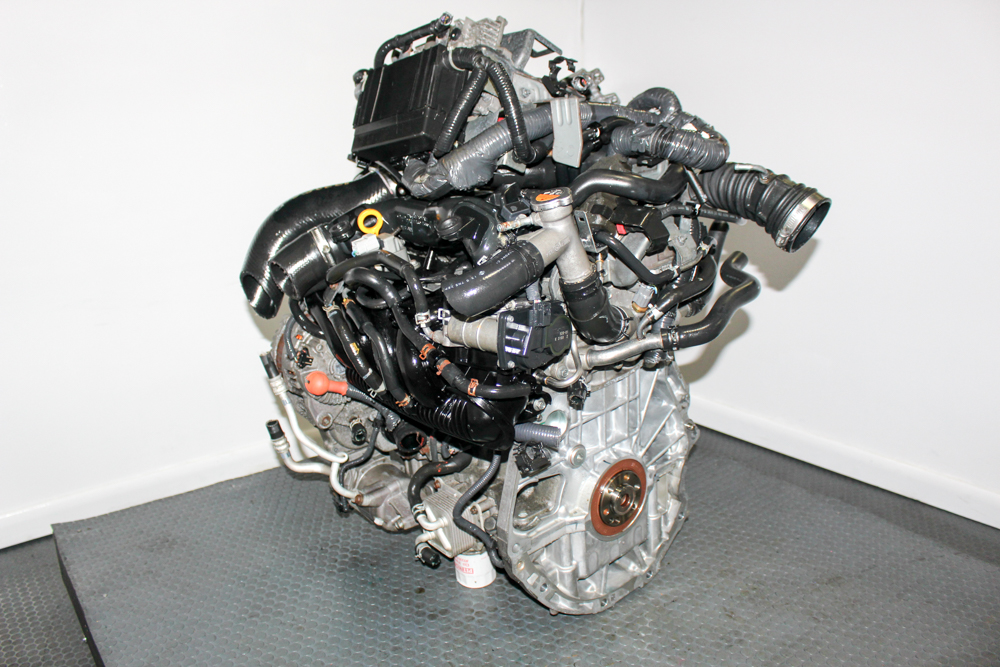

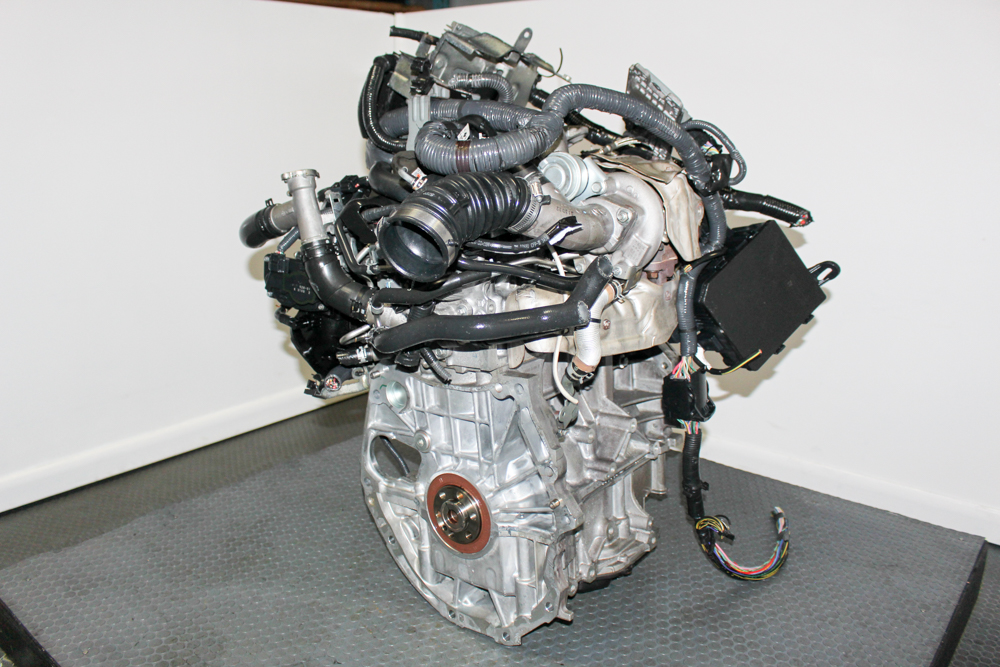

This listing is for the JDM MR16DDT engine assembly shown in the product photographs.

The engine may arrive with various attached components such as the turbocharger, intake manifold, sensors, ignition coils, brackets, and other accessories shown in the photos.

However, attached accessories should be treated as convenience items unless specifically stated otherwise.

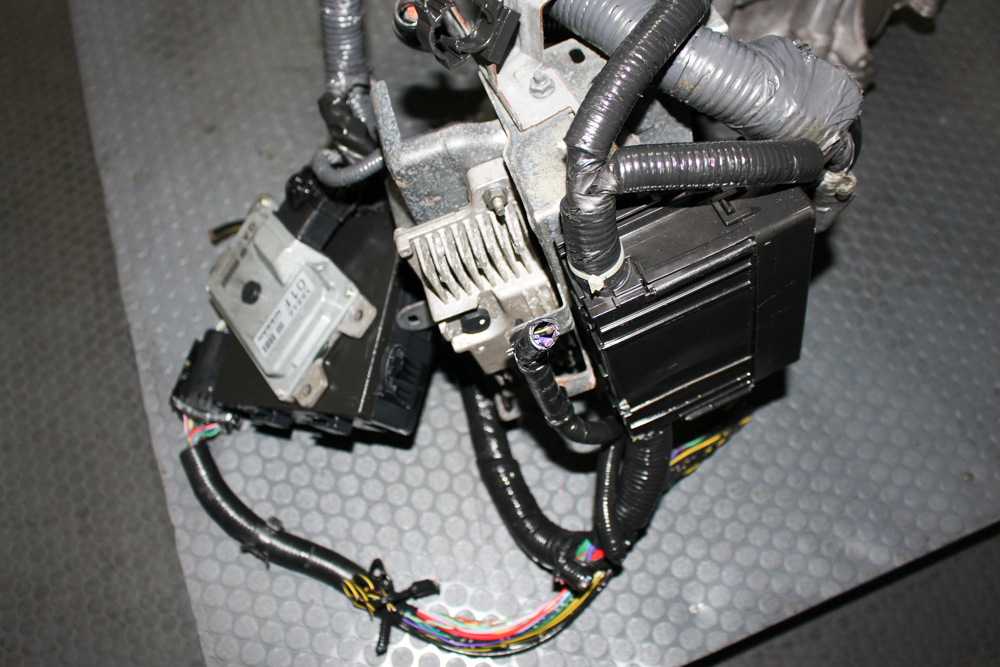

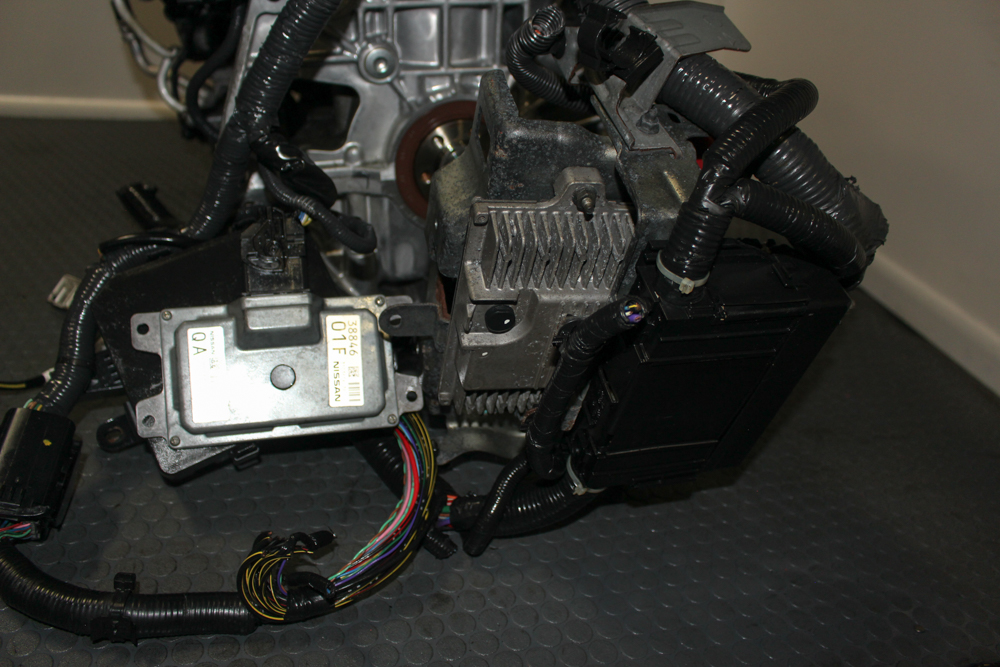

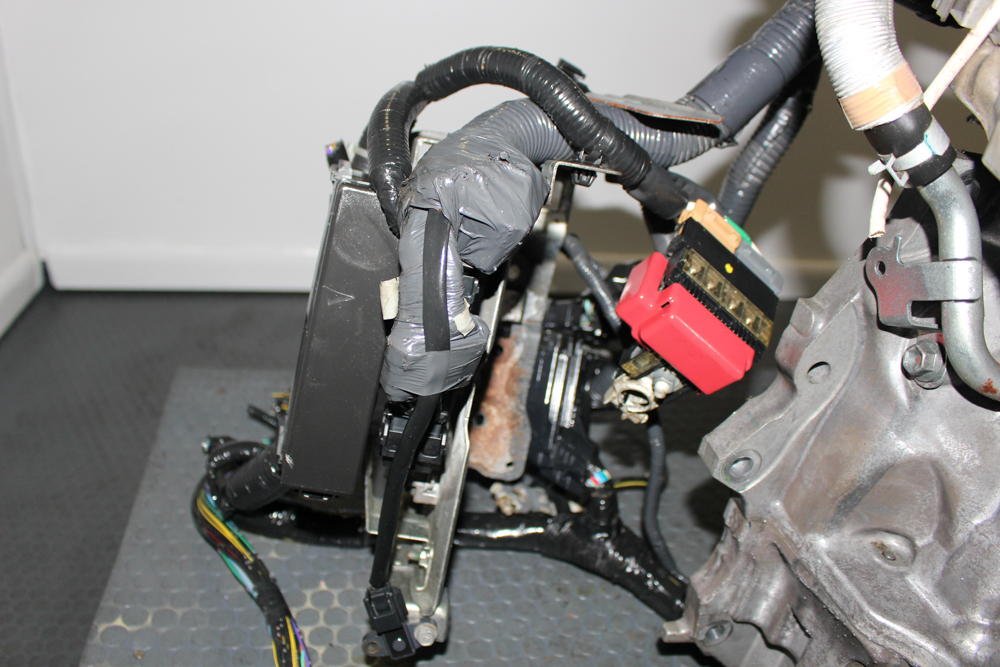

Transmission, ECU and Wiring Harness

Unless specifically stated in the listing:

• Transmission is not included
• ECU is not included
• Vehicle wiring harness is not included

Review all actual product photographs carefully before ordering.

Why Choose This JDM MR16DDT?

Replacing a failed turbocharged engine can become expensive, especially when internal damage requires extensive machine work and replacement parts.

A low-mileage JDM MR16DDT provides another option while retaining the original Nissan 1.6L turbo engine architecture.

This particular engine offers:

• Approximately 45,000–55,000 miles
• Genuine Nissan MR16DDT engine family
• Imported from Japan
• Compression tested
• Actual engine serial number
• Turbocharged and intercooled design
• DIG direct injection
• Timing-chain valvetrain
• 90-day warranty
• Nationwide freight shipping
• Fitment support from J-Spec Auto Sports

MR16DDT Pre-Installation Inspection

A turbocharged direct-injection engine requires more installation attention than a basic naturally aspirated replacement motor.

The engine is already outside the vehicle. Therefore, this is the best time to inspect accessible components and address potential maintenance issues.

Inspect the Timing Chain System

The MR16DDT uses a timing-chain system.

Before installation, inspect:

• Timing chain
• Timing-chain guides
• Timing-chain tensioner
• Camshaft sprockets
• Variable valve timing components
• Front-cover sealing areas
• Related seals and hardware

Replace worn components when necessary.

Inspect the Turbocharger and Oil Supply

Proper turbocharger lubrication is critical.

Before installation, inspect:

• Turbocharger condition
• Turbo shaft condition/play
• Turbo oil-feed line
• Turbo oil-return line
• Coolant lines
• Intake piping
• Intercooler connections
• Related seals and gaskets

If the original engine suffered a failure that contaminated the oil or intake system, thoroughly inspect and clean the related components before connecting them to the replacement engine.

A contaminated or restricted turbo oil line can damage a replacement turbocharger or engine.

Inspect the Direct-Injection Fuel System

The MR16DDT uses Nissan’s DIG direct-injection system.

Inspect the fuel-system connections and related high-pressure components according to the appropriate Nissan service procedures.

Never treat high-pressure direct-injection components like a conventional low-pressure port-injection system.

Recommended MR16DDT Installation Service

Before installation, J-Spec Auto Sports recommends that a qualified technician:

• Compare the JDM engine with the original USDM MR16DDT.
• Replace leaking or deteriorated accessible gaskets and seals.
• Inspect the timing chain, guides, and tensioner.
• Inspect variable valve timing components.
• Inspect the turbocharger.
• Inspect turbo oil-feed and return lines.
• Inspect turbo coolant lines.
• Inspect the direct-injection fuel system.
• Inspect the water pump and cooling-system components.
• Inspect or replace spark plugs as needed.
• Inspect ignition coils and electrical connectors.
• Inspect PCV-related components.
• Transfer required USDM sensors and accessories.
• Install fresh engine oil and a quality oil filter.
• Prime the engine lubrication system before initial startup.
• Fill the cooling system with the correct coolant.
• Thoroughly bleed trapped air from the cooling system.

Critical MR16DDT First-Startup Procedure

Proper initial startup is especially important with a replacement turbocharged engine.

Before starting the engine, verify:

• Correct engine-oil level
• Correct coolant level
• Electrical grounds
• Engine wiring connections
• Fuel connections
• Direct-injection system connections
• Turbo oil-feed and return connections
• Turbo coolant connections
• Intake and intercooler piping
• Vacuum connections
• Cooling-system hoses

Prime the Lubrication System Before Startup

Do not immediately start the replacement engine and allow it to operate normally without establishing proper lubrication.

Prime the lubrication system according to the appropriate Nissan service procedure before normal startup.

This is particularly important because both the engine and turbocharger depend on proper oil circulation.

Monitor the Engine After Startup

During initial startup, immediately monitor:

• Oil-pressure warning indicator
• Oil leaks
• Turbo oil-line leaks
• Coolant leaks
• Fuel leaks
• Exhaust smoke
• Timing-chain noise
• Turbocharger noise
• Engine temperature
• Idle quality
• Check-engine light
• Diagnostic trouble codes

Shut the engine down if you observe abnormal oil pressure, severe leakage, overheating, or significant mechanical noise.

Properly Bleed the Cooling System

After installation, refill the cooling system with the proper coolant and thoroughly remove trapped air according to the appropriate service procedure.

Once the engine reaches normal operating temperature and subsequently cools, recheck:

• Engine oil level
• Coolant level
• Turbo oil connections
• Turbo coolant connections
• Fuel connections
• Cooling hoses
• Oil and coolant leaks

Only proceed to a road test after confirming normal engine operation.

Frequently Asked Questions About the MR16DDT

What is an MR16DDT engine?

The MR16DDT is Nissan’s 1.6-liter turbocharged and intercooled direct-injection four-cylinder engine from the MR engine family. It features DOHC cylinder heads, 16 valves, variable valve timing, and a timing-chain system.

What does MR16DDT mean?

MR identifies Nissan’s MR engine family, while the engine designation identifies the 1.6L turbocharged direct-injection configuration commonly found in the Nissan Juke.

What does Nissan DIG mean?

DIG stands for Direct Injection Gasoline. Unlike conventional port injection, fuel is injected directly into the combustion chamber.

Does this engine fit a Nissan Juke?

This MR16DDT is intended for compatible 2011–2017 Nissan Juke 1.6L turbo applications. Exact external components and transmission-related parts can vary, so verify fitment before installation.

Does it fit the Nissan Juke NISMO?

The Juke NISMO uses the MR16DDT engine family. However, NISMO-specific calibration and components can differ. Compare your original engine with the replacement engine before installation.

Does it fit the Juke NISMO RS?

The NISMO RS also uses the MR16DDT family, but the RS is a higher-performance application and configurations differ. Do not assume every external component is identical. Verify the exact application before ordering.

Is the NISMO RS engine different from a standard Juke MR16DDT?

The core engine family is MR16DDT, but Nissan offered different output levels and vehicle-specific configurations. For example, NISMO RS specifications vary according to drivetrain and transmission. Therefore, the original and replacement engines should be compared before installation.

Will this engine work with a CVT?

This engine may be suitable for compatible CVT-equipped MR16DDT applications. However, verify the exact drivetrain and transmission configuration before ordering.

Will it work with a manual transmission?

The MR16DDT was also used with manual-transmission applications. Verify all transmission-related components and vehicle configuration before installation.

Does the MR16DDT use a timing belt?

No. The MR16DDT uses a timing chain.

Should I inspect the timing chain before installation?

Yes. Inspect the timing chain, guides, tensioner, sprockets, and related variable-valve-timing components before installing a used engine.

Should I inspect the turbocharger?

Yes. Inspect the turbocharger along with its oil-feed, oil-return, coolant, intake, and intercooler connections before installation.

Should I replace the spark plugs?

Inspect the spark plugs before installation and replace them when necessary. Also inspect ignition coils, boots, and electrical connectors.

Should I replace gaskets and seals?

Inspect all accessible gaskets and seals. Addressing leaks while the engine is outside the vehicle can save significant labor later.

Do I need to prime this engine before startup?

Yes. Proper lubrication is critical for both the MR16DDT engine and turbocharger. Prime the lubrication system according to the appropriate service procedure before normal startup.

Does the cooling system need to be bled?

Yes. Properly fill and bleed the cooling system after installation. Trapped air can interfere with coolant circulation and contribute to overheating.

How many miles are on this engine?

This particular MR16DDT is listed with approximately 45,000–55,000 miles.

Has this engine been compression tested?

Yes. This particular engine is listed as compression tested by J-Spec Auto Sports.

Is the transmission included?

No. Unless specifically stated otherwise, the transmission is not included with this engine.

Does this engine have a warranty?

This particular engine is backed by a 90-day J-Spec Auto warranty, subject to applicable warranty terms and installation requirements.

Can J-Spec Auto Sports ship this engine?

Yes. Nationwide freight shipping is available throughout the continental United States. Local pickup is also available from J-Spec Auto Sports in Richmond, Virginia.

Buy a JDM Nissan Juke MR16DDT Engine

If you are searching for a Nissan Juke engine for sale, MR16DDT engine, Juke NISMO engine, or 1.6L turbo replacement motor, this low-mileage JDM engine offers an excellent OEM-family replacement option for compatible applications.

With approximately 45,000–55,000 miles, compression testing, a 90-day warranty, actual engine identification, nationwide shipping, and fitment support, J-Spec Auto Sports provides more than simply a used engine listing.

Need help confirming compatibility? Contact J-Spec Auto Sports with your VIN, model year, drivetrain, and transmission type before ordering.
