JDM Mazda RX-7 FD3S 13B-REW Twin-Turbo Rotary Engine with 5-Speed Manual Transmission

Looking for a Mazda RX-7 13B-REW engine for sale with a 5-speed manual transmission? J-Spec Auto Sports offers this genuine JDM Mazda RX-7 FD3S 13B-REW sequential twin-turbo rotary engine and 5-speed RWD transmission package, imported from Japan.

This drivetrain is intended for compatible Mazda RX-7 FD3S applications and includes the major engine and transmission components shown in the actual product photos.

The 13B-REW is one of Mazda’s most recognizable performance engines. Unlike a conventional piston engine, the 13B-REW uses a compact two-rotor rotary design combined with a sequential twin-turbo system. Mazda paired it with the rear-wheel-drive FD3S RX-7 platform and a 5-speed manual transmission.

Important Condition Disclosure

This engine has low compression in one rotor chamber and may require apex-seal or internal rotary-engine repair.

Therefore:

THIS ENGINE AND TRANSMISSION PACKAGE IS SOLD AS-IS WITH NO WARRANTY.

This drivetrain should be considered a repair, rebuild, restoration, or performance-project candidate rather than a ready-to-install guaranteed replacement engine.

We strongly recommend inspection and repair by a technician or engine builder experienced with Mazda 13B rotary engines before installation.

13B-REW Engine Specifications

• Engine Code: 13B-REW
• Vehicle: Mazda RX-7 FD3S
• Engine Type: Two-rotor rotary
• Displacement: 1.3L nominal
• Aspiration: Sequential twin turbo
• Cooling: Water cooled
• Fuel Type: Gasoline
• Drivetrain: Rear-wheel drive
• Transmission: 5-speed manual
• Condition: Used JDM drivetrain
• Mileage Listed: Approximately 60,000 miles
• Compression: Tested; low compression detected in one chamber
• Warranty: None — sold AS-IS
• SKU: RX-7 13B-TT K3529
• Location: J-Spec Auto Sports, Virginia

Genuine Mazda 13B-REW Sequential Twin-Turbo Architecture

The 13B-REW was engineered specifically as a turbocharged rotary performance engine.

Its defining features include:

• Compact two-rotor rotary architecture
• Sequential twin-turbocharging
• Rear-wheel-drive configuration
• Lightweight performance-oriented design
• 5-speed manual transmission applications
• Strong aftermarket and motorsports following

Mazda’s own technical documentation identifies the 13B-REW as a sequential twin-turbo rotary engine. Later Japanese FD3S versions reached 280 PS at 6,500 rpm and 314 Nm at 5,000 rpm, although output varies by model year and specification.

For that reason, we should not put “280 HP” into this product’s universal specifications. This listing spans earlier FD3S applications, and output varied by year and trim.

Mazda RX-7 FD3S Compatibility

This drivetrain is intended for compatible:

1992–2002 JDM Mazda RX-7 FD3S

For U.S.-market RX-7 applications, buyers must verify exact fitment and determine which original USDM components need to transfer.

Potential differences can include:

• ECU and engine management
• Engine wiring
• Sensors
• Emissions equipment
• Intake components
• Turbo-control components
• Fuel-system components
• Accessories
• Vacuum routing
• Exhaust components
• Transmission-related components

Do not assume that every JDM and USDM FD3S component is identical.

Important U.S. Model-Year Distinction

The FD3S continued in Japan after U.S. RX-7 sales ended.

Therefore, this JDM drivetrain should not be advertised simply as a 1992–2002 U.S. RX-7 replacement engine.

Instead, the accurate relationship is:

JDM FD3S RX-7 → 1992–2002 production era

with exact U.S.-market compatibility verified separately.

What’s Included?

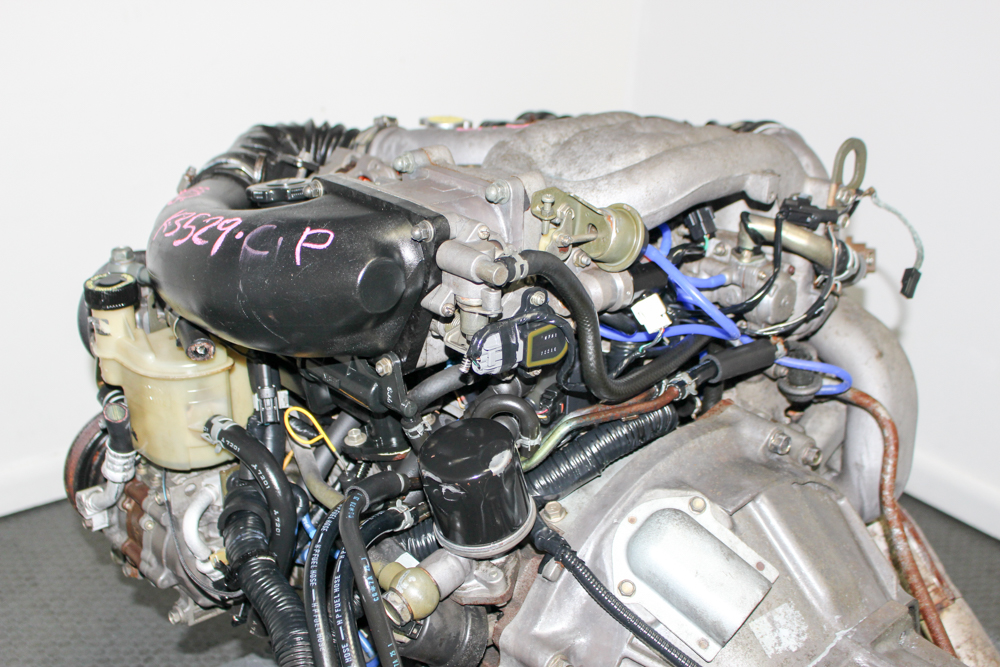

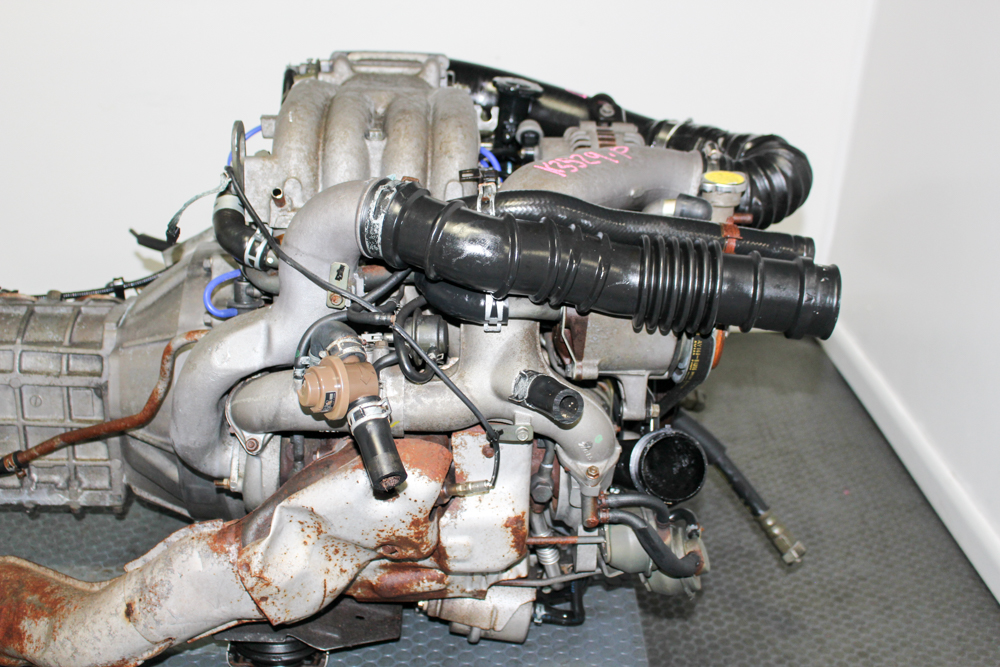

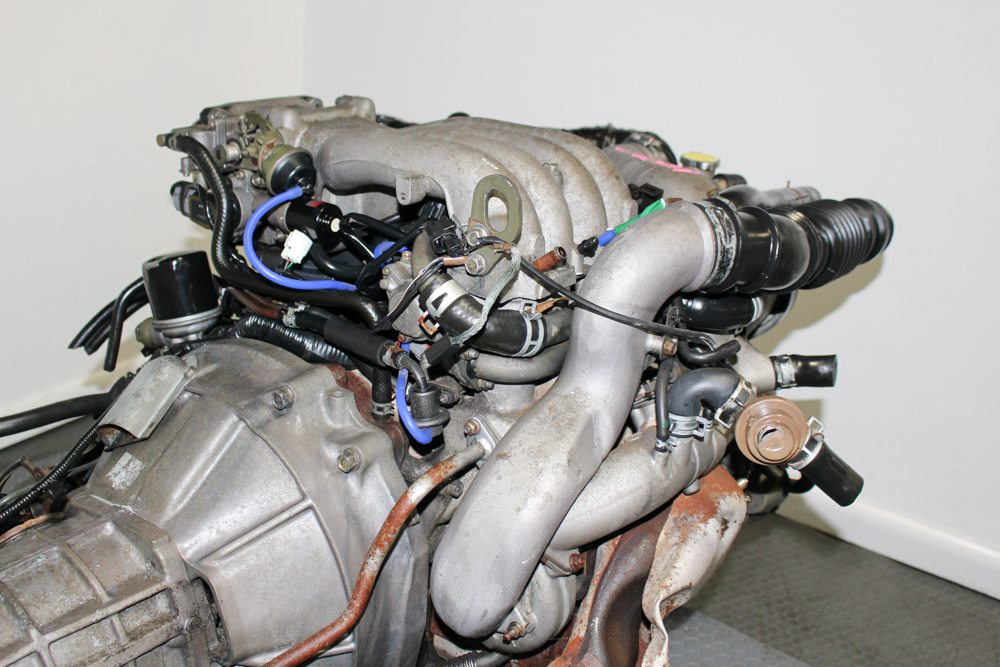

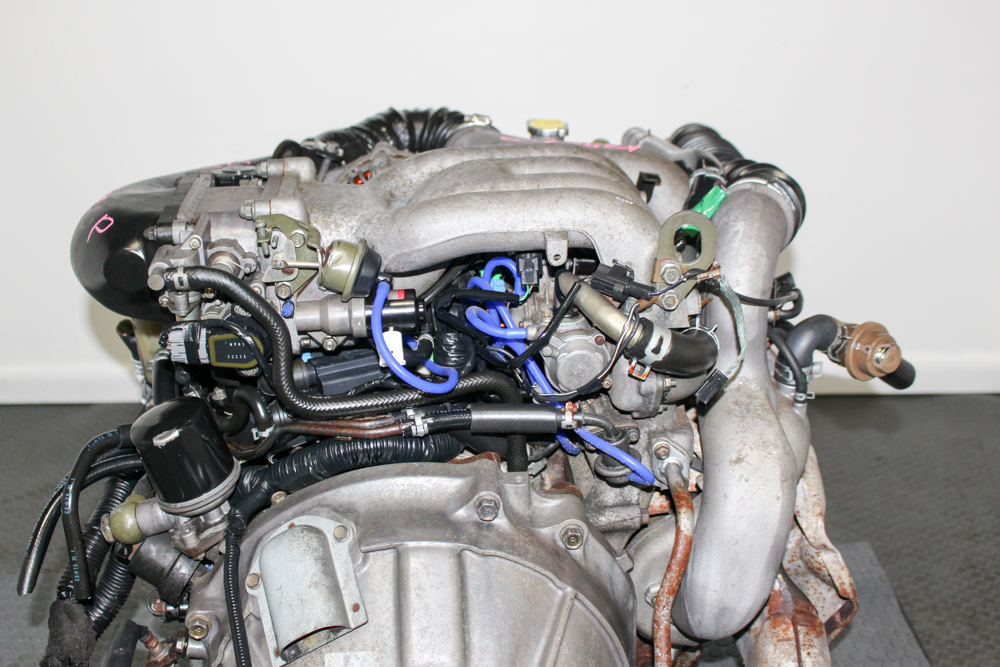

This package includes the major components shown in the actual inventory photos, including:

• 13B-REW rotary engine
• Sequential twin-turbo system
• 5-speed manual transmission
• Attached accessories shown in the photos
• Wiring/components shown in the photos

Because this is used JDM inventory, buyers should review all photographs carefully.

Do not assume an ECU, complete harness, intercooler, downpipe, clutch, driveshaft, or other component is included unless it is pictured and specifically confirmed by J-Spec Auto Sports.

Important Rotary Engine Condition Information

Unlike our normal compression-tested replacement-engine listings, this particular 13B-REW has a known compression concern.

Testing has identified low compression in one chamber.

Possible causes of low rotary-engine compression can involve internal sealing components. However, the exact repair requirements should be determined through proper diagnosis and teardown by an experienced rotary-engine technician.

The engine may require:

• Apex-seal service
• Side-seal or corner-seal inspection
• Rotor-housing inspection
• Rotor inspection
• Internal engine rebuilding
• Additional rotary-engine diagnosis

We do not recommend stating that it “only needs apex seals” because low compression alone does not establish the complete internal condition.

Sold AS-IS — No Warranty

Because of the known low-compression condition, this 13B-REW engine and 5-speed transmission package is sold AS-IS with no engine warranty.

Buyers should purchase this drivetrain with the expectation that the engine may require internal repair or rebuilding before use.

This condition is reflected in the current sale price.

Recommended Pre-Installation Inspection

Before installing or rebuilding this drivetrain, have a qualified rotary specialist inspect:

• Rotor compression
• Apex seals
• Side seals
• Corner seals
• Rotor housings
• Internal oil-control components
• Turbochargers
• Turbo oil-feed lines
• Turbo oil-return lines
• Cooling-system components
• Vacuum hoses and control lines
• Fuel-system components
• Ignition components
• Engine mounts
• Transmission
• Clutch and flywheel

Inspect the Sequential Twin-Turbo System

The FD3S sequential twin-turbo system is considerably more complex than a basic single-turbo installation.

Before installation, inspect:

• Both turbochargers
• Turbo shaft condition
• Oil-feed lines
• Oil-return lines
• Coolant connections
• Vacuum hoses
• Pressure-control components
• Intake piping
• Intercooler connections
• Exhaust connections

Age-related vacuum hoses and related components should receive particular attention during restoration.

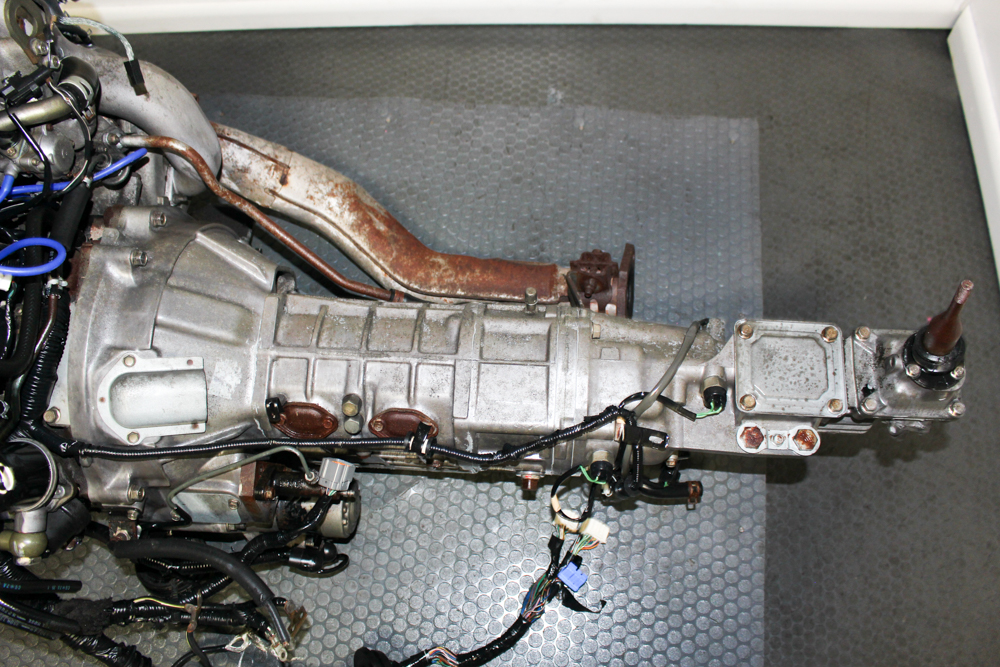

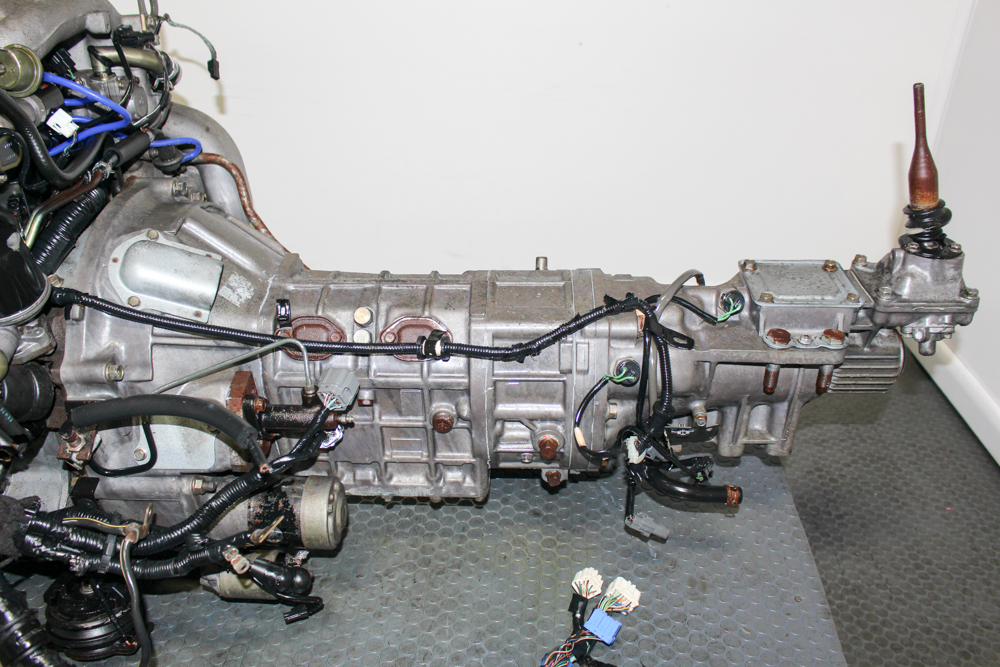

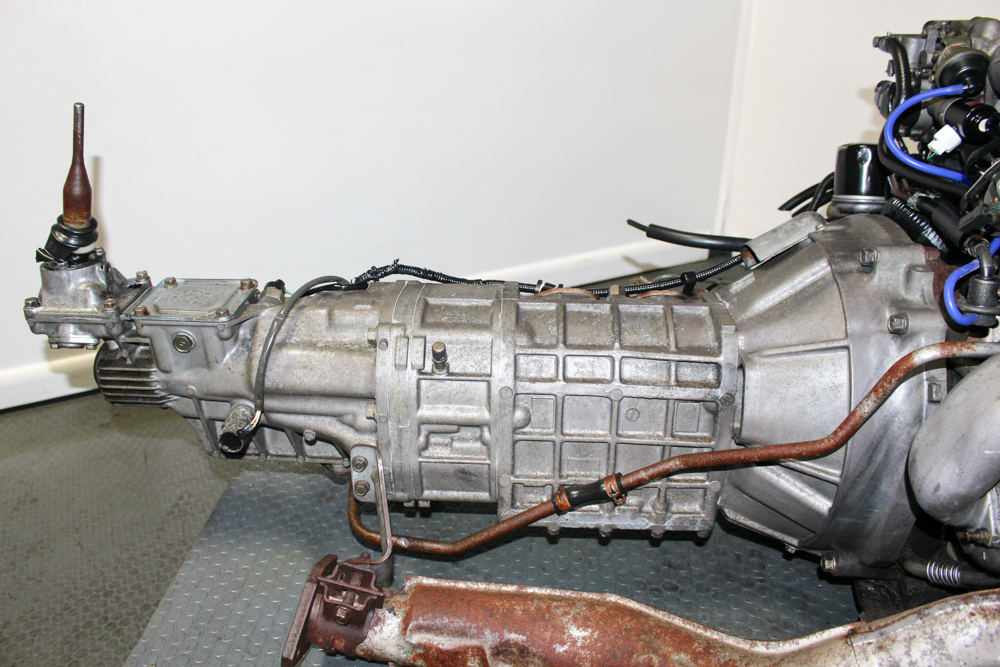

5-Speed Manual Transmission Inspection

Because the transmission is already removed from the vehicle, inspect:

• Input shaft
• Output shaft
• Seals
• Shift mechanism
• Bellhousing
• Transmission mounts
• Fluid condition
• Drain and fill plugs
• Visible housing damage

Also inspect the:

• Clutch disc
• Pressure plate
• Flywheel
• Pilot bearing
• Release bearing

Replacing worn clutch components while the drivetrain is removed can prevent significant duplicate labor later.

After Rebuilding or Repairing the Engine

Once all necessary internal repairs have been completed, follow the appropriate Mazda/rotary-engine builder procedures for initial startup.

Before starting the repaired engine:

• Verify proper engine-oil level.
• Verify coolant level.
• Inspect oil and coolant lines.
• Verify fuel-system connections.
• Inspect turbocharger lubrication.
• Check vacuum routing.
• Verify electrical grounds.
• Confirm ignition-system operation.
• Prime the lubrication system as appropriate.
• Thoroughly bleed the cooling system.

Do not aggressively rev or load a freshly repaired/rebuilt rotary engine. Follow the engine builder’s specific break-in and initial-operation instructions.

Frequently Asked Questions

What is a 13B-REW engine?

The 13B-REW is Mazda’s sequential twin-turbo two-rotor rotary engine used in the FD3S-generation RX-7.

Is this a genuine RX-7 FD3S engine?

Yes. This listing is for a JDM Mazda RX-7 FD3S 13B-REW drivetrain.

Is this a 13B-REW or RX-8 13B-MSP Renesis?

This is a 13B-REW. It should not be confused with the naturally aspirated 13B-MSP Renesis used in the later RX-8.

Is the engine twin turbo?

Yes. The 13B-REW uses Mazda’s sequential twin-turbo system.

Is the transmission included?

Yes. A 5-speed RWD manual transmission is included with this package.

Does the engine have good compression?

No. This particular engine has low compression in one chamber.

This condition is fully disclosed, and the engine is sold AS-IS.

Does it need apex seals?

It may require apex-seal or other internal rotary-engine repair, but the exact cause of low compression should be diagnosed by an experienced rotary specialist.

Why shouldn’t I just replace the apex seals?

Low compression does not, by itself, prove that apex seals are the only components requiring attention. The engine should be properly inspected before determining the required repairs.

Does this engine have a warranty?

No. This engine and transmission package is sold AS-IS with no warranty because of the disclosed engine condition.

How many miles are listed?

The product is currently listed at approximately 60,000 miles.

Will it fit a U.S.-market FD RX-7?

The 13B-REW belongs to the FD3S RX-7 engine family, but JDM-to-USDM component differences can exist. Verify your exact application and required component transfers before installation.

How much power does a 13B-REW make?

Output varies by year, market and RX-7 version. For example, Mazda documented later Japanese 5-speed FD3S variants at 265 PS or 280 PS, depending on model, while the automatic Type RB was rated at 255 PS.

Did Mazda make a 280 PS 13B-REW?

Yes. Mazda’s later Japanese Type R and Type RS models were rated at 280 PS, and the final Spirit R Type-A and Type-B were also rated at 280 PS with the 5-speed manual.

Can J-Spec Auto Sports ship this drivetrain?

Yes. This engine/transmission package can be shipped by freight. Buyers can also arrange local pickup from J-Spec Auto Sports in Virginia.
