JDM Subaru TR580DHACA Lineartronic CVT AWD Transmission – FB25 2.5L – 3.70 Final Drive – Item 254604
Item ID: 254604
JDM Subaru TR580DHACA Lineartronic CVT AWD Transmission – FB25 2.5L – 3.70 Final Drive – Item 254604
$2,295.00 Original price was: $2,295.00.$1,495.00Current price is: $1,495.00.
Replace a slipping, shuddering, noisy, overheating, or failed Subaru CVT with this low-mileage JDM TR580DHACA Lineartronic AWD transmission.
This genuine used Subaru transmission is designed for compatible FB25 2.5L naturally aspirated applications and uses a 3.70 final-drive ratio. Because Subaru used several different TR580 versions and rear differential ratios across Legacy and Outback model years, fitment must be verified before installation.
- Transmission Code: TR580DHACA
- Serial Number: TR580DHACA 736784
- Transmission Family: TR580
- Engine Application: FB25 2.5L Non-Turbo
- Transmission Type: Lineartronic CVT
- Drivetrain: AWD
- Final Drive: 3.70
- Required Rear Differential Ratio: 3.70
- CVT Fluid: Subaru CVTF-II for applicable naturally aspirated TR580 applications
- Item ID: 254604
- SKU: TR580DHACA 736784 MT1002
- Condition: Used OEM JDM / Low Mileage
- Warranty: 90 Days
- Nationwide Freight Shipping
- Affordable Installation Available
Important AWD Fitment Notice: This JDM TR580DHACA uses a 3.70 final drive. Do not install it with a vehicle that retains an incompatible 3.90 or 4.111 rear differential. Verify the original transmission configuration, rear differential ratio, valve body, electronics, sensors, connectors, TCM requirements, and physical fitment before ordering.
Affordable Installation Available
Contact Us
Item ID: 254604
Product Code: TR580DHACA
Serial Number: TR580DHACA 736784
Years: 2013-2017
Type: CVT AWD Automatic
Gears: CVT Drivetrain: AWD.
Final Drive: 3.70
Applications:
Compatible FB25 AWD applications – exact transmission code, final drive, rear differential and electronics must be verified.
Required Subaru CVT Installation Procedure
To help ensure proper operation and protect the replacement transmission, the following installation procedures must be completed before operating the vehicle:
1. Flush the Transmission Cooler and Lines
Thoroughly flush the transmission cooler, cooler lines, and related components before connecting the replacement CVT. This helps prevent contaminated fluid, metal particles, or debris from the previous transmission from entering and damaging the replacement unit.
2. Use the Correct Subaru CVT Fluid
Fill the transmission with the correct genuine Subaru CVT fluid specified for the vehicle and transmission application. Do not use generic or universal CVT fluid unless it specifically meets the required Subaru specification.
The CVT fluid level must be checked and adjusted according to the proper Subaru procedure and at the specified fluid temperature.
3. Perform Multiple Heat Cycles and Recheck Fluid Level
After installation, run the vehicle through multiple heat cycles and recheck the CVT fluid level.
Air trapped within the transmission, cooler, and cooler lines can cause the fluid level to drop after initial startup. Confirm the fluid level again after the transmission reaches the proper operating temperature.
Do not assume the transmission is completely filled after the initial fill.
4. Service the Front Differential
The front differential is separate from the CVT fluid circuit and must be filled independently.
Drain and refill the front differential with the correct gear oil specified for the vehicle/application. Verify the differential fluid level before operating the vehicle.
Never assume the replacement transmission arrives with the correct amount of differential oil.
5. Perform TCM Programming and CVT Relearn/Adaptation
After installing the replacement JDM CVT, use a Subaru-compatible diagnostic scan tool to perform all applicable TCM programming, initialization, learning, and adaptation procedures required for the specific vehicle and transmission.
Depending on the application, this may include clearing previous transmission learning values and performing the appropriate CVT relearn/calibration procedure.
Programming and relearn procedures are important because the replacement transmission must operate correctly with the vehicle’s ECU/TCM and electronic control system.
6. Final Inspection Before Road Testing
Before road testing the vehicle:
-
Confirm the correct CVT fluid was used.
-
Verify the CVT fluid level at the specified temperature.
-
Confirm the transmission cooler and lines were properly flushed.
-
Check all cooler lines and connections for leaks.
-
Verify the front differential has the correct fluid and fluid level.
-
Scan the ECU/TCM for diagnostic trouble codes.
-
Complete all required CVT programming, initialization, and relearn procedures.
-
Run multiple heat cycles and recheck the CVT fluid level.
-
Confirm proper transmission operation before releasing the vehicle.
Important: Improper fluid type or level, contaminated cooler lines, an unfilled/underfilled front differential, or failure to perform required electronic initialization and relearn procedures can result in poor operation or premature transmission failure.
JDM SUBARU TR580DHACA LINEARTRONIC CVT AWD TRANSMISSION – 3.70 FINAL DRIVE
Replace your failed or worn Subaru CVT with this low-mileage JDM TR580DHACA Lineartronic AWD transmission from J-Spec Auto Sports.
This individual transmission carries the complete identification:
TR580DHACA
and serial number:
TR580DHACA 736784
Most importantly, the unit has a:
3.70 Final Drive
Subaru used several TR580 variants across Legacy, Outback, Forester, Impreza, and other applications. Therefore, buyers should not choose a replacement transmission simply because both units begin with “TR580.”
Instead, verify the complete transmission code, final-drive ratio, rear differential ratio, electronics, valve body, sensors, connectors, and vehicle application before installation.
QUICK DETAILS
- Manufacturer: Subaru
- Transmission Code: TR580DHACA
- Serial Number: TR580DHACA 736784
- Transmission Family: TR580
- Transmission Type: Lineartronic CVT
- Engine Application: FB25 2.5L Naturally Aspirated
- Drivetrain: AWD
- Final Drive: 3.70
- Required Rear Differential: Matching 3.70
- CVT Fluid: Subaru CVTF-II for applicable TR580 naturally aspirated applications
- Front Differential: Separate lubricant circuit
- Condition: Used OEM JDM / Low Mileage
- Origin: Japan
- Item ID: 254604
- SKU: TR580DHACA 736784 MT1002
- Warranty: 90 Days
- Shipping: Nationwide Freight
- Installation: Available
TR580DHACA TRANSMISSION IDENTIFICATION
The most important fitment identifier on this transmission is:
TR580DHACA
Do not shorten the fitment requirement to:
TR580
Although many Subaru vehicles use the TR580 family, detailed suffixes can identify differences involving:
- Final-drive ratio
- Valve body
- Solenoids
- Sensors
- Electrical connectors
- Internal calibration
- TCM strategy
- Cooler configuration
- Vehicle application
For that reason, compare the complete identification with the original transmission before installation.

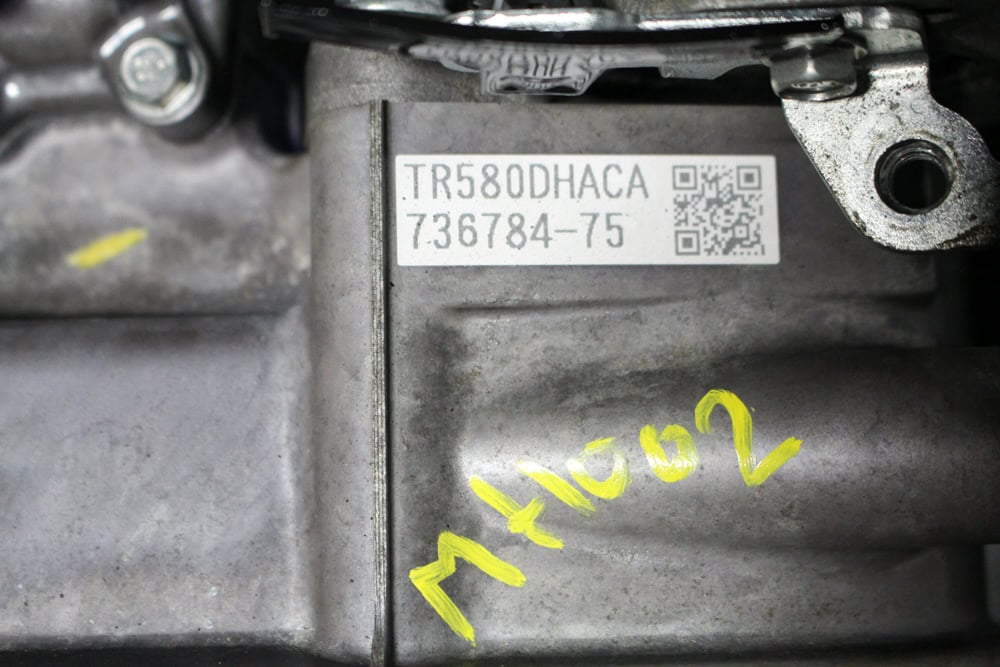

INDIVIDUAL SERIAL NUMBER
This specific transmission is identified as:
TR580DHACA 736784
Keep this serial number connected to the:
- Product listing
- Product photographs
- Warehouse inventory
- Invoice
- Shipping documentation
- Warranty record
Doing so helps distinguish Item 254604 from other J-Spec TR580 inventory.
LINEARTRONIC CVT – NOT A 5-SPEED AUTOMATIC
The TR580DHACA is a:
Lineartronic Continuously Variable Transmission
It does not operate as a conventional 5-speed automatic transmission.
Therefore, the correct product data should read:
Type: Lineartronic CVT
Gears: CVT
A CVT continuously varies its operating ratio rather than shifting through five fixed forward gears.
FB25 2.5L APPLICATION
This transmission belongs to Subaru’s naturally aspirated 2.5L application family associated with the:
FB25 2.5L Boxer engine
Recommended structured fields:
Engine Code: FB25
Engine Size: 2.5L
Aspiration: Naturally Aspirated / Non-Turbo
However, engine code alone does not establish interchange.
A Subaru can use the same FB25 engine while having a different TR580 version, final-drive ratio, valve body, or electronic configuration.
3.70 FINAL DRIVE
The most important drivetrain specification after the complete transmission code is:
Final Drive: 3.70
This specification should appear prominently in:
- Product title
- Short description
- Product data
- Compatibility section
- FAQ
- Image ALT text
- Structured data
Subaru AWD systems require correctly matched drivetrain ratios.
Therefore, the rear differential must match the transmission’s required drivetrain ratio.
MATCHING 3.70 REAR DIFFERENTIAL REQUIRED
This JDM transmission uses a:
3.70 final-drive configuration
Accordingly, it must operate with the correct compatible:
3.70 rear differential
Do not pair the transmission with an incompatible rear differential ratio.
Examples of incompatible ratios may include:
- 3.90
- 4.111
- Other non-matching ratios
Running mismatched front and rear drivetrain ratios can cause:
- Drivetrain binding
- Excessive heat
- Tire scrubbing
- AWD clutch stress
- Bearing wear
- Transmission damage
- Rear differential damage
Therefore, verify the rear differential before operating the vehicle.
IMPORTANT LEGACY AND OUTBACK FITMENT INFORMATION
This transmission should not be advertised as a simple direct-fit replacement for every 2013–2017 Legacy and Outback.
Subaru changed transmission specifications and final-drive ratios during this period.
For example, later U.S.-market Legacy and Outback models use different final-drive configurations than this JDM 3.70 transmission.
Consequently, year and engine size alone are not enough to establish fitment.
Before ordering, verify:
- Original transmission code
- Vehicle year
- VIN
- FB25 engine application
- Original final-drive ratio
- Rear differential ratio
- Valve body
- Sensors
- Solenoids
- Electrical connectors
- TCM configuration
2013–2014 LEGACY APPLICATIONS
Certain 2013–2014 Subaru Legacy 2.5L CVT applications use a 3.70 final-drive configuration.
However, Subaru used multiple detailed transmission codes, including other TR580 variants.
Therefore, Item 254604 should be marketed as:
Replacement option for compatible 2013–2014 Legacy 2.5L AWD applications requiring a 3.70 drivetrain configuration
rather than as a guaranteed direct-fit replacement.
2013–2014 OUTBACK APPLICATIONS
Use extra caution when advertising this transmission for Outback applications.
U.S.-market Outback 2.5L models commonly use a different rear differential ratio than this 3.70 JDM transmission.
As a result, installing Item 254604 into an Outback may require a matching 3.70 rear differential and additional compatibility verification.
Do not advertise:
Direct Fit 2013–2014 Outback
without confirming the complete drivetrain configuration.
2015–2017 LEGACY APPLICATIONS
Later U.S.-market Legacy 2.5L models changed drivetrain gearing.
Therefore, a JDM TR580DHACA with a 3.70 final drive should not be installed while retaining an incompatible U.S.-market rear differential.
Possible installation requirements may include:
- Matching 3.70 rear differential
- Valve-body verification
- Sensor comparison
- Harness comparison
- TCM programming
- Relearn/adaptation procedures
For that reason, describe later Legacy fitment as:
Possible conversion application – drivetrain and electronics must be verified
rather than guaranteed direct fit.
2015–2017 OUTBACK APPLICATIONS
Extra caution is required with later Outback applications.
Later U.S.-market Outback 2.5L drivetrain gearing differs significantly from this JDM 3.70 unit.
Therefore, Item 254604 should not be presented as a simple bolt-in 2015–2017 Outback replacement.
A proper conversion requires verifying:
- Rear differential ratio
- Original CVT code
- Valve body
- TCM
- Electrical connectors
- Sensors
- Driveshaft interface
- Axle interfaces
- Mounting configuration
JDM-TO-USDM CONVERSION
A JDM transmission may physically resemble the original U.S.-market transmission while still having important differences.
Before installation, place the original and replacement transmissions side by side.
Compare:
- Complete transmission code
- Bellhousing
- Transmission case
- Valve body
- Solenoids
- Electrical connectors
- Speed sensors
- Torque converter
- Front axle outputs
- Driveshaft connection
- Transmission mounts
- Cooler connections
Transfer compatible original external components when required.
KEEP THE ORIGINAL TRANSMISSION
Do not discard the original transmission until installation and road testing have been completed successfully.
The original unit may still provide:
- Valve body
- Sensors
- Wiring
- Brackets
- Mounts
- Cooler fittings
- Switches
- Hardware
- Electronic components
As a result, keeping the original transmission nearby can simplify JDM-to-USDM installation.
USE THE CORRECT SUBARU CVT FLUID
For applicable naturally aspirated TR580 applications, use:
Subaru CVTF-II
Do not use:
- Conventional automatic transmission fluid
- Dexron
- Differential gear oil
- Generic universal CVT fluid without verified compatibility
The proper CVT fluid is critical for:
- Hydraulic pressure
- Pulley operation
- Chain lubrication
- Valve-body function
- Temperature control
Always confirm the exact fluid requirement for the target vehicle before filling.
FRONT DIFFERENTIAL USES SEPARATE LUBRICANT
The front differential does not share the CVT fluid circuit.
Therefore, the installer must service it separately.
Before operating the vehicle:
- Drain the old differential lubricant.
- Inspect the drain plug.
- Check for excessive metal.
- Refill with the correct Subaru-specified gear oil.
- Verify the proper fluid level.
Do not assume the imported transmission arrives with the correct amount or condition of front differential lubricant.
FLUSH THE CVT COOLER AND LINES
Before connecting the replacement transmission, thoroughly flush:
- Transmission cooler
- Cooler lines
- Related fluid circuit
A failed CVT may leave:
- Metal particles
- Friction material
- Contaminated fluid
- Internal debris
inside the cooler system.
Consequently, connecting the replacement transmission to contaminated lines can immediately introduce debris into the replacement unit.
If the cooler cannot be completely cleaned, replace it.
INSPECT THE CVT PAN
Before installation, inspect the transmission pan where appropriate.
Check for:
- Metal debris
- Friction material
- Sludge
- Contamination
- Magnet buildup
Additionally, inspect the strainer according to Subaru service procedures.
A clean fluid circuit provides a better starting point for the replacement CVT.

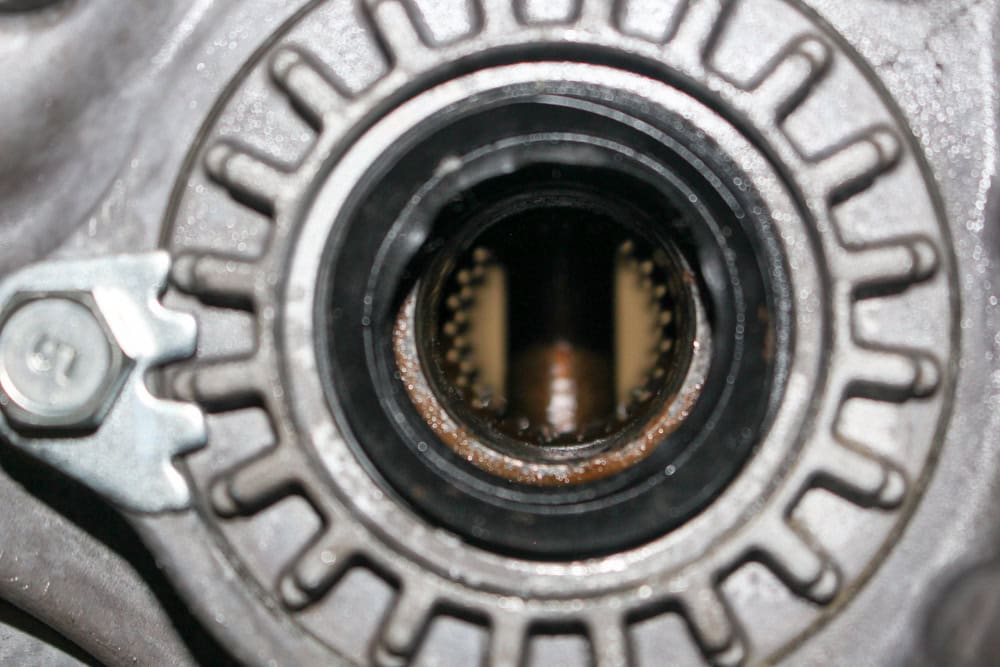

INSPECT ACCESSIBLE SEALS
While the transmission is outside the vehicle, inspect:
- Torque-converter/front seal
- Front axle seals
- Output seals
- Selector-shaft seal
- Cooler-line seals
- Pan sealing surfaces
Replacing questionable accessible seals before installation can prevent unnecessary labor later.

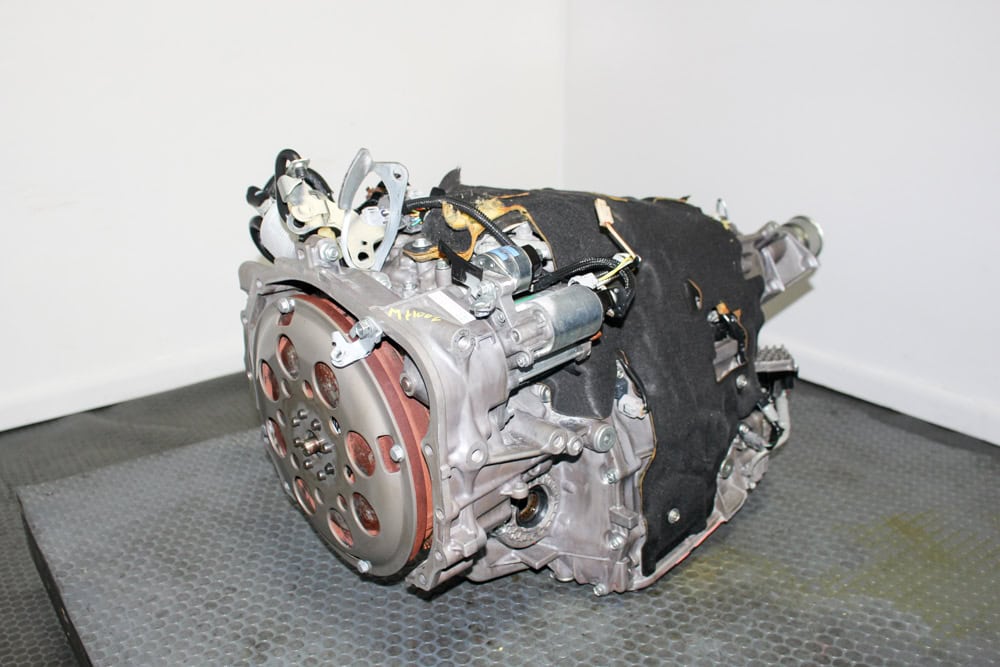

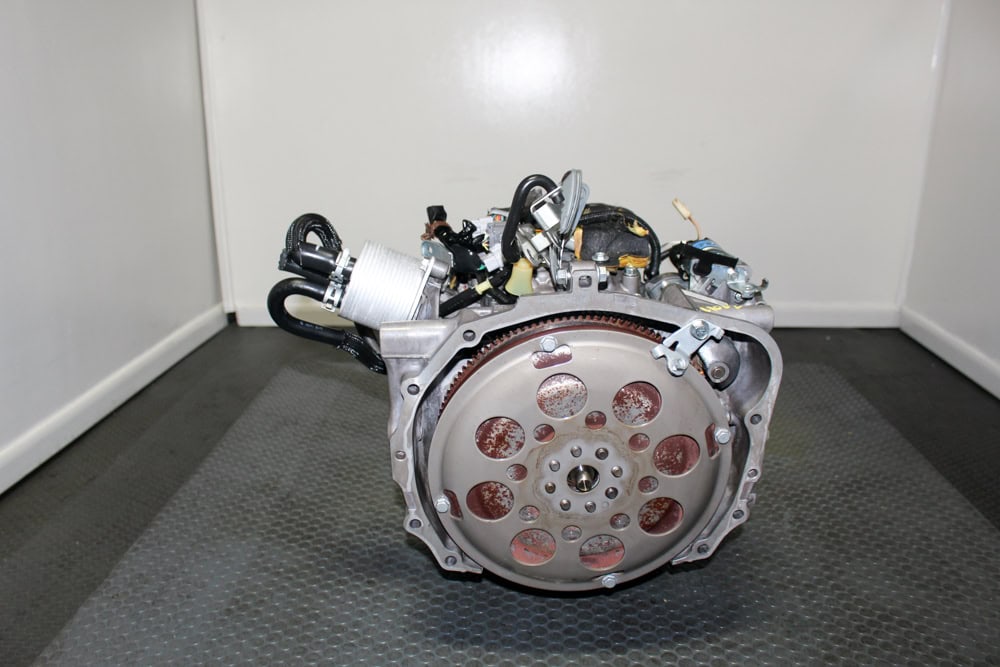

TORQUE CONVERTER
Verify whether the torque converter is included with this exact Item 254604.
Do not use vague wording such as:
Included when applicable
Instead, physically confirm whether it is:
Included
or:
Not Included
If included, inspect:
- Converter hub
- Splines
- Pilot
- Seal surface
- Mounting pads
Most importantly, fully seat the torque converter before mating the transmission to the engine.
Never use bellhousing bolts to force the transmission into position.
TCM PROGRAMMING AND RELEARN
After installation, use a Subaru-capable scan tool to perform all procedures required for the specific vehicle.
Depending on the application, this may include:
- TCM reset
- Clear Memory procedures
- CVT learning
- Adaptation
- Calibration
- Software update
- Diagnostic scan
These procedures are especially important when installing a JDM CVT into a U.S.-market Subaru.
RUN MULTIPLE HEAT CYCLES
After initial filling, run the transmission through several controlled heat cycles.
During each cycle:
- Monitor CVT temperature.
- Recheck CVT fluid level.
- Inspect cooler connections.
- Check external seals.
- Verify engagement.
- Inspect for leaks.
Because the torque converter and cooler circuit continue to fill during initial operation, fluid level may change after startup.
Therefore, never assume the initial fill is the final correct fluid level.
INITIAL INSTALLATION CHECKLIST
Before installation:
- Confirm TR580DHACA transmission code.
- Confirm serial TR580DHACA 736784.
- Confirm FB25 2.5L application.
- Confirm AWD drivetrain.
- Confirm 3.70 final drive.
- Verify matching 3.70 rear differential.
- Compare original and replacement transmission.
- Compare valve body.
- Compare electrical connectors.
- Compare sensors.
- Compare solenoids.
- Verify torque converter.
- Inspect transmission seals.
- Inspect axle seals.
- Inspect CVT pan.
- Inspect strainer.
- Flush CVT cooler.
- Flush cooler lines.
- Fill with correct Subaru CVT fluid.
- Service front differential separately.
- Perform multiple heat cycles.
- Verify CVT fluid level at proper temperature.
- Perform TCM/CVT relearn and adaptation.
- Check for diagnostic trouble codes.
- Check for leaks.
INITIAL STARTUP
After installation:
- Start the engine.
- Allow CVT fluid to circulate.
- Move slowly through each selector position.
- Confirm Reverse.
- Confirm Drive.
- Monitor CVT temperature.
- Inspect for leaks.
- Verify fluid level.
- Scan the TCM.
Avoid aggressive acceleration during the initial test.
INITIAL ROAD TEST
Begin with a conservative road test.
Monitor:
- Reverse engagement
- Drive engagement
- Low-speed acceleration
- Moderate acceleration
- CVT ratio response
- Engine RPM
- Shudder
- Slipping
- Hesitation
- Vibration
- Whining
- AWD operation
- Transmission temperature
- Warning lights
- Fluid leaks
Afterward, scan the vehicle again for stored or pending codes.
COMMON TR580 CVT FAILURE SYMPTOMS
Possible symptoms include:
- Shuddering
- Slipping
- Delayed engagement
- RPM flare
- Hesitation
- Whining noise
- Overheating
- Limp mode
- CVT warning lights
- Diagnostic trouble codes
- Loss of movement
However, similar symptoms may also come from:
- Incorrect CVT fluid
- Low fluid level
- Valve-body problems
- Solenoid faults
- Sensors
- Wiring
- TCM problems
- Cooler restrictions
- Torque converter
- Mismatched rear differential
Therefore, diagnose the complete vehicle before replacing the transmission.
WHY THE COMPLETE CODE MATTERS
Several Subaru transmissions begin with:
TR580
Nevertheless, the suffix matters.
A different TR580 suffix may indicate changes in:
- Vehicle application
- Final-drive ratio
- Valve body
- Electronics
- Sensors
- Solenoids
- Control strategy
- Cooler configuration
For that reason, buyers should verify:
TR580DHACA
rather than ordering based only on:
TR580
WHY CHOOSE ITEM 254604?
Item 254604 provides a code-specific JDM Subaru CVT option for compatible FB25 AWD applications.
Key features include:
- Genuine used Subaru JDM transmission
- Exact TR580DHACA code
- Serial TR580DHACA 736784
- TR580 Lineartronic CVT
- FB25 2.5L application
- AWD configuration
- 3.70 final drive
- Individual inventory tracking

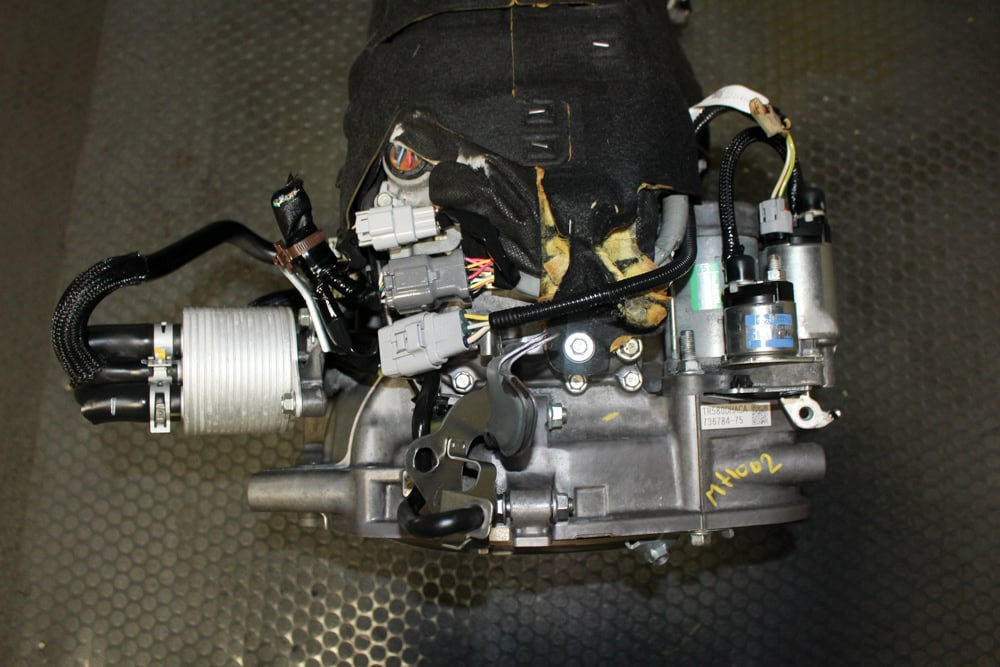

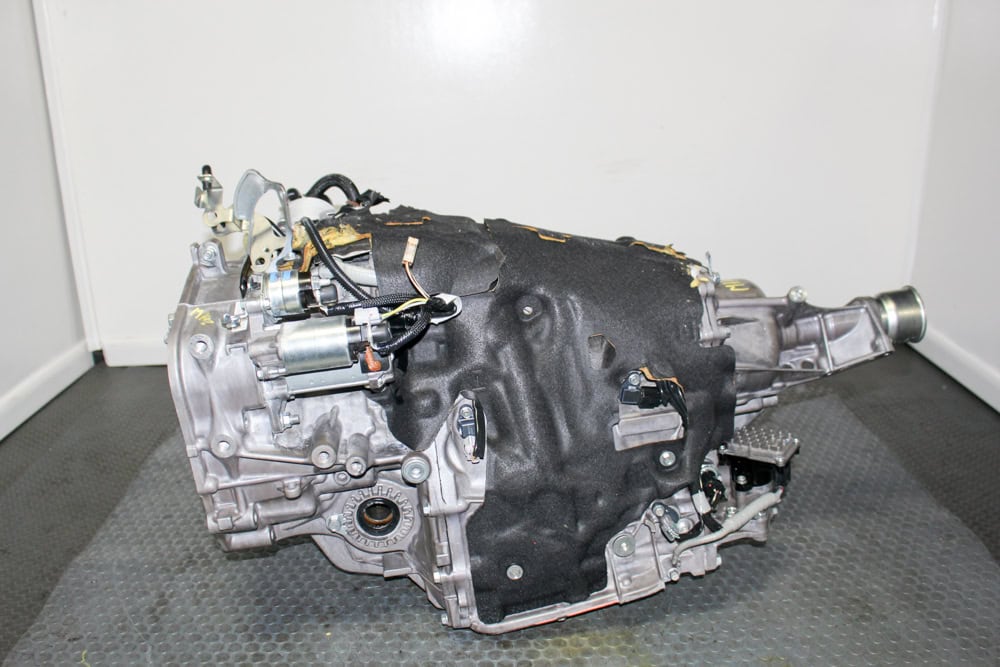

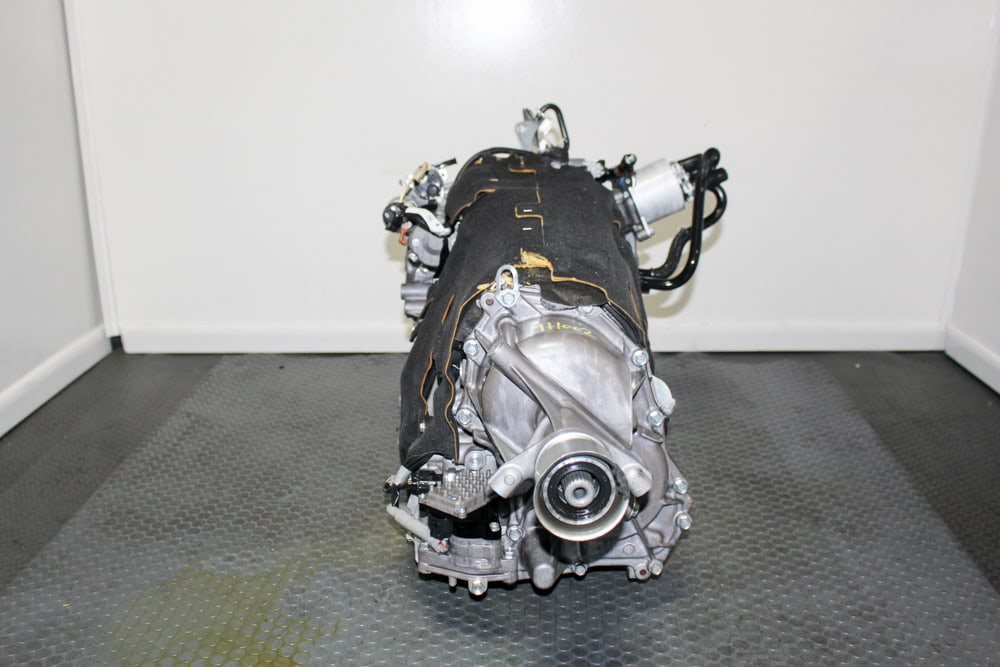

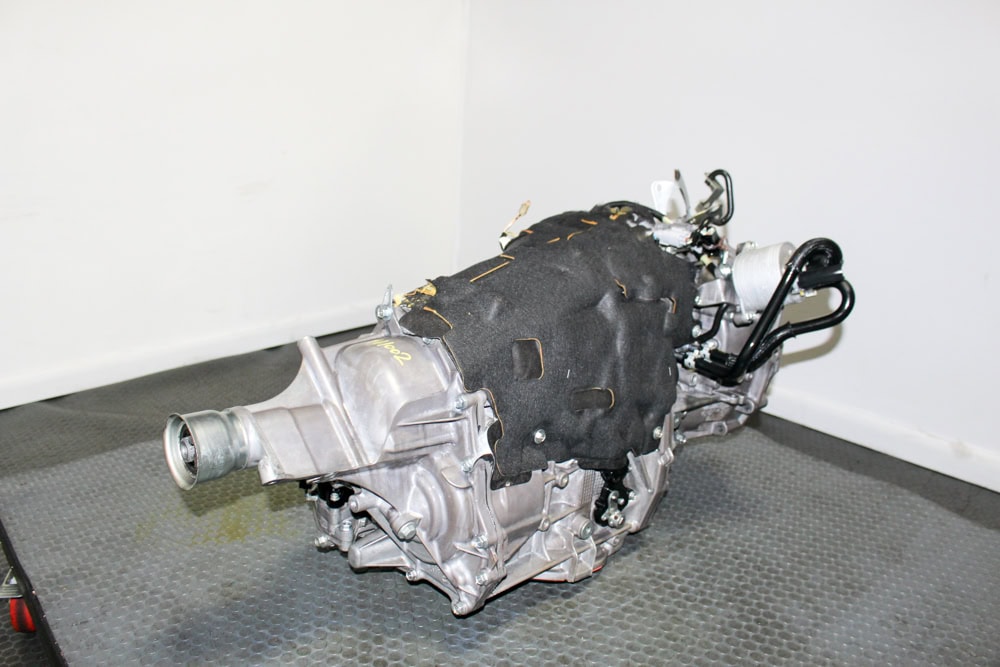

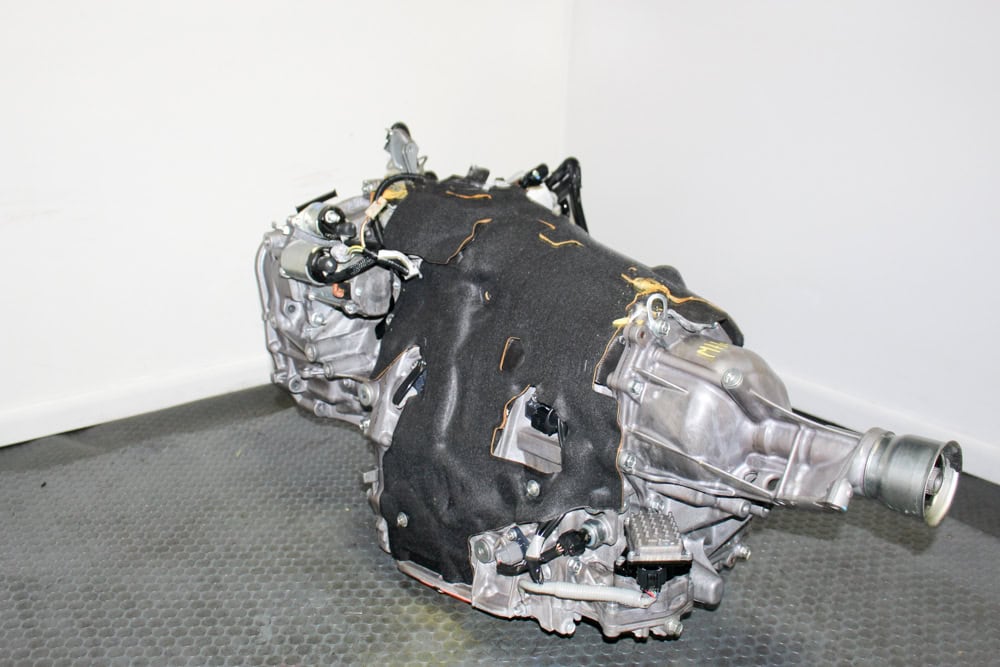

- Actual inventory photographs
- 90-day limited warranty
- Nationwide freight shipping
- Affordable installation available
WHY BUY FROM J-SPEC AUTO SPORTS?
J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.
Customers benefit from:
- Actual inventory photographs
- Individual serial tracking
- Transmission-code identification
- Subaru drivetrain experience
- Fitment assistance
- Nationwide freight shipping
- Local Richmond / Henrico pickup
- Affordable installation options
- Limited warranty coverage
Additionally, J-Spec recommends verifying the full transmission configuration before purchase to reduce compatibility problems.
INDIVIDUAL INVENTORY INFORMATION
Transmission Code: TR580DHACA
Serial Number: TR580DHACA 736784
Transmission Family: TR580
Engine: FB25 2.5L Naturally Aspirated
Transmission: Lineartronic CVT
Gears: CVT
Drivetrain: AWD
Final Drive: 3.70
Required Rear Differential: Matching 3.70
CVT Fluid: Subaru CVTF-II for applicable naturally aspirated TR580 applications
Front Differential: Separate lubricant
Torque Converter: Verify Included / Not Included
Item ID: 254604
SKU: TR580DHACA 736784 MT1002
Condition: Used OEM JDM / Low Mileage
Warranty: 90 Days
90-DAY LIMITED WARRANTY
Item 254604 includes a 90-day limited warranty, subject to J-Spec Auto Sports’ current warranty terms and installation requirements.
For warranty documentation, retain records showing:
- Correct Subaru CVT fluid
- CVT cooler flushing
- Cooler-line flushing
- Front differential service
- Correct matching rear differential ratio
- Seal inspection
- TCM/CVT programming and relearn
- Professional installation
FREQUENTLY ASKED QUESTIONS
What transmission code is this?
TR580DHACA
What is the serial number?
TR580DHACA 736784
What transmission family is this?
Subaru TR580 Lineartronic
Is this a conventional 5-speed automatic?
No.
It is a continuously variable transmission / CVT.
What should the “Gears” field say?
Use:
CVT
rather than 5.
What engine application is it associated with?
FB25 2.5L naturally aspirated
Is this AWD?
Yes.
What is the final-drive ratio?
3.70
What rear differential is required?
A compatible:
3.70 rear differential
must be used with this drivetrain configuration.
Can I keep a 3.90 rear differential?
No.
Do not knowingly operate a 3.70 transmission with an incompatible 3.90 rear differential.
Can I keep a 4.111 rear differential?
No.
The front and rear AWD drivetrain ratios must match.
Will it fit a 2013–2014 Legacy?
It may be used in compatible FB25 AWD applications when the complete drivetrain and electronics are verified.
Will it fit a 2015–2017 Legacy?
Do not consider it a direct replacement based only on model year and engine size.
Later U.S.-market models use different drivetrain gearing, so a proper conversion may require a matching 3.70 rear differential and additional electronic verification.
Will it fit a 2013–2017 Outback?
Do not advertise direct interchange without checking the complete drivetrain.
Outback final-drive ratios differ from this JDM 3.70 configuration in many U.S.-market applications.
What fluid does it use?
Applicable naturally aspirated TR580 applications use:
Subaru CVTF-II
Always verify the exact target vehicle specification before filling.
Does the front differential use CVT fluid?
No.
The front differential has a separate lubrication circuit.
Should the cooler lines be flushed?
Yes.
Flush the CVT cooler and cooler lines before operating the replacement transmission.
Does it need a relearn?
Perform all applicable Subaru TCM/CVT initialization, relearn, calibration, and adaptation procedures.
Is the torque converter included?
Physically verify Item 254604 before promising torque-converter inclusion.
Should I keep my original transmission?
Yes.
Keep the original transmission until the replacement unit has been installed and road-tested because external or electronic components may need to transfer.
Is it rebuilt?
No.
Unless otherwise stated, this is a used OEM JDM Subaru transmission imported from Japan.
Does it include a warranty?
Yes.
Item 254604 includes a 90-day limited warranty.
ORDER ITEM 254604 – SUBARU TR580DHACA CVT AWD
Replace your failed transmission with this low-mileage JDM Subaru TR580DHACA Lineartronic CVT AWD transmission.
Transmission Code: TR580DHACA
Serial: TR580DHACA 736784
Engine: FB25 2.5L Non-Turbo
Transmission: Lineartronic CVT
Drivetrain: AWD
Final Drive: 3.70
Required Rear Differential: 3.70
Item ID: 254604
SKU: TR580DHACA 736784 MT1002
Warranty: 90 Days
Before ordering, verify the original transmission code, final-drive ratio, rear differential ratio, vehicle production date, valve body, sensors, solenoids, electrical connectors, torque converter, mounts, axle interfaces, driveshaft connection, and TCM compatibility.
For fitment assistance, nationwide freight shipping, or installation information, contact J-Spec Auto Sports before completing your order.
Warranty: 90 day warranty
Warranty
Warranty: 90 day warranty
Policies
While every reasonable effort is made to ensure the accuracy of this information, we are not responsible for any errors or omissions contained on these pages. Please verify any information in question with J-Spec Auto Sports.
Related Products
Low Mileage & Clean JDM Honda MLJA Automatic Transmission 2.4L K24A2 to fit 2008-2012 Honda Accord for Sale
$695.00 Original price was: $695.00.$495.00Current price is: $495.00.
JDM Lexus RX350 AWD 6-Speed Automatic Transmission – 2GR-FE 3.5L V6 – 2010–2015 Lexus RX350
$2,495.00
Shipping Policy
We ship within 1-2 business days. Orders placed on Friday will be processed the following Monday. Please contact us at 866-683-3747 for any specific requests with regards to delivery.
Delivery time purely depends on your shipping location, you can estimate 2 - 7 business days within the continental United States. All delivery's are between 10 am and 6 pm Monday to Friday.
Engines, Transmissions, Front Clips, and Drivetrains will be shipped via Freight. Accessories and other small parts will be shipped via Ground.
All delivery's will require a signature and checking failure to sign or check on delivery for damage will result in a replacement not being able to be sent out.
If your Item is Damaged you must sign damaged with the courier and inform us straight away so we can arrange a replacement to be sent straight out to you.
If you order has gone past the listing delivery date please get in touch straight away so we can resolve the issue as couriers can let us down sometimes.
This warranty is subject to modifications and changes. J-Spec Auto Parts reserves the right to enforce these modifications without prior notice.
