JDM 2011–2013 Subaru Forester TR580DHMAA CVT Transmission – FB25 2.5L AWD 3.70 Final Drive

Replace your slipping, shuddering, noisy, or failed CVT with a low-mileage JDM Subaru Forester TR580DHMAA transmission from J-Spec Auto Sports.

This genuine Subaru Lineartronic CVT fits compatible 2011–2013 Subaru Forester models equipped with the naturally aspirated 2.5L FB25 engine, AWD, and matching 3.70 final-drive configuration.

Subaru used several TR580 transmission variants across different models and production years. Therefore, you should never select a replacement CVT based only on the TR580 prefix.

Instead, verify the complete transmission code, final-drive ratio, electrical connectors, sensors, vehicle year, and drivetrain configuration before installation.

J-Spec Auto Sports imports this transmission directly from Japan. In addition, our team inspects JDM drivetrain inventory before sale and provides specific transmission identification to help customers compare the replacement unit with their original CVT.

Quick Details

• Vehicle: Subaru Forester
• Model Years: 2011–2013
• Transmission Code: TR580DHMAA
• Transmission Type: Lineartronic CVT
• Engine: 2.5L FB25
• Engine Type: Naturally Aspirated / Non-Turbo
• Drivetrain: AWD
• Final Drive: 3.70
• Condition: Used JDM / Low Mileage
• Origin: Japan
• Item ID: 250821
• Warranty: 90 Days
• Shipping: Nationwide Freight Shipping
• Installation: Affordable Installation Available
• Local Pickup: Henrico / Richmond, Virginia

Subaru TR580DHMAA Transmission Specifications

The TR580 belongs to Subaru’s Lineartronic continuously variable transmission family.

Unlike a conventional automatic transmission with fixed forward gears, the TR580 continuously adjusts its operating ratio according to vehicle speed, throttle position, and engine load.

As a result, the CVT can keep the FB25 engine within an efficient operating range while providing smooth acceleration.

Technical Specifications

Transmission Code: TR580DHMAA
Transmission Type: Lineartronic CVT
Engine Application: 2.5L FB25
Engine Configuration: Naturally Aspirated 4-Cylinder Boxer
Drivetrain: AWD
Final Drive: 3.70
Condition: Used OEM/JDM
Origin: Japan

Most importantly, this transmission uses a 3.70 final-drive configuration. Always confirm the matching drivetrain ratio before installation.

Why the 3.70 Final Drive Matters

Subaru’s AWD system depends on correctly matched drivetrain gearing.

This TR580DHMAA uses a 3.70 final-drive ratio. Therefore, the rear differential must use the correct compatible ratio.

Do not assume another TR580 transmission will work simply because the case looks similar.

Different Subaru CVTs can use different:

• Final-drive ratios
• Valve bodies
• Sensors
• Electrical connectors
• Internal calibrations
• Transmission cases
• Mounting components

Consequently, installing an incorrectly matched transmission can create AWD binding, abnormal drivetrain operation, or component damage.

Always verify the complete transmission configuration before installation.

Vehicle Compatibility

This TR580DHMAA targets compatible:

2011 Subaru Forester 2.5L

Compatible applications use:

• 2.5L FB25 engine
• Naturally aspirated configuration
• AWD
• Lineartronic CVT
• Matching 3.70 final drive

2012 Subaru Forester 2.5L

Compatible 2012 Forester applications may use the same TR580DHMAA configuration.

However, compare the original transmission code and final-drive ratio before ordering.

2013 Subaru Forester 2.5L

This JDM CVT also targets compatible 2013 Forester 2.5L AWD applications with the matching TR580DHMAA configuration.

Again, verify the complete transmission code rather than purchasing only by model year.

FB25 Engine Application

This transmission pairs with compatible 2.5L FB25 naturally aspirated Forester applications.

The FB25 is Subaru’s chain-driven DOHC 2.5L boxer engine used in this generation of Forester.

Do not confuse this transmission with a turbocharged Forester XT transmission.

Turbo applications can use different CVT specifications, fluid requirements, final-drive configurations, and control strategies.

Therefore, engine configuration remains an important part of fitment verification.

TR580DHMAA vs. Other TR580 Codes

Subaru transmission suffixes matter.

For example, J-Spec also stocks or has stocked:

• TR580DHNAA
• TR580FHEAA
• Other TR580 variants

Although these transmissions belong to the same general family, you should not automatically treat them as interchangeable.

Differences can involve:

• Final-drive ratio
• Model application
• Valve body
• Sensors
• Wiring
• Connectors
• AWD configuration
• Transmission control calibration
• Production revisions

For that reason, compare the entire transmission code before ordering.

JDM-to-USDM Fitment

This transmission came from a Japanese-market drivetrain application.

Although the core TR580DHMAA can serve as a replacement for compatible U.S.-market Foresters, some external differences may exist.

Before installation, place the JDM transmission next to the original USDM unit.

Compare:

• Complete transmission code
• Transmission case
• Bellhousing
• Valve body
• Electrical connectors
• Sensors
• Solenoids
• Wiring connections
• Transmission mounts
• Axle connections
• Driveshaft connection
• Cooler fittings
• Range switch
• Torque converter
• Final-drive configuration

When necessary, transfer compatible external components from the original USDM transmission.

Most importantly, do not force connectors or modify the replacement CVT until you confirm compatibility.

What Is Included?

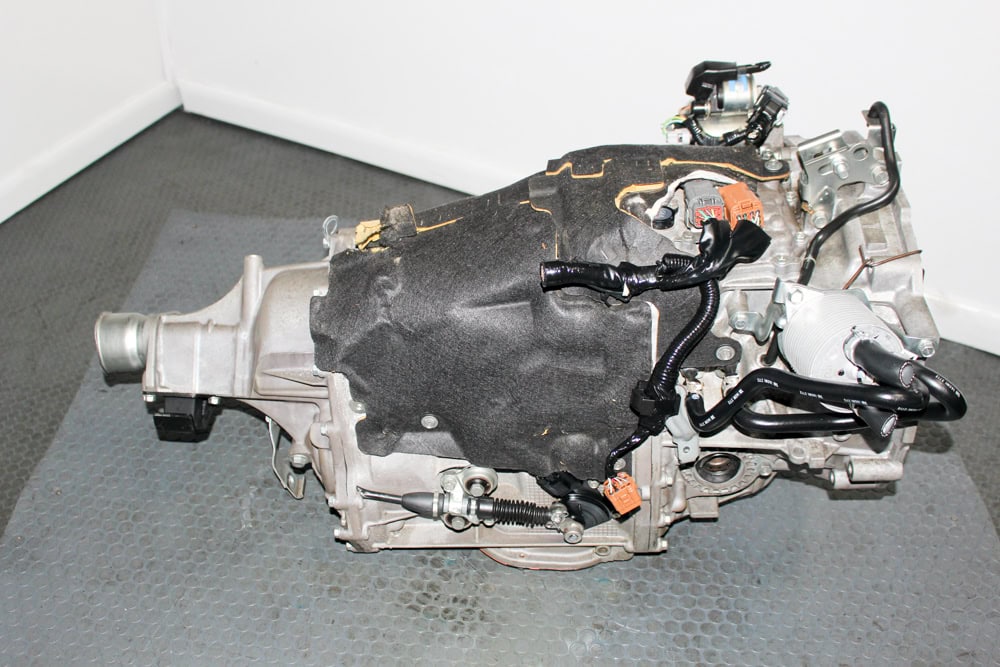

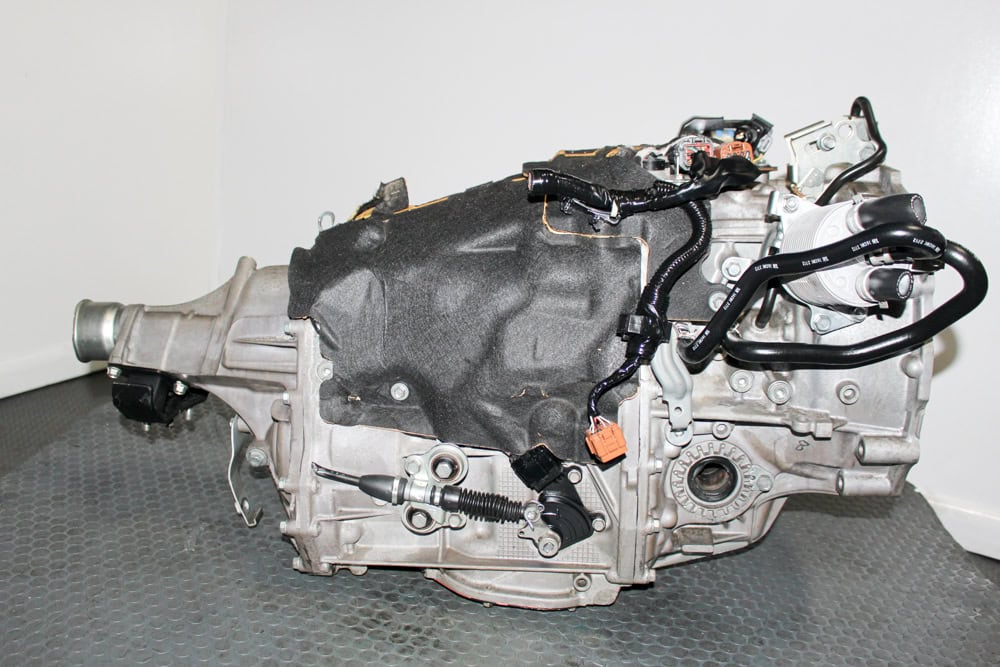

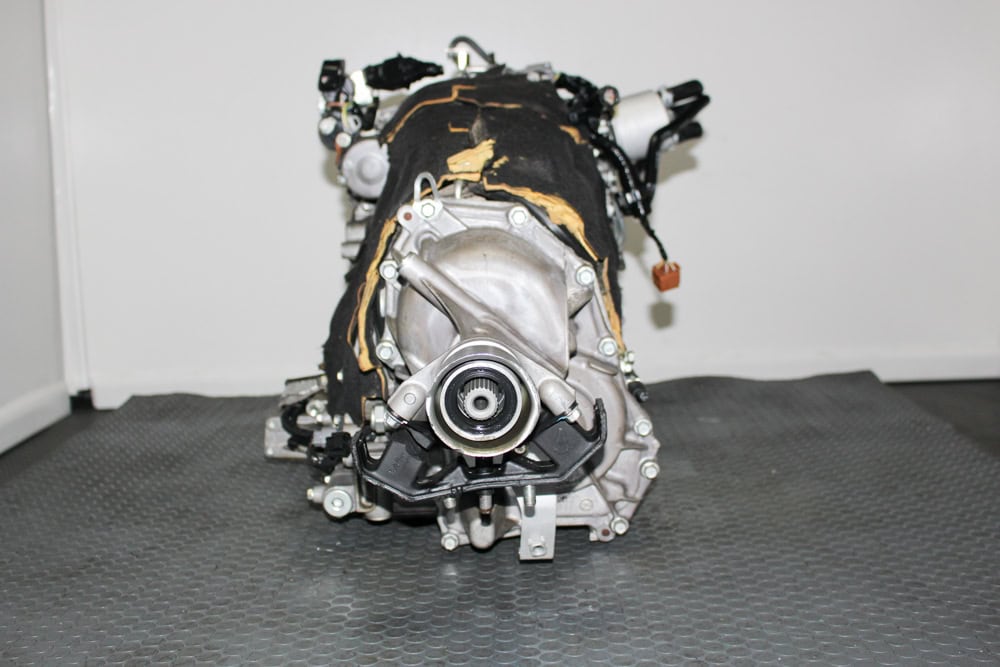

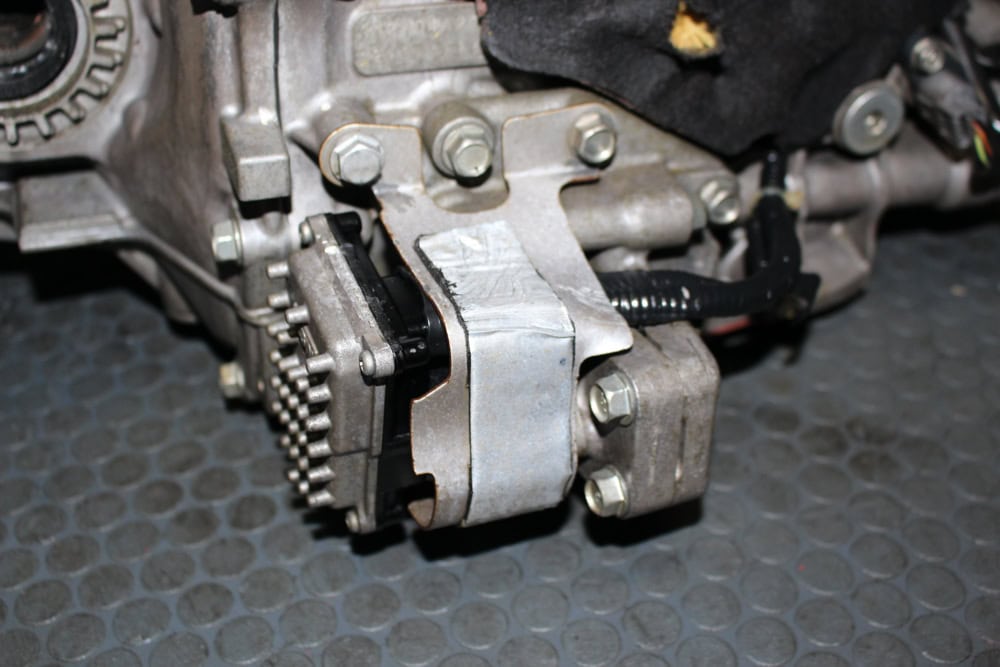

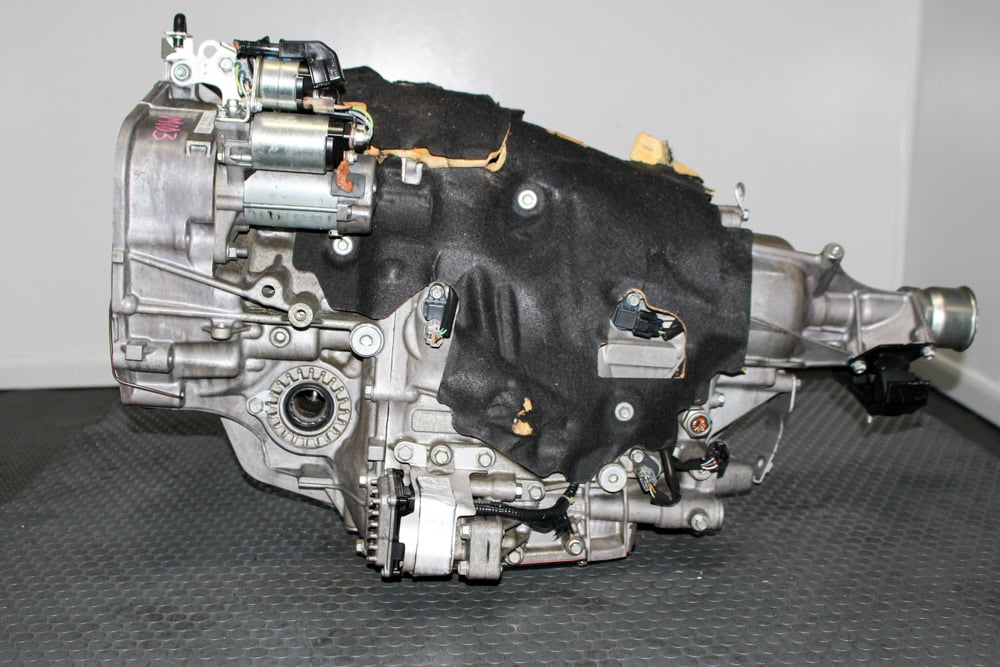

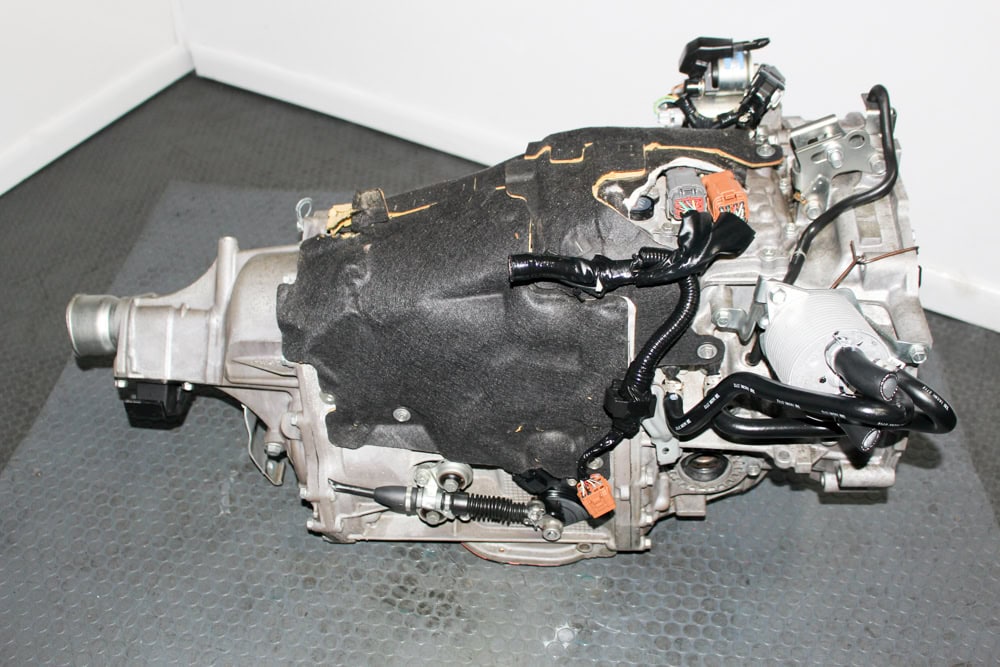

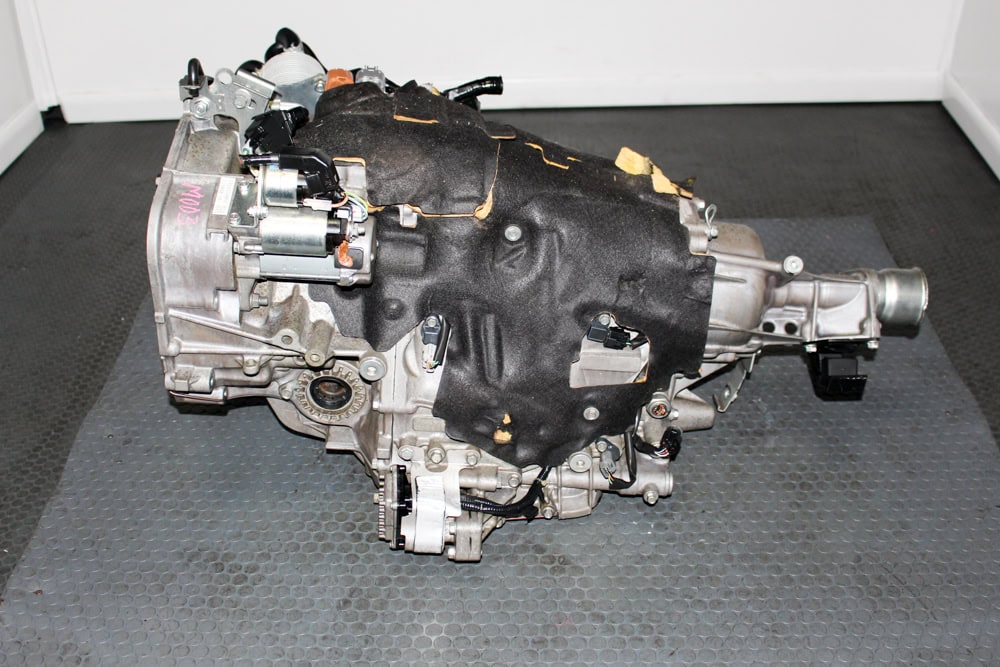

The sale includes the actual Subaru TR580DHMAA CVT shown in the current product photos.

Depending on the individual transmission, attached components may include:

• TR580DHMAA CVT assembly
• Transmission housing
• Internal chain-and-pulley assembly
• Valve body
• Factory sensors that remain attached
• Solenoids that remain attached
• Electrical connectors
• Torque converter when pictured or specifically stated
• Brackets or mounts when pictured

Please review every actual product photo before ordering.

Only components shown in the photos or specifically stated in the listing should be considered included.

Important CVT Installation Procedure

Correct installation plays a major role in the life of any replacement Subaru CVT.

Contaminated fluid, a restricted cooler, incorrect drivetrain gearing, unresolved electrical problems, or improper setup can damage the replacement transmission.

Therefore, diagnose the original failure before installing the JDM CVT.

Diagnose the Original CVT Failure

First, determine why the original transmission failed.

Possible causes include:

• Internal chain or pulley wear
• Valve-body problems
• Solenoid faults
• Torque-converter problems
• Bearing damage
• Overheating
• Fluid deterioration
• Cooler restrictions
• Sensor faults
• Wiring problems
• Incorrect fluid level
• Transmission control problems

Correcting the original cause helps protect the replacement transmission.

Confirm the Final-Drive Ratio

Before installation, verify that the vehicle uses the correct 3.70 drivetrain configuration.

Do not assume the rear differential is correct simply because the transmission physically fits the vehicle.

An incorrect final-drive match can create drivetrain binding and damage Subaru’s AWD system.

For that reason, confirm the ratio before operating the vehicle.

Flush the Transmission Cooler and Lines

Thoroughly flush the CVT cooler and cooler lines before connecting the replacement transmission.

A failed CVT can circulate metal particles, friction material, and contaminated fluid throughout the cooling circuit.

Consequently, debris left in the cooler can enter the replacement transmission shortly after startup.

Clean the complete cooling circuit before installation.

If a cooler cannot be properly cleaned, replace it.

Do not skip this step.

Use the Correct Subaru CVT Fluid

Use the correct Subaru-specified Lineartronic CVT fluid for this TR580 application.

For naturally aspirated TR580 applications, Subaru’s current service-material guidance identifies Subaru CVTF-II.

Do not use conventional automatic transmission fluid.

Likewise, do not assume every Subaru CVT uses the same fluid.

The correct CVT fluid provides the friction characteristics, lubrication, cooling, and hydraulic operation required by the chain-and-pulley system.

Do Not Reuse Old CVT Fluid

Always use fresh, correct-specification CVT fluid.

Old fluid from the failed transmission may contain:

• Metal particles
• Bearing material
• Friction debris
• Dirt
• Other contamination

As a result, reusing contaminated fluid can shorten the life of the replacement CVT.

Service the Front Differential Separately

The TR580 includes a front differential that uses separate gear oil.

Do not confuse the front differential lubricant with CVT fluid.

Before startup:

• Drain and inspect the front differential oil.
• Refill with the correct Subaru-specified gear lubricant.
• Check the drain and fill plugs.
• Inspect the axle seals for leakage.

Using the wrong fluid in either section can cause serious damage.

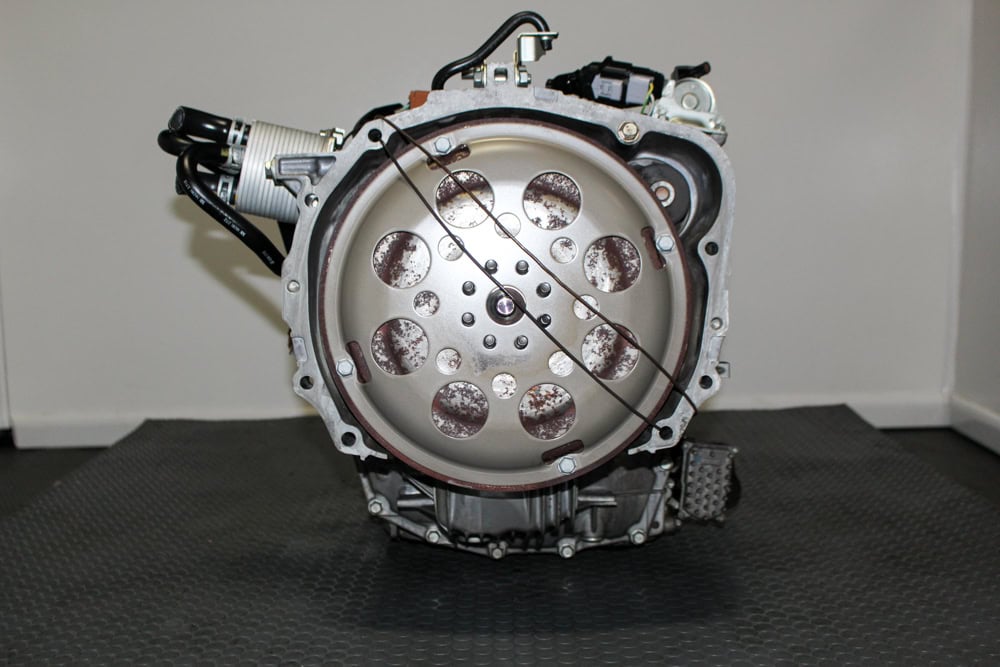

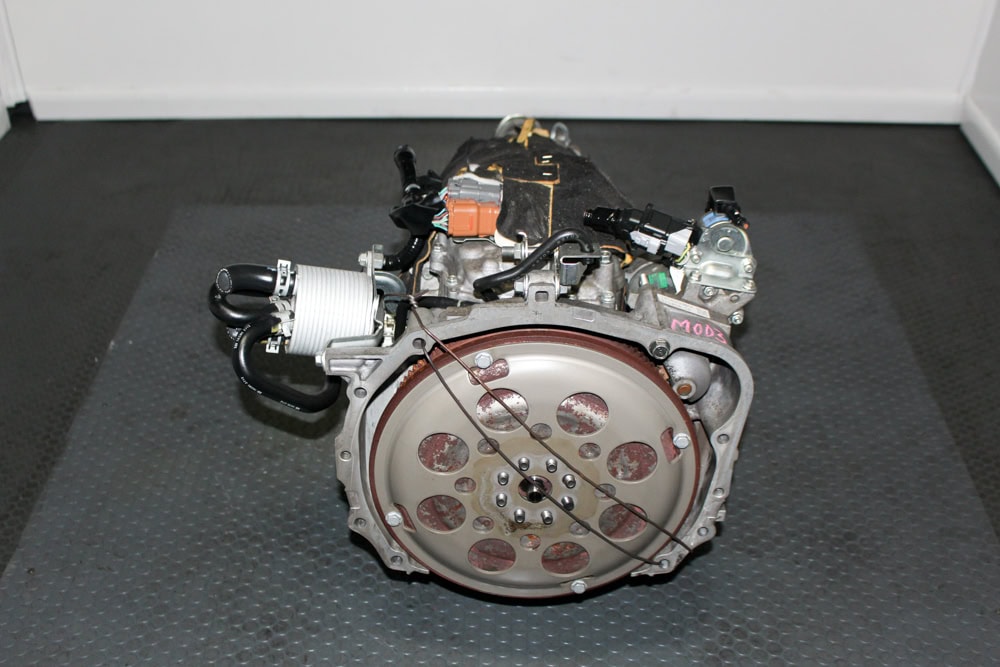

Inspect the Torque Converter

Next, inspect the torque converter and confirm compatibility.

Make sure the converter fully seats inside the transmission before installation.

Improper seating can damage the transmission pump during initial startup.

Therefore, never use the bellhousing bolts to pull the transmission forcefully against the engine.

Inspect Accessible Seals

Check accessible transmission seals while the CVT remains outside the vehicle.

Pay particular attention to:

• Axle seals
• Torque-converter seal
• Output areas
• Cooler fittings
• Case sealing surfaces

If you find leakage or deterioration, replace the affected seal before installation.

Doing this work now can prevent unnecessary labor later.

Inspect Engine and Transmission Mounts

Worn drivetrain mounts can cause excessive movement, vibration, or harsh engagement.

Therefore, inspect the engine and transmission mounts before installing the replacement CVT.

Replace any mount that shows cracking, separation, or excessive movement.

Scan the Vehicle Before Removing the Original CVT

Use Subaru-compatible diagnostic equipment before removing the failed transmission.

Record all stored diagnostic trouble codes.

Pay close attention to:

• CVT codes
• Valve-body codes
• Solenoid codes
• AWD codes
• Engine codes
• ABS/VDC codes
• Communication faults

Do not simply clear stored codes.

Instead, diagnose any fault that could affect the replacement transmission.

CVT Relearn and Initialization

After installing a replacement TR580, the vehicle may require CVT initialization, learning, or adaptation procedures.

Depending on the repair, Subaru-compatible diagnostic equipment may be necessary.

Therefore, follow the proper Subaru service procedure after installation.

Do not assume the mechanical installation alone completes the repair.

Verify the CVT Fluid Level Correctly

Correct fluid level remains essential.

After installation, add the proper Subaru CVT fluid according to the factory procedure.

Next, operate the transmission through the required selector positions.

Then verify the fluid level under Subaru’s specified temperature and operating conditions.

Finally, inspect the cooler fittings, axle seals, and transmission case for leaks.

Never guess the CVT fluid level.

Initial Startup Checklist

Before road testing:

• Confirm the 3.70 final-drive configuration.
• Verify CVT fluid level.
• Verify front differential fluid level.
• Check all electrical connectors.
• Inspect cooler-line connections.
• Check axle seals.
• Confirm Drive engagement.
• Confirm Reverse engagement.
• Check for warning lights.
• Listen for abnormal noises.
• Scan for diagnostic trouble codes.
• Inspect for fluid leaks.

If anything appears abnormal, diagnose the problem before driving.

Initial Road Test

Begin with a gentle road test.

During the drive, monitor:

• Drive engagement
• Reverse engagement
• Smooth acceleration
• Engine RPM behavior
• CVT response
• AWD operation
• Transmission temperature
• Shuddering
• Vibration
• Bearing noise
• Warning lights
• Fluid leaks

Avoid aggressive acceleration until you confirm normal operation.

Afterward, scan the vehicle again and inspect the CVT for leaks.

Common Signs of Subaru TR580 CVT Problems

A failing TR580 CVT may produce:

• Shuddering
• Delayed Drive engagement
• Delayed Reverse engagement
• CVT slipping
• RPM flare
• Whining noise
• Bearing noise
• Jerking
• Overheating
• AWD warning lights
• Transmission warning lights
• Fluid leaks
• Diagnostic trouble codes

However, these symptoms do not always mean the complete transmission has failed.

For example, valve-body problems, solenoids, torque-converter faults, incorrect fluid level, wiring problems, or electronic issues can produce similar symptoms.

Therefore, diagnose the vehicle properly before replacing the CVT.

Why Choose a Low-Mileage JDM TR580DHMAA?

A Japanese-import Subaru CVT can provide an OEM-based replacement option for a high-mileage or damaged original transmission.

Benefits include:

• Genuine Subaru OEM construction
• Low-mileage Japanese donor unit
• TR580DHMAA identification
• FB25 2.5L application
• Lineartronic CVT
• AWD configuration
• 3.70 final drive
• Individual inventory identification
• Inspection before sale
• 90-day limited warranty
• Nationwide shipping
• Installation available

Most importantly, purchasing by complete transmission code and final-drive ratio helps reduce the chance of receiving the wrong Subaru CVT.

Why Buy From J-Spec Auto Sports?

J-Spec Auto Sports has specialized in Japanese engines, transmissions, and drivetrain components for more than 20 years.

Our team supplies JDM engines, automatic transmissions, manual transmissions, and CVTs to repair facilities, enthusiasts, and vehicle owners throughout the United States.

Rather than operating as a general salvage yard, we focus specifically on Japanese engines and transmissions.

Individual Transmission Identification

This listing carries Item ID 250821 and TR580DHMAA identification.

That information helps customers and J-Spec Auto Sports staff identify the specific inventory unit during ordering and fitment verification.

Actual Product Photos

We use actual inventory photos whenever available.

As a result, customers can compare the physical transmission with their original unit before ordering instead of relying only on generic stock photographs.

Inspected JDM Inventory

Our team inspects used drivetrain inventory before offering it for sale.

In addition, J-Spec Auto Sports focuses on sourcing quality engines and transmissions directly from Japan.

Affordable Installation Available

Customers can also ask J-Spec Auto Sports about professional installation.

Contact us for current installation pricing and scheduling.

Nationwide Shipping

J-Spec Auto Sports ships JDM engines, transmissions, and drivetrain components throughout the continental United States.

Therefore, customers nationwide can purchase this Subaru Forester TR580DHMAA CVT.

Local Virginia Pickup

Local pickup is available from J-Spec Auto Sports in Henrico, Virginia.

Customers from Richmond, Central Virginia, Northern Virginia, Maryland, Washington D.C., and surrounding areas can also arrange pickup or ask about installation.

Shipping

J-Spec Auto Sports can prepare this Subaru Forester CVT for nationwide freight shipping.

Shipping costs depend on:

• Destination ZIP code
• Commercial or residential delivery
• Liftgate requirements
• Freight-terminal availability
• Delivery location

Before accepting delivery, inspect the pallet and transmission for visible freight damage.

If damage exists, document it with the carrier immediately.

90-Day Warranty

J-Spec Auto Sports backs this TR580DHMAA CVT with a 90-day limited warranty, subject to our current warranty terms and installation requirements. The live listing currently confirms the 90-day warranty.

Review the complete warranty policy before installation.

Also keep receipts for:

• Subaru CVT fluid
• Front differential gear oil
• Seals
• Cooler flushing
• Professional installation
• Diagnostic and relearn procedures

Frequently Asked Questions

What transmission does the 2011–2013 Subaru Forester 2.5L use?

Compatible 2011–2013 Forester 2.5L AWD applications can use the TR580 Lineartronic CVT family. This listing specifically carries the TR580DHMAA code and 3.70 final-drive configuration.

Is the TR580DHMAA a CVT?

Yes. The TR580DHMAA belongs to Subaru’s Lineartronic continuously variable transmission family.

What engine works with the TR580DHMAA?

This listing targets compatible Subaru Forester applications equipped with the naturally aspirated 2.5L FB25 boxer engine.

What is the final-drive ratio?

This transmission uses a 3.70 final-drive ratio.

Why does the 3.70 final drive matter?

Subaru’s AWD system requires correctly matched drivetrain ratios. Installing an incompatible transmission or rear differential can cause drivetrain binding and damage.

Will this fit a 2011 Subaru Forester?

It targets compatible 2011 Forester 2.5L AWD applications with the matching TR580DHMAA and 3.70 configuration.

Will it fit a 2012 Subaru Forester?

Yes, for compatible 2012 Forester 2.5L AWD applications when the original transmission and final-drive configuration match.

Will it fit a 2013 Subaru Forester?

It targets compatible 2013 Forester 2.5L AWD applications with the matching CVT configuration. Verify the original transmission code before ordering.

Will this transmission fit a Forester XT?

Do not assume so. Turbocharged Forester applications can use different CVT configurations, control strategies, and fluid specifications.

Is TR580DHMAA the same as TR580DHNAA?

Do not assume direct interchange. Although both belong to the TR580 family, Subaru suffix codes identify specific transmission configurations and production details.

Can I replace another TR580 code with this transmission?

Possibly, but only after confirming interchange. Match the complete transmission code, final drive, connectors, sensors, valve-body configuration, and vehicle information first.

What CVT fluid should I use?

Use the Subaru-specified fluid for the exact TR580 application. Subaru’s current guidance specifies Subaru CVTF-II for naturally aspirated TR580 applications.

Can I use regular automatic transmission fluid?

No. Use the correct Subaru Lineartronic CVT fluid.

Is the front differential fluid the same as CVT fluid?

No. The front differential uses separate gear lubricant. Never interchange CVT fluid and differential gear oil.

Should I flush the transmission cooler?

Yes. Thoroughly clean the cooler and transmission lines before installing the replacement CVT. Contamination from the failed transmission can damage the replacement unit.

Can I reuse the old CVT fluid?

No. Always install the replacement CVT with fresh, correct-specification fluid.

Does the CVT require a relearn?

A replacement TR580 may require initialization, learning, or adaptation procedures. Follow Subaru service procedures and use compatible diagnostic equipment when necessary.

Do I need to transfer parts from my original transmission?

Possibly. JDM-to-USDM differences may require transferring compatible sensors, switches, brackets, mounts, or other external components.

Is this transmission rebuilt?

No, unless specifically stated otherwise. This is a used, low-mileage JDM/OEM transmission rather than a rebuilt or remanufactured unit.

Does the transmission include a torque converter?

Only consider the torque converter included if the current product photos show it or the listing specifically states that it comes with the transmission.

Does this CVT have a warranty?

Yes. J-Spec Auto Sports provides a 90-day limited warranty, subject to current warranty terms.

Do you offer installation?

Yes. Affordable installation is available. Contact J-Spec Auto Sports for current pricing and scheduling.

Do you ship Subaru Forester transmissions nationwide?

Yes. J-Spec Auto Sports ships transmissions throughout the continental United States.

Can I pick it up locally?

Yes. Local pickup is available from J-Spec Auto Sports in Henrico, Virginia.

How should I verify fitment before ordering?

Provide your:

• Vehicle year
• VIN
• Engine information
• Complete original transmission code
• Rear differential/final-drive information
• Photos of the original transmission
• Photos of the electrical connectors

For the best fitment verification, compare the transmission case, connectors, sensors, valve body, axle connections, driveshaft connection, and 3.70 final-drive configuration.

Order Your JDM Subaru Forester TR580DHMAA CVT

If your 2011–2013 Subaru Forester needs a replacement CVT, this low-mileage JDM TR580DHMAA Lineartronic AWD transmission with a 3.70 final drive provides an OEM Subaru-based option for compatible FB25 2.5L applications.

J-Spec Auto Sports provides specific transmission identification, inspected JDM inventory, nationwide shipping, installation options, and a 90-day limited warranty.

Only one unit is currently available. Match the complete TR580DHMAA code and 3.70 final-drive configuration before ordering.
